High-Quality Metal Roofing Portable Standing Seam Machine
The High-Quality Metal Roofing Portable Standing Seam Machine is a fully movable cold bending forming equipment. It completely breaks the limitation that traditional large-scale equipment must be fixed in the workshop, integrating the tedious process of sheet production and transportation into the construction site, achieving "do it now, use it now".
This equipment can process various metal sheets such as color steel, galvanized steel, and aluminum coils. Through continuous rolling and cold forming technology, the coil steel raw materials are directly processed into standard portable standing seam roof panels. The equipment is only about 2.5 meters long and can be easily loaded into small trucks or standard containers for transportation, making it an ideal partner for roof contractors to enhance their competitiveness.
Core feature: Redefine the efficiency and accuracy of on-site construction
Compared with the traditional production mode, the High-Quality Metal Roofing Portable Standing Seam Machine has the following significant advantages:
1. Ultimate portability and flexibility
The device is designed to be compact and lightweight, and some models also have casters installed on the frame for easy short distance movement within the venue. More importantly, it can be directly installed on trucks, easily transferred to different construction sites, and even transported directly to the roof for operation through lifting equipment, greatly simplifying the construction process.
2. Efficient production capacity
The production efficiency of the equipment is extremely high, with a working speed generally reaching 8-15 meters per minute, and some high-speed models can even reach 15-25 meters per minute. By cooperating with the uncoiler and receiver, a complete on-site production line can be formed, which can complete the production of all roof panels in a very short time, greatly reducing the construction period.
3. Excellent molding accuracy and quality
The equipment adopts PLC control system and touch screen, which is intuitive to operate and can accurately control the length and quantity of the board. The roller material is mostly made of 45 # steel and plated with hard chromium, which is wear-resistant and corrosion-resistant. Its hydraulic power cutting system can ensure that the incision is smooth, without burrs or deformation, and the finished product is aesthetically pleasing. The use of core components from well-known brands such as Siemens and Omron ensures the long-term stable operation of the equipment.
4. Wide adaptability to materials and specifications
The equipment is capable of processing metal sheets with thicknesses ranging from 0.2mm to 1.2mm, and can produce roof panels with different widths (such as 150mm to 700mm) according to demand, meeting diverse project requirements.
5. Easy installation and operation
The equipment has a high degree of automation and is easy to operate. The produced roof panels often adopt self-locking (quick lock) or mechanical lock structures, which can be assembled and combined by themselves without the need for additional accessories such as nails, and can be installed quickly, firmly and reliably.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.45mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Square tube welded with steel panel
|
|||
|
Drive
|
Gear transmission
|
|||
|
Dimension(L*W*H)
|
2300*1500*1600(customize)
|
|||
|
Weight
|
1500kg
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
3KW
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
10-15m/min
|
The speed is adjustable
|
||
Pattern drawing：

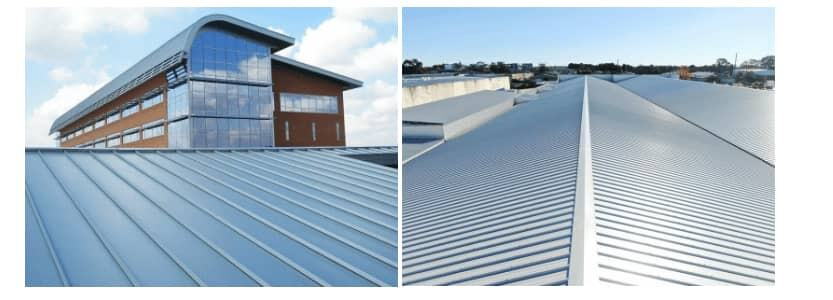

Application scenarios: From commercial landmarks to complex curved buildings
With its unique advantages, this equipment is widely used in various metal roof engineering projects:
• Large commercial and public buildings
Large buildings such as airports, sports centers, exhibition centers, and train stations have extremely high requirements for waterproofing, wind resistance, and aesthetics of their roofs. The High-Quality Metal Roofing Portable Standing Seam Machine can produce ultra long and seamless panels on site, effectively improving the overall integrity and waterproof performance of the roof.
• Complex and irregular roof structures
For roofs with unique shapes such as conical, curved, and hyperbolic paraboloids, the advantages of this equipment are fully demonstrated. It can flexibly produce various non-standard sized short panels on site, perfectly splicing complex building surfaces.
• Residential and villa projects
For high-end residential or villa projects, this equipment can quickly produce high-quality panels, shorten the construction period, and reduce the impact on surrounding residential areas. At the same time, it can use 220V single-phase electricity and operate smoothly in ordinary residential areas.
Contact Us：
The Quality Metal Roofing Portable Standing Seam Machine is becoming a standard configuration for modern metal roof construction due to its portability, efficiency, precision, and flexibility. It not only helps contractors reduce costs, minimize delays, and take control of panel production, but also serves as a powerful weapon for dealing with complex designs and strict deadlines.
If you are looking for a metal roofing solution that improves project efficiency and ensures engineering quality, Quality Metal Roofing Portable Standing Seam Machine is undoubtedly your ideal choice.
