C Channel Roll Forming Machine with PLC Controlled
Under the wave of green building and prefabricated decoration, light steel keel has become the "standard skeleton" for indoor partition walls and ceiling systems. Faced with the growing market demand, a high-performance and automated C Channel Roll Forming Machine with PLC Controlled is your weapon to seize the opportunity in the building materials market.
Equipment Introduction: Fully automatic cold bending, seamless completion

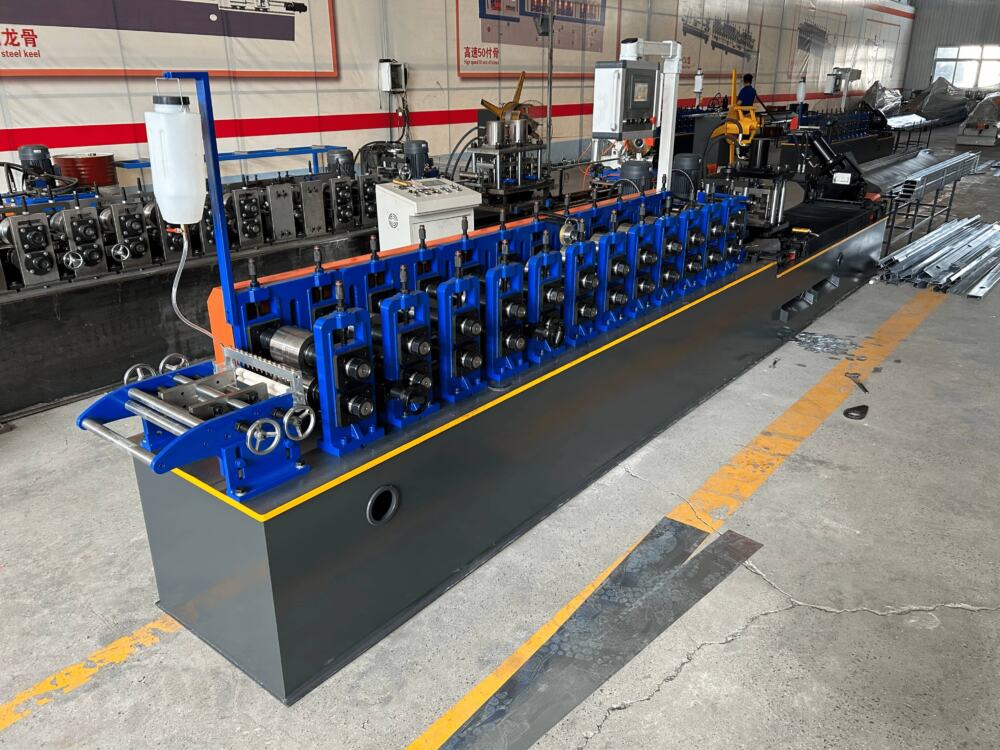

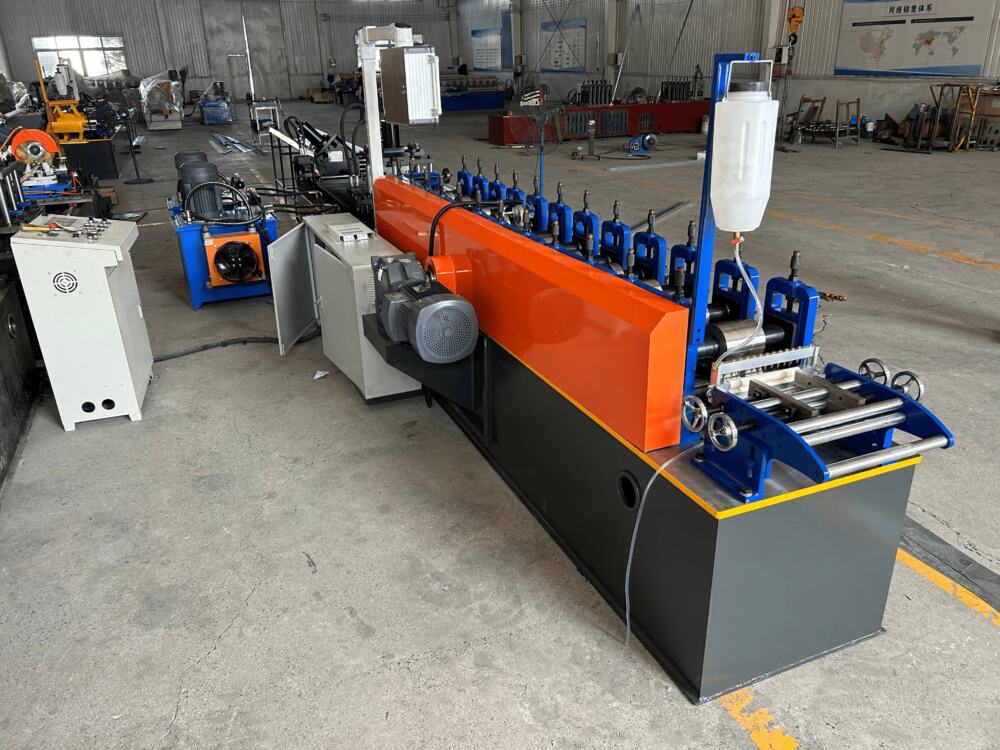

The C Channel Roll Forming Machine with PLC Controlled is an efficient automated equipment specifically used for producing C-type light steel keels for construction, such as vertical keels for partition walls and main and auxiliary keels for suspended ceilings. It integrates the processes of feeding, cold bending and rolling, precise punching, cutting to length, and automatic feeding, and is controlled by a PLC computer system throughout the entire process.
Simply load the galvanized steel strip into the feeding rack, set the parameters, and the equipment can continuously produce finished keels with precise cross-sections, standard hole positions, and smooth cuts. The daily production can reach tens of thousands of meters, completely eliminating inefficient manual cutting and bending.
Product Attributes :
|
Series
|
Details
|
Parameter
|
Comment
|
|
Material
|
Raw material
|
Steel
|
Customer confirmed
|
|
Material thickness
|
0.4-0.6 mm
|
||
|
Decoiler
|
Structure
|
Manual passive type
|
The standard one to match the production line
|
|
Single head type
|
|||
|
Loading capacity
|
1.5 Tons
|
||
|
Coil inner diameter
|
450-550 mm
|
||
|
Roll forming machine |
Guiding device
|
Placed on the machine by seller
|
|
|
Rolling shaft material
|
45# STEEL
|
|
|
|
Shaft diameter
|
40 mm
|
|
|
|
Roller material
|
GB-Cr12
|
|
|
|
Rolling station
|
9 stations
|
|
|
|
Work speed
|
25 m/min
|
|
|
|
Machine structure
|
Vertical memorial arch frame
|
|
|
|
Machine basic frame
|
Steel plate welded
|
|
|
|
Bearing
|
Roller bearing
|
Famous brand of Harbin
|
|
|
Work power
|
4 kw
|
|
|
|
Transmission
|
By gear
|
With cover
|
|
|
Safety cover
|
available
|
|
|
|
Appearance
|
Good appearance with no burrs in steel body nor traces of rust or defects in painting.
Good electrical and hydraulic cable organization Car painting make the machine more glossy |
We confirm each detail can match the standard, ensure the machine is 100% new!
|

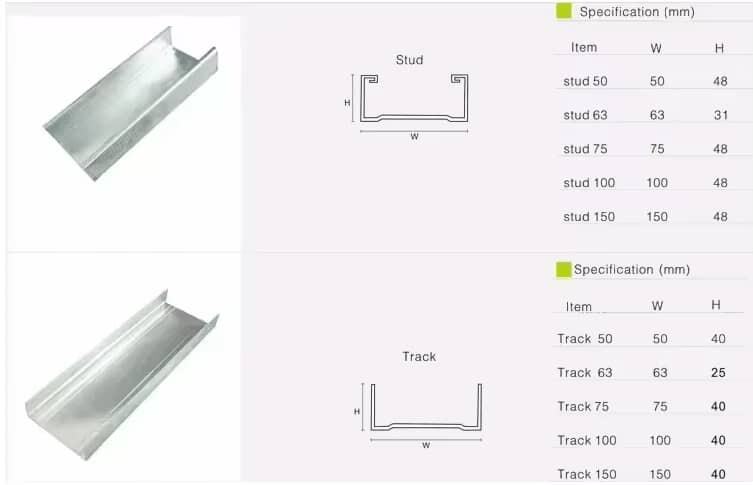

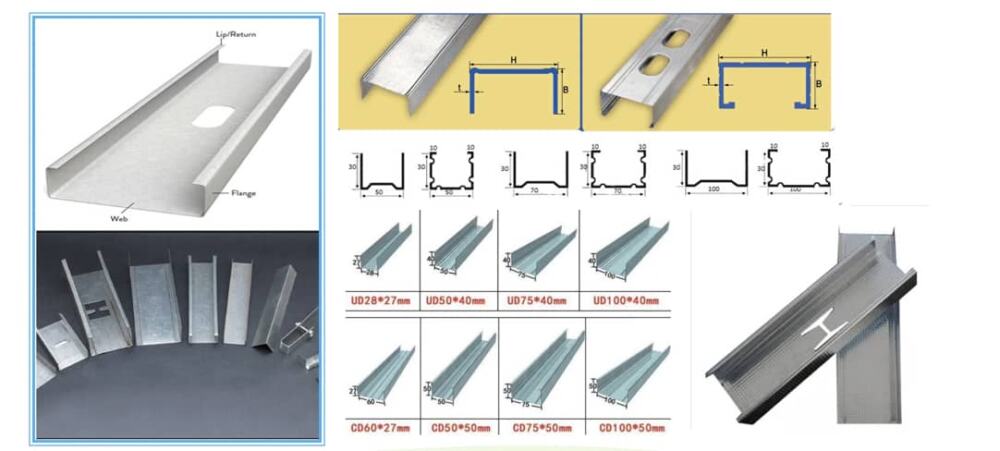

Pattern diagram：
Core features: Four major advantages, creating extraordinary quality
1. Precision rolling mill, more precise one-time forming
The rolling mill is made of high-quality chromium molybdenum steel (such as Cr12MoV), which has undergone CNC precision machining and vacuum heat treatment, resulting in high surface hardness and strong wear resistance. Multi pass progressive roller pressing design ensures consistent cross-sectional dimensions of the keel, smooth surface without scratches, and guarantees finished product quality from the source.
2. Intelligent control, saving people, effort, and worry
Equipped with touch screen and programmable controller, supporting automatic length calculation and quantitative cut-off. The servo motor drives the feeding, and the length error can be controlled within ± 0.5 millimeters. The operation interface is intuitive and simple, and only one person is needed to easily monitor the entire production line, greatly reducing labor costs.
3. Stable punching and high-speed production without lagging

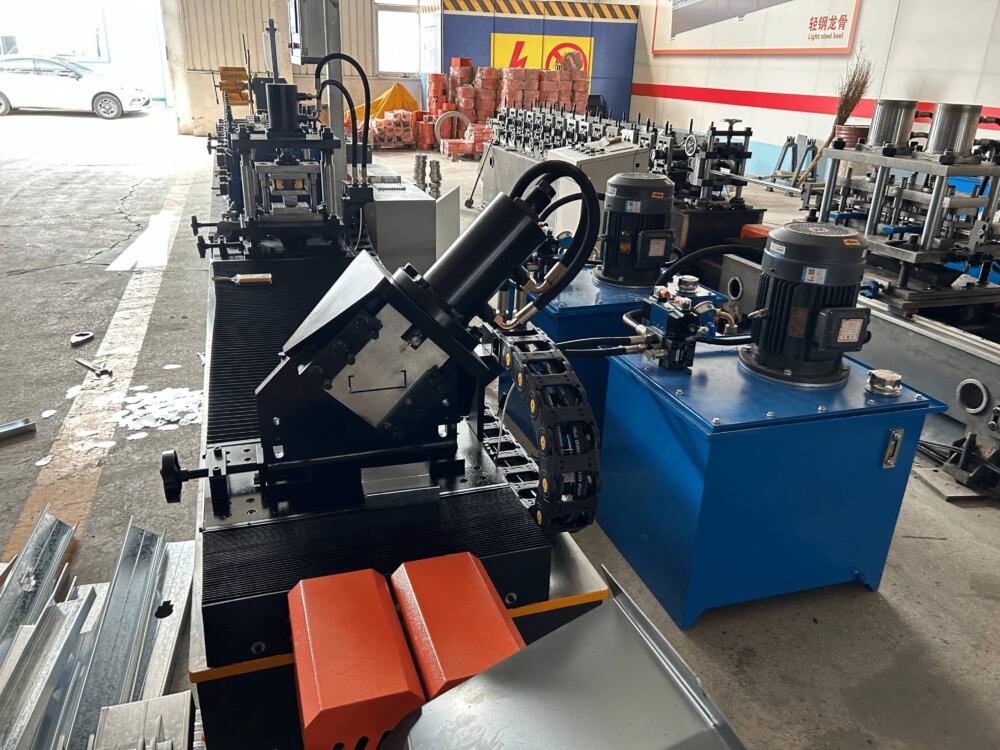

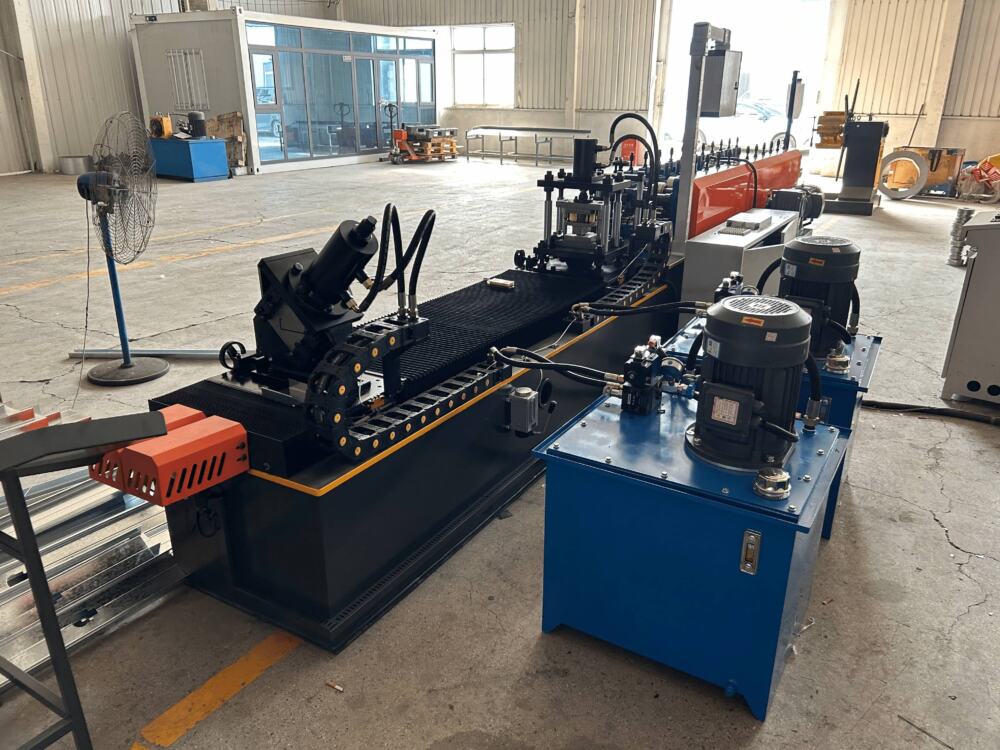

The punching mold adopts hydraulic or mechanical structure, with adjustable hole spacing and precise punching position without offset. The hydraulic cutting system is equipped with high-strength alloy cutting tools, with neat and burr free cuts to ensure tight connection of the keel. The entire machine frame has undergone annealing and stress relief treatment, and high-speed operation remains stable and low-noise.
4. Flexible customization, one machine with multiple uses for greater flexibility
According to customer needs, different specifications (50-150mm wide) and hole types of rolling mill molds can be customized to achieve the switching of multiple keel products on one machine. Whether you produce national, European or special engineering keels, we can provide exclusive solutions.
Application scenario: Buildings can support the skeleton wherever it goes
The light steel keel produced by the C-type keel machine has a wide range of applications:

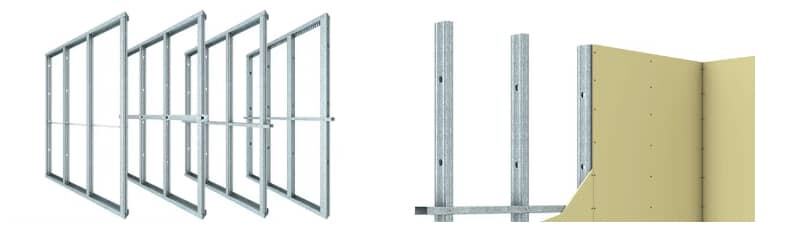

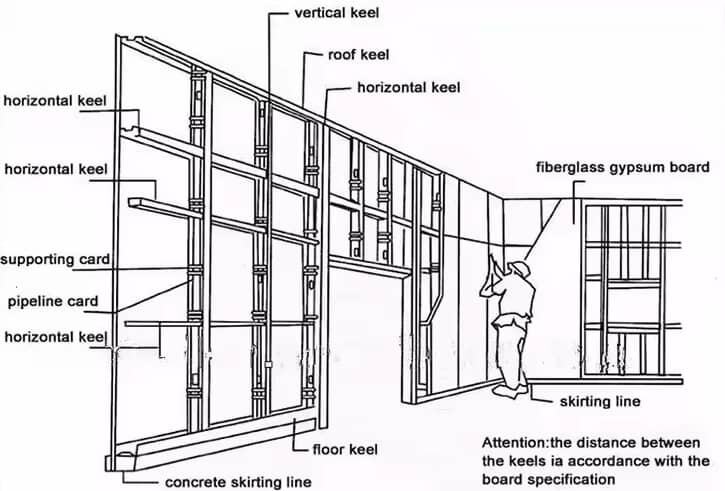

• Indoor partition wall system:
Non load bearing partition wall skeleton for office buildings, hotels, hospitals, and residential buildings, with fast construction and light weight.
• Ceiling engineering:
The load-bearing keel and cladding keel for various types of flat and shaped ceilings, facilitating pipeline laying.
• Light steel villas and prefabricated buildings:
as vertical supports for walls and roof trusses, combined with structural panels to form a lightweight structure that is earthquake resistant and wind resistant.
• Purification plant and old building renovation:
used for separating clean rooms, adding floors to old buildings, reducing wet operations, and effectively reducing building loads.
From landmark office buildings to prefabricated farmhouses, from large factories to personalized home decoration, C-shaped keel is the "hard bone" that supports modern spaces, and a reliable keel machine is the "mother machine" that continuously manufactures this skeleton.
Contact Us：
Invest in good equipment and reap a good future.
We provide a full process service from equipment selection, mold design to installation and debugging, and operation training. If you would like to learn more about the model details or customized solutions, please feel free to contact us at any time for on-site inspection, machine testing and sampling. Let the efficient and durable C-shaped keel machine help you light up and win in the new field of building materials!
