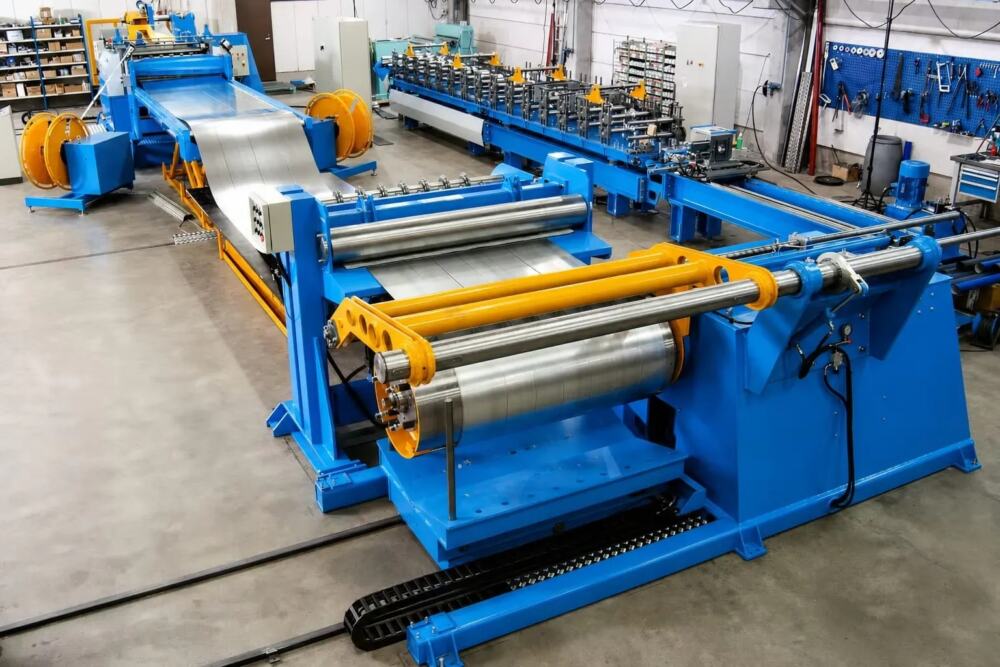

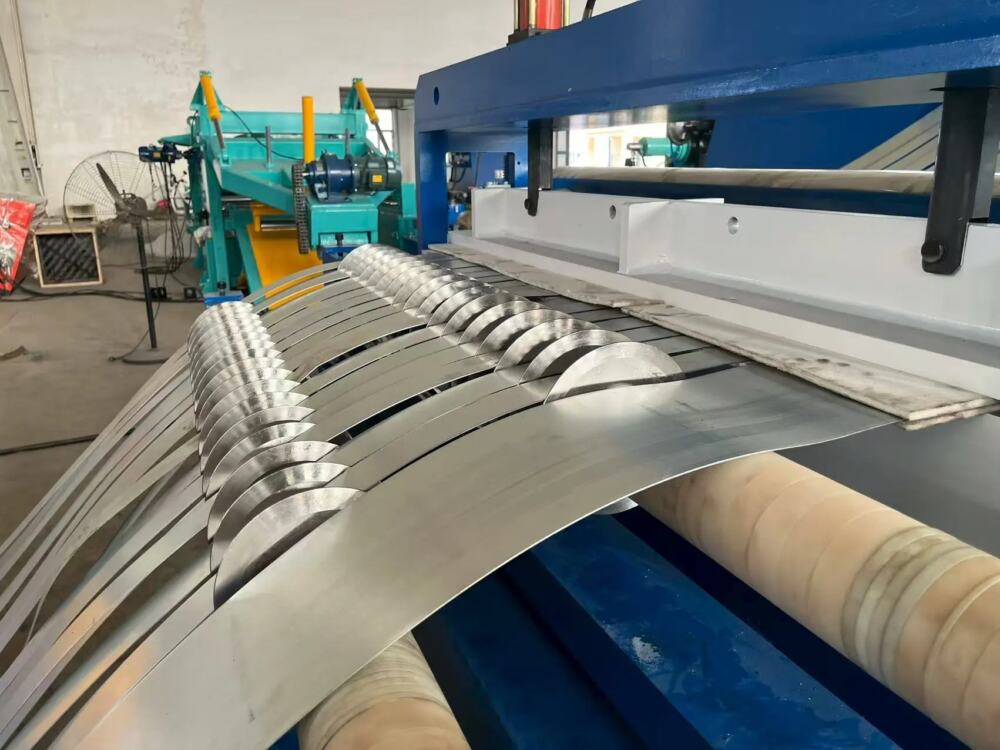

Color Steel Coil Galvanized Steel Coil Thin Material Combined Slitting Line Machine

In industries such as color coated sheet, galvanized sheet, home appliance panels, building roofs and walls, metal packaging, ventilation ducts, shelves, decorative materials, etc., the longitudinal cutting and slitting of steel coils is a key process for connecting raw materials and finished product processing. Thin colored steel coils and galvanized steel coils are prone to scratches, indentations, edge burrs, uneven winding, and unstable tension during the slitting process; Traditional single purpose longitudinal cutting lines are difficult to meet the diverse needs of color coated coils and galvanized coils, thin materials and conventional materials. We have launched Color Steel Coil Galvanized Steel Coil Thin Material Combined Slitting Line Machine， The color steel coil/galvanized steel coil thin material combined longitudinal cutting and slitting production line is designed specifically for high-speed, precision, and low damage slitting of thin metal coil materials. It integrates unwinding, leveling, tension control, longitudinal cutting and slitting, edge wire processing, winding, and automatic unwinding, helping customers achieve multi variety, high-efficiency, and stable production.

Product Attributes :

Whole line composition (optional as needed)：

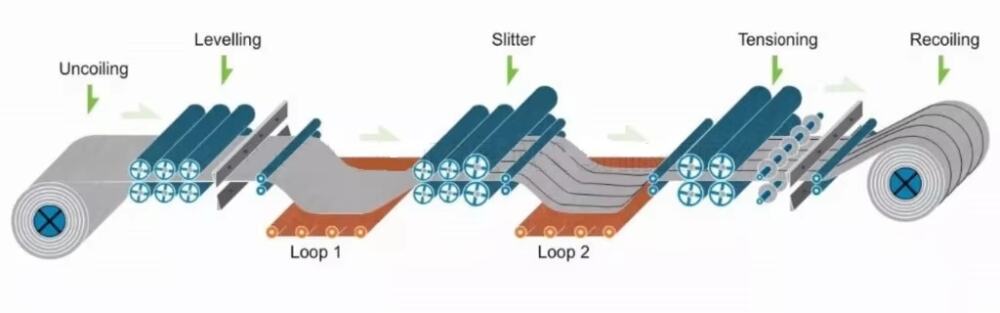

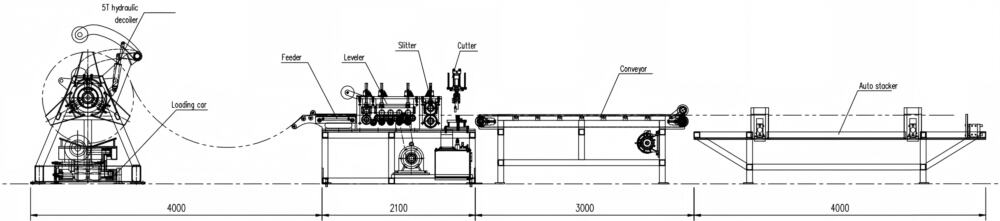

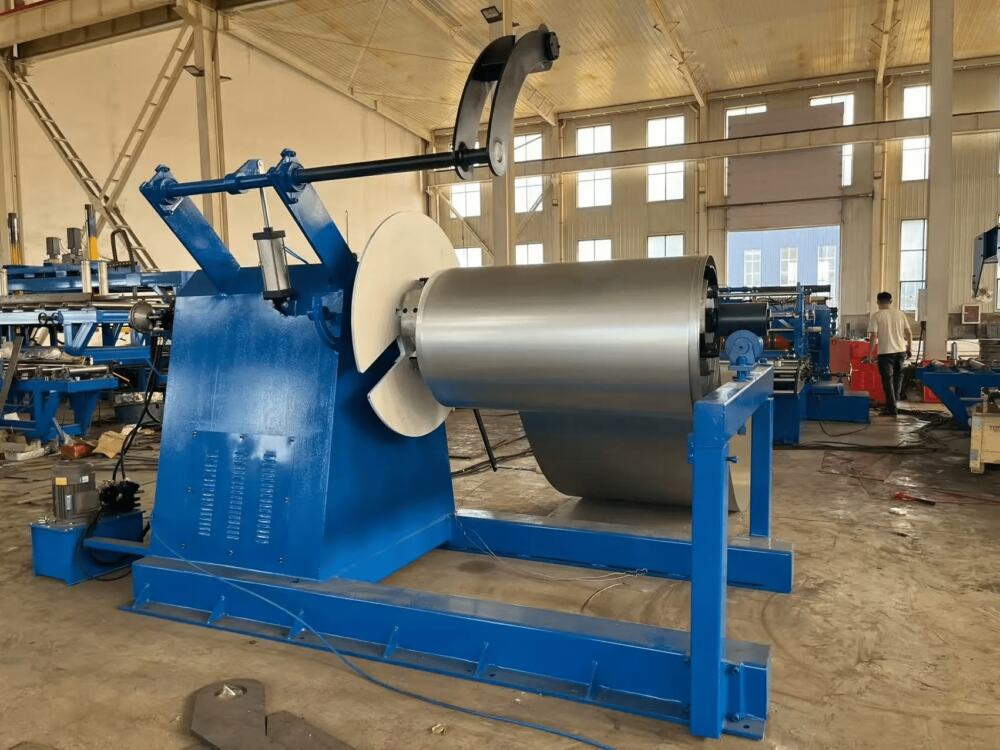

Uncoiler → Leveling machine → Tension control → Correction device → Longitudinal cutting and slitting host → Edge wire processing → Tension station → Winder → Automatic unwinding/stacking

Flexible configuration based on customer materials, thickness, slitting width, winding requirements, and automation level.

Applicable materials and typical specifications：

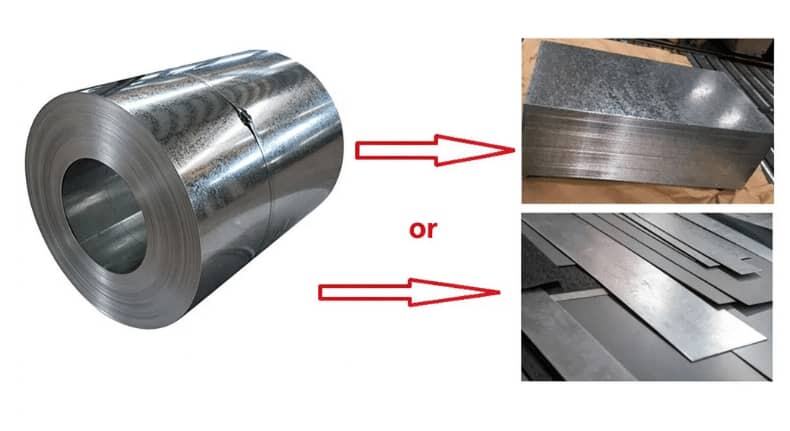

Suitable for color coated steel coils, galvanized steel coils, cold-rolled steel coils, aluminum coils, etc.
Typical thickness range: 0.2-1.0 mm (mainly for thin materials, can be expanded as needed); Typical width range: 300-1250 mm; slitting width and winding inner diameter can be customized according to customer requirements.
The number of segments, production speed, tension control, and automation configuration can be customized according to product and production capacity requirements.

Application Industry：

Color coated sheet processing, galvanized sheet processing, home appliance panels, building roofs and walls, metal packaging, ventilation ducts, storage shelves, decorative materials, metal furniture, automotive parts, identification signs, etc.

Core advantages: Specialized for thin materials, flexible combination, precise slitting

1.Specially designed for thin materials to reduce scratches and indentations
In response to the characteristic of easy damage to the surface of thin materials such as color steel coils and galvanized steel coils, the roller surface material and surface treatment are optimized, and protective material guides, tension control, and scratch prevention devices are configured to reduce surface scratches, indentation, and edge damage, and maintain the quality of the color coated surface and galvanized layer.

2.High speed precision longitudinal cutting, stable slitting quality
Using precision blade shaft, high-precision circular blade and rigid frame, combined with servo/variable frequency drive and stable tension control, the slitting width is accurate, the edge burrs are small, and the straightness of the strip is good, suitable for high-speed continuous slitting of thin materials.

3.Combination design, flexible adaptation of color steel/galvanized/thin materials
It can handle materials such as color coated steel coils, galvanized steel coils, cold-rolled steel coils, aluminum coils, etc., balancing thin materials and conventional thickness. By adjusting the blade axis configuration, tension parameters, and winding mode, we can achieve flexible production of multiple varieties and improve equipment utilization.

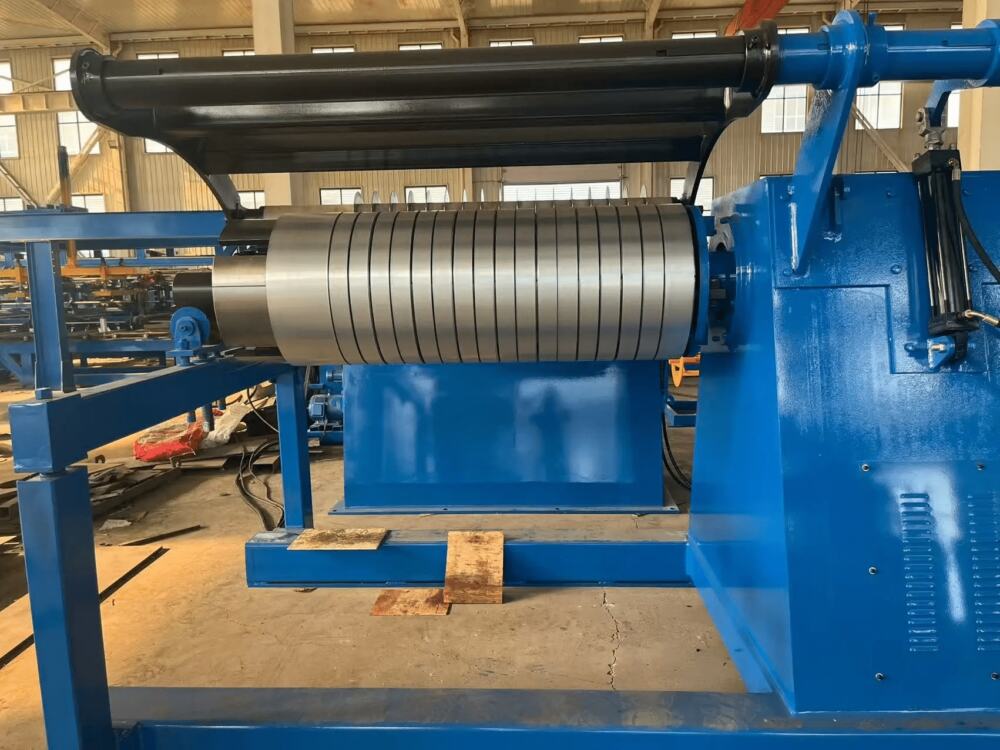

4.Neat winding, stable tension
The winding machine adopts independent drive and tension closed-loop control, combined with correction and pressure roller devices, to ensure neat winding and consistent tightness, reducing tower shape, loose winding and edge misalignment, and facilitating subsequent unwinding and processing.

5.Intelligent control, user-friendly operation
PLC+touch screen control system, equipped with tension, speed, length, strip parameter setting and formula storage, fault alarm, production statistics and remote technical support interface, reducing dependence on skilled operators.

Common problem:

Q1: Is this longitudinal cutting line suitable for color steel coils and galvanized steel coils?
A: Suitable. The equipment is optimized for the surface damage characteristics of color coated and galvanized sheet thin materials, equipped with protective material guides and tension control to reduce scratches and indentations.

Q2: How thin material can be processed?
A: The typical range of thin materials starts from 0.2 mm, and the specific thickness needs to be determined based on the material strength, strip width, winding requirements, and configuration. It can be customized according to needs.

Q3: How to ensure the accuracy of slitting and the neatness of winding?
A: Adopting precision blade shaft and circular blade, stable tension closed-loop control, correction and pressure roller device to ensure accurate slitting width, small edge burrs, and neat winding.

Q4: Is it troublesome to change specifications?
A: By adjusting the blade axis configuration, tension parameters, and formula storage, it is convenient to change models and suitable for alternating production of multiple varieties, small batches, and large batches.

Q5: Does it support automatic unwinding and online production?
A: Support. Optional automatic unwinding, stacking, conveyor line and upper computer management system to achieve continuous production with fewer personnel.

Q6: How to submit AFQ?
A: Please contact us by phone, email, or official website form, indicate "AFQ inquiry", and attach material, thickness, width, slitting requirements, and production capacity targets. We will provide you with exclusive solutions and quotations as soon as possible.

Submit AFQ immediately to obtain the thin material longitudinal cutting and slitting production plan

If you are looking for a truly efficient, precise, and stable Color Steel Coil Galvanized Steel Coil Thin Material Combined Slitting Line Machine， Welcome to contact us.
Submit AFQ (Ask For Quote), and our engineers will recommend suitable models, blade axis and round blade configurations, and automation solutions to help you produce color steel coils and galvanized steel coils in a faster, more accurate, and worry free manner.
