High-Speed Steel Coil Cut-to-Length Line with Uncoiler, Leveler and Stacker

Looking for a reliable cut-to-length solution that keeps pace with demanding steel processing schedules?
Our High-Speed Steel Coil Cut-to-Length Line with Uncoiler, Leveler and Stacker is engineered for manufacturers, steel service centers, and metal fabricators who need fast, accurate, and automated production of flat steel sheets from coils — with minimal manual intervention.

Whether you are processing cold-rolled steel, galvanized steel, stainless steel, or aluminum coils, this integrated line delivers smooth uncoiling, precise leveling, high-speed cutting, and neat stacking — all in one continuous workflow.

Product Attributes :



No.	Name	Parameters
1.	Control model	PLC control
2.	Materials	Black steel (carbon steel), GI, PPGI, Normal Stainless steel (Not include mirror SS, thickness less than 1.5mm)
3.	Thickness	0.5-3 mm
4.	Width	500-1250 mm
5.	Coil I.D.	Φ480-520 mm
6.	Coil O.D.	≤1500 mm
7.	Coil weight	≤15T
8.	Diameter of leveling roller	84mm
9.	Distance of leveling roller	90 mm
10.	Number of leveling roller	17 pcs
11.	Number of pinch-roller	2 pcs
12.	Material of leveling roller	GCr15
13.	Material of cutter blade	LD
14.	Line Speed	≤60 m/min(without cutting time)

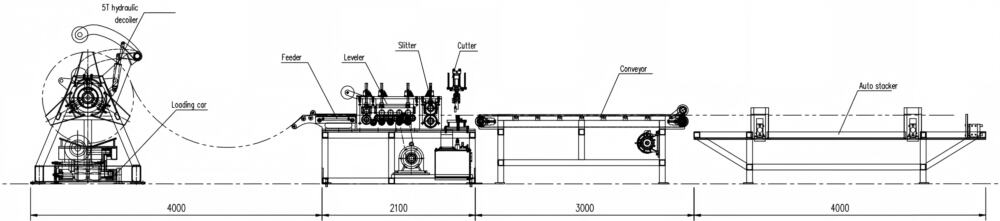

Layout of the whole production line ：



Key Features & Benefits：

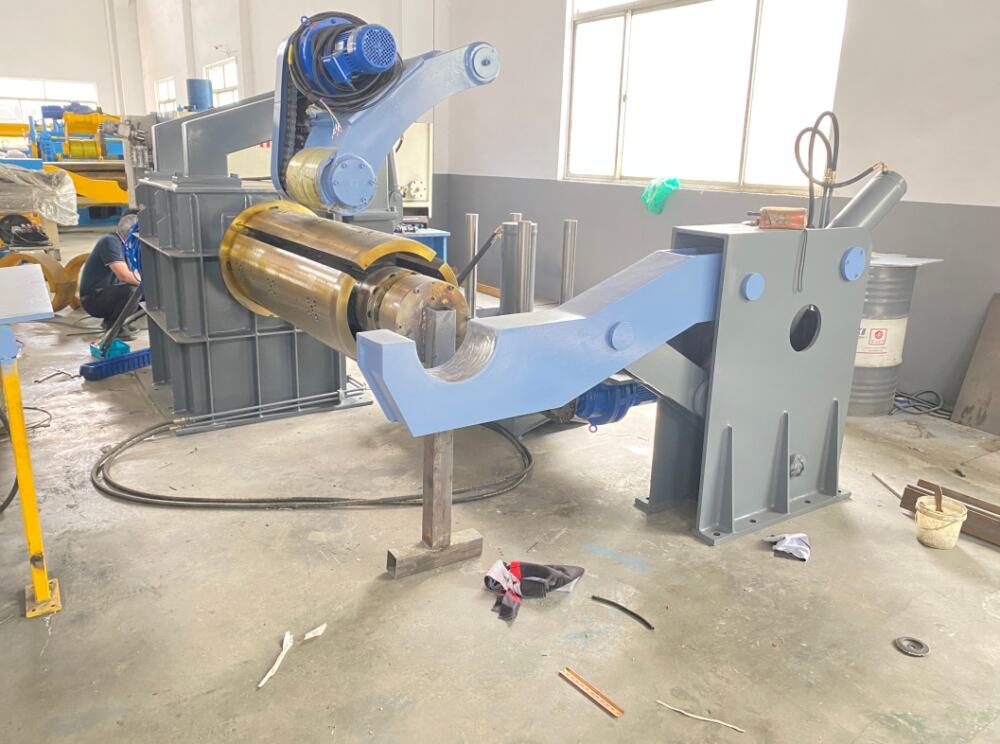

1. Integrated Uncoiler, Leveler & Stacker for Seamless Production

The complete line is designed as a synchronized system. The uncoiler feeds material at the right tension, the precision leveler flattens the strip, and the stacker collects finished sheets neatly — reducing handling time and improving overall efficiency.

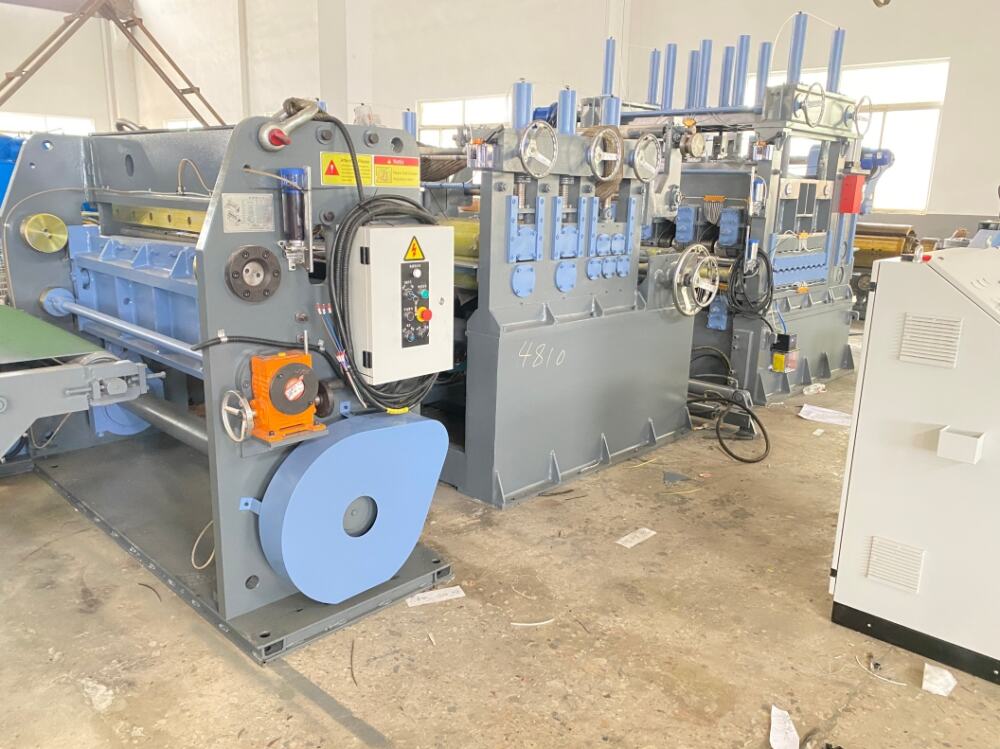

2. High-Speed Cutting with Accuracy

The high-speed cutting unit is built to deliver fast, repeatable cuts with tight length tolerances. This helps reduce material waste and ensures every sheet meets your specification. The cutting system can be configured for different materials and thicknesses.

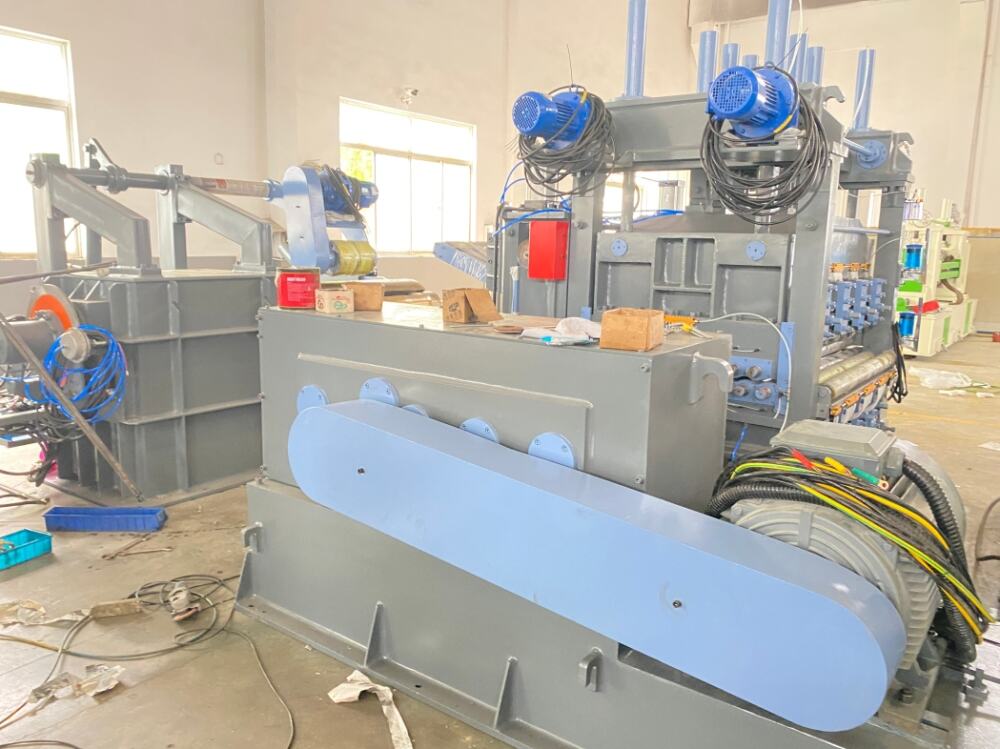

3. Precision Leveling for Flat, High-Quality Sheets

The leveler uses carefully arranged rollers to eliminate coil defects and internal stresses. The result is flat, dimensionally stable sheets that are ready for downstream processing such as laser cutting, stamping, bending, or welding.

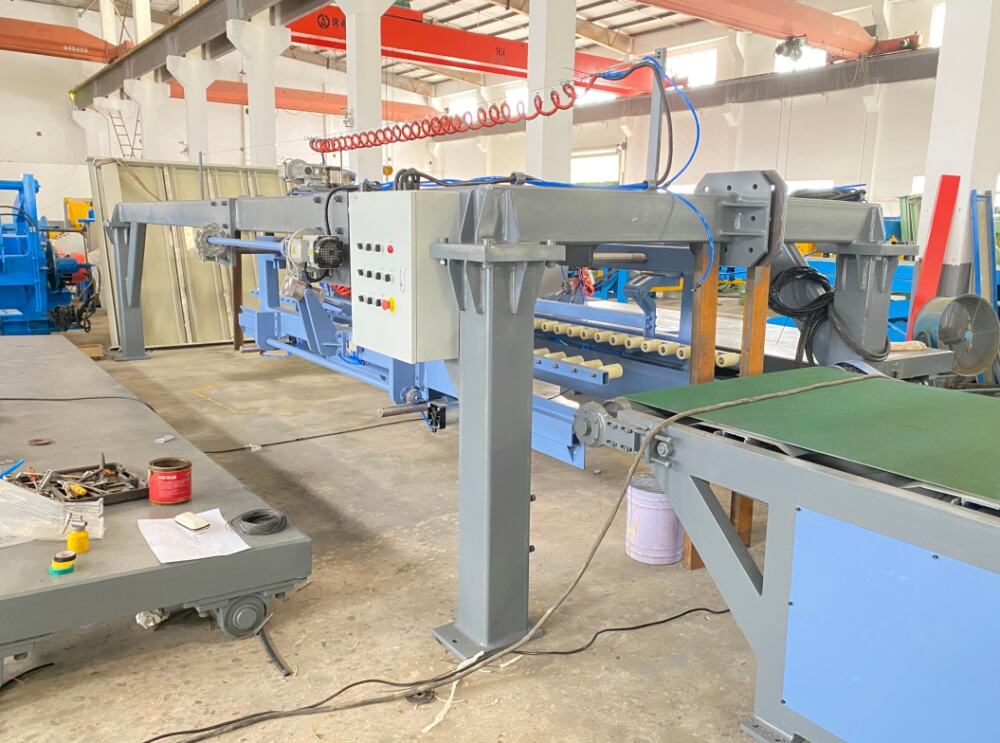

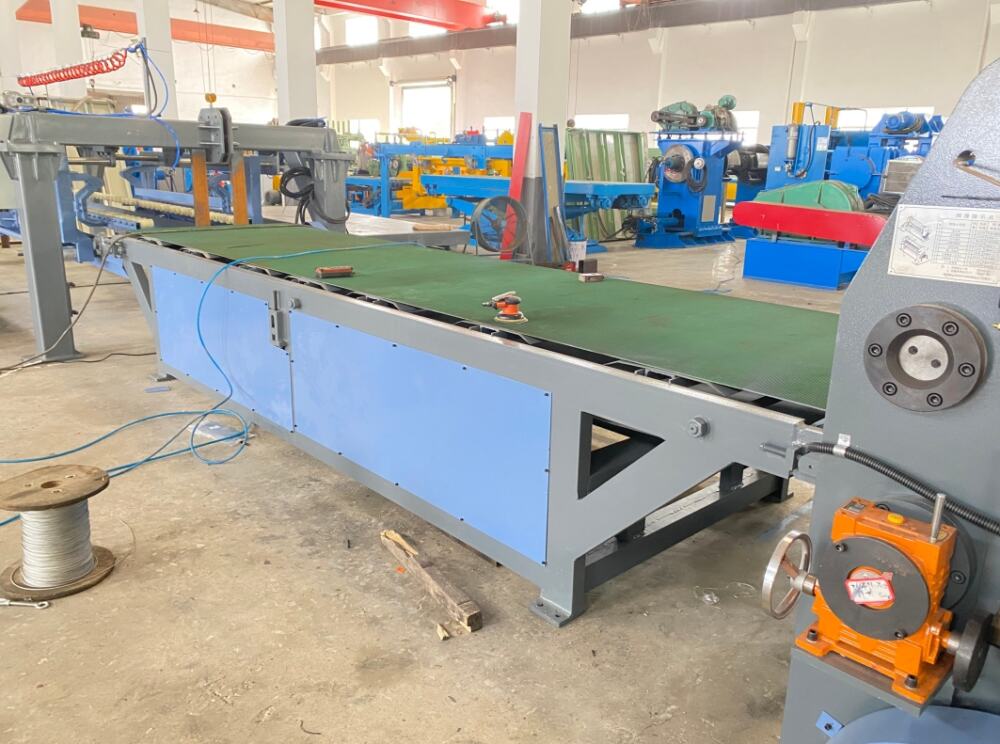

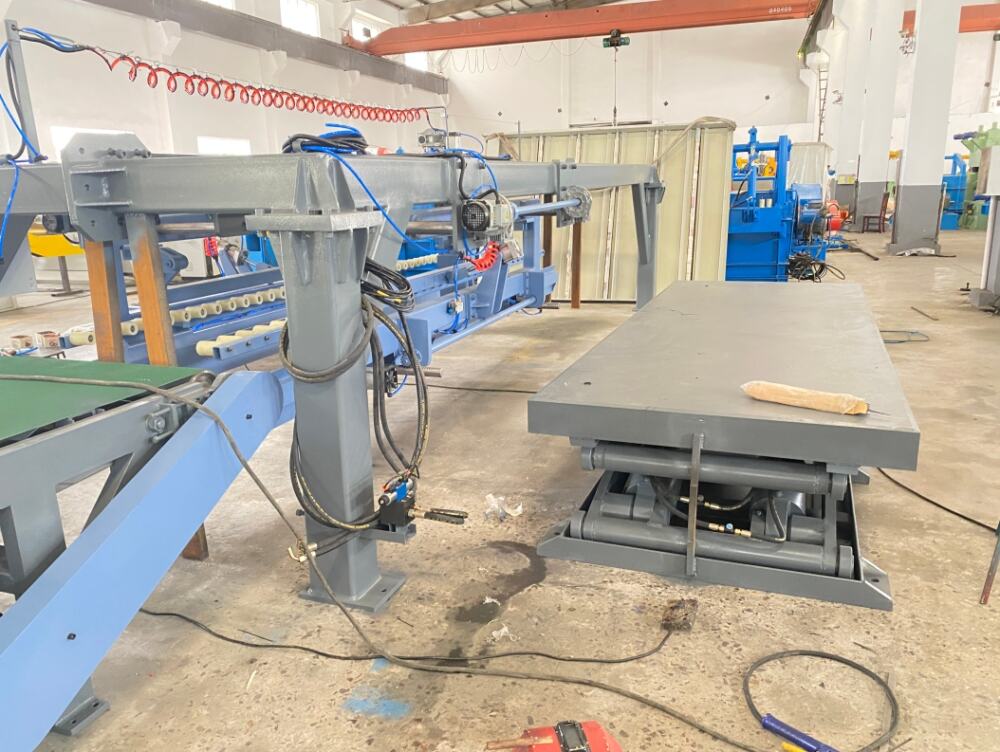

4. Automatic Stacking for Labor Savings

The stacker receives cut sheets and stacks them evenly and efficiently. This reduces manual labor, prevents surface damage, and makes packaging and transportation faster and safer. Stacking height and alignment can be adjusted to suit your production needs.

5. PLC Control & User-Friendly Operation

The line is equipped with a PLC control system for easy setting of sheet length, quantity, speed, and other parameters. The touch screen interface allows operators to manage batch production, monitor line status, and reduce human error.

6. Robust Construction & Reliable Components

Built with a heavy-duty frame, quality rollers, and reliable hydraulic, pneumatic, and electrical components, the line is designed for continuous industrial operation. Key parts are selected for durability and low maintenance.



Applications：

This high-speed cut-to-length line is widely used in:

• Steel service centers

• Metal stamping and fabrication

• Automotive parts manufacturing

• Home appliance production

• Construction and building materials

• HVAC and duct manufacturing

• Electrical and electronic enclosures

• General sheet metal processing

It is ideal for producing flat sheets from coils for further processing or direct delivery.

Why Choose Our High-Speed Cut-to-Length Line?

• Complete integrated solution: Uncoiler, leveler, cutter, and stacker in one synchronized line.

• High productivity: Fast line speeds and automatic operation reduce cycle times.

• Precision and consistency: Accurate leveling and cutting ensure high-quality sheets.

• Labor savings: Automatic stacking and PLC control minimize manual handling.

• Durable and reliable: Industrial-grade construction for long-term performance.

• Custom engineering: Tailored configurations to match your material and output goals.

• Factory support: Technical guidance, installation assistance, and after-sales service.

Upgrade Your Steel Processing Today：

In today’s competitive metal processing market, speed and precision are essential. The High-Speed Steel Coil Cut-to-Length Line with Uncoiler, Leveler and Stacker helps you turn coils into high-quality flat sheets efficiently, accurately, and profitably.

Contact us today to discuss your coil specifications, sheet requirements, and production capacity. Our team will provide a customized solution, detailed quotation, and technical support to help you build a smarter, faster production line.

From coil to stacked sheet — let’s make your production line more efficient, together.
