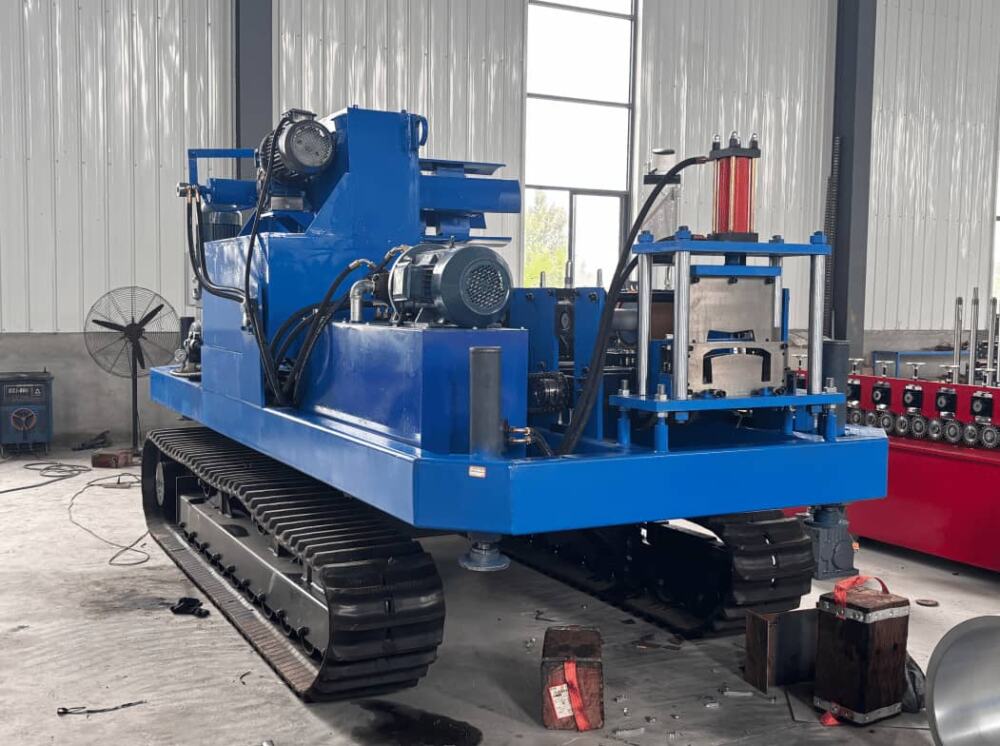

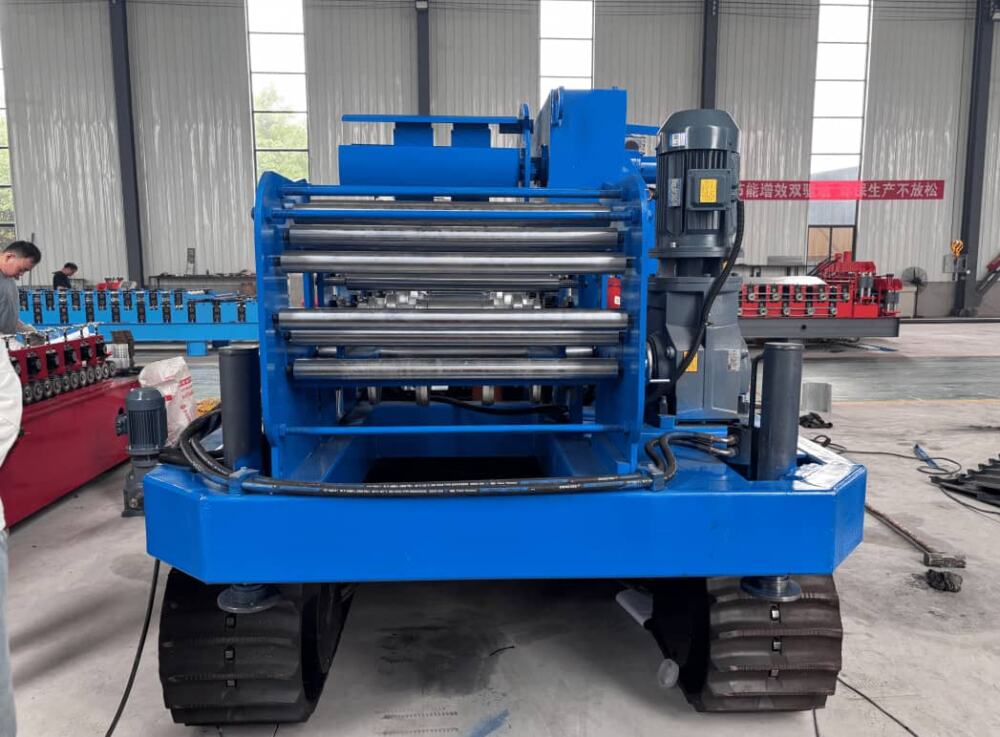

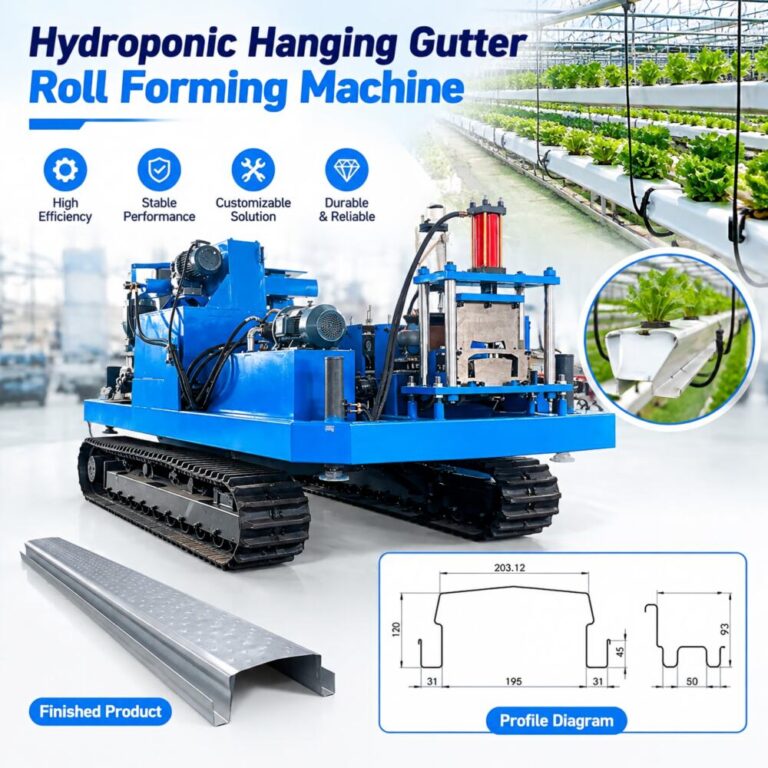

Hydroponic Hanging Gutter Roll Forming Machine for Greenhouse Cultivation Systems

In modern greenhouses, plant factories, hydroponic vegetable and strawberry cultivation, vertical agriculture, and soilless cultivation systems, the hydroponic hanging gutter is a core component for supporting crops, delivering nutrient solutions, and regulating the root environment. The cross-sectional accuracy, hanging strength, drainage smoothness, corrosion resistance, and surface quality of the hydroponic gutter directly affect crop growth uniformity, system lifespan, and installation efficiency. Traditional processing methods often face problems such as unstable forming, punching position deviations, numerous burrs on the cut edges, damage to the galvanized layer, and limited production capacity. Our Hydroponic Hanging Gutter Roll Forming Machine for Greenhouse Cultivation Systems is specifically designed for high-speed, precision, and continuous production of hydroponic hanging gutters made of galvanized steel and aluminum sheets. It integrates uncoiling, leveling, servo feeding, punching, forming, length cutting, and material collection, helping customers achieve mass production of high-strength, corrosion-resistant, and dimensionally accurate hydroponic gutters.

Product Attributes :

1.Formed Material	PPGI,GI,AI	Thickness:0.6-0.8mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	12 rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel

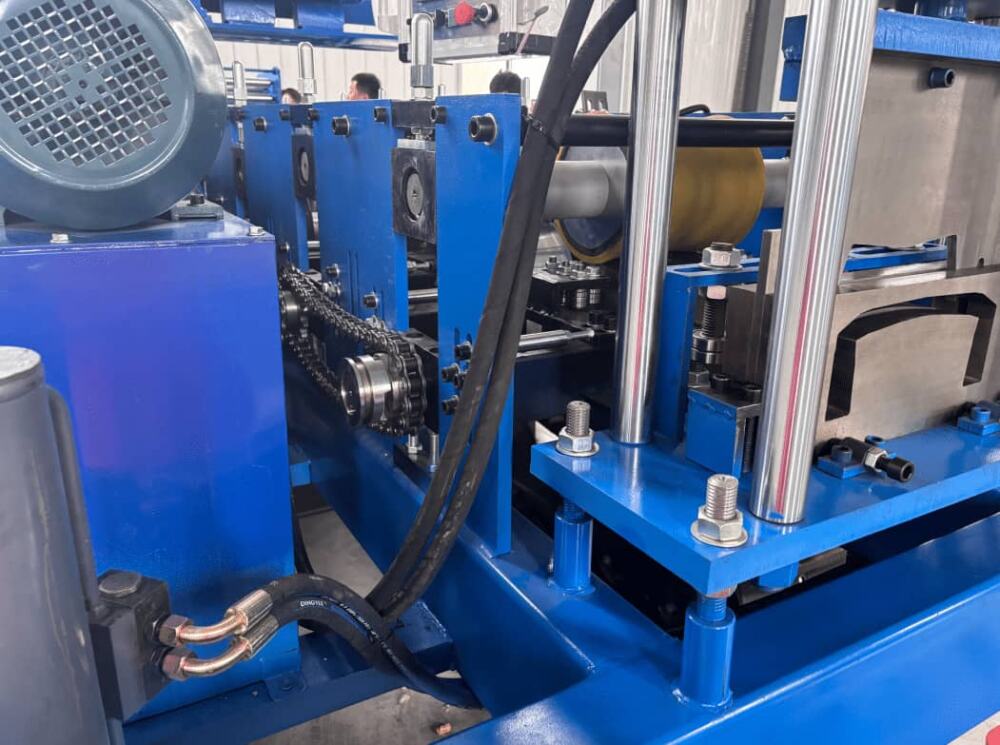

	Drive	Chain transmission
	Dimension(LWH)	850010001200(customize)
	4Weight	4 T

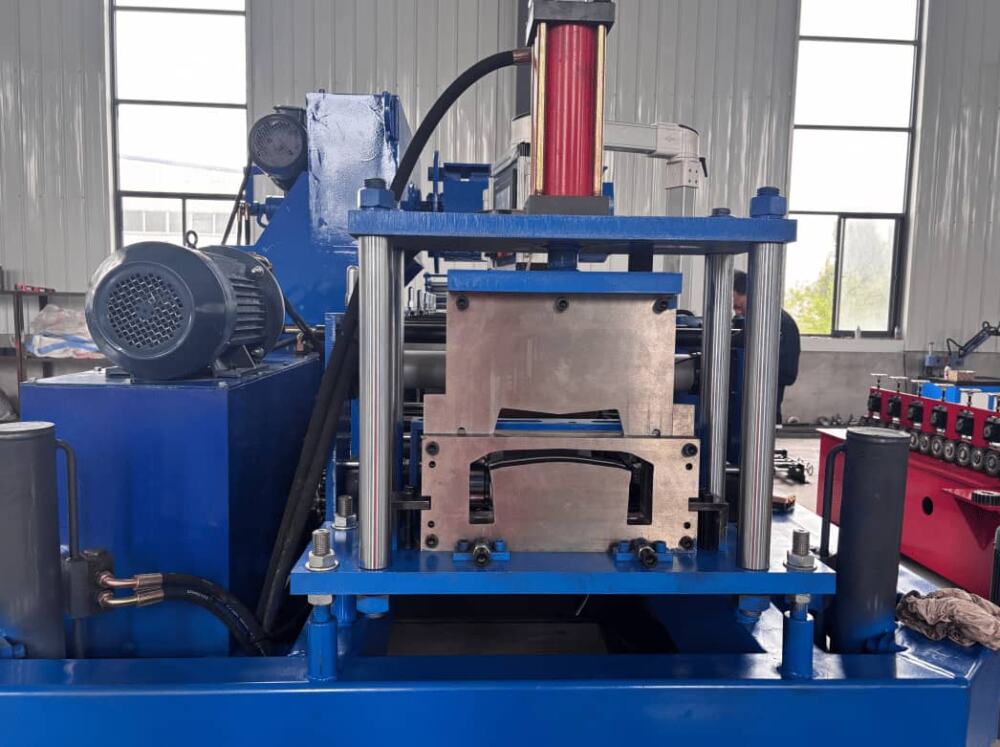

4.Cutter	Automatic	cr12mov material, no scratches, no deformation

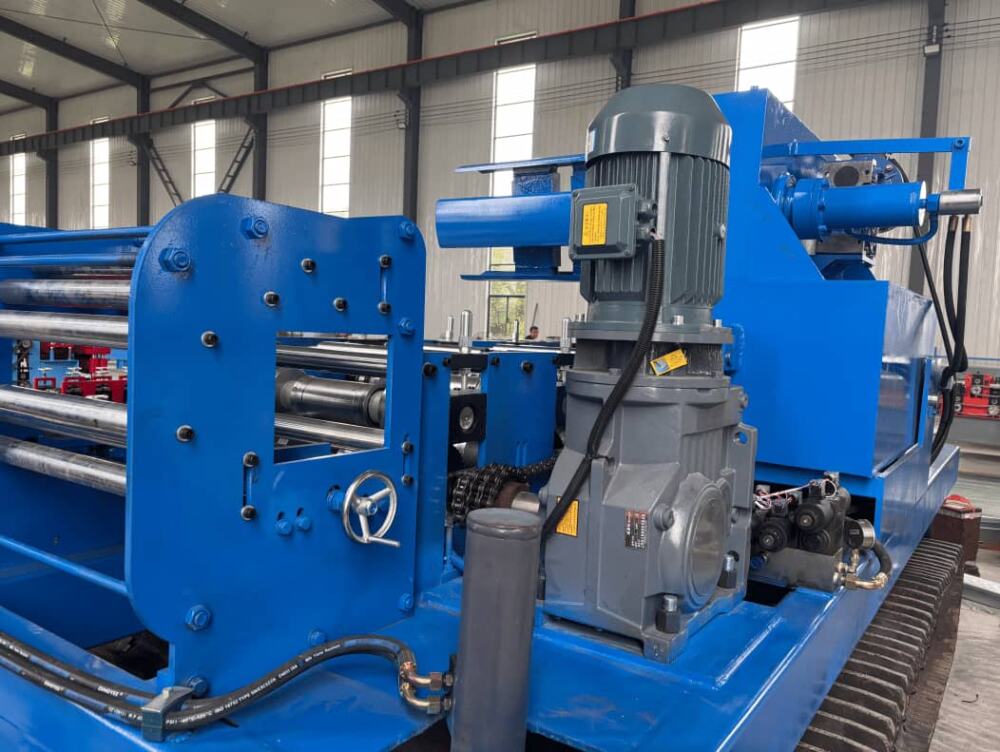

5.Power	Motor Power	7.5KW
	Hydraulic system power	11KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min	The speed depends on the shape of the tile and the thickness of the material.

Key Advantages: Precision Molding, Smooth Drainage, Corrosion Resistance and Durability

1.High-precision cross-section molding ensures stable suspension and load-bearing capacity.

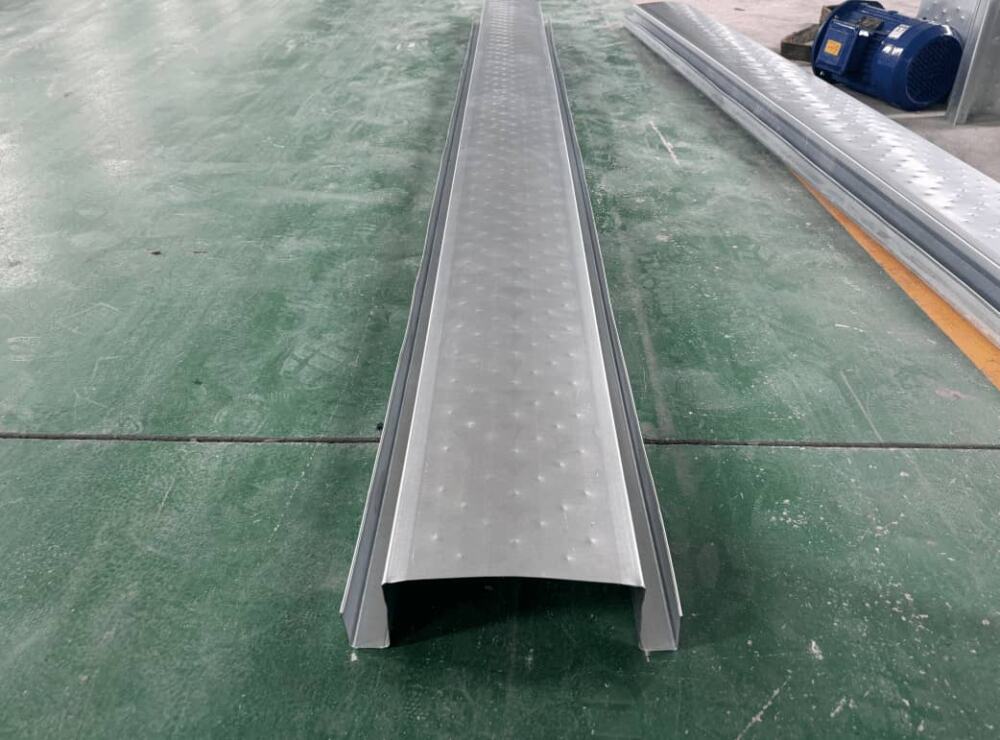

Multiple precision rollers and a rigid frame ensure stable dimensions of the hydroponic tank's width, depth, flanges, reinforcing ribs, and suspension edges. The tank exhibits excellent straightness, minimal twisting, and a consistent cross-section, resulting in even stress distribution after suspension and minimizing deformation when supporting crops and nutrient solution.

2.Precise Punching of Drainage and Suspension Holes
PLC control, combined with servo feeding and a high-precision encoder, allows for punching of drainage holes, suspension holes, and connection holes before or after molding. Consistent hole positions and flat openings ensure smooth nutrient solution return and quick installation.

3.Surface Protection Design Reduces Damage to the Galvanized Layer
Optimized roller surface material and surface treatment for easily damaged materials such as galvanized and aluminum plates, along with protective material guides and anti-scratch devices, reduce surface scratches, indentations, and damage to the galvanized layer, improving the hydroponic tank's corrosion resistance and service life.

4.High-speed continuous production significantly improves efficiency.
The entire line operates continuously, with typical forming speeds reaching 0–20 m/min, depending on plate thickness, cross-sectional specifications, punching complexity, and configuration. Suitable for bulk orders and automated production lines in greenhouse projects.

5.Multiple specifications per machine, convenient changeover.
Through quick-change rollers, molds, and recipe storage, hydroponic hanging troughs of varying widths, depths, flange shapes, and lengths can be produced, adaptable to different cultivation systems such as leafy vegetables, strawberries, and herbs. Orders can be switched simply by accessing parameters via the touchscreen, suitable for multi-variety, flexible production.

6.Intelligent control, user-friendly operation.
The PLC + touchscreen control system features length, speed, punching parameters, recipe storage, fault alarms, and production statistics. Operators can quickly learn the system after training, reducing reliance on skilled workers.

Application Industries:

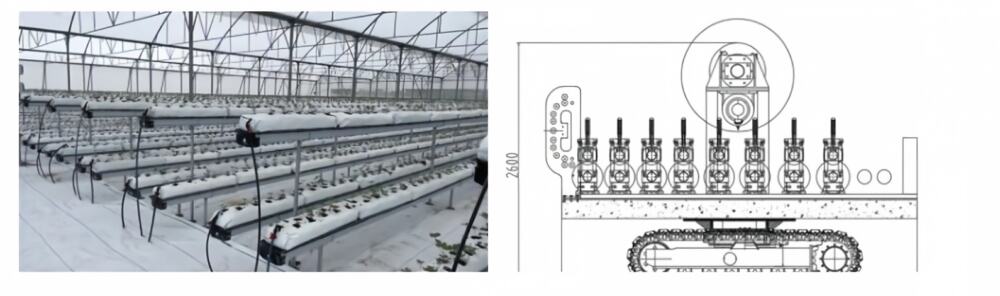

Greenhouse cultivation, plant factories, hydroponic vegetables, hydroponic strawberry cultivation, vertical agriculture, agricultural parks, eco-restaurants, scientific research greenhouses, modular cultivation systems, etc.

Why Choose Our Hydroponic Suspension Tank Cold Bending Forming Machine?

We not only provide the equipment, but also a complete greenhouse hydroponic tank production solution. From cross-section optimization, drainage and suspension hole design, roll mold development, sample production, to installation, commissioning, operation training, and after-sales support, we provide full support. Every piece of equipment undergoes rigorous testing before leaving the factory to ensure rapid production and stable operation upon arrival at the customer's site.

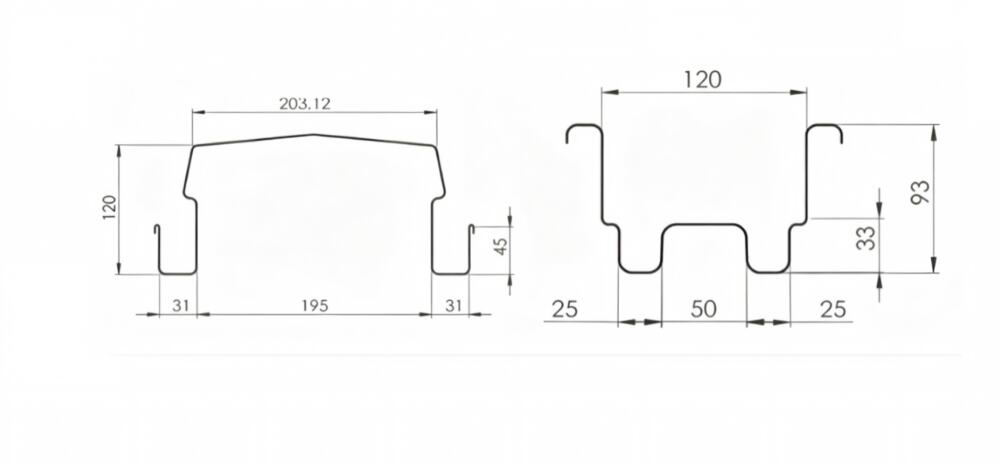

Pattern diagram:

Frequently Asked Questions (FAQ):

Q1: What specifications of hydroponic tanks can this machine produce?

A: It can produce hydroponic hanging tanks of different widths, depths, and flange/hanging edge configurations. Typical thickness is 0.6–0.8 mm. Customization is available based on customer cross-sectional drawings.

Q2: Can drainage holes and hanging holes be formed in one step?

A: Yes. Equipped with a servo feeding and punching device, drainage holes, hanging holes, and connection holes can be precisely punched before or after forming, ensuring consistent hole positions.

Q3: How is the galvanized layer and surface quality protected?

A: Optimized roller surface material and surface treatment, along with protective material guides and anti-scratch devices, reduce scratches, indentations, and damage to the galvanized layer.

Q4: How fast is the production speed?

A: Typical forming speed is 0–20 m/min, depending on plate thickness, cross-sectional specifications, punching complexity, and cutting method. Higher speed solutions can be customized as needed.

Q5: Is changeover difficult?
A: Utilizing quick-change rolls/dies and recipe storage, orders can be switched simply by accessing parameters via the touchscreen, enabling rapid changeover and suitable for flexible production of multiple product varieties.

Q6: How to submit an AFQ?

A: Please contact us by phone, email, or the official website form, indicating "AFQ Inquiry," and attaching the material, groove cross-sectional diagram, hole position requirements, and production capacity target. We will provide you with a customized solution and quotation as soon as possible.

Submit an AFQ now to get a hydroponic hanging gutter roll forming machine production solution.

If you are looking for a truly efficient, precise, and stable hydroponic hanging gutter roll forming machine for Greenhouse Cultivation Systems, please contact us.

Submit an AFQ (Ask For Quote) and let our engineers recommend the right machine model, roll die, punching, and automation configuration to help you produce your greenhouse hydroponic gutter rolls faster, more accurately, and more easily.
