Standing Seam Roof Panel Roll Forming Machine with Gear and Bearing for Roofing
In the fast-paced modern construction industry, the roof is no longer just a structure to shelter from wind and rain, but also a "fifth facade" that showcases architectural aesthetics and technological strength. As the core production equipment of metal roof systems, the Standing Seam Roof Panel Roll Forming Machine with Gear and Bearing for Roofing(also known as the Standing Seam edge biting/Standing Seam locking roof panel forming machine) is redefining the roof standards of large public buildings and high-end residential buildings with its excellent forming accuracy and efficient automation capabilities.
Production process: Transformation from coil to architectural artwork
1.Feeding and unwinding:
Place the qualified metal coil on the hydraulic/hand cranked tension unwinding machine, and ensure smooth feeding through passive feeding.
2.Leveling guidance:
The board is subjected to a leveling roller system to eliminate curling stress, and is precisely fed into the forming host through two side guiding devices.
3.Progressive cold bending forming:
The metal plate is gradually bent in a dense arrangement of 14 rolling rolls, gradually shaping into a straight and upright locking rib shape without damaging the coating.
4.Servo flying saw fixed length cutting:
The equipment moves synchronously with the high-speed movement of the board according to the length preset by the PLC, and instantly completes the cutting to produce finished boards that meet the length.
5.Finished product stacking output:
The cut finished boards automatically slide onto the pneumatic or manual pallet, stack neatly, and wait to be packaged and sent to the construction site.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.55-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
14 station
|
||
|
Diameter of shaft
|
75mm solid | |||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
4KW(normally)
|
||
|
Hydraulic system power
|
3KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-15m/min
|
Provide customized
|
||

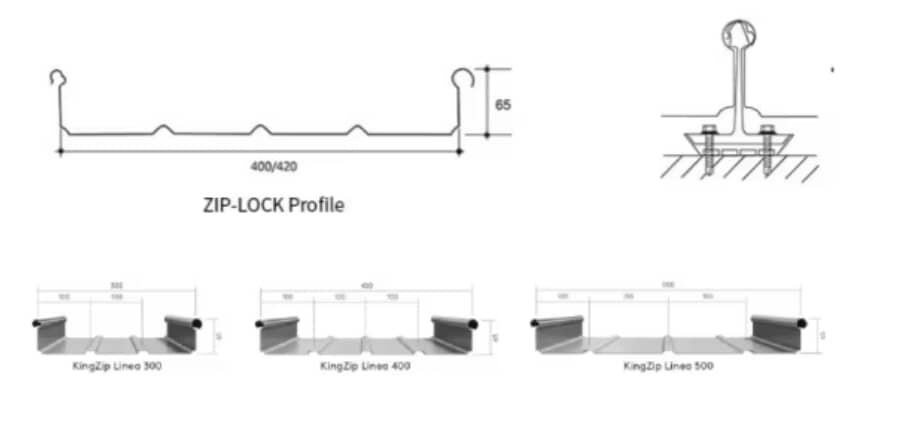

Pattern diagram：
Application scenario: Behind the scenes heroes of landmark buildings
The products produced by the Standing Seam roof tile forming machine are widely used in fields with extremely high quality requirements due to their superior waterproofing, wind resistance, and adaptability to thermal expansion and contraction
• Large public buildings: grand domes of airport terminals, high-speed rail platforms, sports centers, and exhibition centers;
• Cultural landmark buildings: non-linear curved roofs of opera houses, museums, and art galleries;
• Industrial and commercial buildings: wind resistant roofs for high-end logistics parks, electronic purification plants, and large supermarkets;
• High end residential buildings: lightweight and durable sloping roofs for modernist villas and passive energy-saving buildings.
Core feature: Why choose our equipment?
1. High precision molding, zero defect bite
Hard chrome plated rolling rolls made of high-quality Cr12Mov mold steel or GCr15 bearing steel, subjected to heat treatment and CNC precision machining. The unit has high rigidity, which can ensure that the size error of the plate is controlled within ± 1mm, ensuring that the plate ribs are tightly interlocked during on-site construction and achieving "no leakage".
2. Intelligent electronic control, fully automated operation
Equipped with imported brand PLC control system and touch screen human-machine interface, supporting fixed length setting, batch counting, and fault self diagnosis. Combined with servo driven flying saw cutting, it can achieve high-speed synchronous cutting without stopping, with high cutting accuracy and smooth and burr free cross section.
3. Flexible production, one machine for multiple purposes
By quickly changing the cushion block or changing the rolling mill set, the same host can be compatible with producing multiple commonly used plate types (such as YX65-400, YX65-430, or fan-shaped curved arc plates). Whether it is a straight board or a curved arc board that adapts to hyperbolic shapes, it can be easily handled, greatly improving equipment utilization.
4. Durable and sturdy, with low maintenance costs
The equipment adopts a heavy-duty steel structure welded body, which has undergone stress relief annealing treatment, with outstanding rigidity and no deformation concerns under long-term heavy loads. The hydraulic system and electrical components are both selected from internationally renowned brands, which ensure stable operation and easy maintenance, greatly extending the service life of the equipment.
Contact Us：
Choosing an excellent Standing Seam roof tile forming machine is choosing the cornerstone of engineering quality. It not only improves your production efficiency by more than 60%, but also uses high-precision manufacturing technology to help every building stand proudly in time and achieve classics. We look forward to becoming your most trusted partner in expanding your metal roof layout with exquisite equipment and full cycle services.
——Let every vertical seam become an elegant line of architecture.
