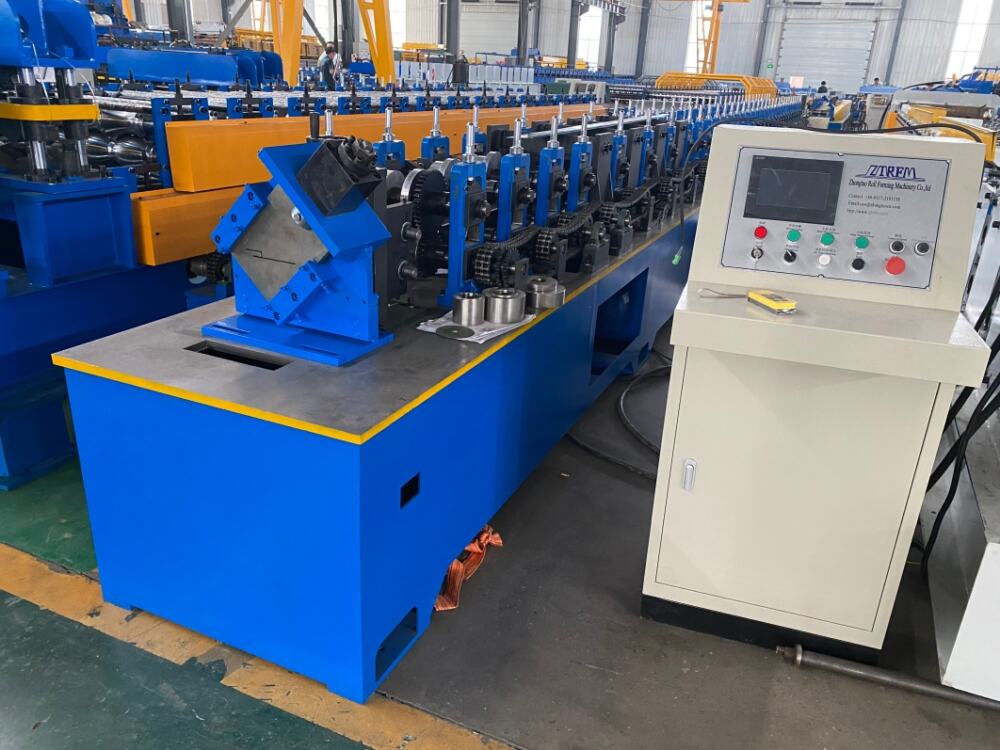

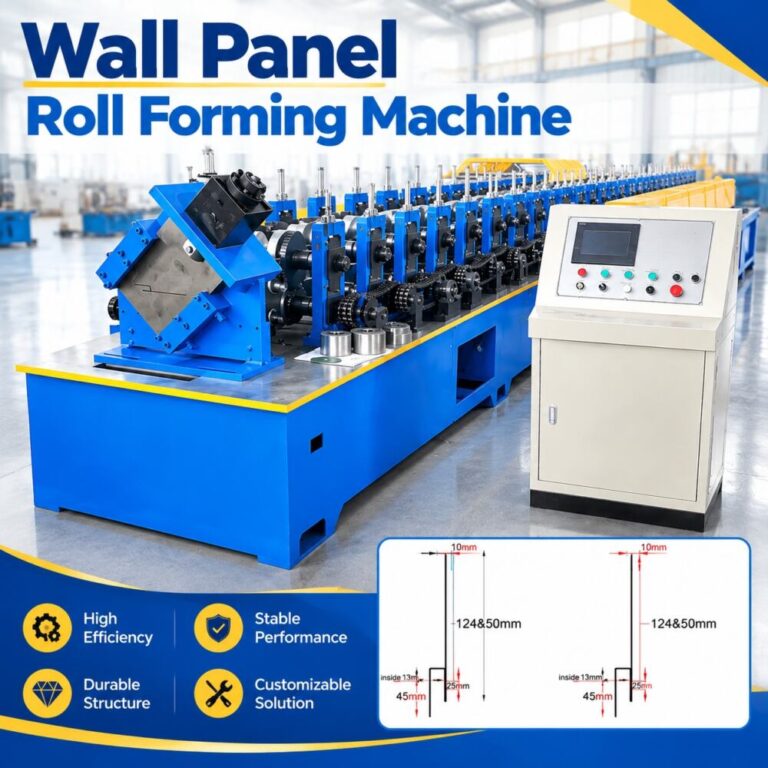

High Speed Color Coated Steel Wall Panel Roll Forming Line

In metal enclosure systems for industrial plants, warehousing and logistics, commercial buildings, stadiums, exhibition centers, agricultural facilities, and modular buildings, color-coated steel wall panels are the core material for building facade decoration and enclosure. The waveform accuracy, overlap sealing, surface coating integrity, and production efficiency of the wall panels directly affect the building's appearance, waterproofing performance, and project delivery cycle. Traditional wall panel forming equipment often faces problems such as slow speed, difficulty in changing shapes, easy scratching of the color-coated surface, numerous cutting burrs, and reliance on manual labor. Our High Speed Color Coated Steel Wall Panel Roll Forming Line is specifically designed for high-speed, precision, and continuous production of metal wall panels such as color-coated steel sheets, galvanized steel sheets, and aluminum sheets. It integrates uncoiling, leveling, servo feeding, forming, length cutting, and automatic stacking, helping customers achieve high-speed forming, surface-damaged, and precisely sized mass production of wall panels.

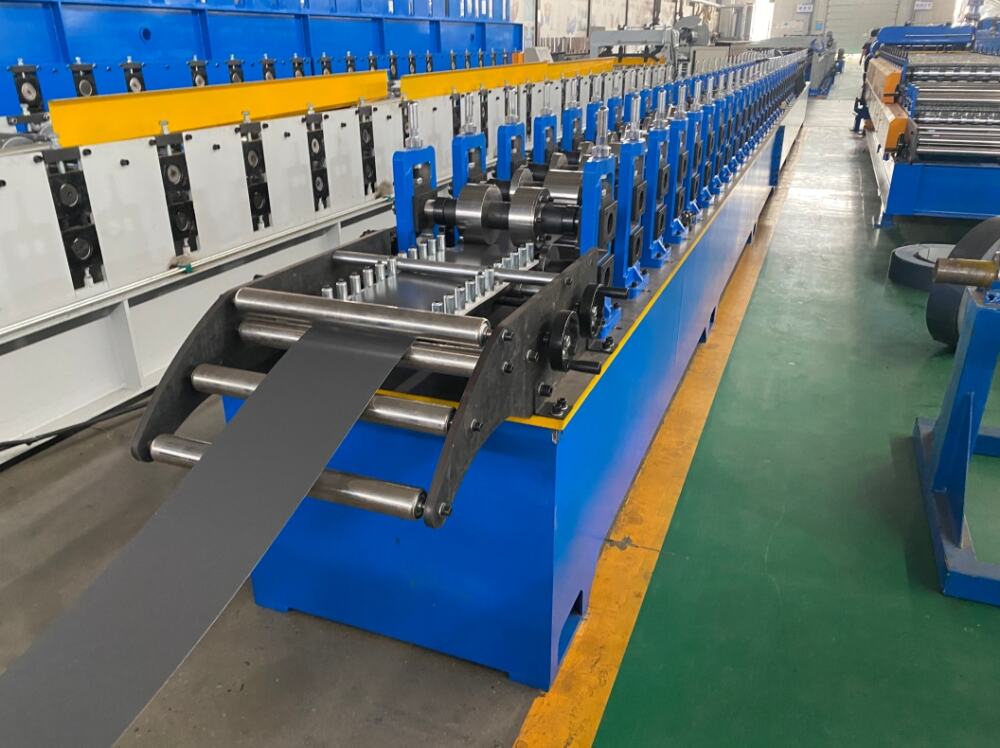

Product Attributes :

1.Formed Material	PPGI,PPGL,AI,Etc.	Material Thickness:0.4-0.6mm
2.Decoiler	Hydraulic decoiler(optional)	Manual decoiler(will give you as free）

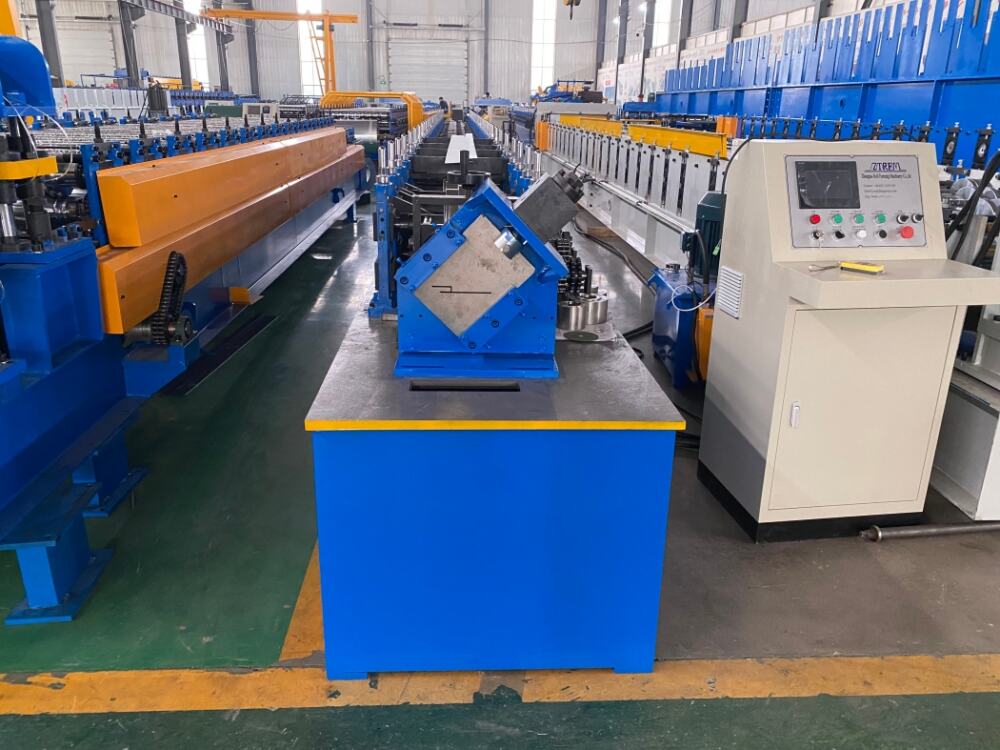

3.Main body	Roller station	24 rollers stations
	Diameter of shaft	50mm,solid shaft
	Material of rollers	GB-Cr12 mould steel with quenched treatment
	Machine body frame	Memorial arch frame
	Drive	By chain
	Dimension(LWH)	Due to design
	Weight	Due to design
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW(normally)
	Hydraulic system power	5.5KW
6.Voltage	As your requirement	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	Support multiple languages
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min	Provide customized

Complete line composition (optional upon request):

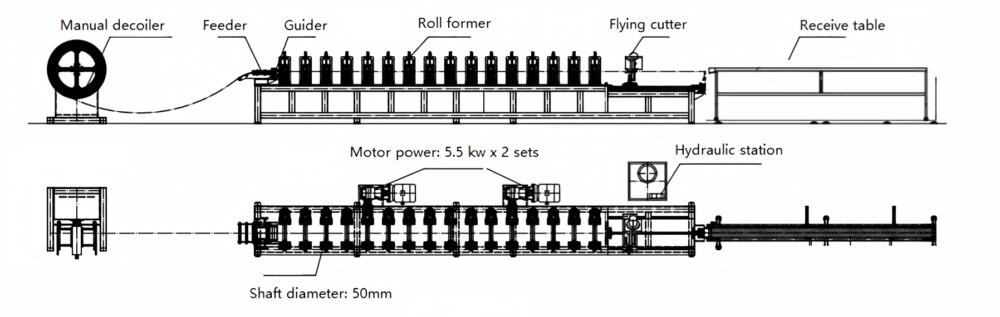

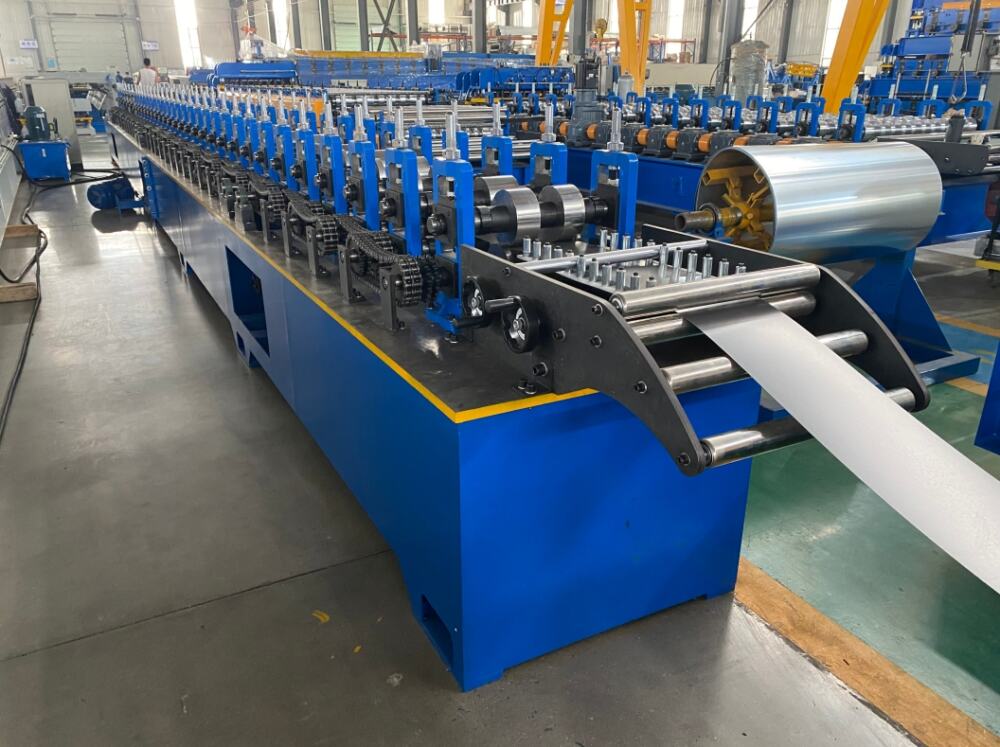

Decoiling→Feeding→Rotary punch→Roll forming→Hydraulic cutting→Run out table

It can be flexibly configured according to customer materials, plate thickness, wall panel waveform, production capacity and automation level.

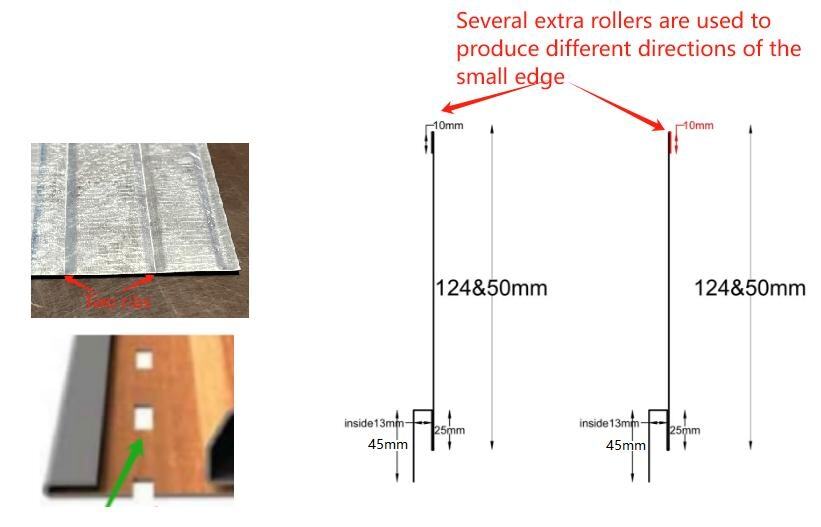

Applicable materials and typical specifications:

Suitable for color-coated steel plates, galvanized steel plates, aluminum plates and other metal enclosure materials.
Typical thickness range: 0.4–0.6mm; Typical width range: 480–520 mm; wall panel length can be customized to order.
The waveform, wave height, wave distance, overlapping edge form, molding speed and automation configuration can be customized according to the customer's containment system and production capacity requirements.

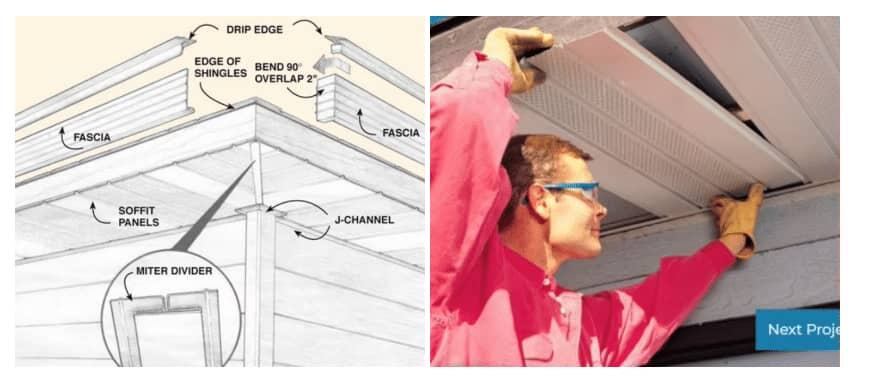

Application industry:

Industrial plants, warehousing logistics, commercial buildings, stadiums, exhibition centers, agricultural facilities, metal roof and wall systems, modular buildings, cold storage enclosures, purification workshops, etc.

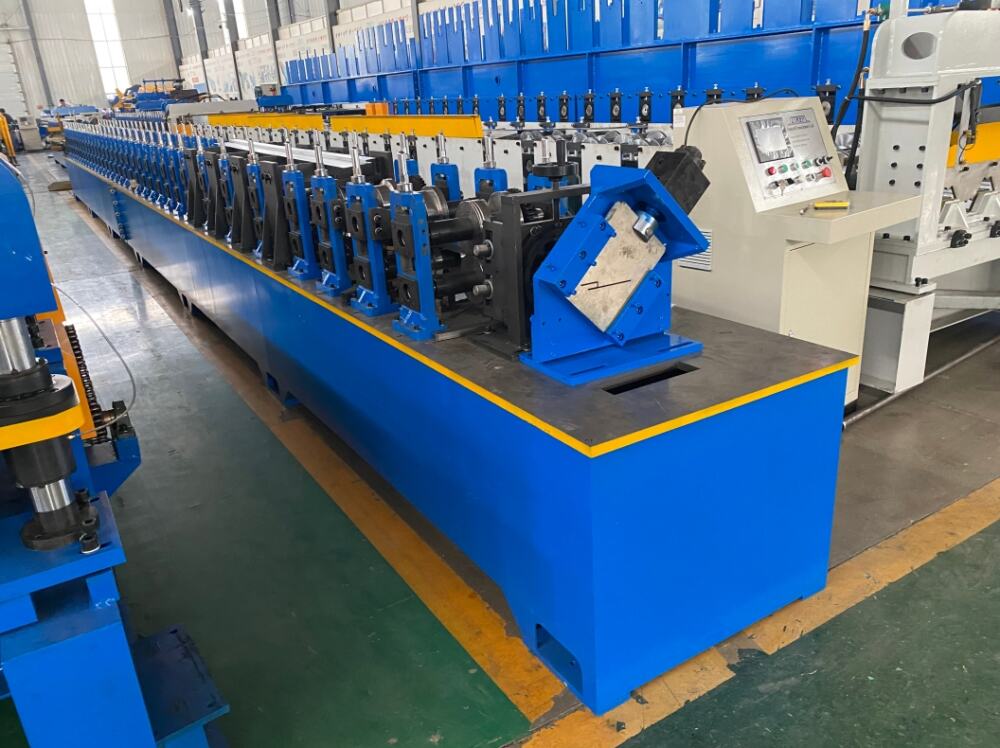

Core Advantages: High-speed forming, flawless surface, precise dimensional accuracy

1.High-speed continuous production, significantly increased capacity

Utilizing optimized roller design, servo/frequency conversion drive, and high-speed transmission structure, typical forming speeds reach 0–20 m/min, depending on plate thickness, waveform, length, and configuration. The entire line operates continuously, suitable for large-volume wall panel orders and cladding system production.

2.High-precision wall panel forming, excellent overlap sealing

Multiple precision rollers and a rigid frame ensure stable waveform, wave height, wave pitch, overlap edge, and width dimensions of the wall panels. Finished products exhibit excellent straightness, minimal twisting, tight overlap, and enhanced waterproof and wind resistance.

3.Surface protection design, reducing coating scratches

Optimized roller surface material and surface treatment for easily damaged materials such as color-coated steel sheets, galvanized steel sheets, and aluminum sheets. Features include protective material guides, anti-scratch devices, and a cleaning system to reduce surface scratches, indentations, and coating damage, maintaining the aesthetic appeal of building facades.

4.Precise Length Cutting, Smooth End Face

PLC control, combined with servo feeding and a high-precision encoder, along with a hydraulic flying shear or stop-cutting system, ensures accurate length cutting and smooth, burr-free cuts, reducing on-site secondary processing and material waste.

5.Multiple Waveforms in One Machine, Convenient Changeover

Through quick-change rolls, dies, and recipe storage, wall panels with different waveforms, wave heights, wave pitches, and widths can be produced, adapting to various metal enclosure systems. Orders can be switched by recalling parameters on the touchscreen, suitable for multi-variety, flexible production.

Frequently Asked Questions (FAQ):

Q1: What waveforms can this wall panel forming line produce?

A: It can produce various metal wall panel waveforms. Specific waveforms, wave heights, wave pitches, and overlap patterns can be customized with roller dies based on customer drawings or samples.

Q2: What thickness of sheet metal is suitable?

A: Typical thickness range is 0.4–0.6 mm. The specific thickness needs to be determined based on material strength, waveform, and production capacity requirements. Customization is available upon request.

Q3: How is the surface of the color-coated sheet protected?

A: Optimized roller surface material and surface treatment, equipped with protective material guides, anti-scratch devices, and a cleaning system to reduce scratches, indentations, and coating damage.

Q4: How fast is the production speed?

A: Typical forming speed is 0–20 m/min, depending on sheet thickness, waveform, length, and cutting method. Higher speed solutions can be customized upon request.

Q5: Is changeover difficult?

A: Utilizing quick-change rollers/dies and recipe storage, orders can be switched by recalling parameters via a touchscreen. Changeover is quick and suitable for flexible production of multiple product varieties.

Q6: Does it support automated stacking and continuous production lines?

A: Yes. Optional automated stacking, conveyor lines, and host computer management systems are available to achieve continuous production with reduced manpower.

Q7: How do I submit an AFQ?

A: Please contact us by phone, email, or the form on our website, indicating "AFQ Inquiry," and attaching the material, wall panel waveform diagram, thickness, and production capacity target. We will provide you with a customized solution and quotation as soon as possible.

Submit an AFQ now to get a high-speed wall panel production solution:

If you are looking for a truly efficient, precise, and stable High Speed Color Coated Steel Wall Panel Roll Forming Line, please contact us.

Submit an AFQ (Ask For Quote) and let our engineers recommend suitable models, roll dies, and automation configurations to help you produce color-coated steel wall panels faster, more accurately, and more easily.
