High Precision Metal Coil Slitting Line for Steel Processing

Looking for a slitting line that delivers exceptional precision and consistent quality for your steel processing operations?
Our High Precision Metal Coil Slitting Line is engineered for steel service centers, metal distributors, and manufacturers who demand tight tolerances, smooth edges, and reliable performance — shift after shift.

Whether you are slitting cold-rolled steel, galvanized steel, stainless steel, or aluminum coils into narrow strips, this line combines advanced tension control, precision slitting heads, and robust recoiling to produce high-quality slit coils ready for stamping, roll forming, tube making, or further processing.

Product Attributes :

Main Technical Parameters
No.	Name	Parameters
1.	Control model	Frequency conversion control
2.	Materials	Carbon steel, GI, PPGI Normal Stainless steel (Not include mirror SS, thickness less than 1.5mm)
3.	Thickness	0.4-3 mm
4.	Width	500-1250 mm
5.	Coil I.D.	508 mm
6.	Coil O.D.	≤1400 mm
7.	Weight	≤15 T
8.	Slitting blade shaft	Φ200 mm
9.	Blade specification	Φ340×Φ200×15 mm
10.	Material of blade	LD
11.	Line speed	≤40 m/min
12.	Power of decoiler	11 KW
13.	Power of slitter	45 KW
14.	Power of recoiler	55 KW
15.	Quantity of strips (Max)	1mm(15pcs),1.5mm(10pcs),2-3mm(5pcs)
16.	Min slitted strip width	35 mm
17.	Width tolerance	≤±0.1 mm
18.	The direction of whole line	From right to left, the operate table faces the machines
19.	Power	380V/3Ph/50Hz Customized
20.	Operation people	1 technician and 2 general worker
21.	Color	Green ( Customized)

What Is a High Precision Metal Coil Slitting Line?

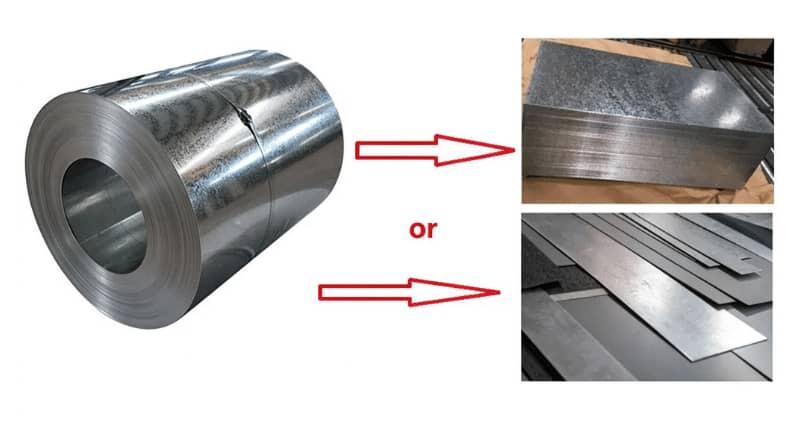

A coil slitting line is a specialized system that uncoils a wide metal coil, slits it longitudinally into multiple narrower strips, and recoils those strips into tight, uniform coils. High precision slitting is essential when strip width tolerance, edge quality, and coil tightness directly affect downstream production efficiency and product quality.

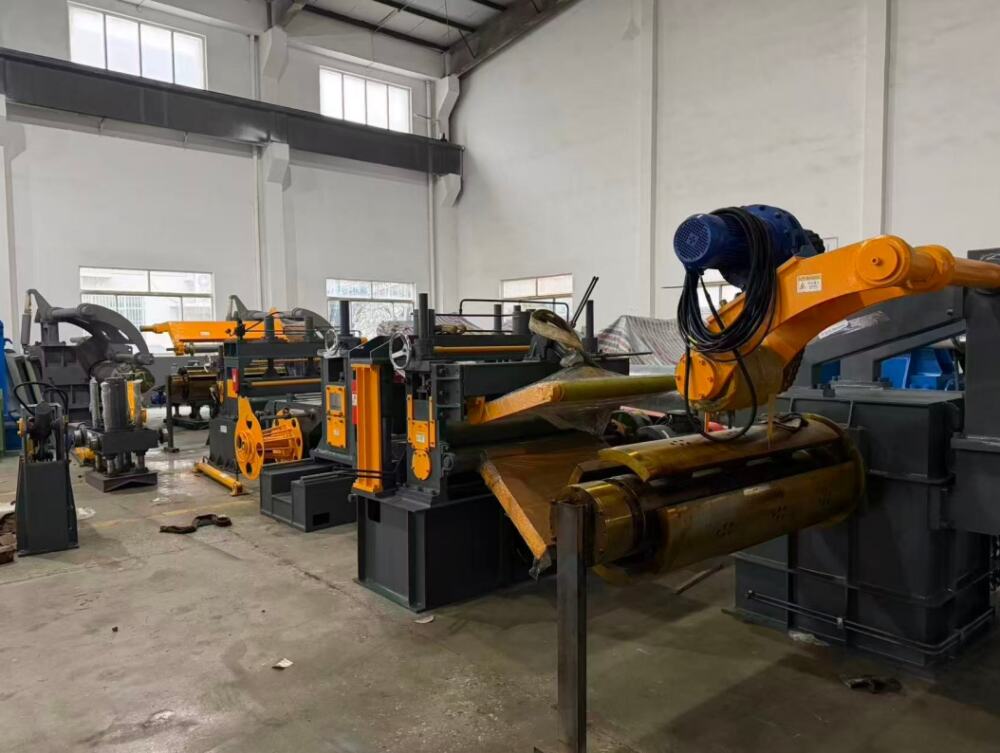

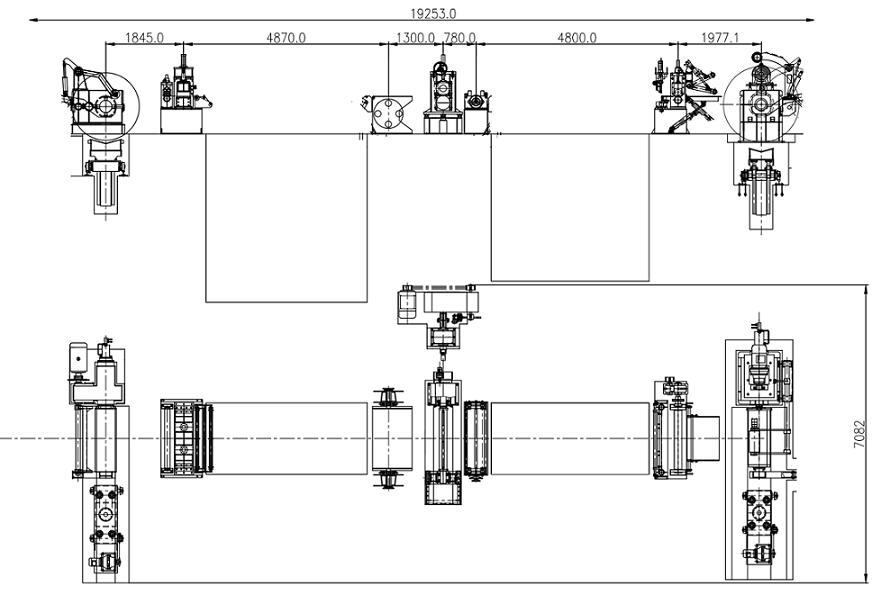

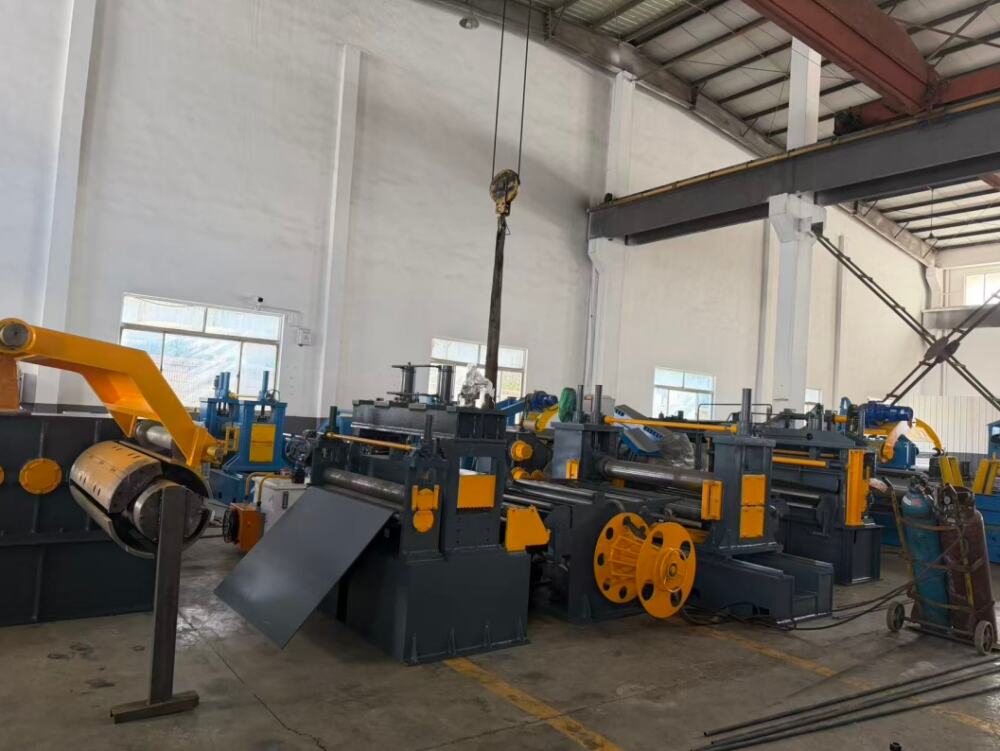

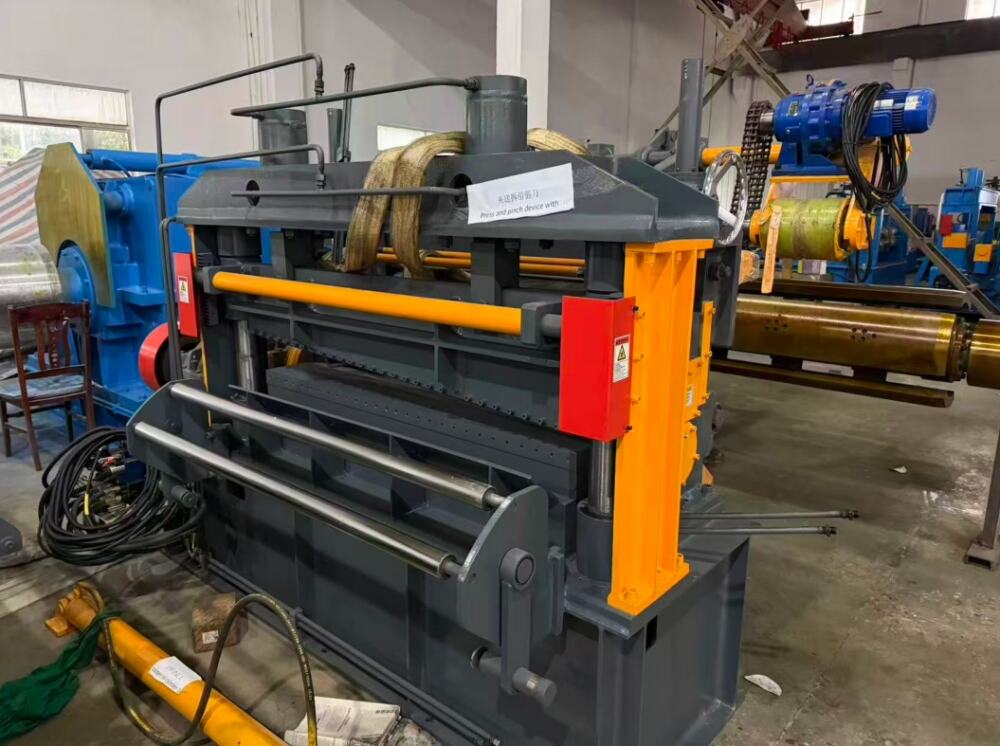

A typical high precision slitting line includes:

Hydraulic or mechanical decoiler
Feeding and guiding system
Precision slitting head with circular knives
Edge trimming and scrap winding system
Tension control and loop pit
Hydraulic recoiler with separator and pusher
PLC control system
Optional: coil car, paper interleaving, and automatic banding

The line is designed to maintain consistent strip width, minimize burr, and produce evenly wound coils for safe handling and efficient downstream use.

Key Features & Benefits

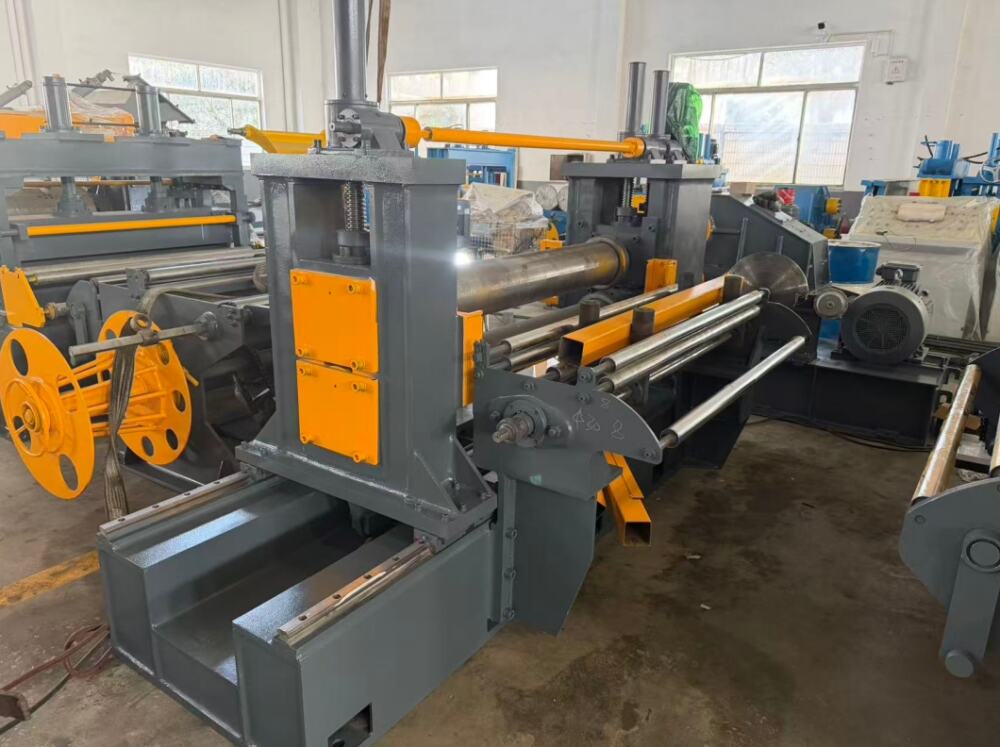

1. High Precision Slitting for Tight Width Tolerances

The slitting head is precision-machined and equipped with high-quality circular knives and spacers. It delivers accurate strip widths with minimal burr and excellent edge quality. This is critical for manufacturers who need strips that feed smoothly into stamping presses, roll forming machines, or tube mills.

2. Advanced Tension Control for Tight, Uniform Coils

The line uses a combination of loop control, tension sensors, and hydraulic or pneumatic braking to maintain consistent strip tension. The result is tightly wound, evenly aligned coils that are easy to handle, store, and uncoil in downstream operations.

3. Smooth Uncoiling and Feeding

The decoiler and feeding system are designed to handle heavy coils smoothly. Optional coil cars and hydraulic expansion help reduce loading time and improve operator safety. Guiding systems keep the strip centered and prevent edge damage.

4. Clean Cutting and Efficient Scrap Handling

Precision slitting produces clean edges with minimal burr. Edge trimming units and scrap winders manage waste efficiently, keeping the line clean and reducing downtime. Optional scrap choppers can further reduce scrap volume.

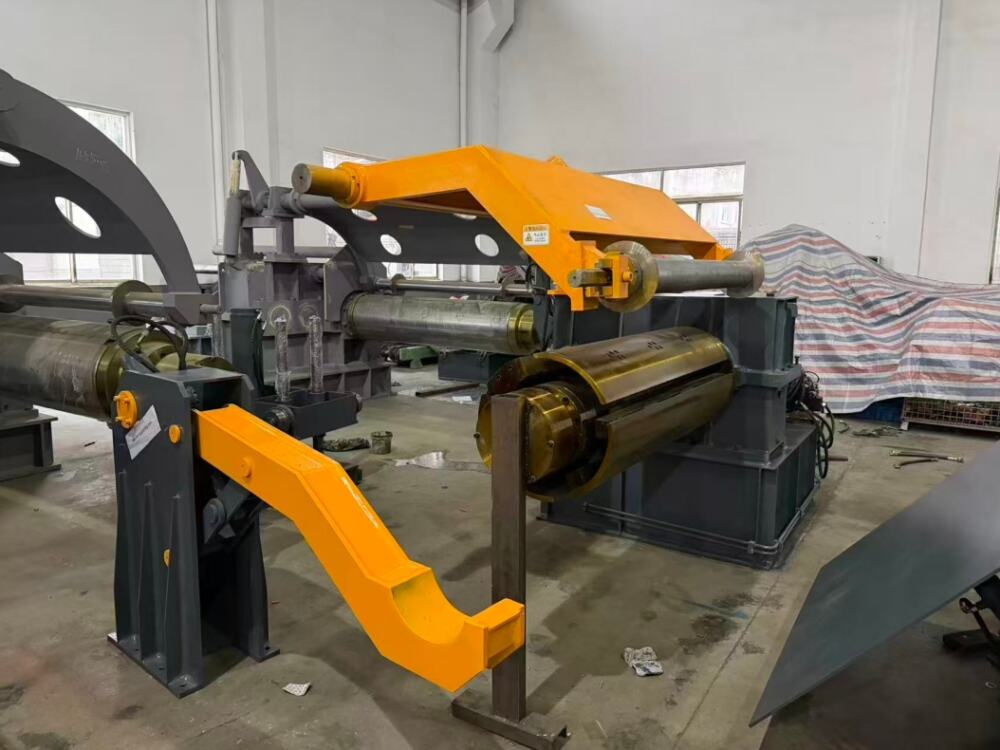

5. Reliable Recoiling with Separator and Pusher

The hydraulic recoiler produces tight, uniform coils. Separator discs prevent strip overlap and damage, while the pusher helps remove finished coils safely and quickly. Coil weight and diameter can be customized to your requirements.

6. PLC Control & User-Friendly Operation

The PLC control system allows operators to set line speed, tension, length, and other parameters easily. The touch screen interface provides real-time monitoring and fault diagnostics, helping reduce human error and improve productivity.

Applications

This high precision slitting line is widely used in:

Steel service centers and metal distributors
Automotive parts manufacturing
Home appliance production
Construction and building materials
HVAC and duct manufacturing
Tube and pipe making
Roll forming and stamping operations
Electrical and electronic components

It is ideal for producing narrow strips from wide coils for further processing or direct delivery.

Why Choose Our High Precision Metal Coil Slitting Line?

• Precision-focused design: Tight width tolerances, clean edges, and uniform coil winding.

• High productivity: Fast line speeds and automatic tension control reduce cycle times.

• Reliable performance: Industrial-grade construction for continuous operation.

• Labor savings: PLC control, automatic recoiling, and optional coil handling reduce manual work.

• Custom engineering: Tailored configurations to match your material, strip width, and output goals.

• Factory support: Technical guidance, installation assistance, and after-sales service.

• Cost-effective investment: High output, low maintenance, and long service life help maximize return on investment.

Upgrade Your Steel Processing Today

In today’s competitive metal processing market, precision and efficiency are essential. The High Precision Metal Coil Slitting Line helps you turn wide coils into high-quality narrow strips efficiently, accurately, and profitably.

Contact us today to discuss your coil specifications, strip requirements, and production capacity. Our team will provide a customized solution, detailed quotation, and technical support to help you build a smarter, more precise slitting operation.

From wide coil to precision strip — let’s make your slitting line more efficient, together.
