Metal Lock Seam Diamond Shaped Blinds Roll Forming Machine for High-Speed Louver Production

In contemporary architectural design, metal louvers have long surpassed simple shading or ventilation functions and become an important component of building facade language. Among them, diamond shaped louvers are increasingly appearing in the facade systems of commercial complexes, office buildings, and cultural buildings due to their unique geometric order and light and shadow expression. And a professional Metal Lock Seam Diamond Shaped Blinds Roll Forming Machine is the core equipment that transforms this design language from drawings to high-quality finished products.

Diamond section: the unity of geometric aesthetics and structural functionality

The core value of diamond shaped louvers lies in their cross-sectional shape itself. Unlike traditional rectangular or Z-shaped louvers, the diagonal wing edges of diamond shaped (or diamond grid) sections create dynamic light and shadow layers visually. When multiple louver units are installed at specific angles, they can present rich and regular diamond grid patterns on the facade. This patterned facade effect gives the building a distinct recognition and is highly favored in high-end commercial buildings and public projects.

From a functional perspective, the oblique wing edge with a diamond cross-section has good deflection and scattering capabilities for direct sunlight. In practical projects, such louver systems are often integrated with curtain wall units to form a double-layer skin that combines shading and ventilation functions, effectively reducing the building's solar heat gain coefficient. A study on the application of diamond shaped sunshade louver system shows that in buildings with large glass curtain wall areas, reasonable louver configuration can significantly reduce solar radiation heat, improve indoor comfort, and reduce air conditioning energy consumption.

Application scenarios: From building shading to ventilation systems

The products of the lock seam diamond shaped louver forming machine are widely used in multiple fields. In the building facade system, diamond shaped louvers are used as shading components in combination with glass curtain walls and aluminum curtain walls to form a facade skin with a sense of design. In ventilation systems, louver blades are used for ventilation louvers in computer rooms, equipment rooms, and parking lots, with functions of ventilation, rain protection, and visual obstruction. In addition, diamond shaped louvers are also used in industrial enclosure structures, sound barriers, and decorative ceiling systems.

Product Attributes :

High speed production: from single piece manufacturing to large-scale supply

For bulk suppliers of louver products, production speed directly determines delivery capability and cost competitiveness. The operating speed of modern high-end louver forming machines has exceeded the threshold of 20m/min. Taking industry benchmark equipment as a reference, the specialized louver blade forming machine can achieve continuous production of 20m/min while maintaining a cutting accuracy of ± 0.5mm, and supports non-stop cutting, greatly reducing roll changing and waiting time.

The lock seam diamond shaped louver forming machine launched by ZTRFM has been specially optimized for the standards and requirements of the European market, using a Delta PLC fully automatic control system. Operators only need to input product parameters on the touch screen, and the system can automatically complete length measurement, sizing, and hydraulic cutting, minimizing manual intervention and operational errors. The main frame adopts a 300H heavy-duty welded steel structure to ensure that the equipment maintains extremely low vibration levels during high-speed continuous operation, thereby maintaining long-term stability of forming accuracy. The forming roller is made of hardened 45 # steel, and the cutting blade is made of Cr12 high-grade steel, which significantly extends the service life of key components while ensuring forming accuracy.

Intelligentization of the entire process from materials to finished products

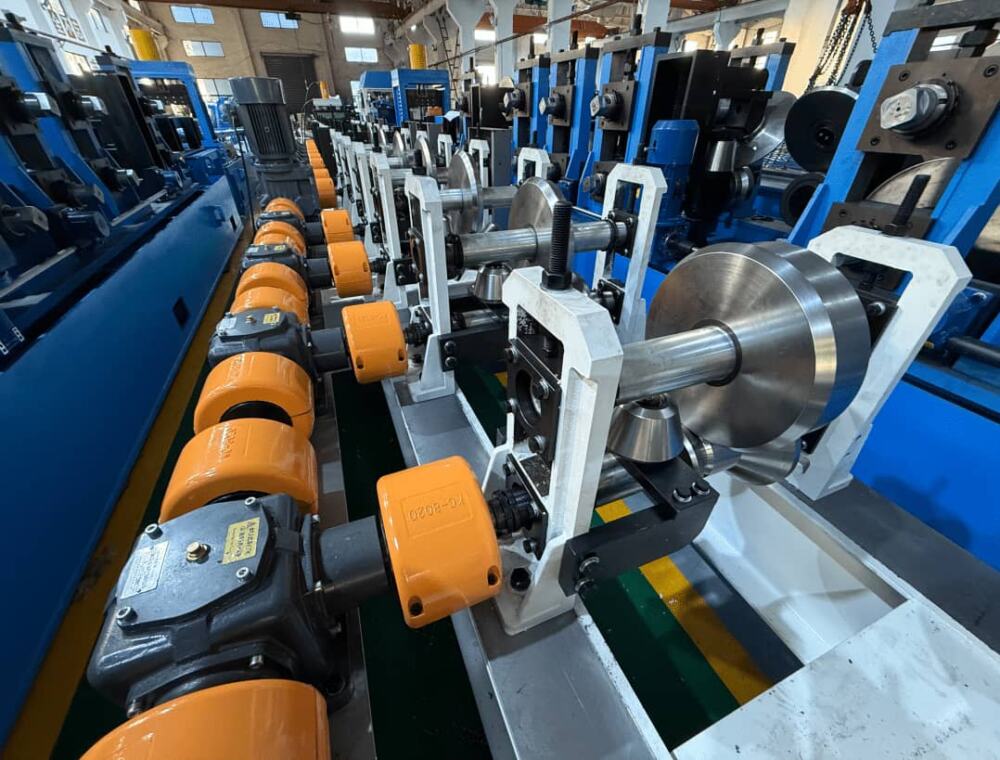

A complete diamond shaped louver lock seam forming production line includes unwinding, guided feeding, multi pass progressive forming, fixed length measurement, hydraulic cutting, and finished product output. Taking a typical configuration as an example, the feeding width of the equipment is 416mm, suitable for PPGI (pre coated galvanized steel) or GI (galvanized steel) coils with a thickness of 0.5mm. The spindle diameter is 50mm, the overall size is about 9000 × 700 × 1500mm, and the machine weight is about 5400kg. The hydraulic cutting system can provide clean and burr free cuts, significantly improving the appearance quality of the finished louvers.

In terms of material adaptability, this type of forming machine can stably process various commonly used metal materials such as galvanized steel, PPGI color coated steel, and aluminum alloy. The forming roller has undergone precision polishing treatment, with a smooth and burr free surface, which can effectively protect the coating or texture of the material surface during the forming process, avoiding scratches and damage.

Contact Us：

In the trend of increasingly pursuing personalized expression and system performance optimization on building facades, the interlocking diamond shaped louver forming technology is becoming a key bridge connecting design creativity and industrial manufacturing. A high-speed, precise, and stable molding equipment will give louver product manufacturers a significant competitive advantage in the high-end construction market.
