Hat Profile Omega Purlin Roll Foming Machine: Fully Automatic High-Precision Metal Purlin Production Line
In today's rapidly developing prefabricated buildings and photovoltaic industry, cold-formed thin-walled steel is becoming the core material for steel structure buildings and new energy support systems due to its lightweight, high strength, and convenient construction characteristics. Omega type purlins, also known as "hat type purlins" due to their cross-section resembling a top hat, have been widely used in roof supports, wall studs, photovoltaic brackets, and other fields due to their excellent bending stiffness and installation adaptability. And a high-performance Hat Profile Omega Purlin Roll Forming Machine is the key equipment for efficient and precise production of such profiles.

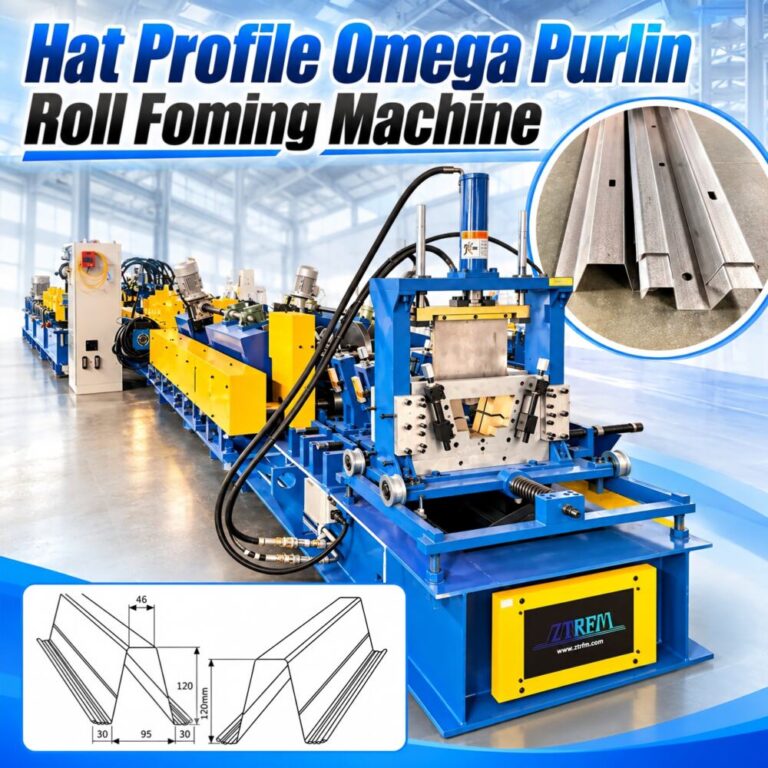

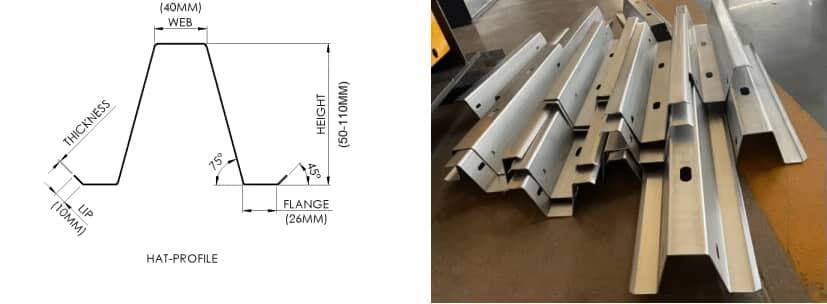

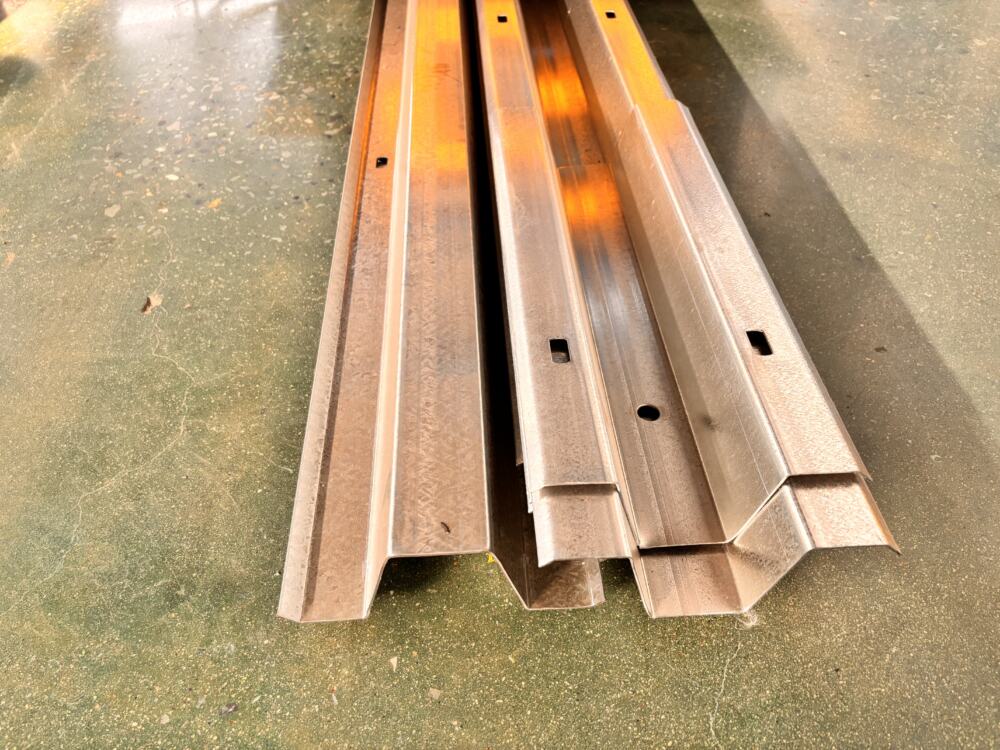

Hat shaped cross-section with significant structural advantages：
The core competitiveness of Omega type purlins lies in their unique cross-sectional design. The vertical flanging on both sides provides excellent bending stiffness, while the middle groove facilitates self tapping screw penetration or pipeline laying, demonstrating strong adaptability in lightweight partition walls, ceiling systems, and exterior wall dry hanging projects. Through the cold bending process, the metal coil is gradually formed through multiple passes at room temperature, without the need for heating, to obtain precise hat shaped cross-sections. This ensures that the material strength is not damaged and achieves high dimensional consistency.

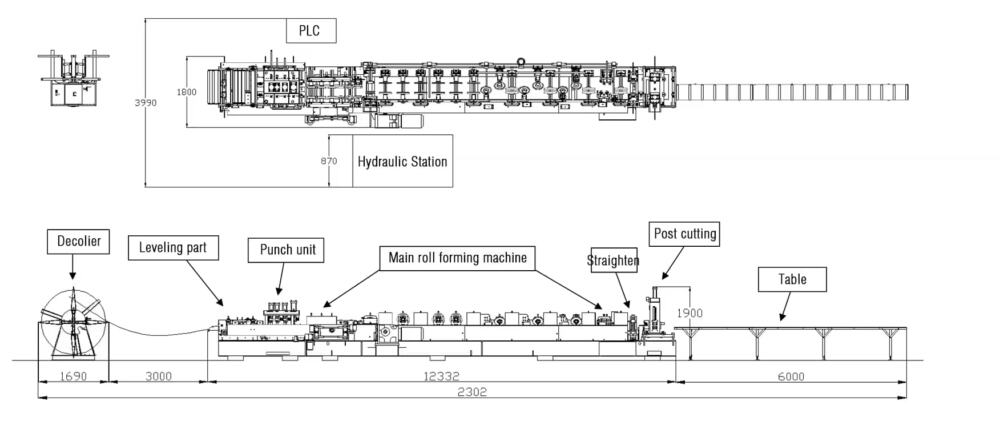

working flow:
Technical Core: Accuracy, Efficiency, and Flexibility
The modern Omega purlin forming machine has achieved key breakthroughs in three dimensions:
1.High precision molding.

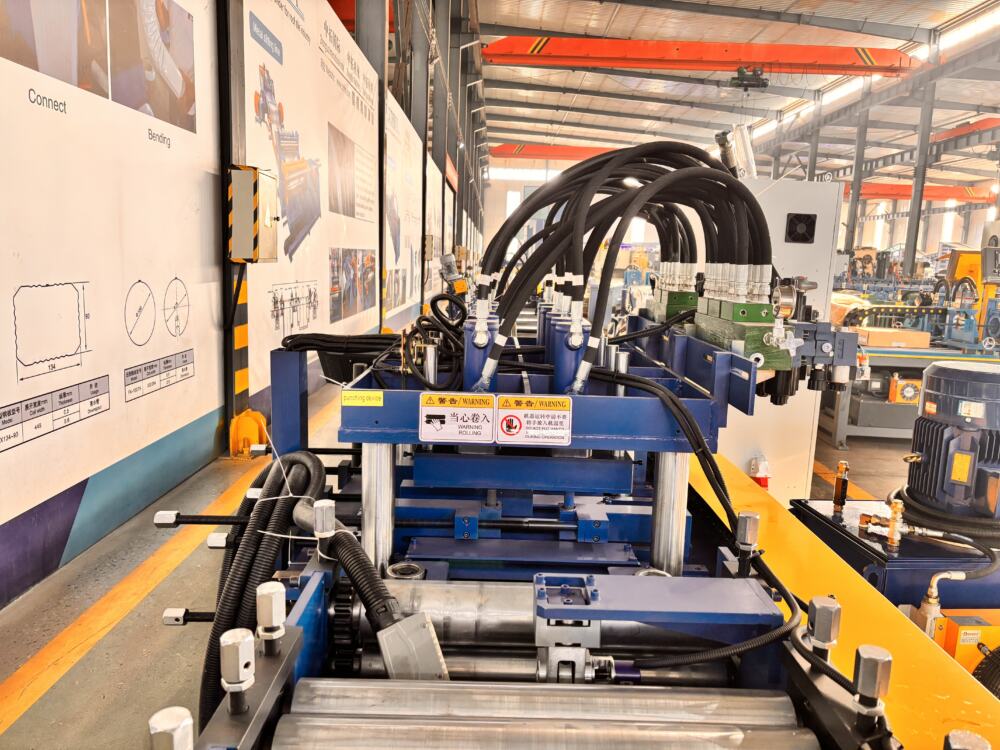

Using Cr12MoV/GCr15 material quenched and polished forming rollers, combined with CNC grinding technology, to ensure the geometric consistency and straightness of the cap section, with dimensional tolerances controlled within ± 0.2mm. Paired with PLC control system and touch screen human-machine interface, operators only need to input parameters such as aperture spacing and cutting length, and the equipment can automatically complete the entire process from unwinding, forming, punching to fixed length cutting.
2.Efficient output.
The production line speed can reach 0-20m/min (including punching process), and some high-speed models can reach over 20m/min without punching. The application of servo flying shear technology enables the equipment to complete fixed length cutting without stopping, further improving production capacity.
3.Flexible production capacity.
The adjustable range of forming width supported by modern models is usually 50-300mm, and the material thickness covers 1.5-3.0mm. It can handle various substrates such as galvanized steel, cold-rolled steel, and aluminum zinc coated steel. Some high-end models also integrate the "multi in one" molding function of C-type, U-shaped, and Omega type, which allows for quick switching of product types without the need to replace rollers, significantly reducing equipment investment and changeover time.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|

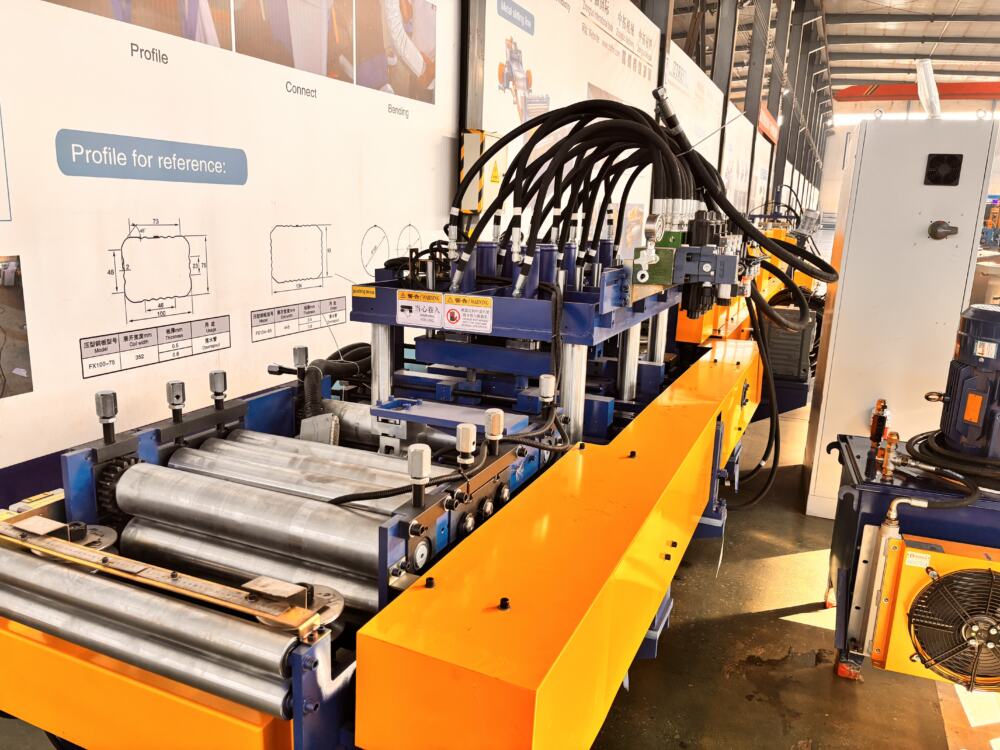

3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

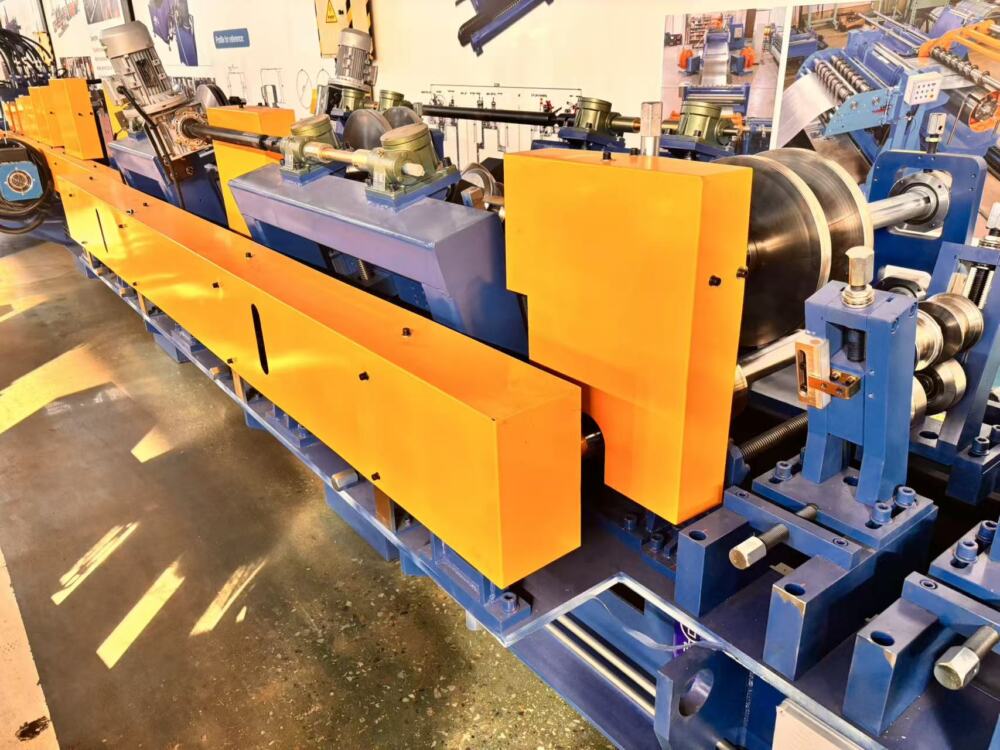

Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|

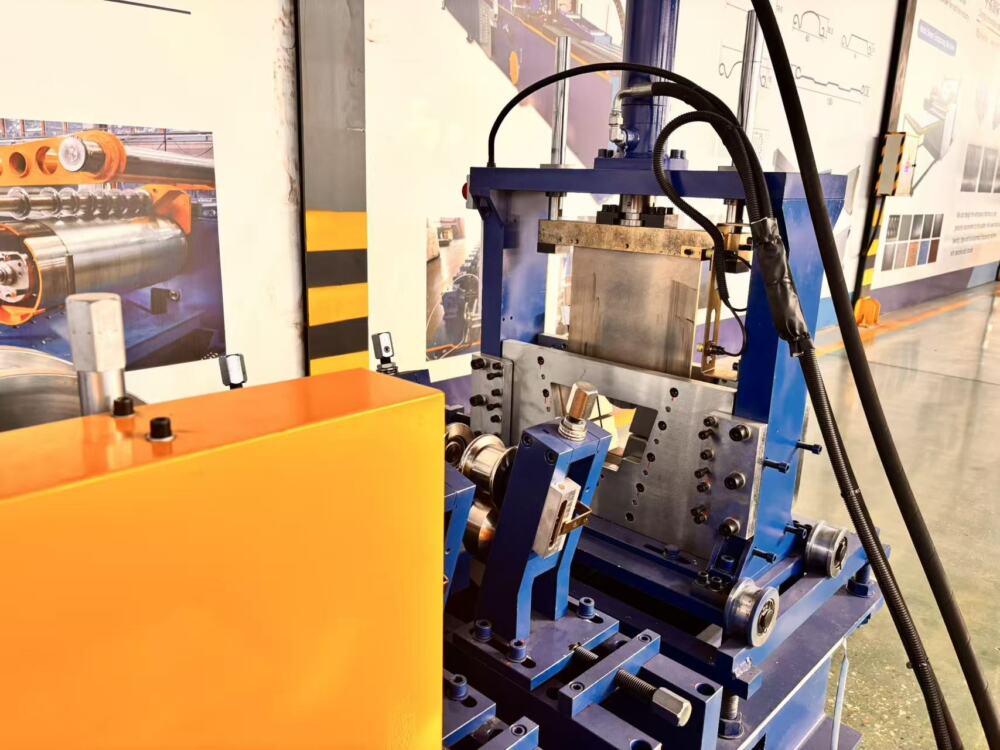

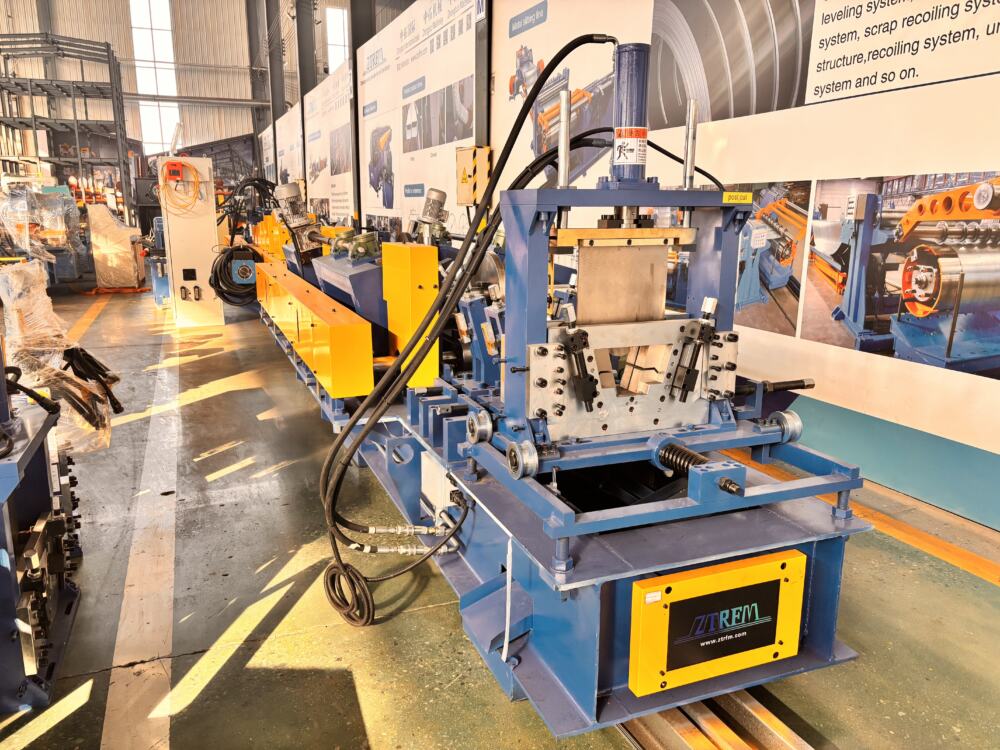

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
From building steel structures to photovoltaic brackets: diverse application scenarios

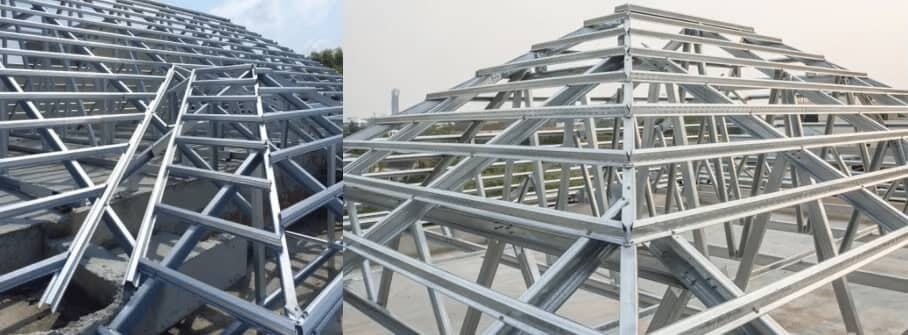

The application field of Omega purlin forming machine is rapidly expanding. In traditional steel structure buildings, the purlins produced are widely used for roof and wall support systems in industrial plants, warehouses, exhibition halls, and commercial buildings. In light steel keel and ceiling systems, the cap type keel serves as the load-bearing component of the main and auxiliary keel systems, carrying panel materials such as gypsum board and mineral wool board, achieving rapid construction of large-area flat ceilings.
In recent years, with the continuous increase in global photovoltaic installed capacity, the application of Omega type purlins in solar support systems has been particularly noteworthy. The high stiffness characteristics of the hat shaped cross-section make it an ideal choice for distributed photovoltaic brackets and ground power station brackets. The molding equipment can be customized with different cross-sectional sizes according to project requirements, providing low-cost and high-efficiency support solutions for the clean energy field. In addition, Omega purlins have also demonstrated extensive application potential in prefabricated modular buildings, container houses, and mechanical and electrical pipeline support fields.
Contact Us：
With the continuous evolution of cold bending technology towards digitalization and high precision, Omega purlin forming machines are upgrading from simple processing equipment to intelligent profile production platforms. Whether it is deepening the field of steel structure construction or laying out the photovoltaic new energy track, a high-performance Hat Profile Omega Purlin Roll Forming Machine， All of them will become powerful weapons for enterprises to seize market opportunities.
