Simple Slitter and Cut-to-Length Machine Coil Slitting & Precision Length Cutting Solution



Why choose 2-in-1?

In the field of metal coil processing, slitting lines and fixed length cutting lines have long been regarded as two independent devices. The slitting line is responsible for longitudinally slitting the wide mother roll into multiple narrow strips and rewinding it, while the fixed length line completes the entire process of unwinding, leveling, fixed length cross cutting, and stacking. The traditional solution means double the land occupation, double the investment, and double the debugging cycle. And Simple Slitter&Cut to Length Machine integrates two core functions into one, achieving free switching between slitting and fixed length cutting with a compact structure, tailored for small and medium-sized metal processing enterprises.

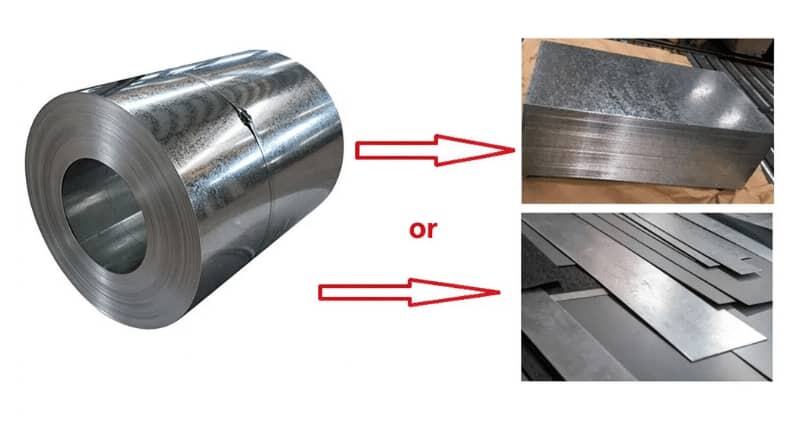

One device, two outputs:
It can output narrow strip rolls with precise width or directly produce fixed length flat plates. Complete the most flexible coil processing with minimal capital and land occupation.

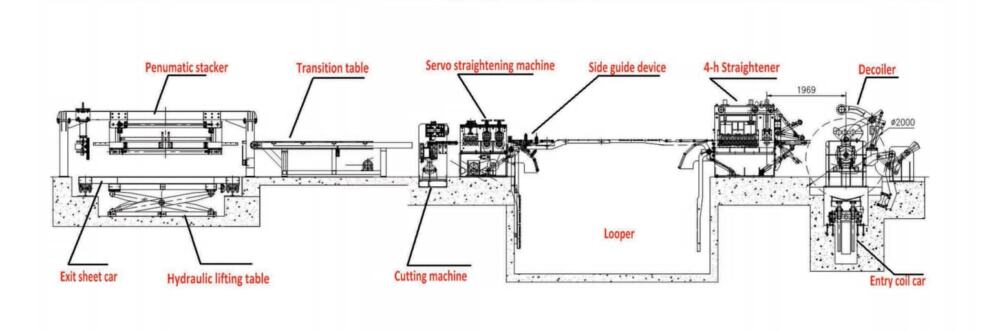

Main components：



Item	Description of Item	Unit	Quantity
1	Leveling , slitter and cutting device	set	1
2	Conveyor	set	1
3	Auto stacker	set	1
4	Tension stand	set	1
5	Scrap winder	set	2
6	6T hydraulic recoiler(with unloading cart)	set	1
7	PLC control station	set	1



Application scenarios：

This machine is widely used for processing the following materials: cold-rolled sheet, galvanized sheet, color coated sheet, stainless steel sheet, and hot-rolled sheet.

• Architecture and building materials.
Processing scenarios such as color steel tiles, floor slabs, and wall panels require a large amount of fixed length sheets and narrow strip rolls. This machine can simultaneously meet the supply needs of both types of output. The narrowband output from the segmented line is directly supplied to the cold bending forming unit, while the flat plate output from the fixed line is used for processing roof panels and decorative panels.

• Pipe making and welding.
Pipe manufacturing enterprises have high requirements for the width accuracy and edge quality of narrow strip coils. The slitting function of this machine can stably output strip with a width tolerance controlled within ± 0.1mm, meeting the strict standards of welded pipe production.

• Stamping and home appliance manufacturing.
The precision requirements for flat panel dimensions are strict for products such as home appliance casings, electrical cabinets, and metal stamping parts. The fixed length accuracy of ± 1mm of this machine can directly provide qualified blanks for stamping lines, eliminating the need for outsourced cutting processes.

• Small and medium-sized steel trading and processing centers.
For steel traders whose main business is contract processing or inventory cutting, the two in one equipment means lower entry barriers and faster capital recovery cycles.

Product Attributes :

Leveling , slitter and cutting device
Material feeding width	1550mm
Material thickness	Galvanized steel ,0.3-1mm
Leveling roller	15 rollers,up 6 and down 7, with one pair of material feeding rubber rollers
Leveling roller diameter	Φ80mm solid
Leveling roller material	40Cr, high-frequency quenched, surface hard chrome plated.
Voltage	480V/60HZ/3P (as requested)
Main motor	11KW
Slitting blade shaft	40Cr, Φ140mm
Slitting blade material	Cr12Mov
Slitting blade size	Φ140mm× Φ190mm×10mm
Slitting blade quantity	10 pairs (9 strips )
Rubber spacer size	Φ140mm× Φ190mm×10mm
Cutting blade material	Cr12Mov
Cutting type	Electrical motor cutting
Cutting width	1600mm
With plastic film device	To film the plastic film on the sheet



Cost and efficiency advantages：

For small and medium-sized metal processing enterprises, the return on investment of equipment is the most crucial decision-making basis. The competitive advantage of this machine is reflected in three aspects:

1.More land saving.
The traditional independent split line with fixed length line requires a production depth of over 30 meters. This machine compresses the length to about 15 meters through an integrated structure, saving nearly half of the factory space under the same production capacity.

2.Investment is lighter.
The investment for a two in one solution is about 40% -50% of two independent production lines, and the coverage of the process range is almost not reduced - both strip cutting and fixed length cutting can operate independently.

3.Use more flexibly.
In the morning, narrow strip rolls are used for pipe production, and in the afternoon, fixed length mode is switched to cut flat plates for stamping workshop. One equipment can adapt to various order requirements, significantly improving equipment utilization.

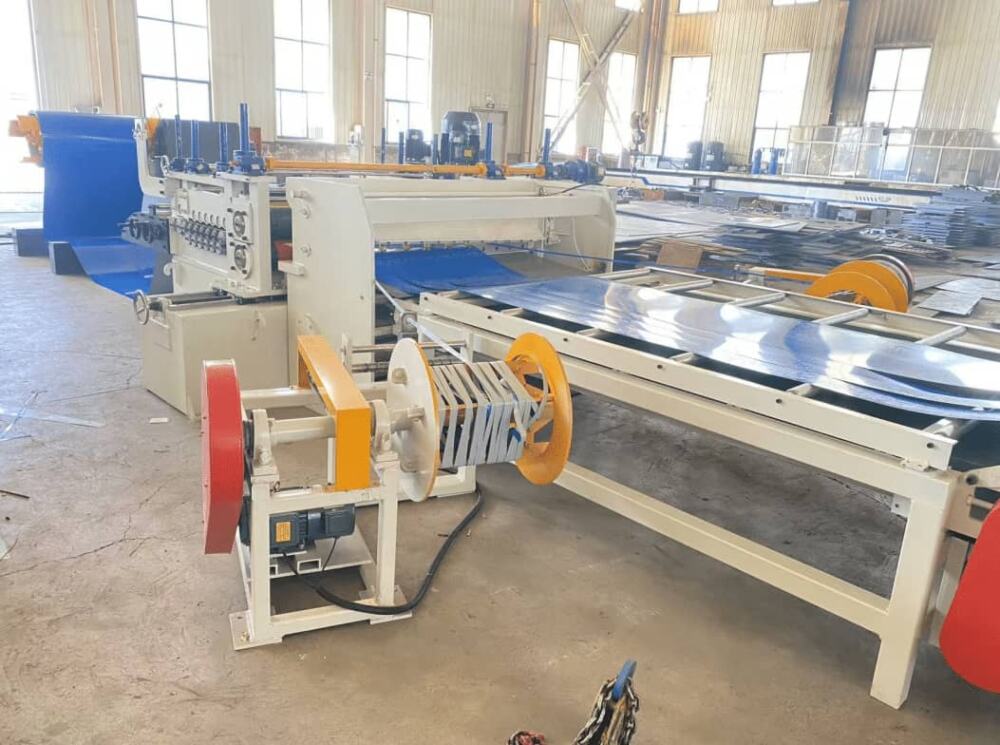

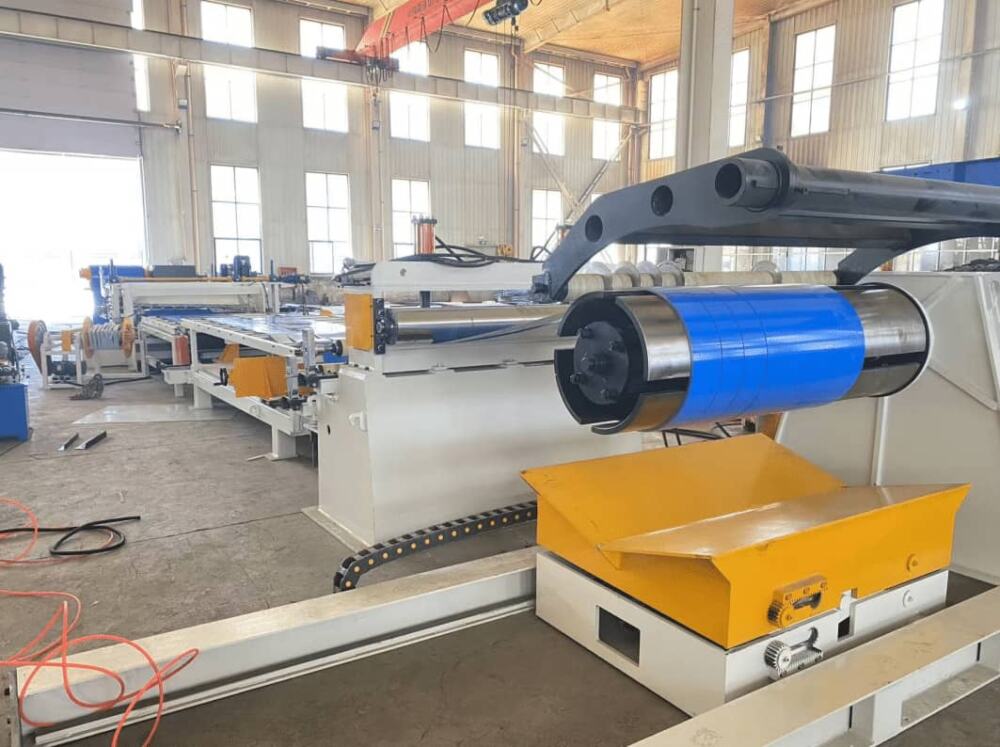

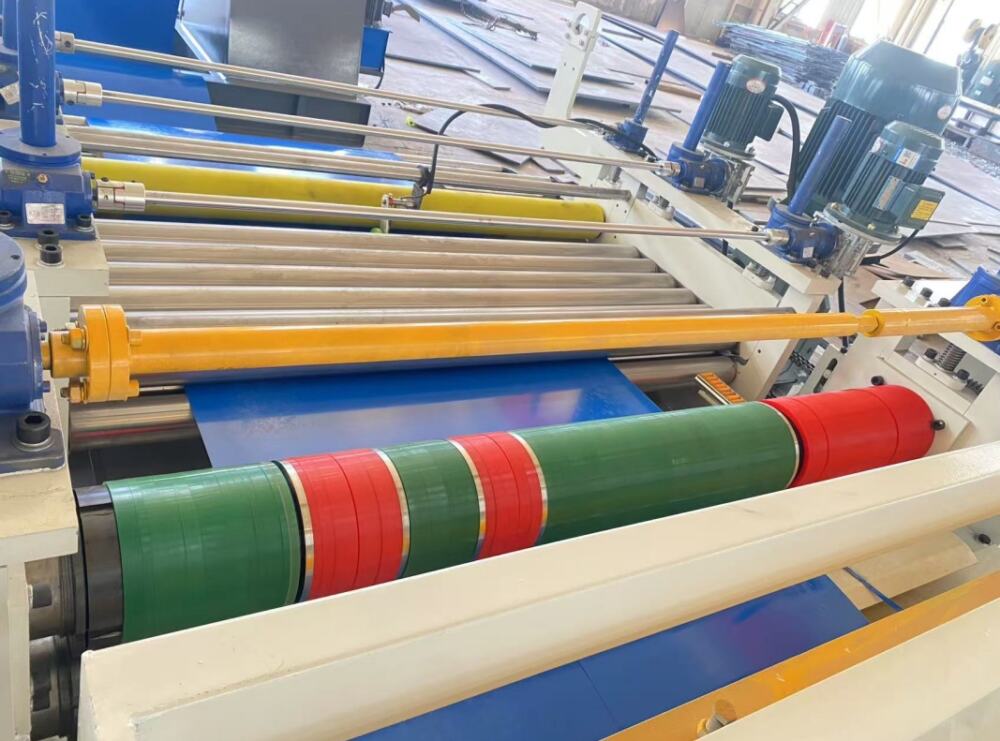

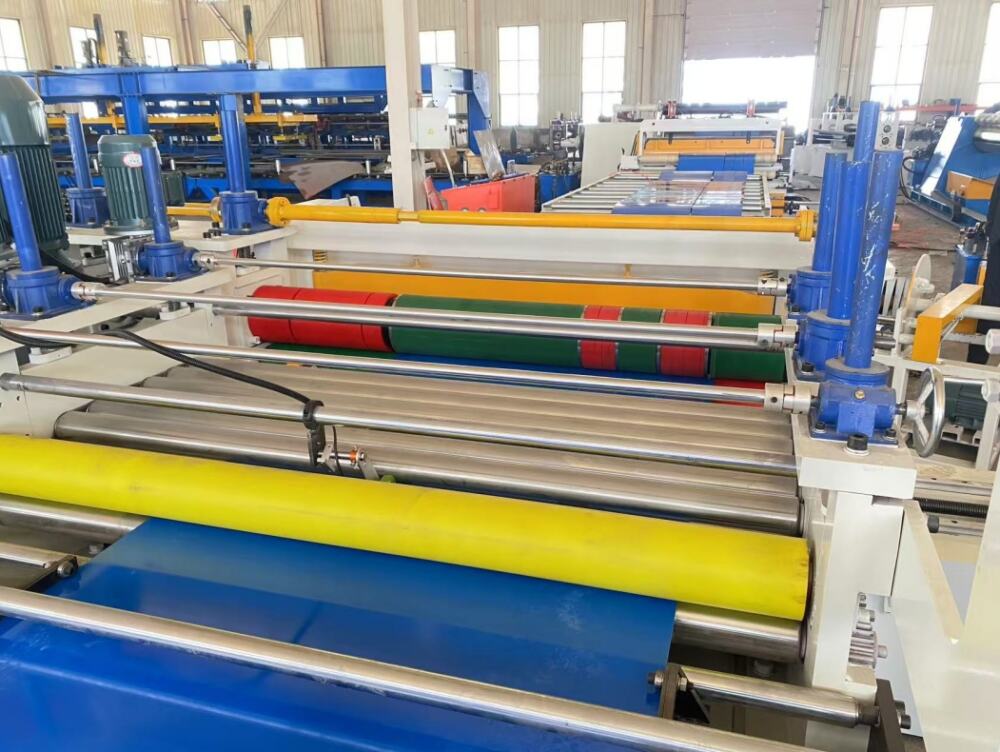

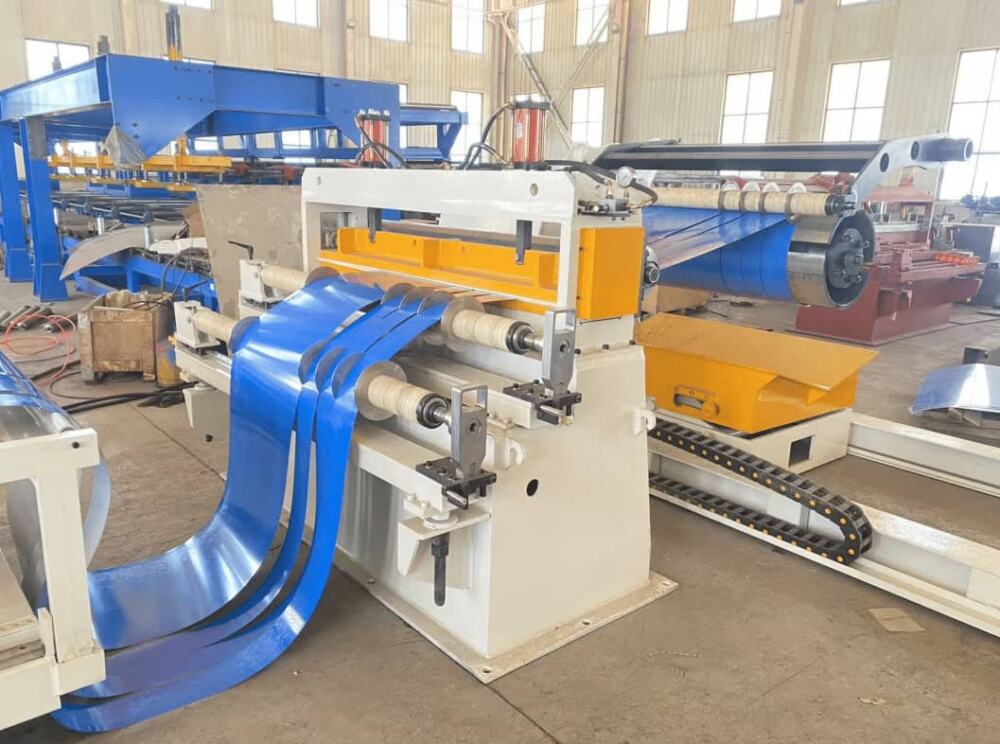

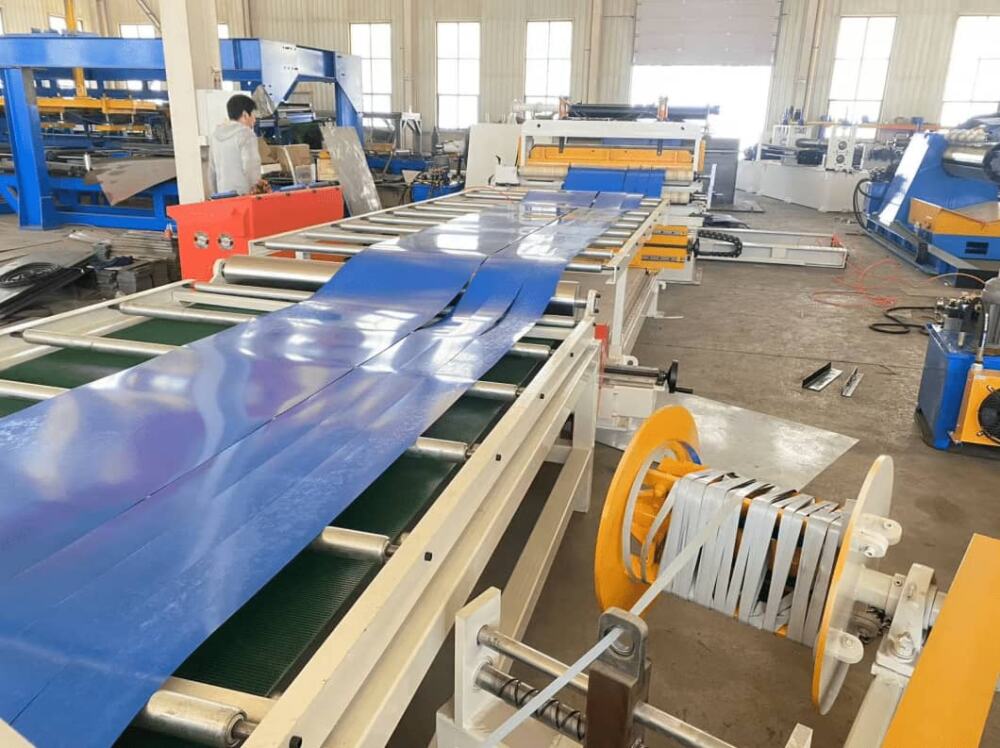

Machine photo:

One device, two answers：

The metal processing industry is transitioning from mass standardization to multi variety, small batch, and fast delivery. Instead of repeatedly weighing between two independent production lines, it is better to use one device to solve both problems simultaneously.

Simple Slitter & Cut-to-Length Machine， Designed for small and medium-sized metal processing enterprises that pursue practicality and efficiency. Welcome to contact for detailed technical solutions and quotations.
