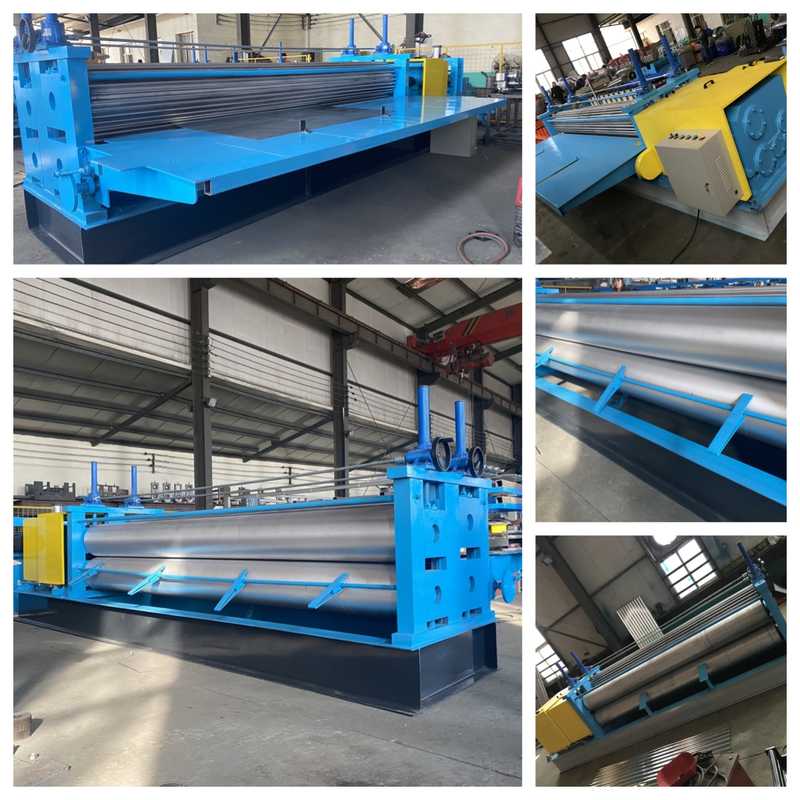

Horizontal Corrugated Pressing Metal Barrel Type Roll Forming Machine
Horizontal Corrugated Pressing Metal Barrel Type Roll Forming Machine
In cultural and tourism towns, high-end villas, commercial complexes and other buildings, circular arc elements have become the core design language to enhance architectural aesthetics and recognition. However, when traditional equipment is used to produce curved building materials, there are problems such as large curvature deviation, uneven surface, and unstable pressure leading to cracking. The Horizontal Corrugated Pressing Metal Barrel Type Roll Forming Machine, with the advantages of "precise constant pressure arc control+multi scene adaptation", helps building materials enterprises upgrade their arc products from "barely formed" to "standard intelligent manufacturing".
Machine advantages
1、 Constant pressure core technology: making every arc "precise and smooth"
2、 Efficient and stable production: daily production capacity of 3000 square meters, guaranteed delivery of large orders
3、 Intelligent and convenient operation: Even beginners can "adjust the arc with one click", reducing the management threshold
4、 Durability+Customization: Long term benefits guaranteed, niche markets can be seized

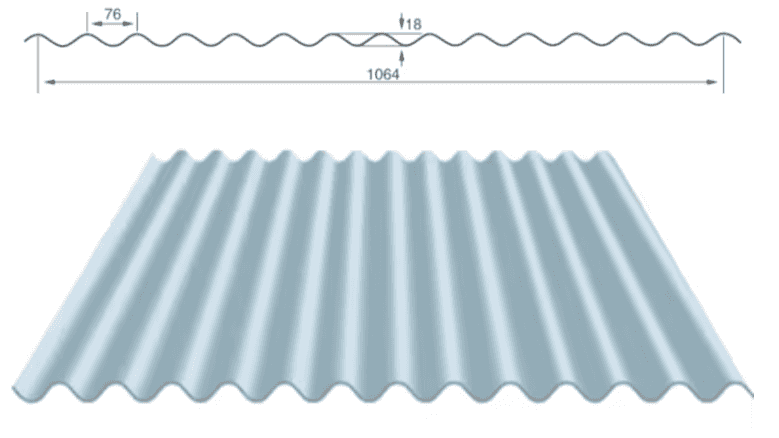

Profile drawing that Horizontal Corrugated Pressing Metal Barrel Type Roll Forming Machine makes:
Product Attributes
|
Suitable material
|
PPGI, GI, Aluminium etc
|
|
Material thickness
|
0.12 - 0.48mm (as request)
|
|
Feeding length
|
Max 3000mm
|
|
Roller station
|
2 sets (4 pcs)
|
|
Roller diameter
|
300mm
|
|
Roller material
|
45# steel
|
|
Roller length
|
3000mm (by request)
|
|
Working speed
|
15pcs/min
|
|
Transmission
|
Gear
|
|
Voltage
|
380v 50hz 3 phrase (Customizable)
|
|
Weight
|
5.5t
|

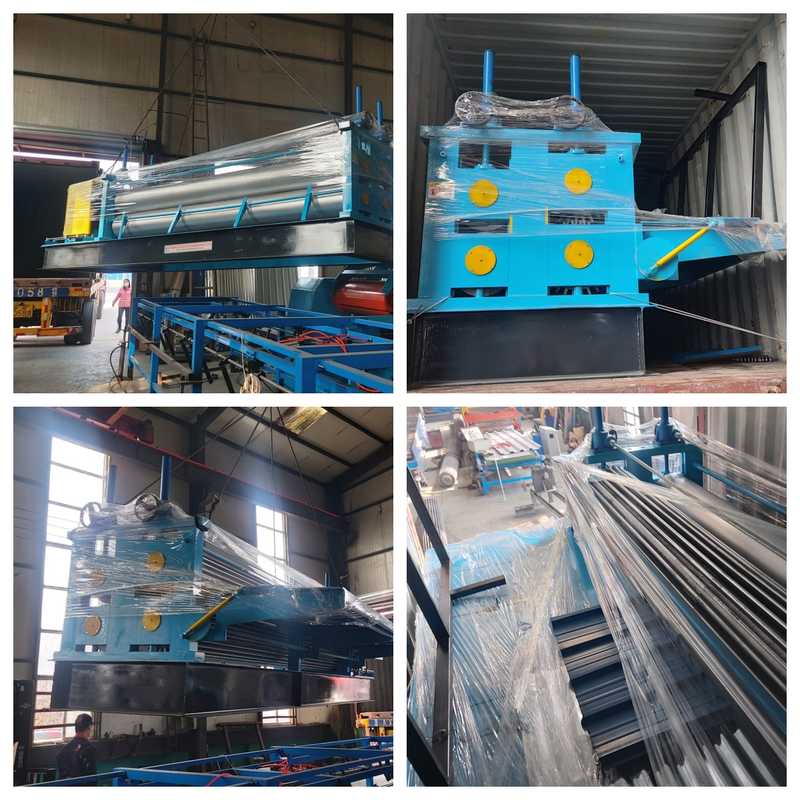

Packing Style
Packing method :Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),oaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
