Supermarket Shelves Z Beam Roll Forming Machine
With the upgrading of supermarkets and hypermarkets towards "refined display" and "integrated warehousing," Z-shaped supermarket shelves have become the preferred shelf type for chain supermarkets, community convenience stores, and fresh food markets due to their advantages such as "stable shelf load-bearing capacity (single shelf load-bearing capacity of 80-150kg), fast installation and assembly, and high space utilization."

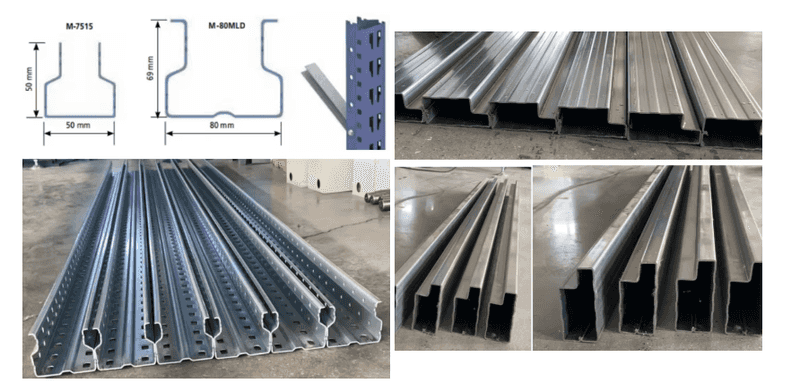

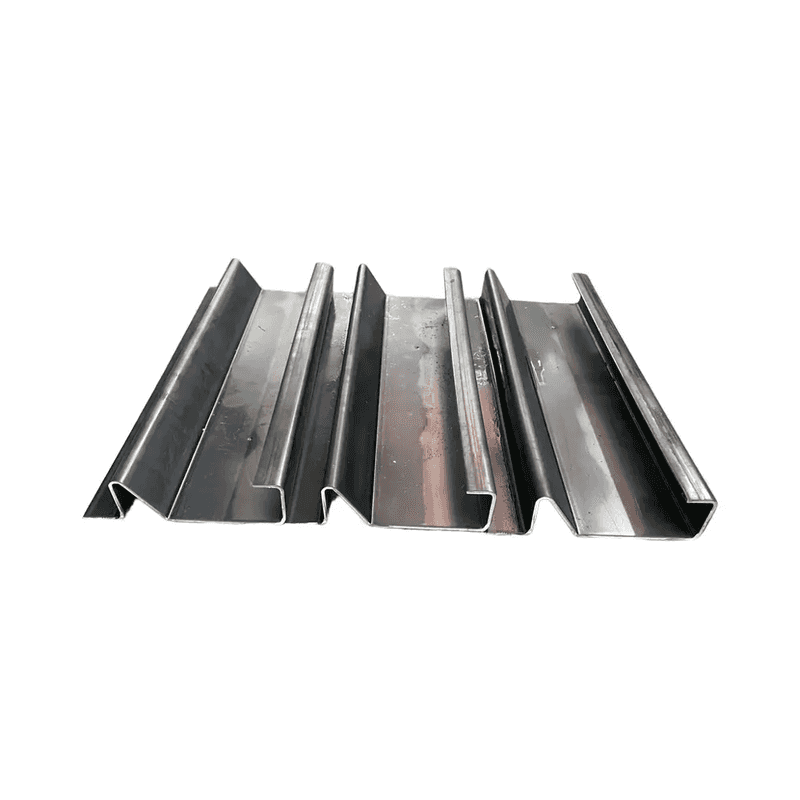

Pattern diagram:
Product Attributes ：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:2-2.5mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

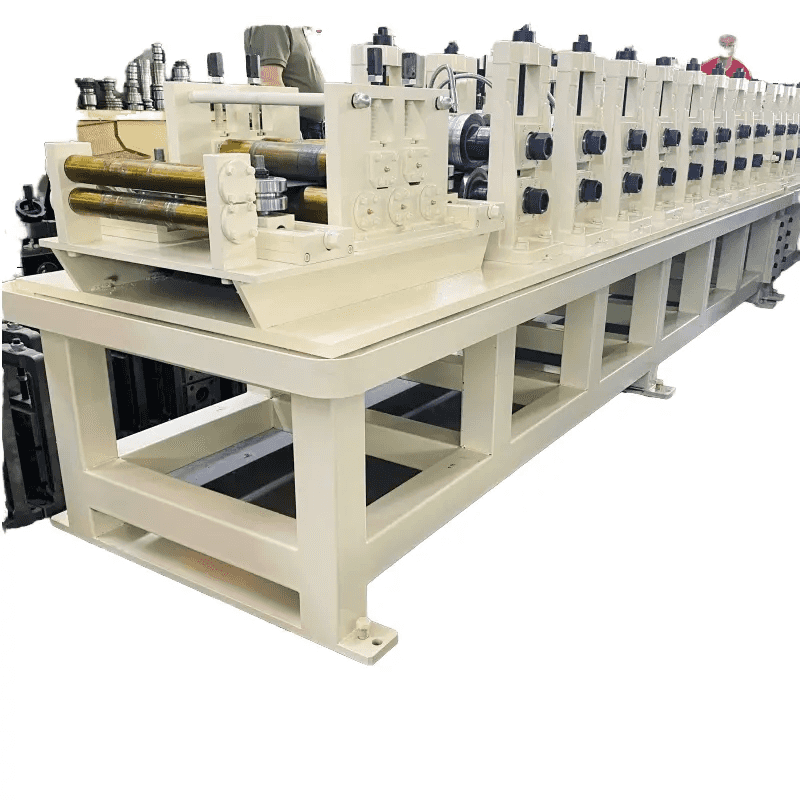

3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
Cr12 with quenched treatment.
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

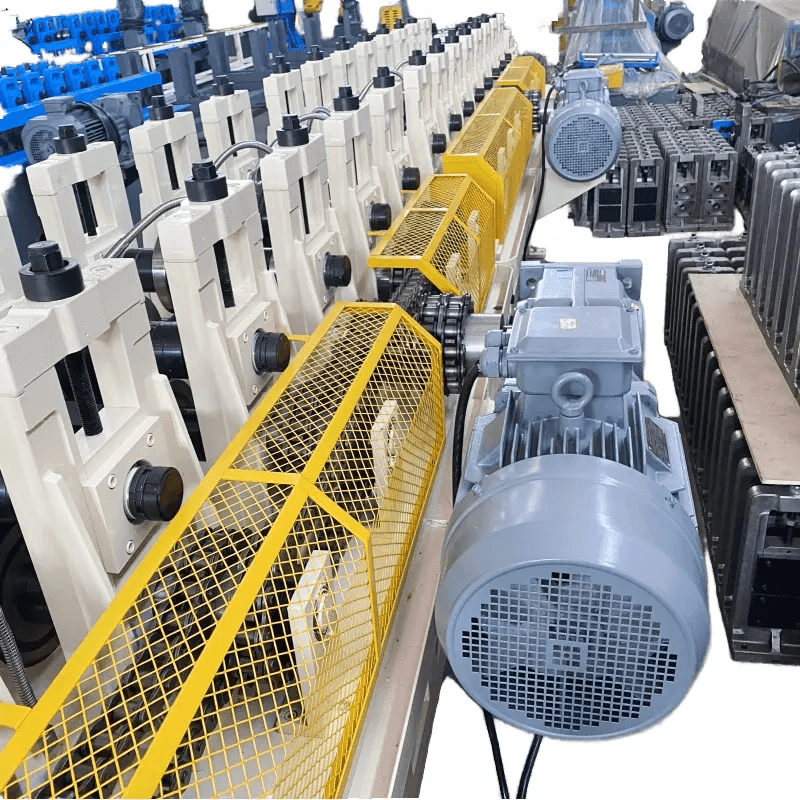

Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
8500*1200*1500(customize)
|
|||
|
Weight
|
About 8.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-25m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Four Exclusive Advantages of Z-Shaped Structures, Solving Core Pain Points in Shelving Production
1. Precise CNC Forming: The Z-Shaped Structure is Rock Solid
Equipped with a servo CNC bending system, the folding angle error is ≤0.5°, the height accuracy is ±0.1mm, and the splicing is seamless with strong load-bearing capacity. The rib module increases load-bearing capacity by 60%, and the thinner sheet material reduces costs while ensuring durability (8-10 years).
2. High-Efficiency Dual-Station Mass Production: Order Delivery is Never Delayed
Dual-station automatic processing produces 30-50 sets per hour, over 800 sets per day, increasing efficiency by 120%. Fully automatic cutting saves materials, with a raw material utilization rate of 98%, reducing costs by 15 yuan per set.
3. Flexible Customization to Meet the Diverse Needs of Supermarkets
Supports customization of lengths from 300-2000mm and widths from 50-300mm, with 15+ commonly used parameters that can be switched in 5 minutes. Integrated forming and spraying, supporting brand-customized colors, and achieving first-class adhesion.
4. Intelligent cost control, low-barrier entry for small and medium-sized manufacturers. Occupying only 15 square meters, suitable for small and medium-sized factories. Intelligent monitoring saves 40% on energy, achieves 90% waste utilization, and reduces overall costs.
