Automatic Wall Cladding Roll Forming Machine Customizable Steel Panel Machine

In the field of contemporary architecture, metal exterior panels have evolved from a single enclosure function to an important building element that combines aesthetic expression, energy conservation, environmental protection, and long-term durability. With the rapid popularization of prefabricated and green buildings, the demand for high-quality metal wall panels in the market continues to grow, and the core equipment for producing these wall panels - Wall Cladding Roll Forming Machine - is becoming a key investment for global building material manufacturers and contractors to enhance their competitiveness.

What is a wall panel roll forming machine?

Wall panel roll forming machine is a continuous cold bending equipment designed specifically for mass production of metal wall panels. It gradually rolls steel coils, aluminum coils, or composite metal coils through 26 sets or even more forming stations, and finally processes them into building exterior wall panels or interior wall decorative panels with specific cross-sectional shapes. Unlike traditional bending machines or stamping processes, roll forming can produce continuously at speeds of up to 0-20 meters per minute, with length tolerances controlled within ± 0.5mm, achieving high efficiency and consistency in mass production.

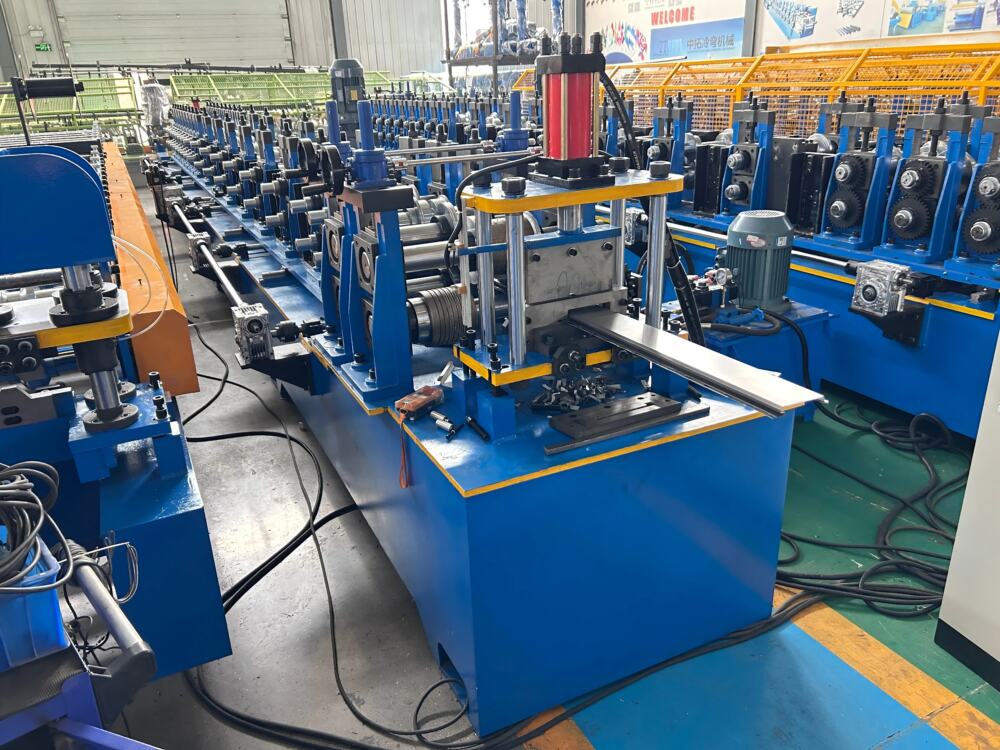

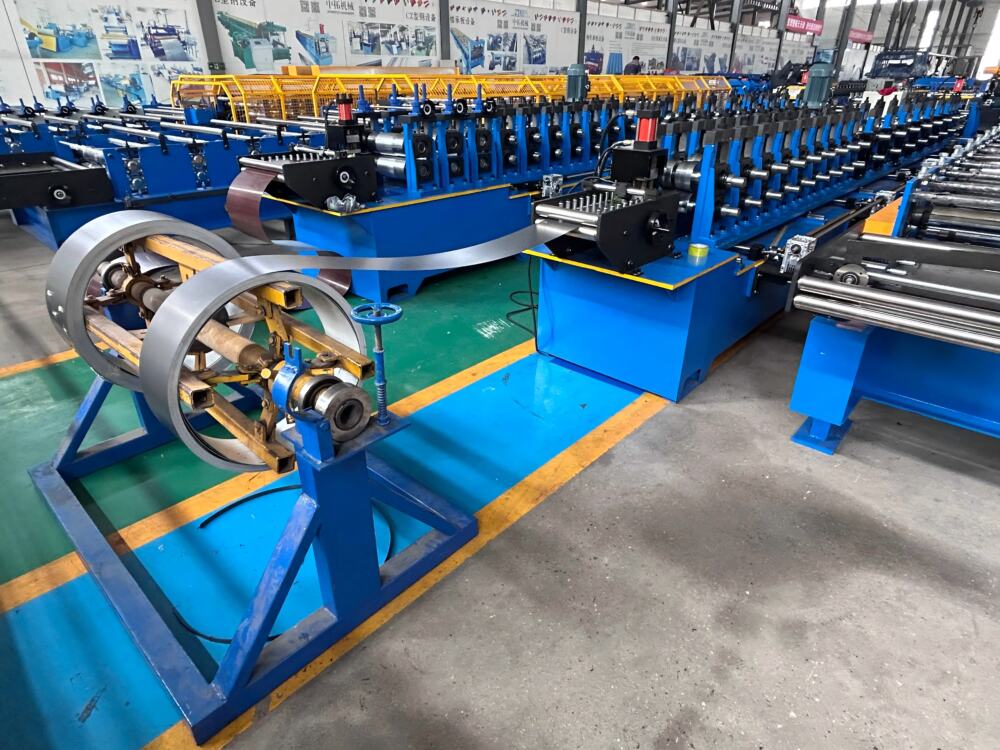

The entire production line is usually composed of hydraulic unwinding machine, precision leveling machine, guiding and correcting device, main roll forming machine, servo flying shear or hydraulic fixed length cutting system, PLC control cabinet, and automatic palletizing system, etc., to achieve full process automation from coil feeding to finished product stacking.

Widely applicable scenarios：

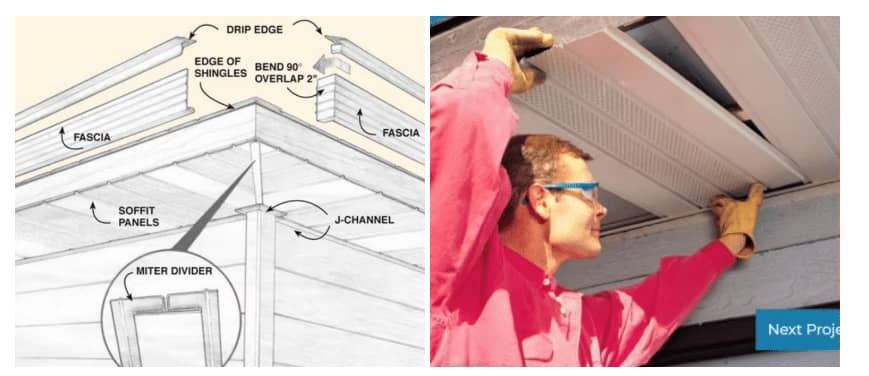

The wall panel products produced by the metal wall panel roll forming machine are widely used for exterior wall decoration and enclosure of various buildings such as commercial buildings, residential communities, office buildings, shopping centers, and public facilities. In the field of industrial construction, it serves the production of wall panels for prefabricated steel structure buildings (PEB); In the field of agricultural construction, durable wall panels can be produced for use in barns, livestock facilities, and other occasions. From modern urban landmarks to functional industrial plants, from large airport terminals to exquisite boutique hotels, roll formed wall panels are winning the favor of more and more architects and homeowners with their superior performance and rich expressive power.

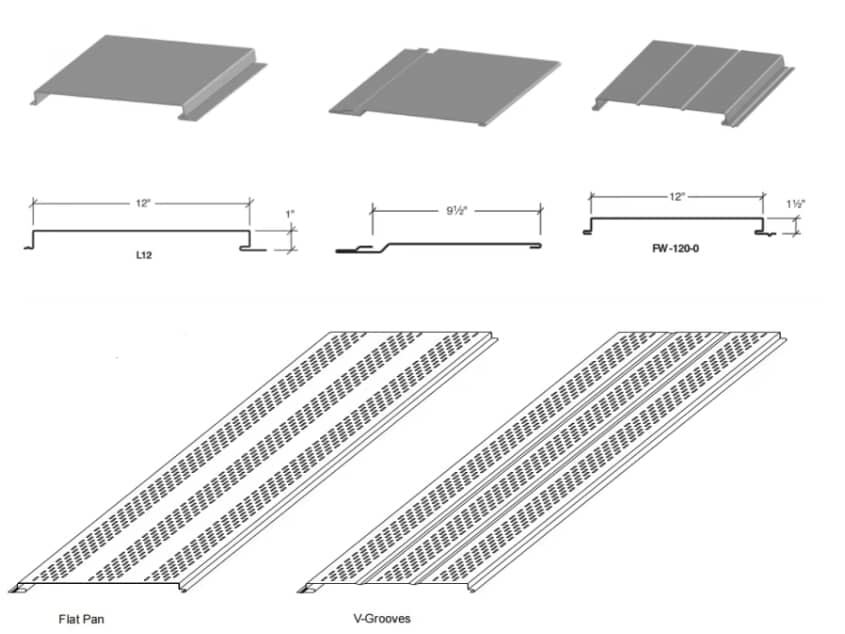

Pattern diagram：

Product Attributes :

Core technological advantages：

1、 High precision molding, consistent quality

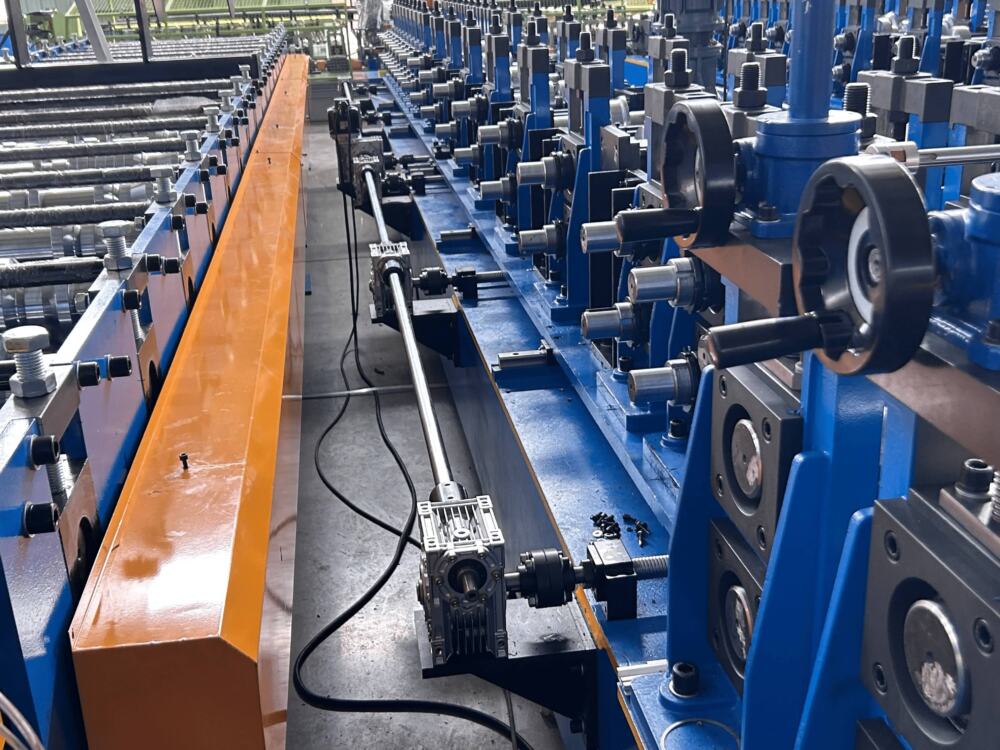

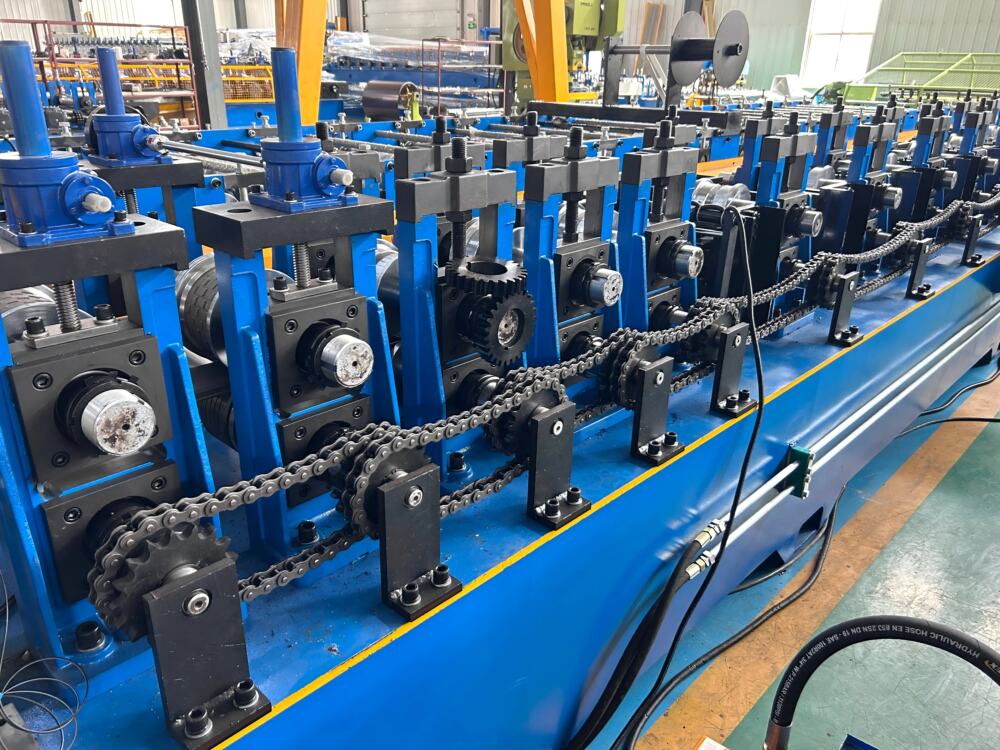

The equipment adopts a thick plate welded frame, which is subjected to vibration aging or overall annealing treatment to eliminate internal stress, ensuring that the machine body does not deform under long-term high-speed operation. The rollers are made of high-quality forged 45 # steel or Cr12Mo5 alloy steel, and are precision machined by CNC external grinding. They have high surface hardness, strong wear resistance, and good concentricity. The formed base is processed by CNC gantry milling to ensure the parallelism and perpendicularity of each workstation. The whole machine can control the product size tolerance within ± 0.3mm, ensuring that the width, thickness, and cross-sectional height of each wall panel are consistent.

2、 High speed continuous production, leading in efficiency

The molding speed of the equipment can be infinitely adjusted within the range of 0-20 meters per minute to meet the production needs of different profile complexities and material thicknesses. Support the processing of various metal materials such as cold-rolled steel, galvanized steel, aluminum, and stainless steel with thicknesses ranging from 0.3mm to 0.6mm. The annual output of a single device can reach 500000 to 2 million linear meters, providing sufficient production capacity guarantee for large-scale engineering projects.

3、 Fully automated control, easy to operate

The equipment is equipped with advanced PLC programmable control system and touch screen human-machine interface, allowing operators to easily adjust production parameters, profile specifications, and production speed. The system supports functions such as parameter storage, production counting, fault self diagnosis, and output statistics. It can also integrate remote diagnostic functions, effectively reducing equipment downtime. The fully enclosed safety cover, emergency stop button, and safety interlock device comply with international industrial safety standards.

4、 Scratch resistant and wear-resistant, protecting the quality of the decorative surface

For the surface protection requirements of color coated steel plates and decorative coils, the equipment adopts soft conveying rollers and precision gap adjustment system to effectively prevent scratches, wear or fading on the material surface during the forming process. The roller is treated with a hard chrome coating, which combines excellent wear resistance and corrosion resistance. Finished wall panels can maintain stable performance in harsh environments such as high temperature, humidity, and strong winds, without discoloration, deformation, or peeling.

Contact Us：

The Wall Cladding Roll Forming Machine is not just a device, it is an efficient bridge connecting architectural design creativity with the realization of architectural products. Whether you are a building materials manufacturer seeking to expand production capacity or an engineering contractor looking to improve project delivery efficiency, a high-quality wall panel roll forming production line will be a powerful support for your business growth.

Choose reliable equipment suppliers and customize wall panel roll forming solutions that meet your production needs, making every wall panel a quality calling card for the building.
