High-Quality Ridge Cap Roll Forming Machine – Reliable Manufacturer

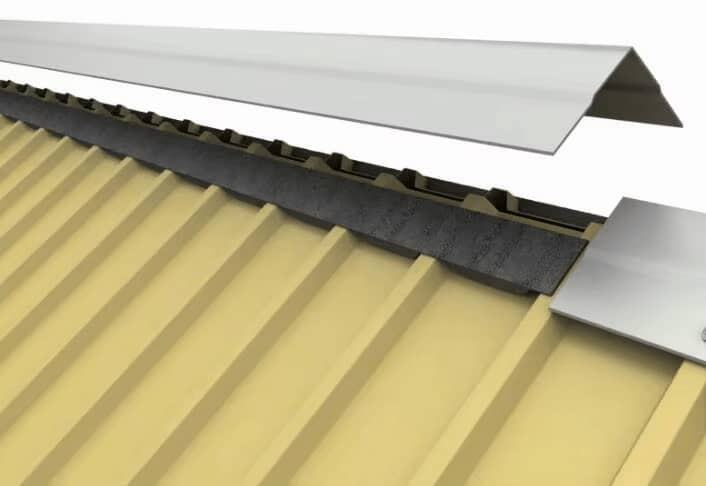

In metal roofing systems, the ridge cap, while not occupying as much visual space as the roof panels, is the crucial element determining the roof's lifespan and aesthetics. Located at the highest point where the two slopes meet, it plays a vital role in sealing the joints and preventing wind, rain, and snow from flowing back in. The fully automatic steel ridge cap roll forming machine is a specialized piece of equipment designed for the efficient and precise production of this core roofing component.

What is a Fully Automatic Steel Ridge Cover Roll Forming Machine?

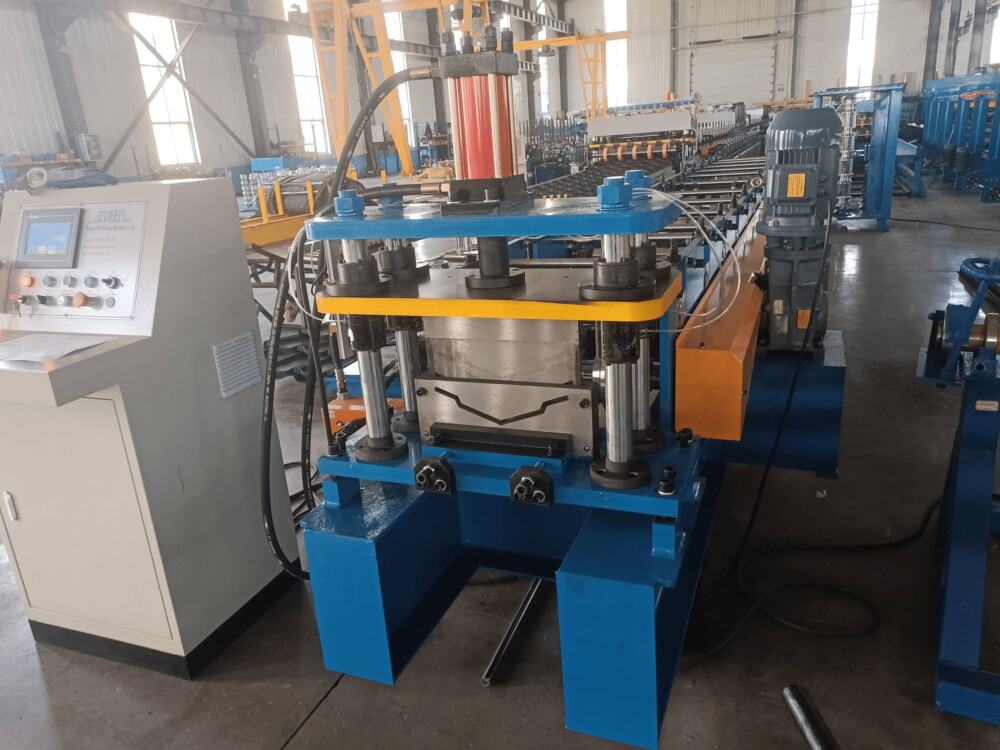

A High-Quality Ridge Cap Roll Forming Machine is a specialized production line that automatically processes ridge cover profiles from galvanized steel strips, color-coated steel strips (PPGI), aluminum coils, and other metal strips through a cold bending process using multiple rollers.

Ridge covers are an indispensable component of metal roofing systems. They cover the joints at the highest point of the roof, providing excellent waterproofing and corrosion resistance, and significantly enhancing the overall aesthetics and durability of the roof. The equipment mainly consists of a hydraulic feeding rack, a feeding and leveling device, a roll forming main unit, a hydraulic shearing system, a PLC electrical control system, and a discharge rack. This equipment is widely used by metal roofing product manufacturers, roofing accessory suppliers, and various steel structure building projects.

Wide Range of Applications：

• Industrial Plants and Warehouses: Ridge sealing and beautification of color steel roofs

• Residential Houses and Villas: Edge finishing and decoration of metal roofs

• New Rural Construction and Flat-to-Slope Roof Conversion Projects: Standardized components for roof renovation and upgrading

• Commercial Buildings and Public Facilities: Roofing projects with high requirements for waterproofing and aesthetics

• Resorts and Tourist Buildings: Roofing systems that combine functionality and architectural aesthetics

Product Attributes :

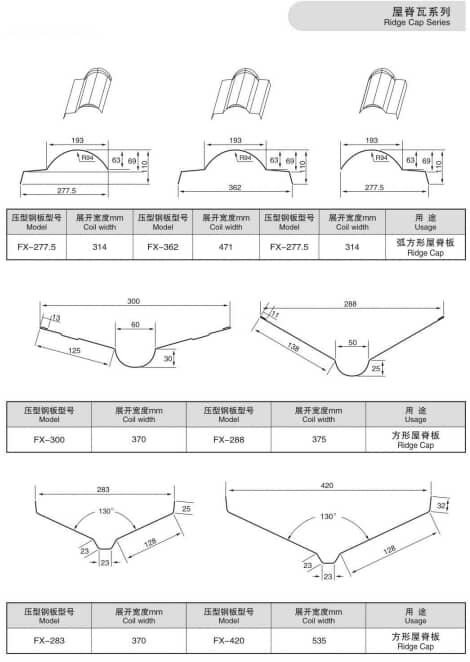

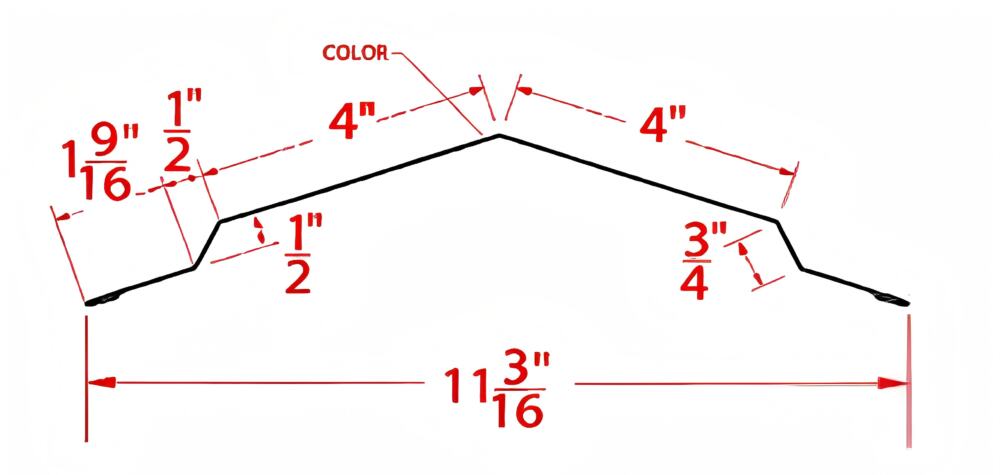

Pattern diagram：

Core Advantages: Redefining Ridge Cover Plate Production：

1. Fully Automated PLC Intelligent Control, One-Click Production

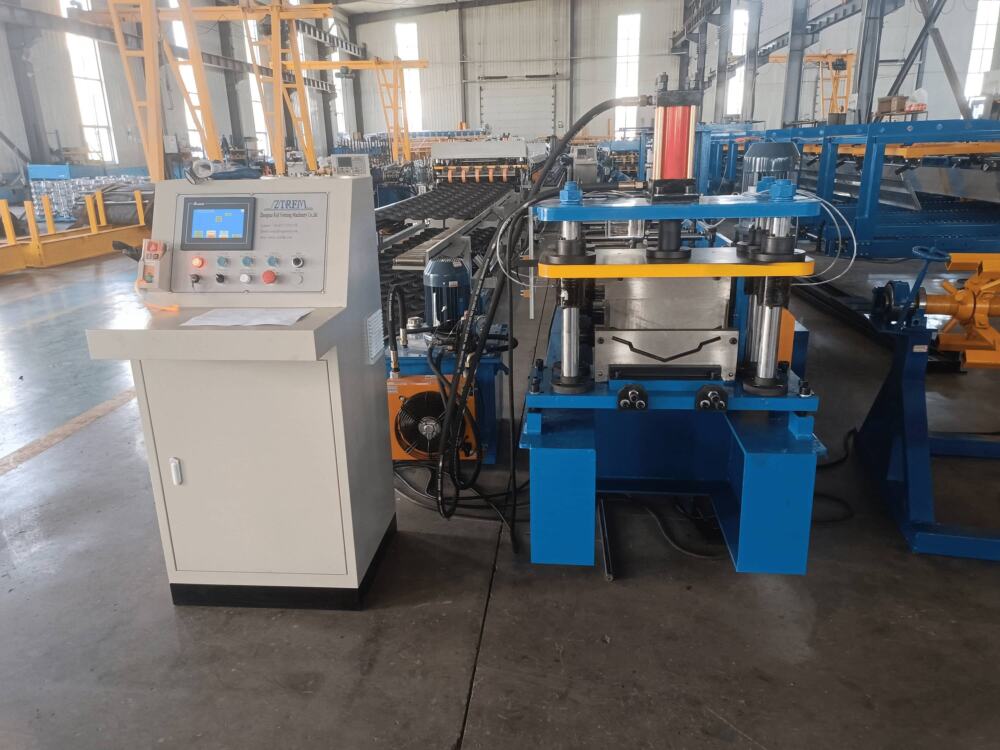

The equipment is equipped with an advanced PLC control system and a touch screen operating interface, realizing full automation from uncoiling and feeding to finished product output. Operators only need to set parameters such as the length and quantity of the ridge cover plates on the touch screen, and the machine can automatically complete all processes including uncoiling, leveling, multi-pass roll forming, and fixed-length cutting. The core components of the control system use internationally renowned brands such as Delta, Siemens, and Mitsubishi, ensuring stable and reliable equipment operation. The entire machine supports multilingual interfaces, making operation simple and intuitive.

2. High-Precision Forming, Stable and Reliable Quality
The equipment uses high-precision roller molds. The rollers are made of GCr15 bearing steel or Cr12 mold steel, precision machined, quenched (hardness up to HRC58-62), and surface hard chrome plated. Multi-pass forming processes ensure uniform material flow and precise cross-section forming. Combined with a high-precision hydraulic shearing system, the cuts are smooth and burr-free. The finished product has a smooth, scratch-free, and indentation-free surface, achieving a yield rate exceeding 98%, earning high customer recognition.

3. High-Speed ​​Production, Amazing Capacity
The fully automatic steel ridge cover roll forming machine boasts extremely high production efficiency, with forming speeds reaching 8-20 meters per minute. Continuous automated production completely replaces traditional manual bending operations, saving up to 70% in labor costs. Only 1-2 people are needed to operate a single production line, significantly reducing labor input.

4. Flexible Changeover, Multi-Purpose Machine
The equipment adopts a modular mold design, supporting rapid changeover. A single machine can flexibly produce ridge covers of different sizes (width, length) and cross-sectional shapes (U-shaped, V-shaped, arc-shaped, etc., more than 10 types), perfectly matching the structural requirements and architectural styles of various roofing projects. Some models even support double-layer ridge cover roll forming options, allowing multiple models to be produced on the same machine, effectively saving production space and equipment investment.

5. Integrated Design, Unified Processes
The equipment adopts a highly integrated configuration, combining unwinding, leveling, roll forming, punching, and cutting processes into a complete automated production line. Heavy-duty rollers ensure the ridge cover structure is robust, while precision forming units process it to accurate specifications. A unique arched chain drive system provides superior stability, ensuring precise alignment during continuous operation; high-performance servo motors guarantee precise motion and positioning control, which is crucial for maintaining product dimensional consistency during high-speed operation.

Why Choose a Fully Automatic Steel Ridge Cover Roll Forming Machine?

✅ Efficiency Revolution: Forming speed 8-20m/min, continuous automated production, saving 70% on labor costs.

✅ Quality Assurance: High-precision roller forming, yield rate exceeding 98%, smooth and flawless surface.

✅ Cost Reduction and Efficiency Improvement: Fully automated production, 1-2 people required to operate, significantly reducing labor and training costs.

✅ Flexible Adaptability: Modular quick changeover, supports switching between more than 10 ridge cover sections.

✅ Multi-functional: Dual-layer design option, multiple models can be produced on the same machine, saving space and investment.

✅ High Return on Investment: One production line replaces multiple traditional processes, quickly recovering costs.
