Heavy-Duty Metal Storage Rack Roll Forming Machine for Supermarkets
Machine video
High precision machining: ensuring shelf safety
• Stable body:
Made of high-quality alloy steel, the body undergoes multiple precision machining and strict heat treatment, with strong rigidity, deformation resistance, and the ability to withstand high-intensity rolling operations for a long time, laying the foundation for stable processing.
•Precise control:
Equipped with imported CNC system and high-precision servo drive device, it accurately controls the roll speed, pressure and feed rate. The column size error can be controlled within ± 0.05mm, and the straightness and perpendicularity meet the national shelf industry standards.
•High quality rollers and forming:
Specialized forming rollers are made of special wear-resistant materials and surface quenched to make the column surface smooth and scratch free, while also reducing roller wear; Suitable for cold-rolled plates, hot-rolled plates, high-strength galvanized steel plates, etc., adjust parameters according to material characteristics to achieve one-time precise forming, eliminating the need for repeated correction and polishing processes.
Efficient Production: Enhancing Corporate Profitability
• High speed rolling:
Adopting an integrated process of continuous rolling and automatic cutting, combined with a high-speed servo feeding system, the rolling speed can reach 15-25 meters per minute, which is more than 40% more efficient than traditional single machine processing.
• Fully automated process:
integrating automatic feeding, forming, punching (configured as needed), cutting, and stacking functions, from raw materials to finished product stacking without manual intervention, reducing the cost of 3-5 operators, avoiding manual errors, and ensuring consistent column quality.
• Quick production change:
The intelligent control system includes a high-definition touch screen and built-in dozens of common shelf column processing parameter templates. Operators can quickly switch production specifications by calling or fine-tuning parameters, shorten production change time, and meet the needs of multi variety and small batch production.
High adaptability: covering all scene requirements
• Flexible size adjustment:

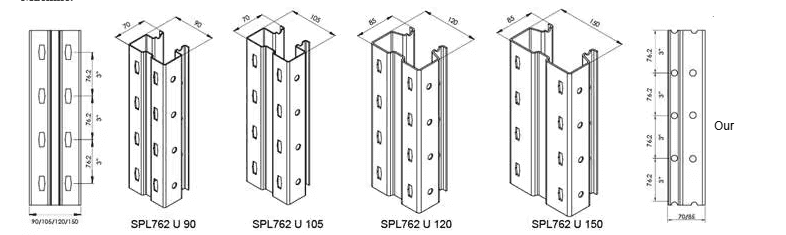

By quickly changing the rolling mill set and adjusting the process parameters, columns with a width of 50-300mm and a thickness of 1.5-6mm can be processed to meet the needs of different types of shelves such as light and heavy.
• Customized structure according to customer needs:

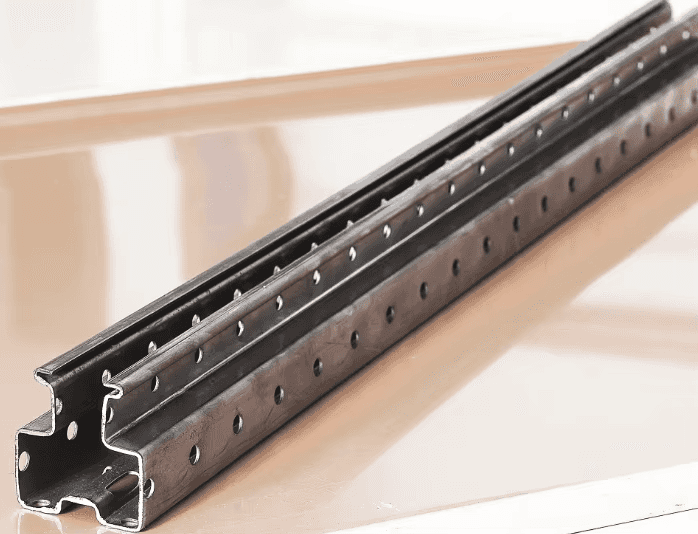

It can integrate punching devices according to customer needs to achieve integrated processing of column "forming+punching", without the need for separate punching in the future, improving efficiency.
• Multi material adaptation and scene coverage:

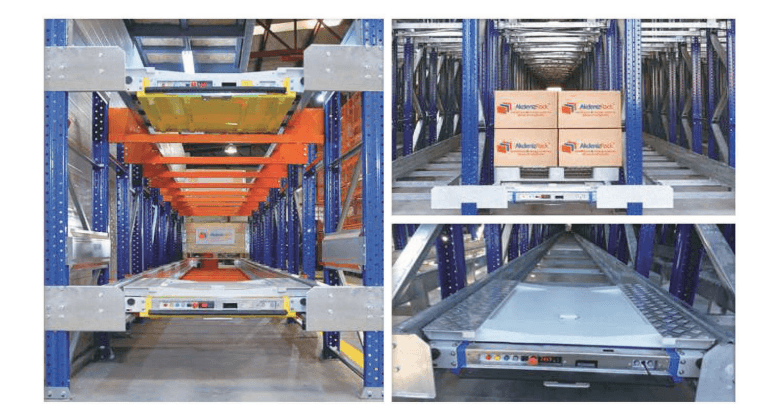

It can process cold-rolled sheet, hot-rolled sheet, galvanized sheet, color coated sheet, etc. to meet the requirements of column corrosion resistance and aesthetics. The products cover various shelf scenes such as warehousing, supermarkets, logistics turnover, etc., helping enterprises reduce equipment investment and broaden product categories.
Product Attributes
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-2.7mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
As your requirement
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
customize
|
|||
|
Weight
|
About 75T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
customized
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

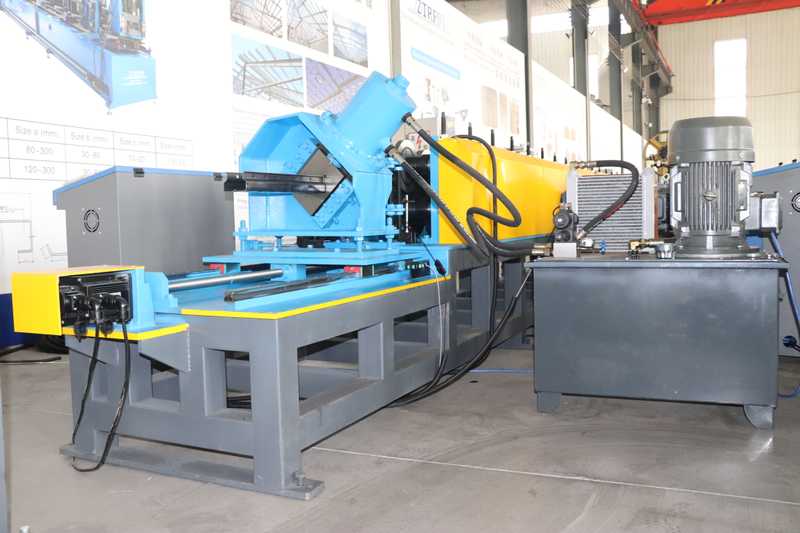

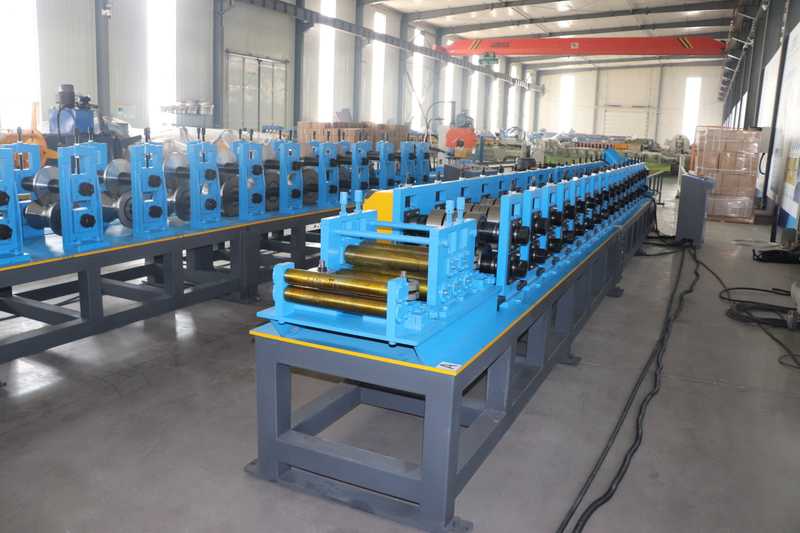

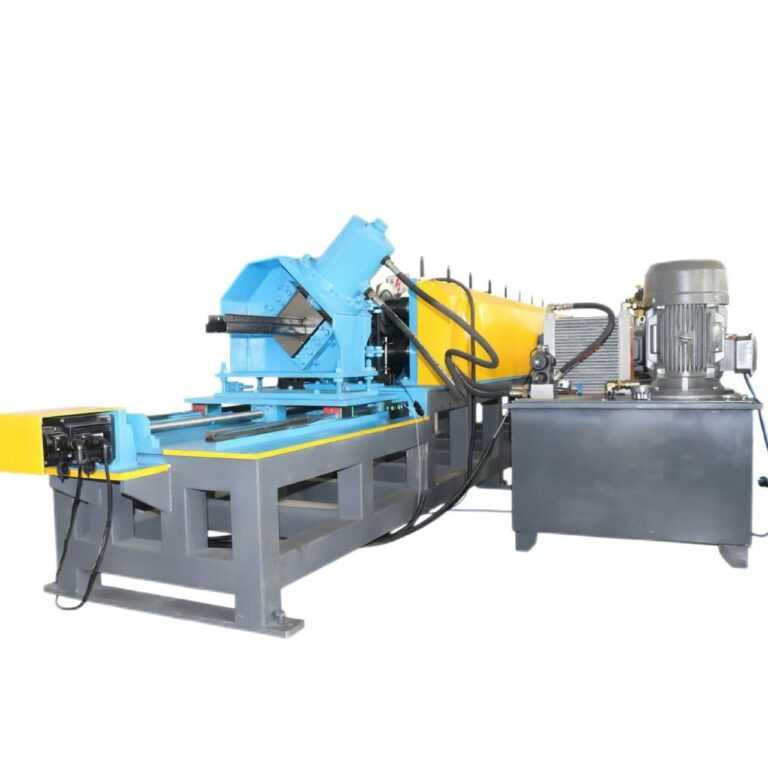

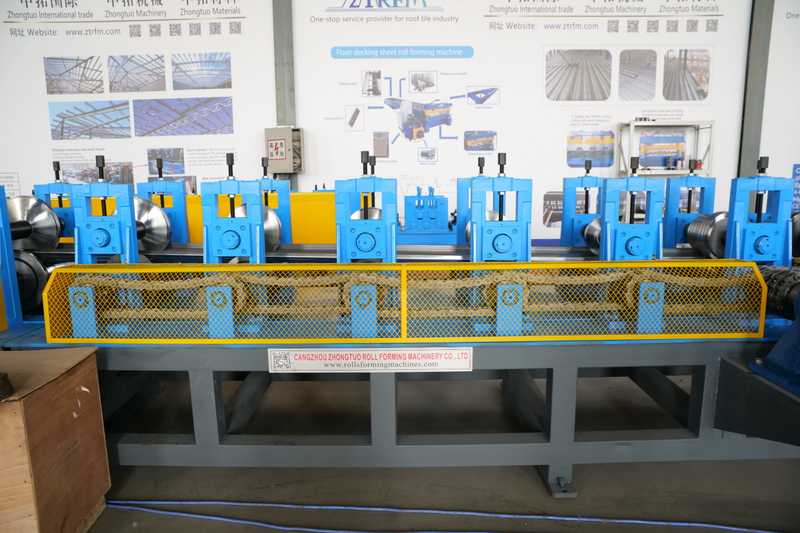

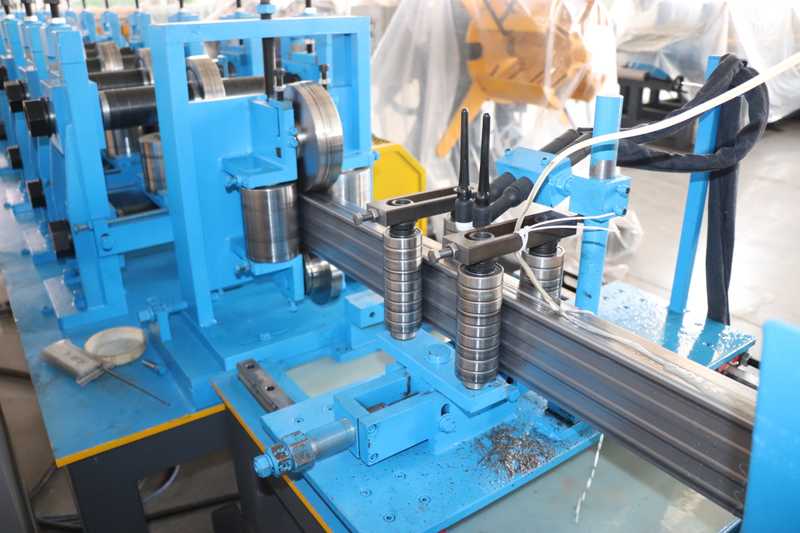

Machine photo
