Automatic Hydraulic Supermarket Shelves Storage Rack Upright Pillar Roll Forming Machine
With the continuous expansion of smart logistics and automated three-dimensional warehouses, as well as the accelerated promotion of chain and standardization in the retail industry, the demand for global storage shelves market is steadily increasing. As the core load-bearing component of the storage system, the forming accuracy and structural stability of the shelf column directly determine the overall load-bearing safety and service life of the shelf. In this context, the automatic hydraulic supermarket shelf storage shelf column cold bending forming machine has emerged, becoming the core equipment for shelf manufacturing enterprises to improve quality, reduce costs, and seize the market with its excellent performance of full automation, high precision, and high efficiency.
Product Overview：
The automatic hydraulic supermarket shelf storage shelf column cold bending forming machine is a fully automatic cold bending forming equipment developed specifically for the mass production of supermarket shelves, storage shelves, and industrial heavy-duty shelf columns. The equipment adopts a modular integrated structure design, integrating multiple functions such as hydraulic automatic unwinding, plate leveling, servo precision punching, multi combination steel roll forming, hydraulic fixed length shearing, and automatic stacking. The entire production line has achieved full process automation and continuous production from steel coil feeding to finished column discharging, and is an indispensable core production equipment in the logistics and warehousing hardware industry.
This equipment can process various raw materials such as cold-rolled steel, galvanized coils, carbon steel, etc. The material thickness range is usually 1.5-3.0mm, and the forming speed can reach 0-20 meters/minute. It is suitable for the full scene processing needs of light, medium, heavy shelves and three-dimensional warehouse columns.
Widely applicable fields：

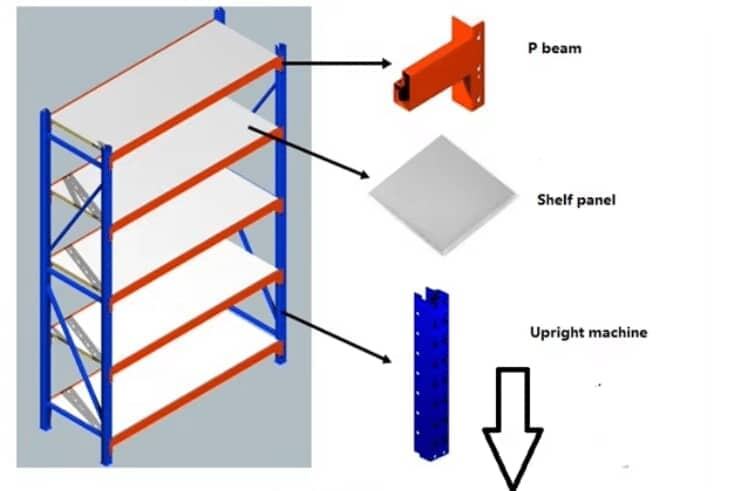

The shelf column profiles produced by the equipment are widely used in the following scenarios:
• Supermarkets and retail stores:
As a supporting structure for supermarket shelves, it is used to support shelves, backboards, etc., to achieve classified display of goods, suitable for various retail scenarios such as fresh produce, daily necessities, clothing, etc.

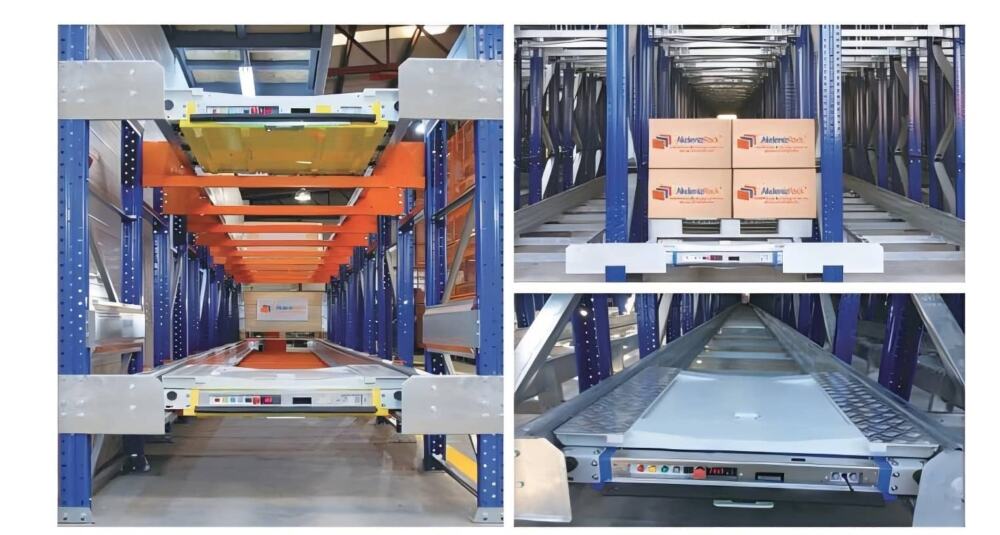

• Automated Stereoscopic Warehouse (AS/RS):
High strength columns, beams, and pallets work together to form a heavy-duty shelving system that supports forklift, stacker, or shuttle operations. It is widely used in e-commerce logistics centers and manufacturing raw material warehouses.
• Industrial manufacturing and building materials industry:
used for cantilever shelf columns, can store irregular materials such as long strips, pipes, and boards, suitable for automotive factories, steel dealers, wood processing, and other scenarios.
• Factory workshop and production line:
used for storing raw materials, semi-finished products, and finished products, supporting the storage of standard pallets (such as 1200 × 1000mm), and flexibly adapting to different sizes of materials by adjusting the layer height.
Core advantages：
1. Integrated production line, fully automated and intelligent production
2. High precision molding, stable and reliable quality
3. Servo punching and hydraulic cutting, highly integrated process
4. Intelligent flexible production, fast changeover
5. Durable and sturdy, supporting continuous production 24/7

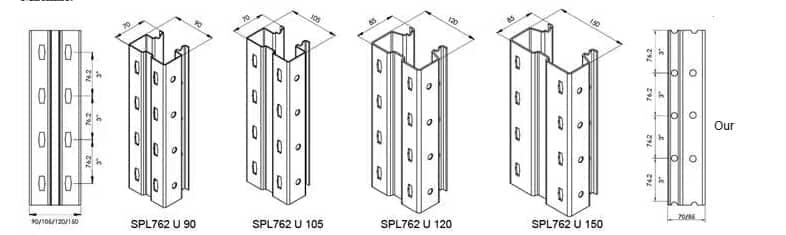

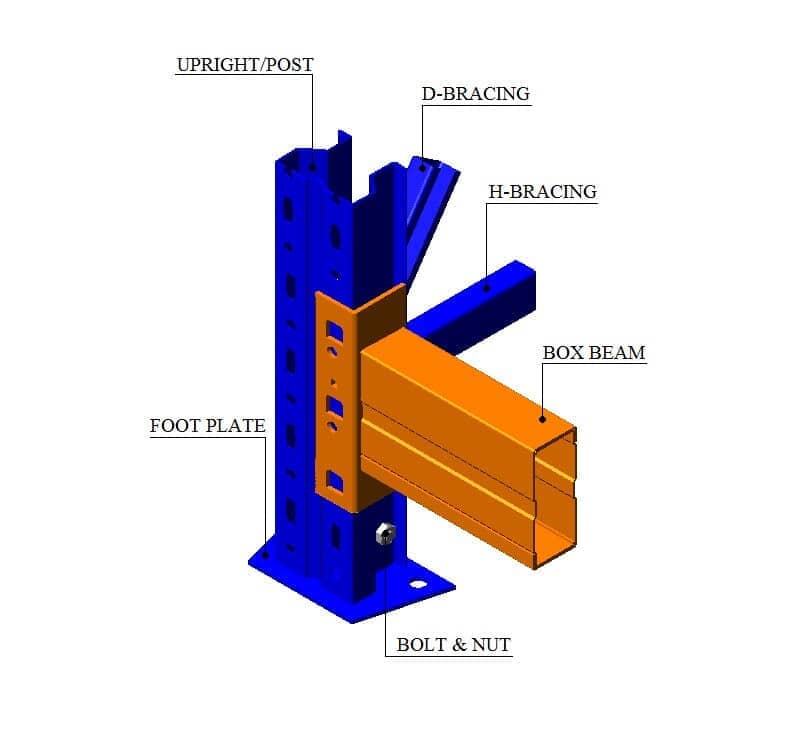

Pattern diagram：
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-3 mm
|
||
|
2.Decoiler
|
3 Tons Hydraulic automatic decoiler
|
3 Tons Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows (As your requirement)
|
||
|
Diameter of shaft
|
80 mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Gear and chains transmission
|
|||
|
Dimension(L*W*H)
|
15000*1800*1600(customize)
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW*2 sets,Siemens brand
|
||
|
Hydraulic system power
|
15 KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Speed is adjustable according to customer’s request.
|
||

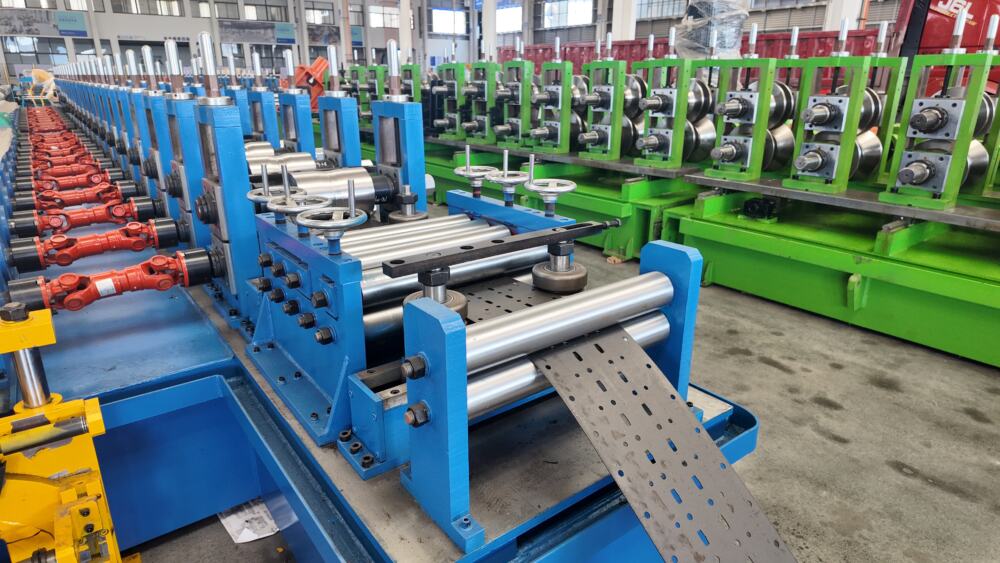

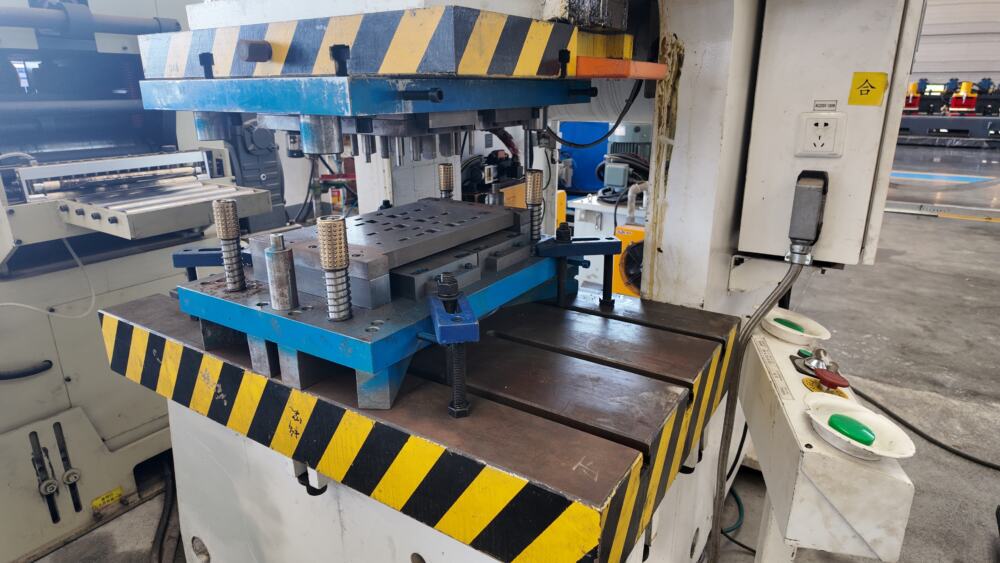

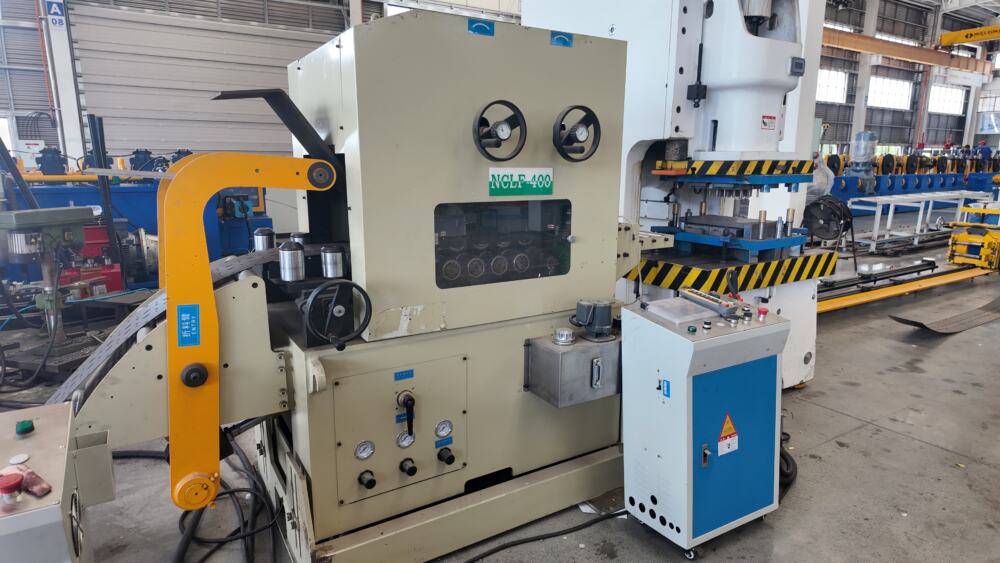

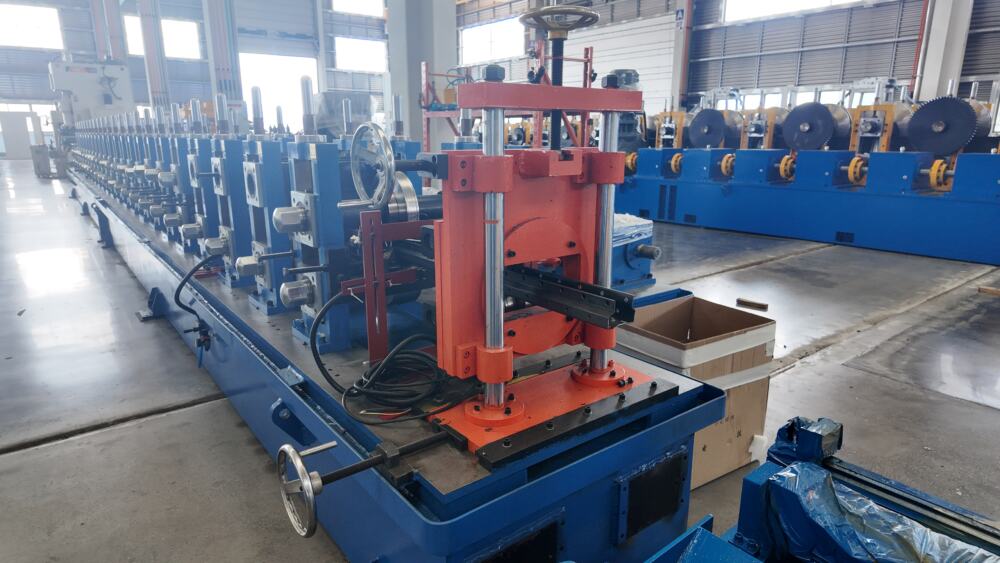

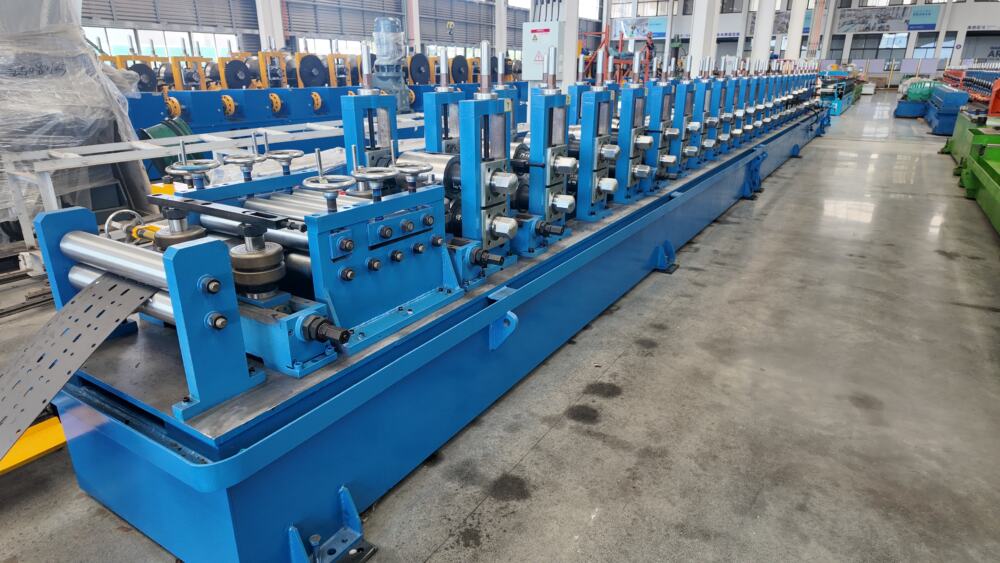

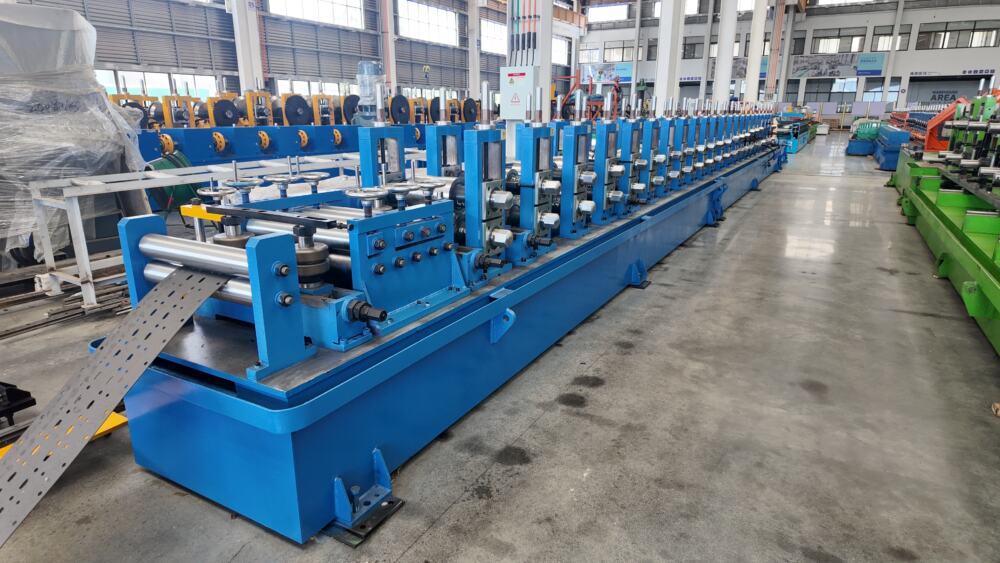

Machine photo:
Conclusion：
The automatic hydraulic supermarket shelf storage shelf column cold bending forming machine provides a one-stop column intelligent manufacturing solution for shelf manufacturing enterprises, with the core advantages of integrated production line, high-precision forming, intelligent flexible production, and all-weather stable operation. Whether it is standardized shelf production for chain supermarkets or meeting the high-strength column requirements of logistics warehousing centers and industrial manufacturing fields, this equipment can help customers win the initiative in fierce market competition with higher efficiency, better quality, and lower costs.
Welcome to contact for more product details and customized solutions!
