Full Automatic Muti Sizes in One Cover Roll Forming Machine for Steel Cable Tray

With the rapid development of industries such as power, telecommunications, and construction, cable trays, as the core support component for cable laying, are experiencing increasing demand and quality requirements. Traditional cable tray production methods generally face challenges such as low efficiency, insufficient precision, and high material consumption, which have become key bottlenecks restricting enterprise capacity upgrades. The emergence of cable tray forming machines, through groundbreaking technological innovations, has brought about a leapfrog transformation from "traditional manufacturing" to "intelligent manufacturing" for the industry, serving as a powerful assistant for enterprises to reduce costs, improve efficiency, and enhance core competitiveness.

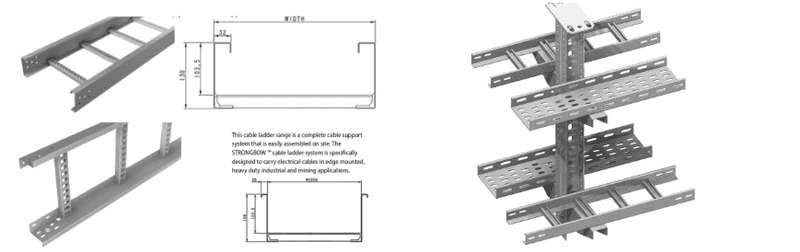

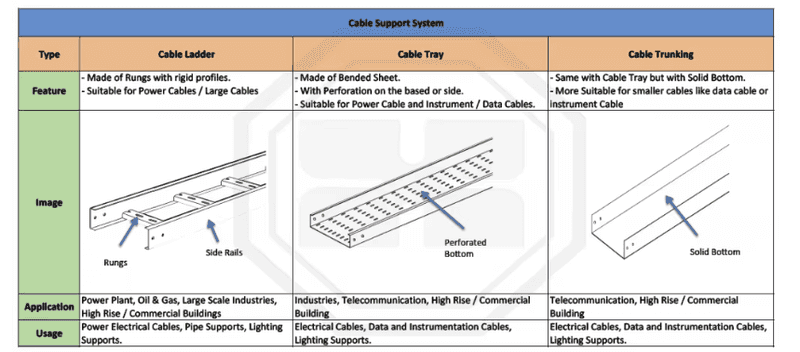

Pattern diagram:

Core advantage: Solve production problems and empower efficient output

1. Efficient molding, doubling production capacity
The cable tray forming machine adopts an integrated continuous forming process, which runs automatically from the input of raw material rolls to the output of finished trays, without frequent manual intervention. Compared to traditional segmented processing (cutting, bending, welding and other multiple processes), the production efficiency is increased by 3-5 times, and the daily production capacity of a single production line can reach 500-800 meters, making it easy to cope with large-scale order demands. At the same time, the device supports quick switching of multiple specifications of trays (slot type, ladder type, tray type), reducing the changeover time to less than 15 minutes and flexibly matching the customized needs of different projects. ​
2. Precise shape control, worry free quality
By relying on high-precision servo drive system and CNC operating system, the forming accuracy of the equipment can be controlled within ± 0.1mm, ensuring the uniformity of key dimensions such as slot width, height, and wall thickness of the tray, effectively avoiding deformation, deviation, and other problems that occur in traditional manual processing. In addition, the equipment is equipped with multiple leveling devices and surface polishing mechanisms. The surface of the finished tray is smooth and free of burrs, with a stable and impact resistant structure. The load-bearing performance is improved by more than 20% compared to traditional products, helping enterprises build a reputation for high-quality products. ​
3. Energy conservation, cost reduction, and efficiency improvement
In terms of raw material utilization, the cable tray forming machine adopts optimized forming mold design, with a material utilization rate of over 98%, significantly reducing the waste of scraps generated in traditional cutting processes, and saving hundreds of thousands of yuan in raw material costs for enterprises every year. At the same time, the equipment adopts variable frequency energy-saving motors and intelligent temperature control systems, which reduce energy consumption by 15% -20% compared to traditional equipment. Combined with automated production, it reduces labor input and lowers comprehensive production costs for enterprises from the three aspects of "materials, energy, and personnel".

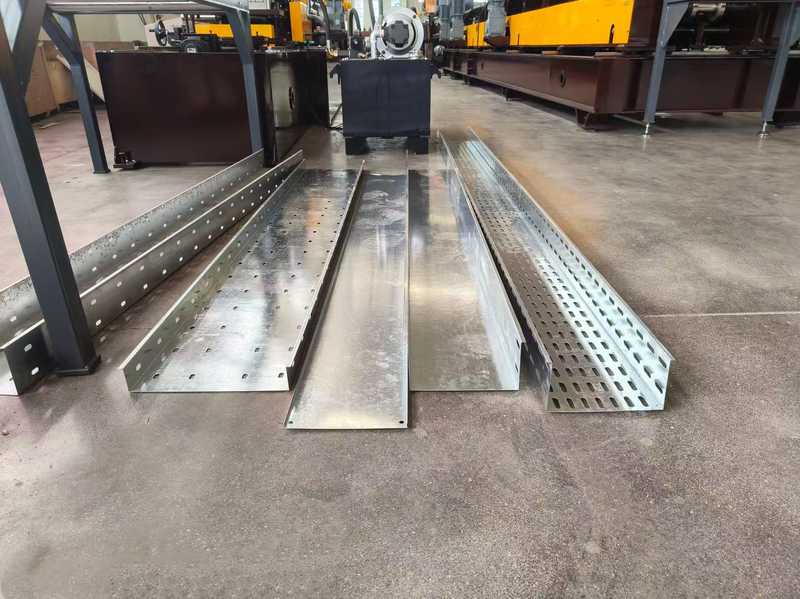

Finished product image:

Product Attributes ：

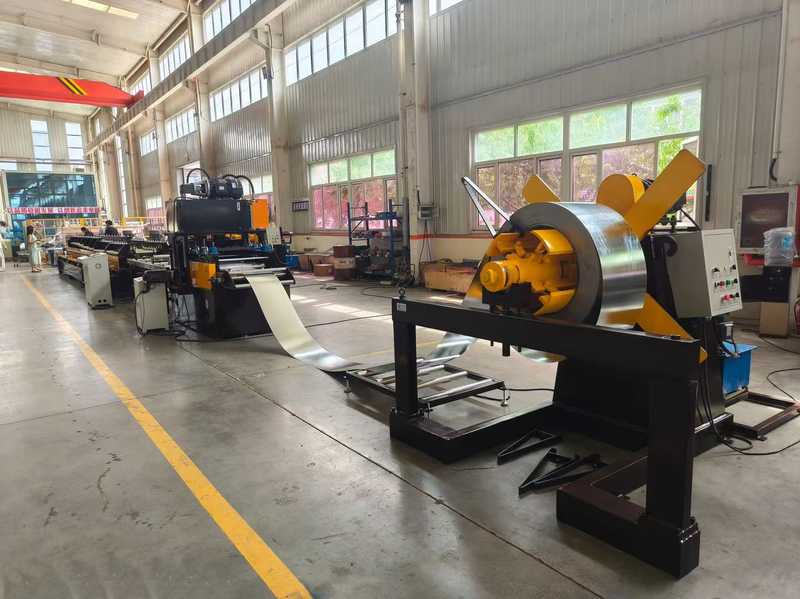

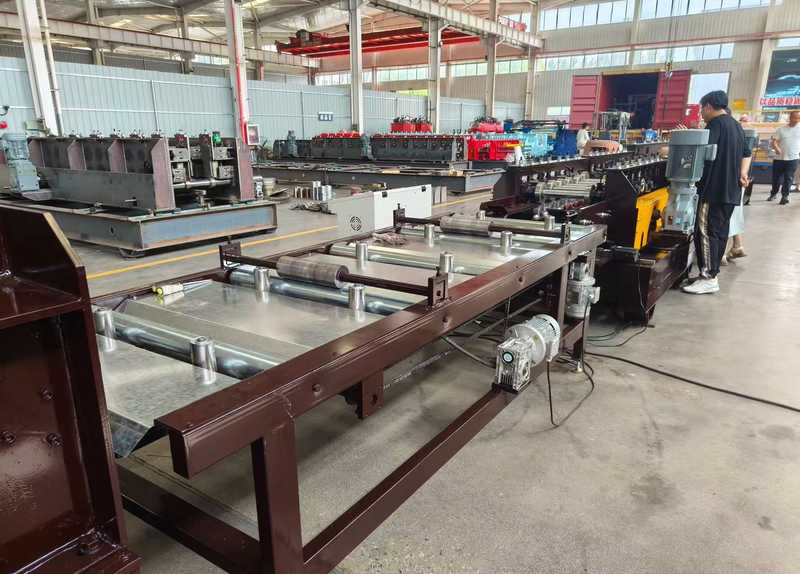

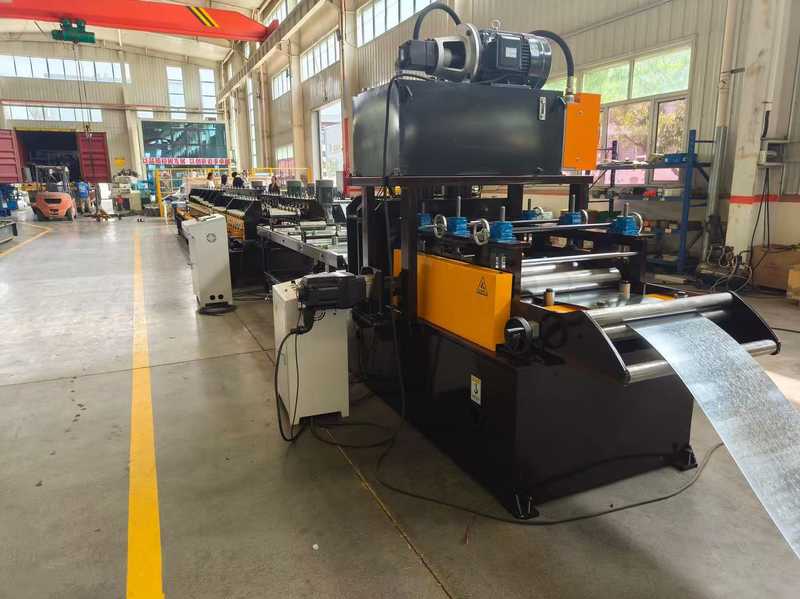

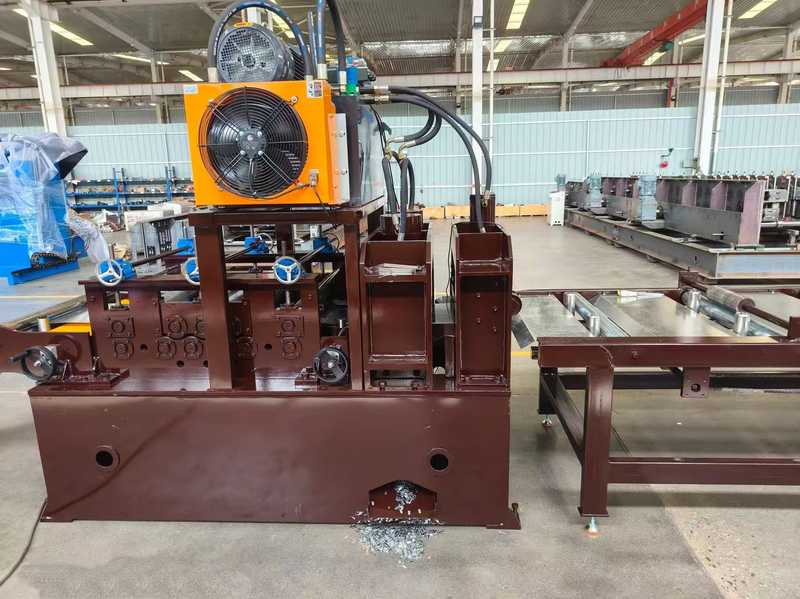

Product images：
