High-Quality Metal Fence Wall Panel Roll Forming Machine Custom Steel Fence Panel Making Machine
The high-precision metal fence wall panel cold bending forming machine is a fully automatic cold bending forming equipment developed specifically for the mass production of metal fence panels, fence wall panels, decorative fence panels, and various metal profiles. The equipment uses galvanized steel coils, color coated steel coils, aluminum coils, and aluminum zinc coated steel coils as raw materials. Through multiple continuous cold bending and rolling processes, the metal strip is gradually shaped into various cross-sectional profiles such as guardrail panels, wall panels, and fence bars.
The entire production line is highly integrated, usually consisting of hydraulic automatic uncoiler, feeding leveling device, servo punching system, multi pass cold bending forming host, non-stop flying shear cutting device, PLC intelligent control system, and automatic discharge platform. The entire line has achieved automated continuous production from steel coil loading to finished product output. The thickness range of materials that can be processed by the equipment is usually 0.3-0.8mm, and the forming speed can reach 0-20 meters/minute, which is several times more efficient than traditional stamping or manual production methods.

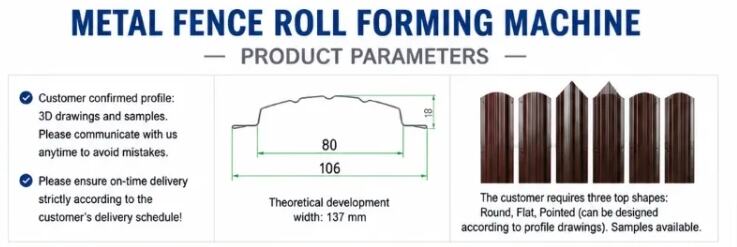

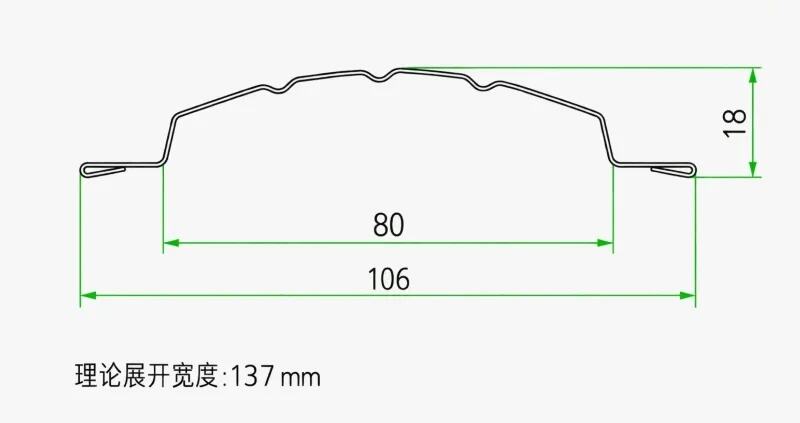

Pattern diagram：

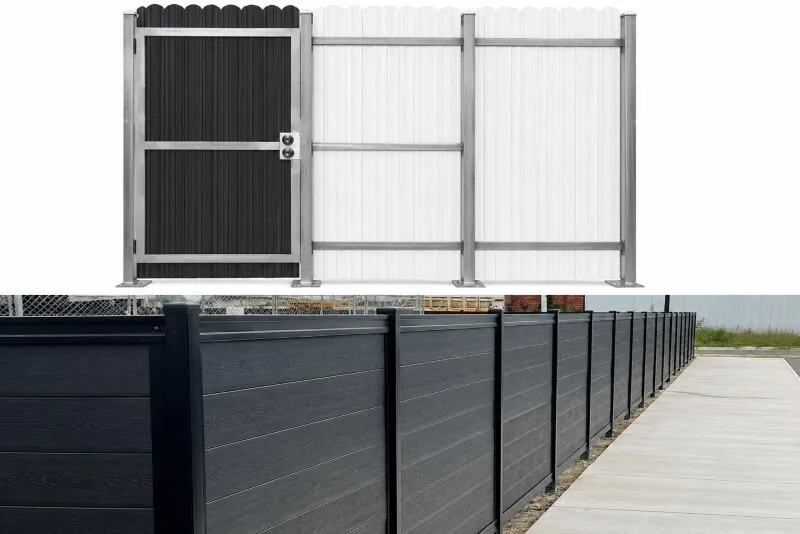

Widely applicable fields:
The metal guardrail wall panel profiles produced by the equipment are widely used in the following scenarios:
• Residential and villa fences:
used for security protection and privacy isolation in courtyards, villas, communities, and other places, with both aesthetic and durable performance.
• Industrial and warehouse security fence:
used for perimeter security isolation and area division of factories, logistics parks, and warehouse facilities.
• Municipal and public facilities:
protective fences and area partitions used for parks, scenic spots, farms, and public infrastructure.
• Highway guardrails and traffic facilities:
used for mass production of traffic protection facilities such as waveform guardrail panels and safety barriers on highways.
• Commercial building decorative wall panels:
used for commercial building exterior wall decorative panels, metal curtain wall panels and other architectural decoration scenes.
Our products are exported to markets such as North America, Europe, Australia, Africa, and the Middle East. With excellent corrosion resistance and modern appearance, they are highly favored by customers worldwide.
Core advantages:
1. High precision molding, stable and reliable quality
2. Non stop flying shear cutting, highly integrated process
3. Fully automated intelligent control, saving manpower and effort
4. Flexible customization, one machine with multiple uses
5. Durable and sturdy, supporting continuous production 24/7
Product Attributes :
| Item | Specification |
|---|---|
| Machine type | Cold rolling mill (metal fence picket roll forming machine) |
| Profiles | One machine adjusts to produce metal fence picket |
| Rolling stations | 15 stations |
| Forming speed | 20 m/min |
| Raw material | Galvanized sheet / color steel |
| Roller material | Cr12MoV with quenched treatment |
| Shaft material | 45# steel, outer diameter 50 mm |
| Cutting blade material | Cr12 mould steel |
| Cutting type | Hydraulic cutting |
| Power | 5.5 kW |
| Voltage | 220 V / 380 V / 440 V, customized |
| Control system | Siemens PLC + touch screen + remote control |
| Machine weight | 6800 kg |
| Warranty | More than 5 years |
| Certification | CE, BV, STV, ISO |

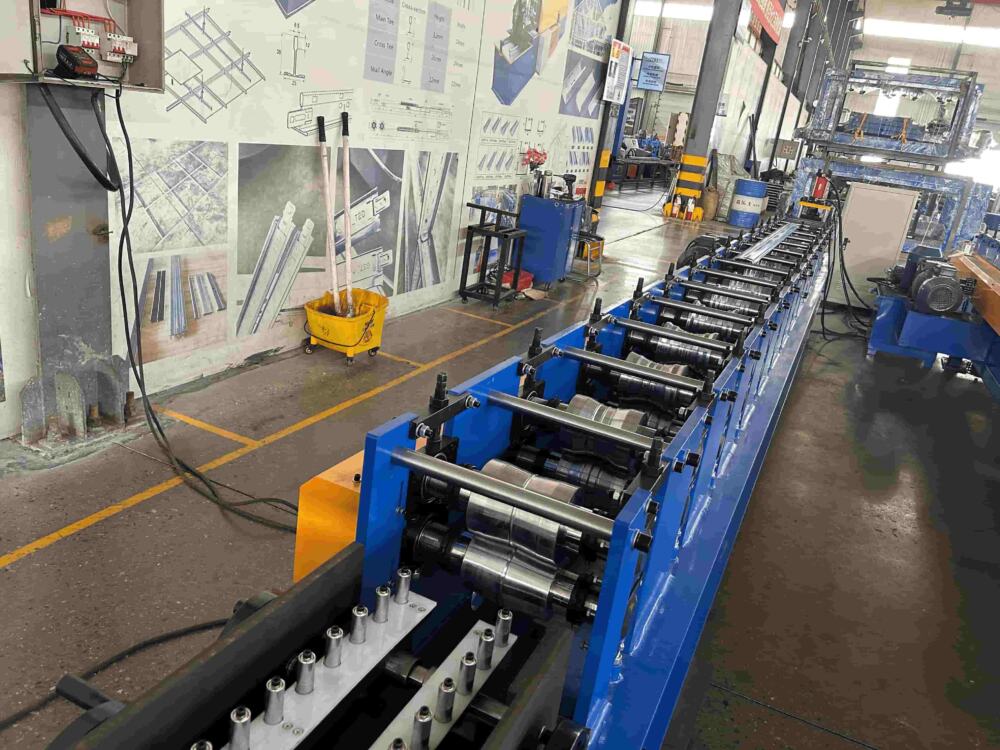

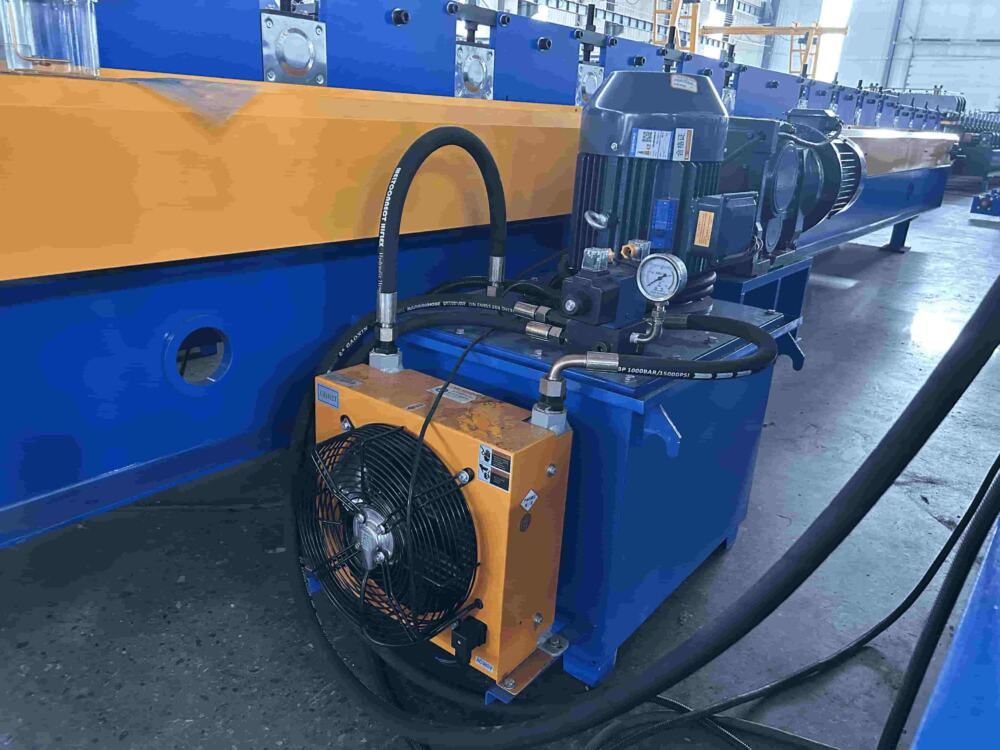

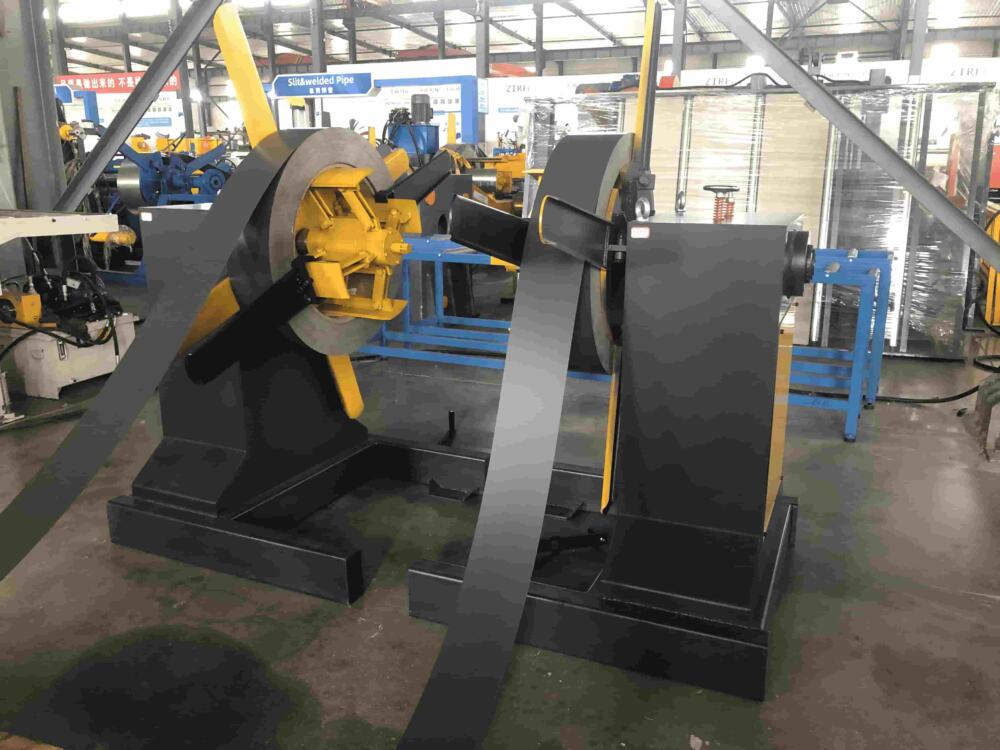

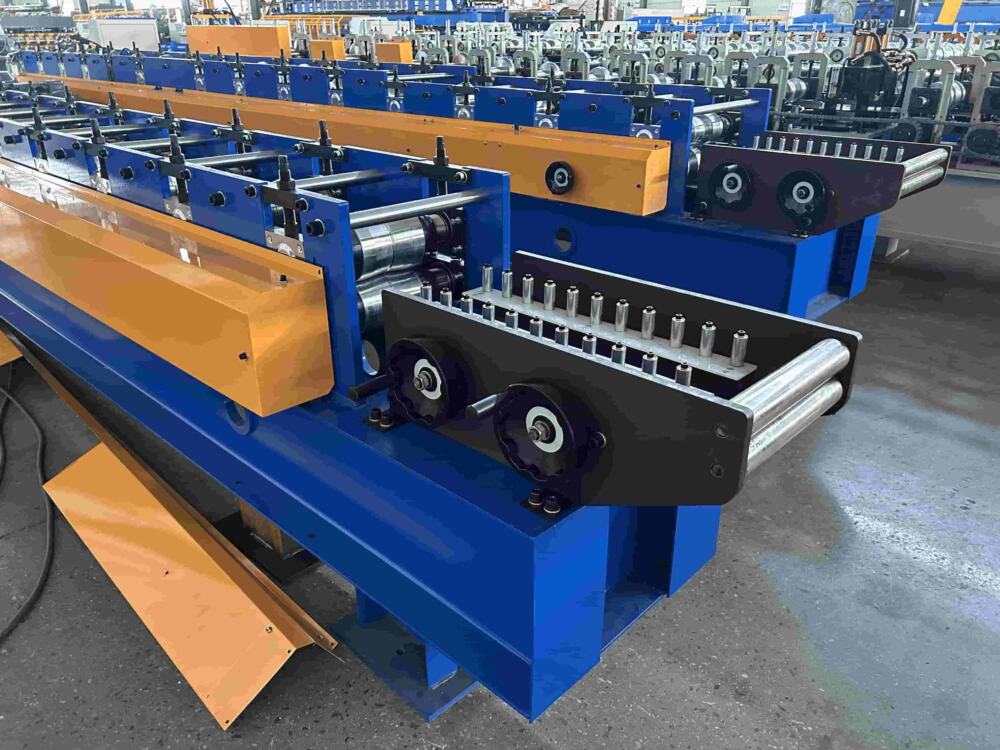

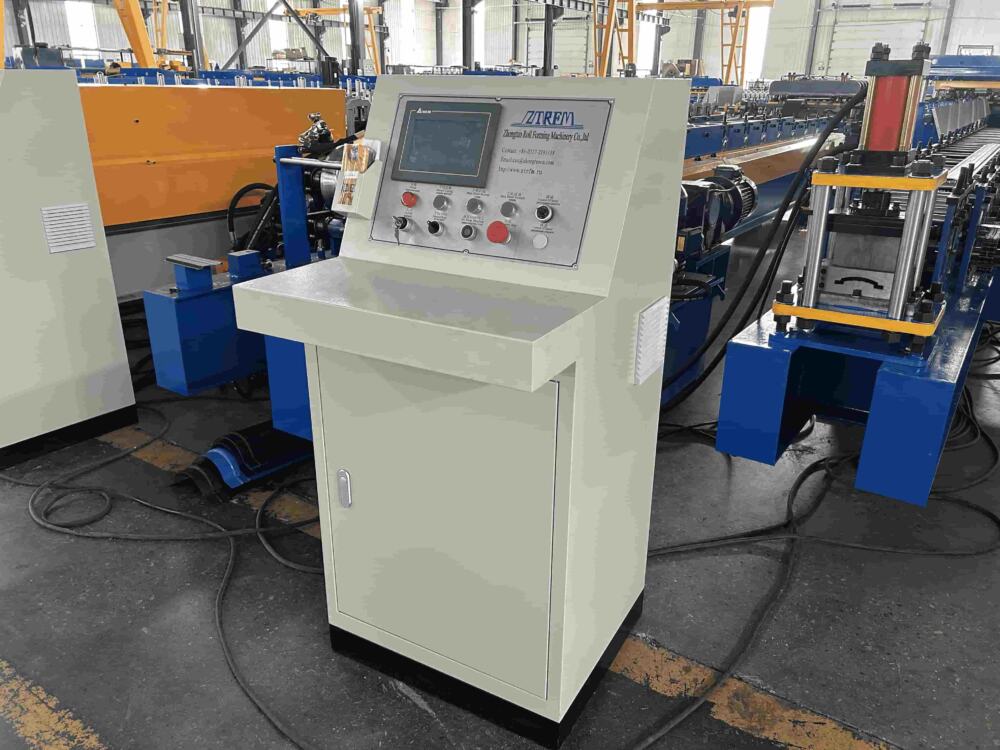

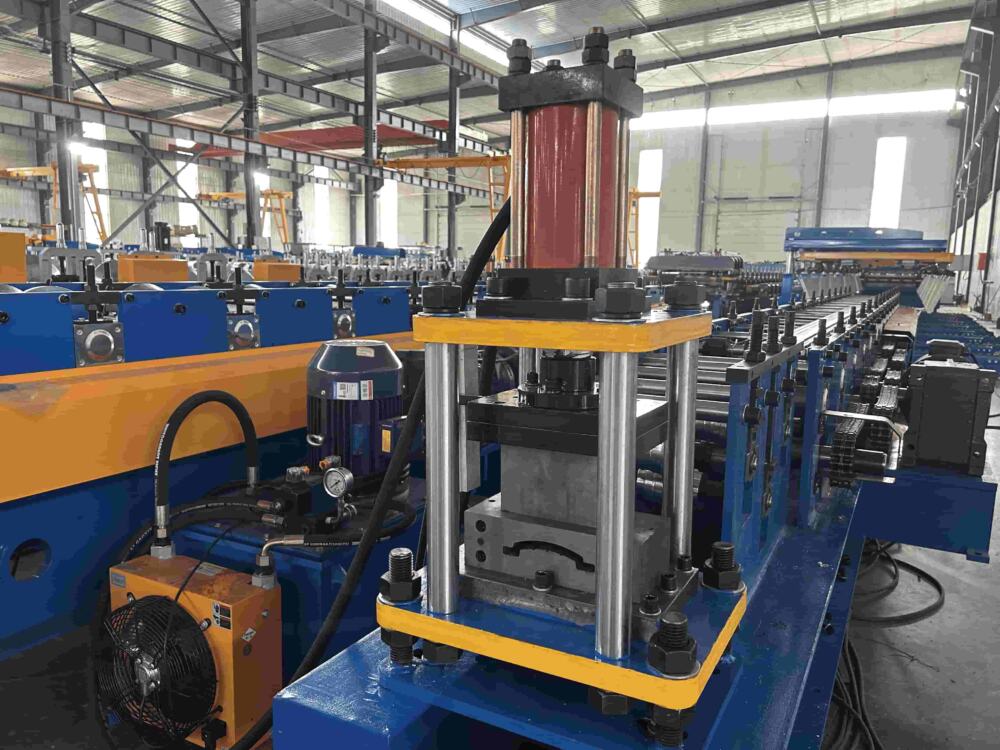

Machine photo:
Conclusion:
The high-precision metal fence wall panel cold bending forming machine provides a one-stop precision intelligent manufacturing solution for metal fence manufacturing enterprises, with the core advantages of high-precision forming, non-stop flying shear cutting, fully automated intelligent control, and flexible customization capabilities. Whether it is standardized mass production for residential and commercial fences, or meeting the large-scale supply demand for municipal engineering and highway guardrails, this equipment can help customers win the initiative in fierce market competition with higher efficiency, better quality, and lower cost.
Welcome to contact for more product details and customized solutions!
