Light Keel Villa Steel House Frame Roll Forming Machine
In the field of modern villa construction, light steel keel has become the preferred structural material for high-end residences, vacation villas, and customized buildings due to its advantages of lightweight, high strength, corrosion resistance, and convenient construction. As the core equipment for dragon bone production, Light Keel Villa Steel House Frame Roll Forming Machine, with its intelligent, high-precision, and flexible production characteristics, is promoting the development of the construction industry towards industrialization, standardization, and greening.
The application value of villa keel
As the "invisible skeleton" of modern architecture, villa keel (light steel keel) has the following core advantages:
1. Excellent structural performance
The tensile strength is over 550MPa, far exceeding traditional wood, and can withstand earthquakes of magnitude 9 and typhoons of magnitude 12.
Galvanized layer (Z275 and above) ensures no rust for 50 years, especially suitable for villas in coastal and humid areas.
2. Extremely high degree of design freedom
Support large-span column free spaces (with a maximum span of up to 12 meters) to meet personalized design needs such as open living rooms and domes.
It can perfectly adapt to high-end facade systems such as glass curtain walls and stone dry hanging.
3. Green Building Benchmark
100% recyclable materials, reducing construction waste by 70%, and reducing carbon emissions by 40% compared to concrete structures.
The cavity structure naturally has thermal and sound insulation properties, easily meeting LEED certification requirements.

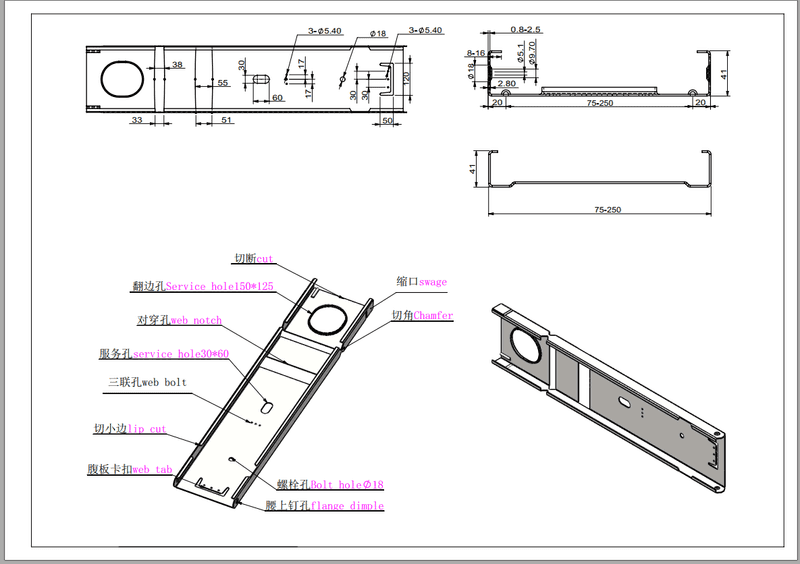

Pattern diagram:

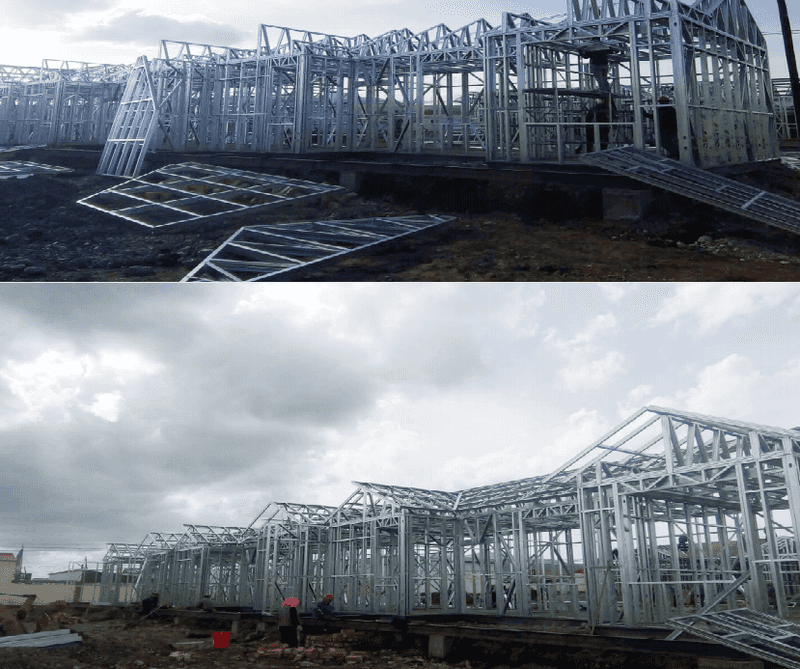

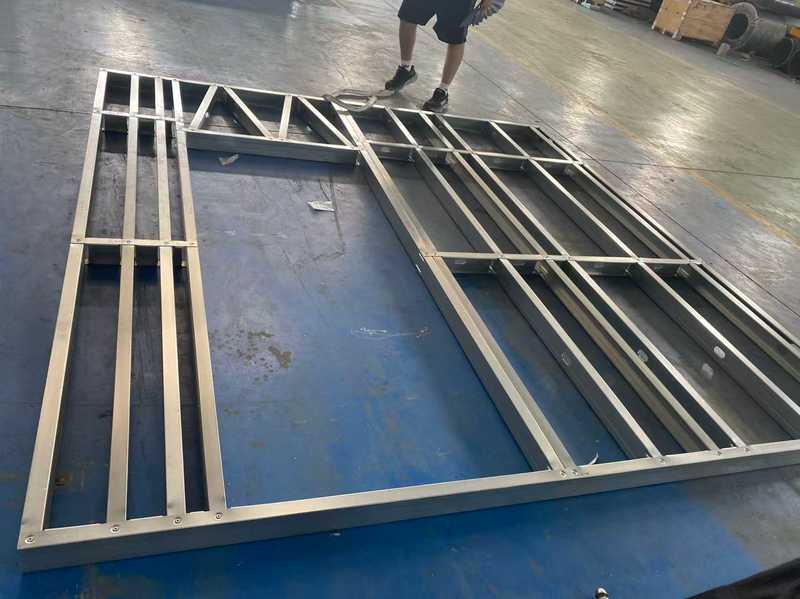

Application Scenario:
•In villa ceiling decoration
various types of light steel keel and wooden keel fittings can be accurately produced, suitable for various designs such as balanced ceiling, shaped ceiling, and high ceiling. Whether it is a large-span shaped ceiling in the living room or a simple ceiling in the bedroom or study, the specifications and accuracy of the keel can be adjusted through equipment to ensure the stability and even force distribution of the ceiling structure. At the same time, it can adapt to the reserved requirements of lighting, fresh air, and central air conditioning pipes in the villa ceiling, balancing aesthetics and functionality.
•In the scene of wall decoration
the villa keel machine can flexibly adapt to the production of wall keels of different thicknesses and materials, meeting the installation needs of villa background walls, wall panels, and soundproof walls. For Chinese, European and other stylized villas, customized irregular keel structures can be used to match decorative elements such as carvings and lines, making the wall shape more layered and designed.
Product Attributes：
| 1.Formed Material | PPGI，GI | Thickness:0.8-2.0mm |

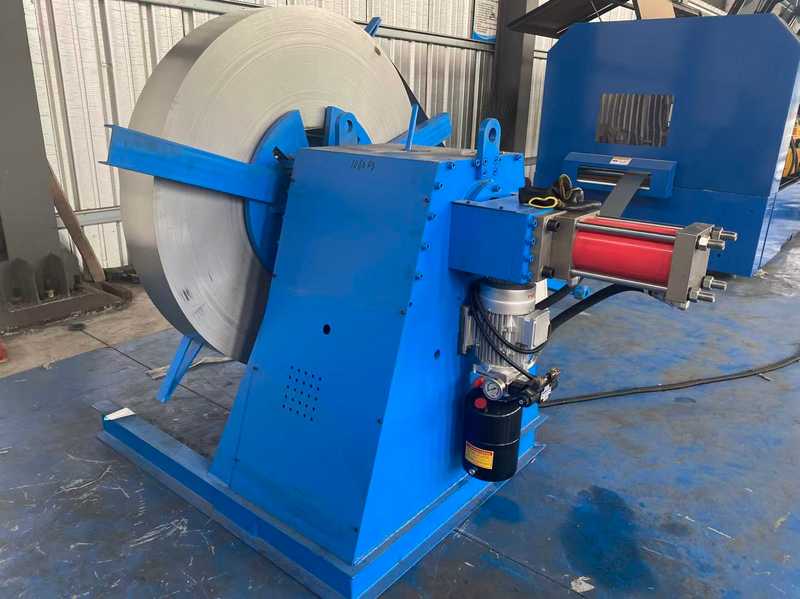

| 2.Decoiler | Hydraulic decoiler | 6 tons |

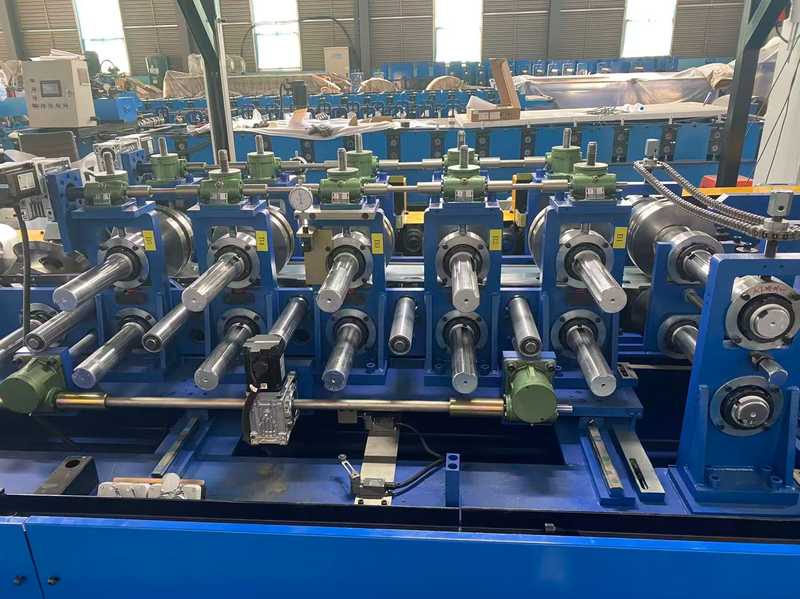

| 3.Main body | Roller station | 19 rows(As your requirement) |
| Max width of strip steel | 400 mm | |
| Shaft material | 40Cr, after CNC processing | |
| Leveling device | 2 groups for upper and 3 groups for down | |
| Drive | chains with tension stabilization device | |
| Dimension(L*W*H) | 9500*1600*1600mm | |
| Weight | 6T | |
| 4.Cutter | Automatic | Gcr12 steel |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 11KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | Support multiple languages | |
| PLC | Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 15-20m/min | The speed is adjustable |

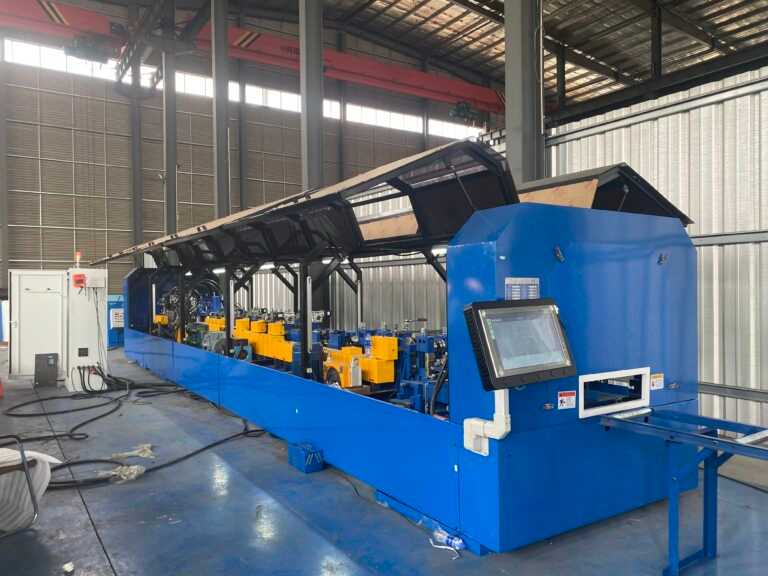

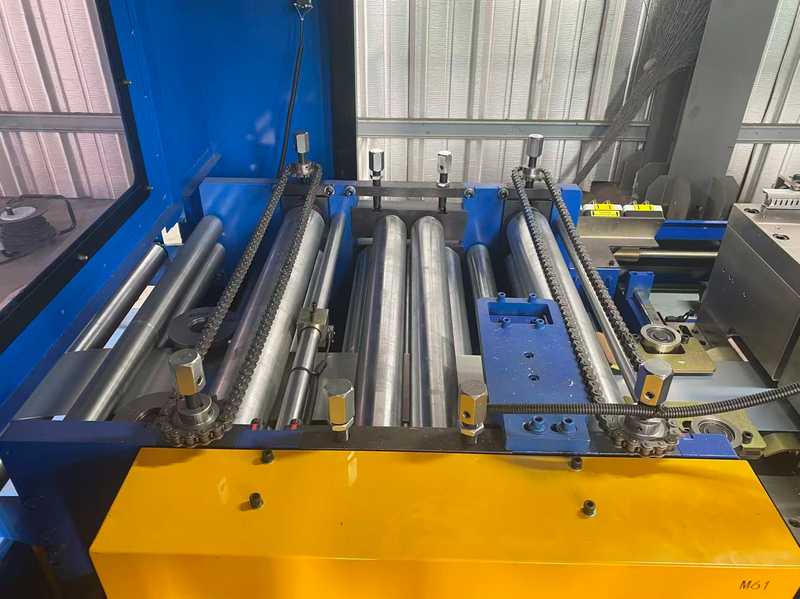

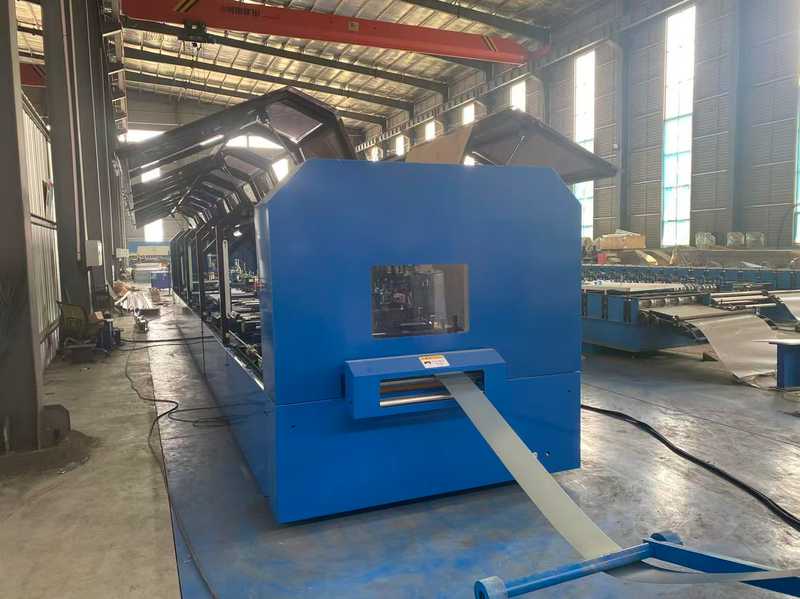

Machine image:
