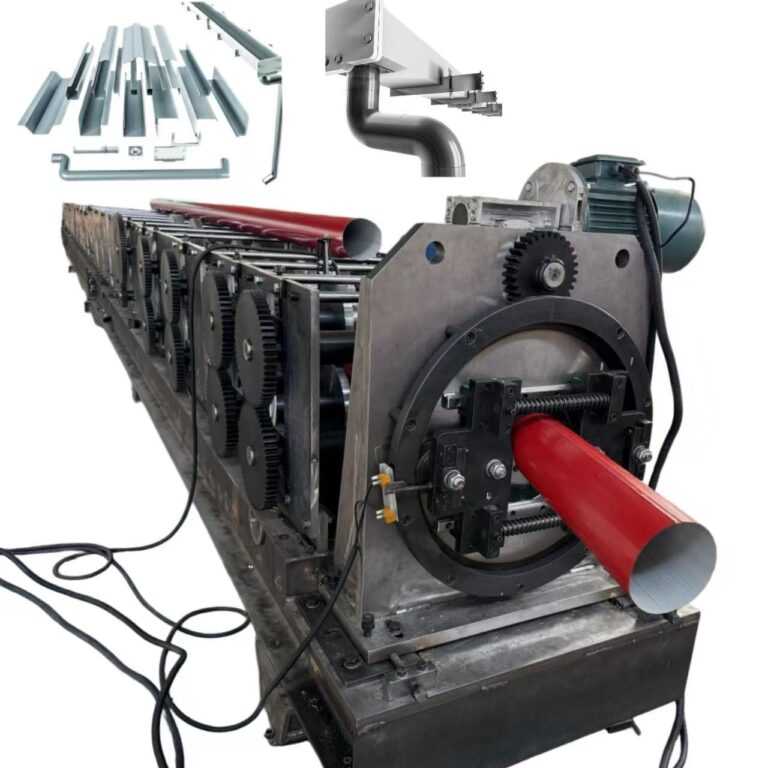

Round Downspout Roll Forming Machine Rain Gutter Downspouts
Round Downspout Roll Forming Machine Rain Gutter Downspouts usually refers to a specialized production line used for producing circular downspouts, whose core function is to process raw materials into pipeline products that meet building drainage standards.
Equipment composition and workflow: The equipment mainly consists of an extruder, a mold system, a cooling and shaping unit, a traction device, a cutting mechanism, and a control system. Taking PVC material as an example, the production process usually includes: raw materials (such as PVC particles) are heated and melted by an extruder, injected into a mold for molding, cooled and solidified by a shaping unit, controlled by a traction device for pipe output speed, and finally segmented by a cutting mechanism according to the set length to form finished pipes.
Packing list:
| No | Name | Unit | quantity |
| 1 | 3 tons manual decoiler | Set | 1 |
| 2 | Down Take Pipe Forming Machine with cut part | Set | 1 |
| 3 | Bending machine | Set | 1 |
| 4 | PLC control cabinet | Set | 1 |
| 5 | Hydraulic station | Set | 1 |
| 6 | Run-out table | Set | 1 |
| 7 | Spare parts | Set | 1 |
Product features:

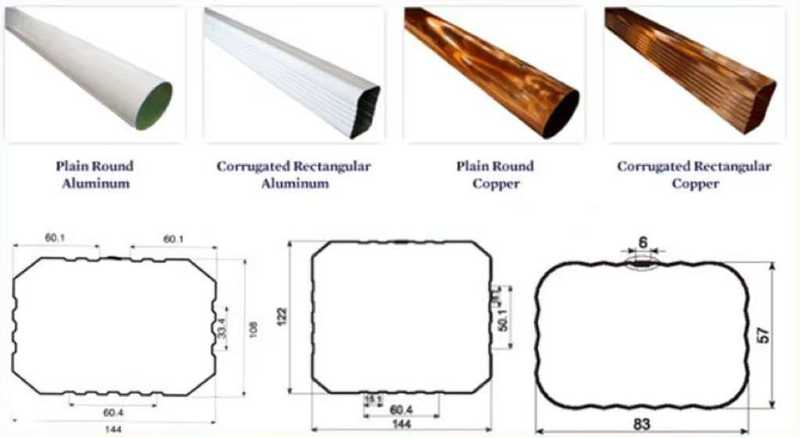

1.Material diversity:
PVC, polyethylene, color aluminum, stainless steel and other materials can be used, giving consideration to corrosion resistance, aging resistance and mechanical strength.
2.Connection reliability:
Plastic pipes are seamlessly connected through solvent bonding, while metal pipes are reinforced with rivets or sealant to ensure sealing.
3.Installation convenience:
Some designs support quick assembly, such as lightweight and flexible polyethylene pipes, which can reduce construction difficulty.
Application Scenario:

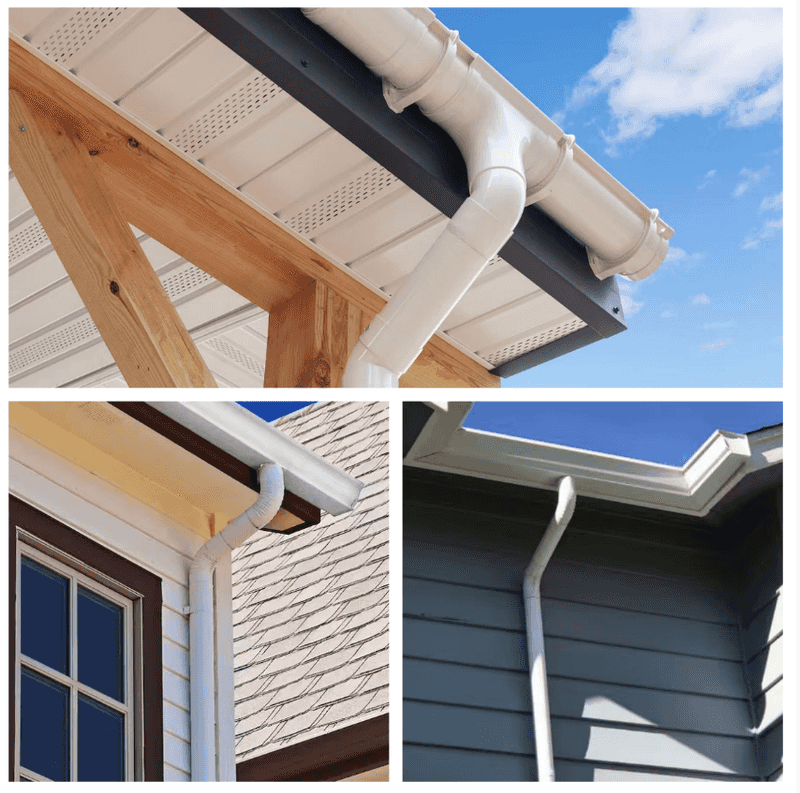

• Residential buildings：
such as high-rise residential buildings and villas, require vertical drainage.
• Industrial and municipal engineering:
used for rainwater collection in factories, warehouses, and other places, or for the construction of urban drainage networks.
• Special environmental adaptability:
Polyethylene material is suitable for complex environments such as chemical and agricultural irrigation due to its corrosion resistance and impact resistance; Metal materials (such as colored aluminum and stainless steel) are focused on scenes with high decorative requirements for building facades.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
22 rows with a series of vertical rollers
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
14500*900*1100(customize)
|
|||
|
Weight
|
7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5 KW
|
||
|
Hydraulic system power
|
3.5 KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||

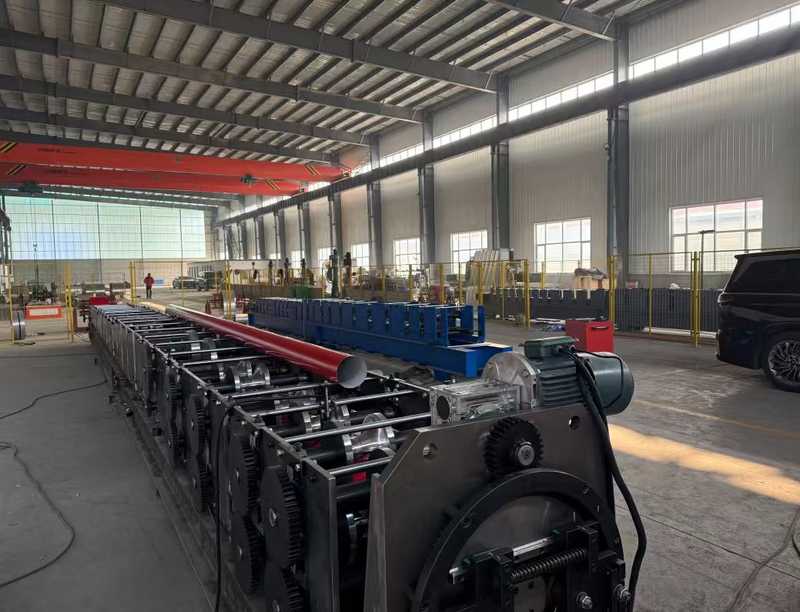

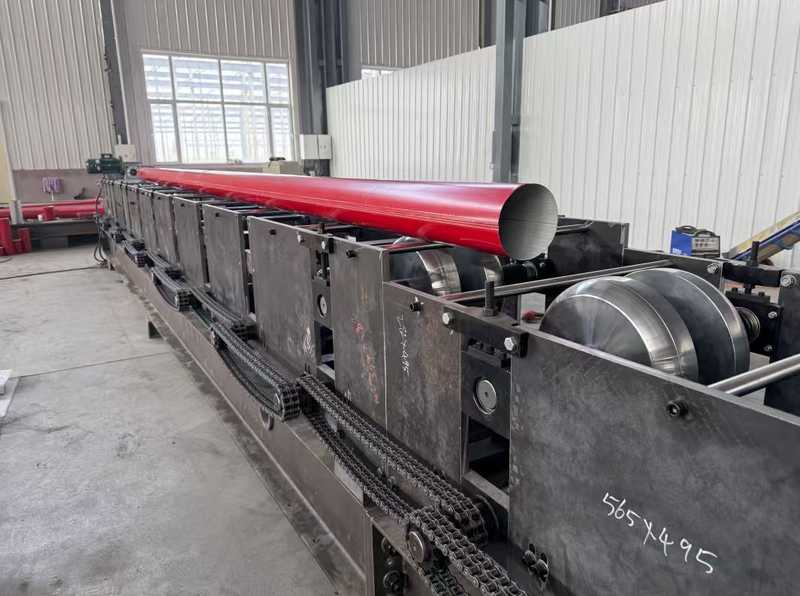

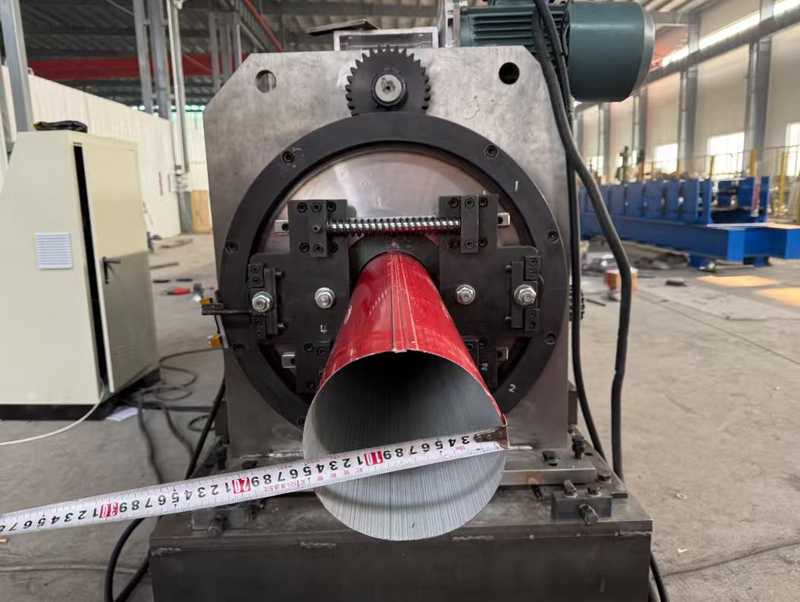

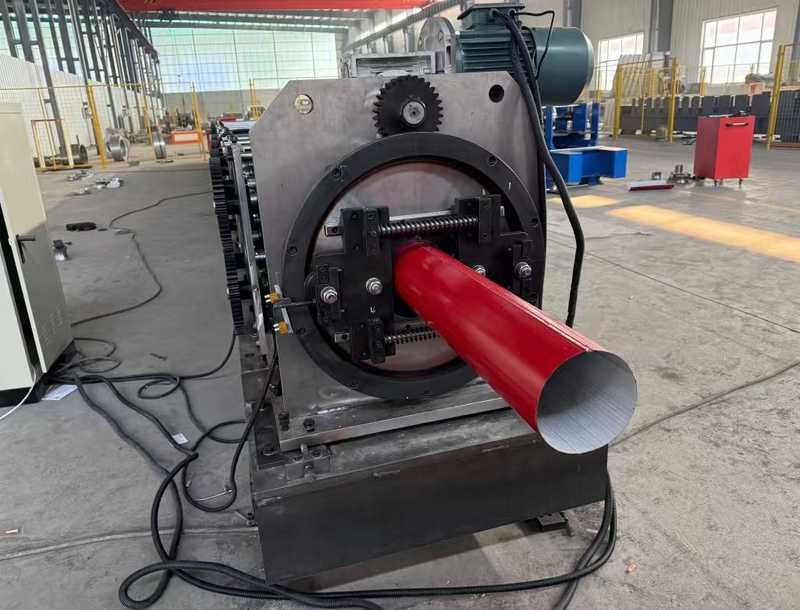

Machine image:
