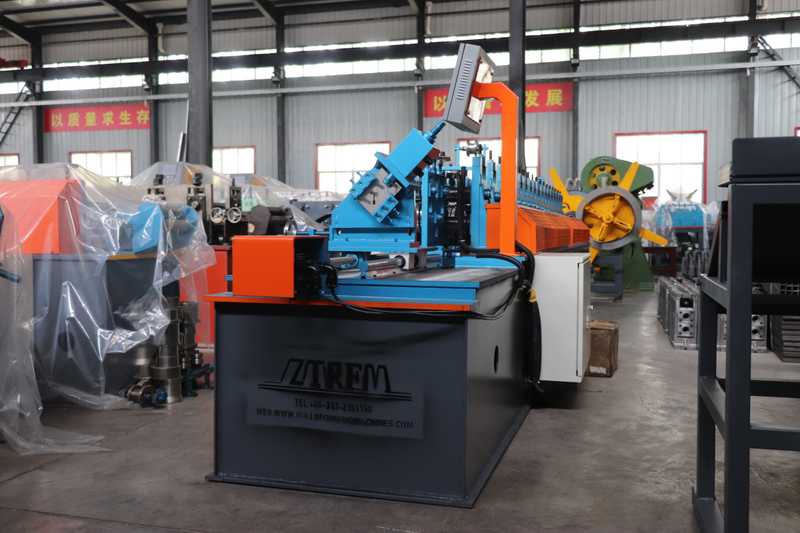

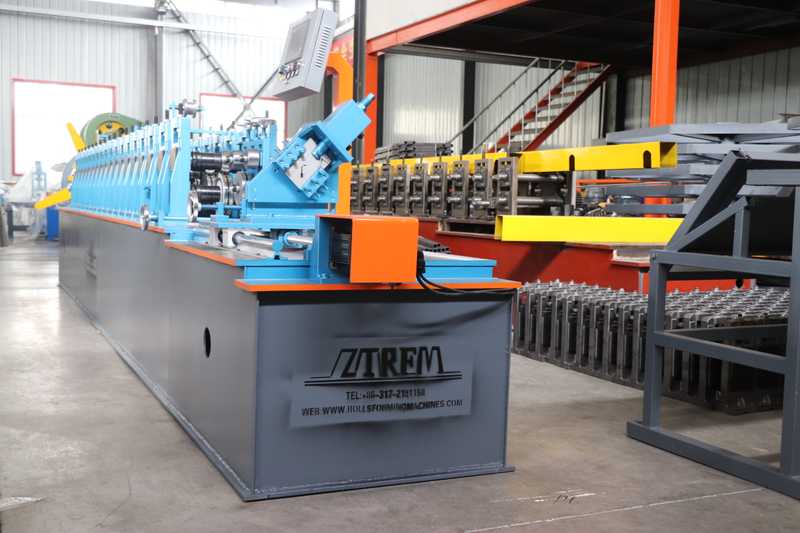

High Speed Suspended T Grid Cross T Grid Ceiling Roll Forming Machine
In the field of modern architecture, the quality of ceiling and partition systems is directly related to spatial safety, aesthetics, and practicality. As the core load-bearing component, the forming accuracy and production efficiency of T-shaped keels have become the key factors restricting project progress and quality. In order to solve industry pain points and create production equipment that is more suitable for the needs of construction industrialization, the professional High Speed Suspended T Grid Cross T Grid Ceiling Roll Forming Machine has emerged. With its core advantages of precise molding, efficient mass production, and flexible adaptation, it has become a powerful assistant for construction and building materials enterprises, laying a solid quality foundation for millions of construction projects!
Product Attributes：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.2-0.6mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
As your requirement
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
11KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-25m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

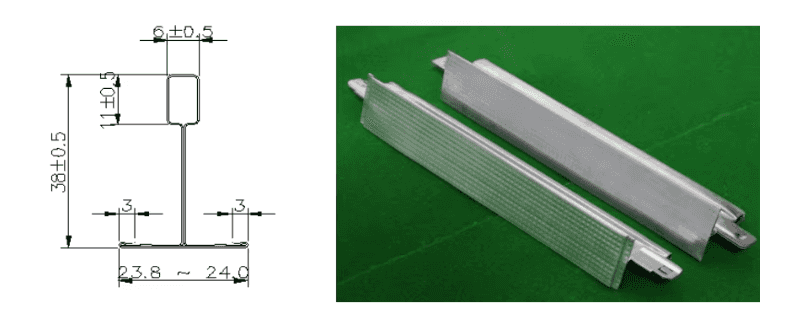

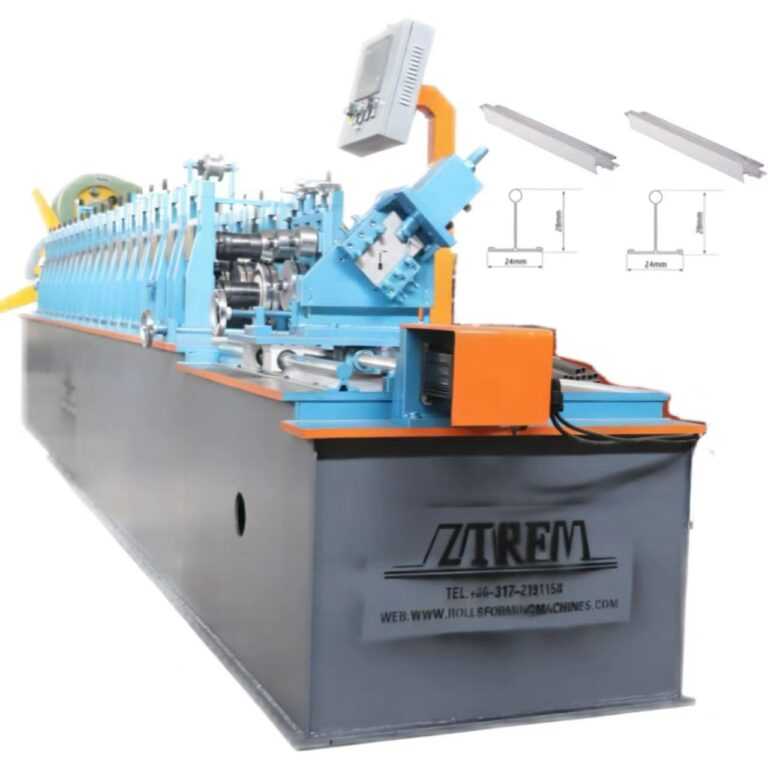

Pattern diagram:
Precise molding, quality builds a solid foundation

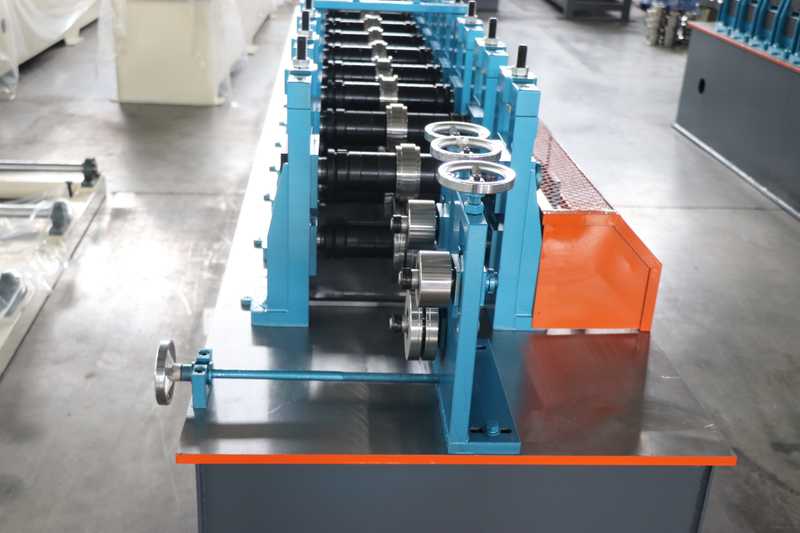

The stability of T-shaped keel lies in its precise size. The forming roller shaft of this machine is processed with high precision and strengthened by quenching and chrome plating, making it wear-resistant and durable; Paired with a servo drive system, achieve synchronous operation of the roller shaft, cold bend the metal sheet into a standard T-shaped section, with regular waveform and dimensional deviation controlled at the millimeter level, in line with industry standards. Regardless of the weight of the keel, it can ensure uniform wall thickness and strong load-bearing capacity, eliminate hidden dangers such as ceiling sinking and wall cracking, and ensure more reliable quality.
Efficient mass production, easy to undertake large orders

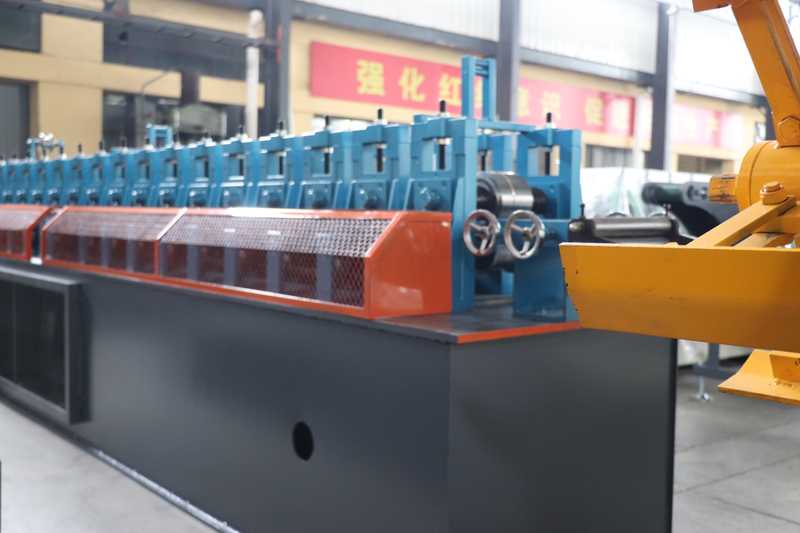

For large-scale project batch requirements, this machine realizes the full process automation of feeding, leveling, forming, and cutting without excessive manual intervention. The conventional production speed is 15-35 meters per minute, which is more than 5 times more efficient than traditional processes. It can complete thousands of square meters of keel production in a single day, easily responding to tight schedule orders. The intelligent changeover system supports quick switching between different specifications of keels, reducing switching costs and enhancing order flexibility.
Flexible adaptation, covering diverse scenarios

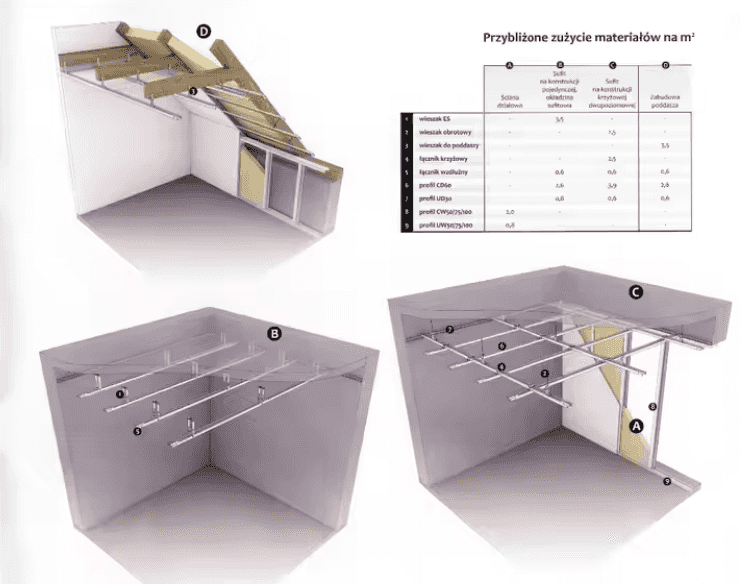

This machine can adapt to various raw materials such as galvanized steel plate, color steel plate, aluminum plate, etc. It is compatible with plates with a thickness of 0.6-2.0mm and a width of 1000-1250mm, and can accurately produce civilian light and industrial heavy keel. The production of dragon bones is widely used in office buildings, shopping malls, residential areas, hospitals, airports and other scenarios, helping enterprises broaden their product range and cover more market demands.
Intelligent and convenient, cost reduction and worry free
Equipped with PLC intelligent control system and high-definition touch screen, production can be automatically completed by inputting parameters, making it easy to get started. Integrate feeding correction, counting, fault alarm and other functions to reduce raw material waste and downtime losses. The layout of key components is reasonable, daily maintenance only requires cleaning and lubrication, with low failure rate and long service life, significantly reducing operation and maintenance costs.
