Shutter Door Roll Forming Machine for Heavy-Duty Metal Door Manufacturing
In commercial stores, industrial plants, garages and warehouses, rolling shutter doors have become one of the most widely used access control systems due to their durability, flexible opening and closing, and space saving characteristics. The Shutter Door Roll Forming Machine, as the core equipment for producing rolling shutter door curtains and door frames, is helping door manufacturers achieve dual improvement in production capacity and quality with its high-precision molding, fully automated production, and flexible material adaptation capabilities.
What is a rolling shutter door forming machine?

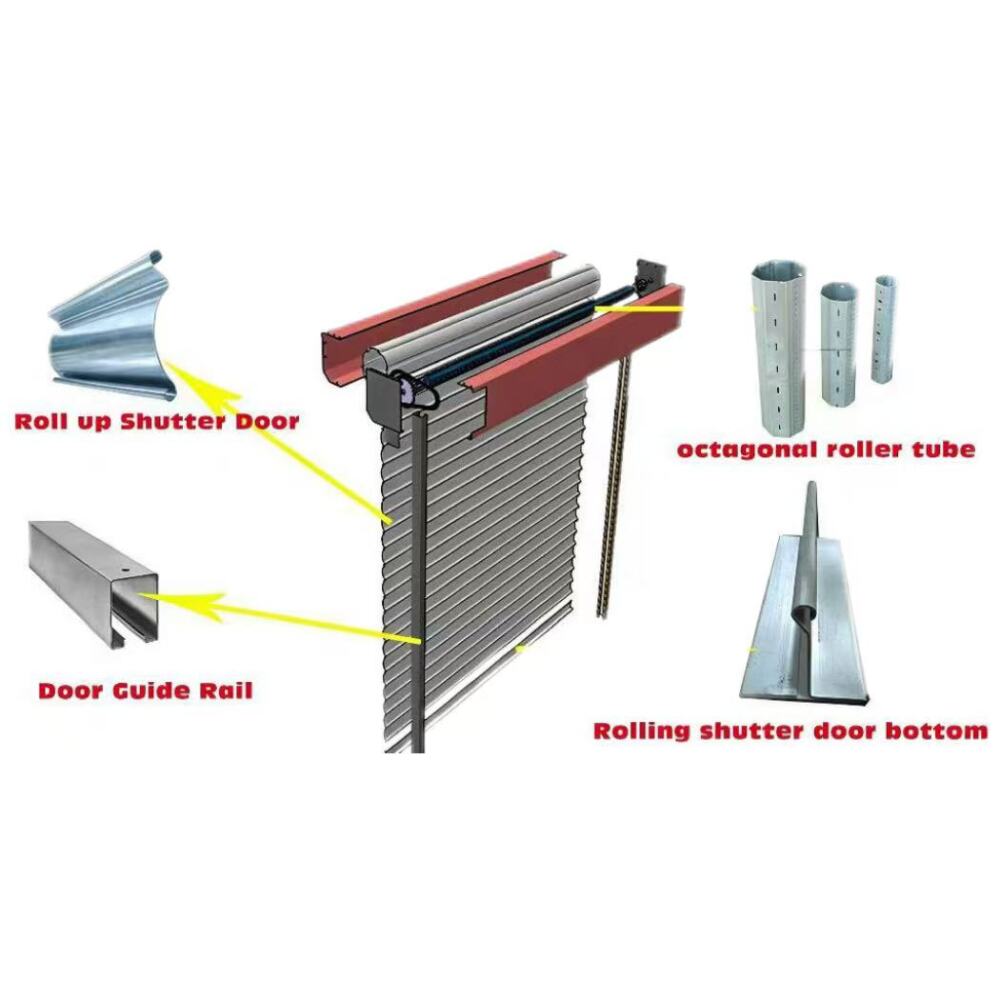

The rolling shutter door forming machine is a professional cold bending equipment designed to gradually roll metal coils such as galvanized steel sheet (GI), color coated steel sheet (PPGI), or aluminum sheet through multiple precision arranged rollers to form the required curtain (Slat) and frame/guide rail components for rolling shutter doors.
The equipment usually consists of an uncoiler, a feed guide device, a forming host, a hydraulic punching system, a fixed length cutting device, and a PLC control system. The standard production process is: uncoiling → feeding → roll forming → punching → cutting to length → finished product output. The entire production line is coordinated by a PLC control system, and operators can set production parameters through a touch screen.
Core Advantages：
1. High precision molding, stable quality
The equipment adopts Cr12 or 45 # high-quality steel rollers, which are quenched and coated with hard chromium on the surface to ensure precise and wear-resistant forming contours. The surface of the rolling mill is polished and heat-treated to make the formed curtain surface smooth and scratch free, with high aesthetic appeal. The molding process usually consists of 12 passes, which gradually deforms the board and ensures uniform stress, resulting in high precision in the interlocking of the finished curtain and smooth operation of the rolling shutter door.
2.Fully automatic PLC control, easy to operate
The equipment is equipped with a PLC control system (optional brands such as Delta, Siemens, Panasonic, etc.) and a touch screen human-machine interface, supporting automatic counting, fixed length setting, and fault alarm functions. The operator only needs to input parameters such as curtain length and production quantity, and the system can automatically complete the full process control of forming and cutting. In fully automatic operation mode, only one operator is needed to complete production line management.
3.Flexible adaptation and wide compatibility

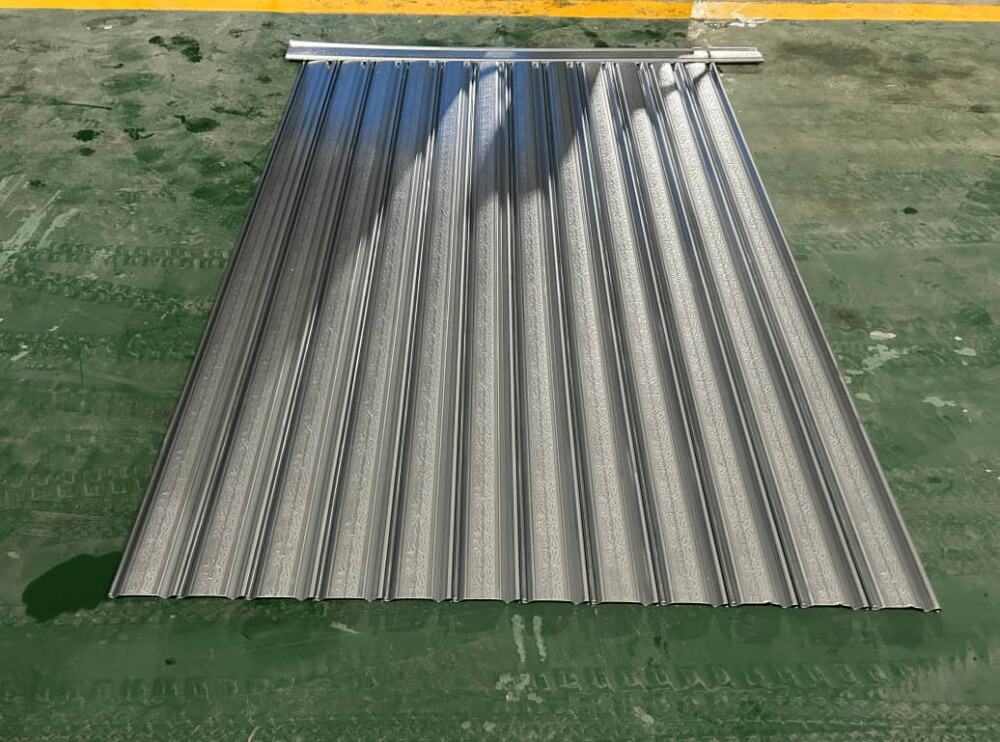

The equipment supports processing metal coils such as galvanized steel plates, color coated steel plates, and aluminum plates with a thickness of 0.6-1.2mm. We can customize roll molds according to customer needs to produce curtains with different cross-sectional shapes (including flat, curved, foam filled, etc.) as well as matching door frames and guide rails. Some devices can also be equipped with embossing devices to press patterns or logos on the surface of the curtain, enhancing the aesthetic appeal of the product.
4. Durable and sturdy, stable and reliable
The formed main frame adopts a 350 H-beam welded structure, which undergoes stress relief treatment and precision machining to ensure stability during long-term operation. The cutting tool is made of Cr12MoV material and has a hardness of HRC58-62 after quenching treatment. The incision is smooth and free of burrs. The hydraulic system uses branded hydraulic components to ensure long-term stable operation.
Application Areas：
The curtains and door frames produced by the rolling shutter door forming machine are widely used in various building scenarios:
• Commercial stores:
Rolling shutter access control systems for street facing shops, convenience stores, and restaurants
• Industrial plant:
access control and partition for factory workshops and logistics warehouses
• Garage and Storage:
Access Control Systems for Residential Garage, Stereoscopic Parking Lot, and Storage Facilities
• Special purpose:
fireproof rolling shutter door, explosion-proof rolling shutter door, insulation rolling shutter door

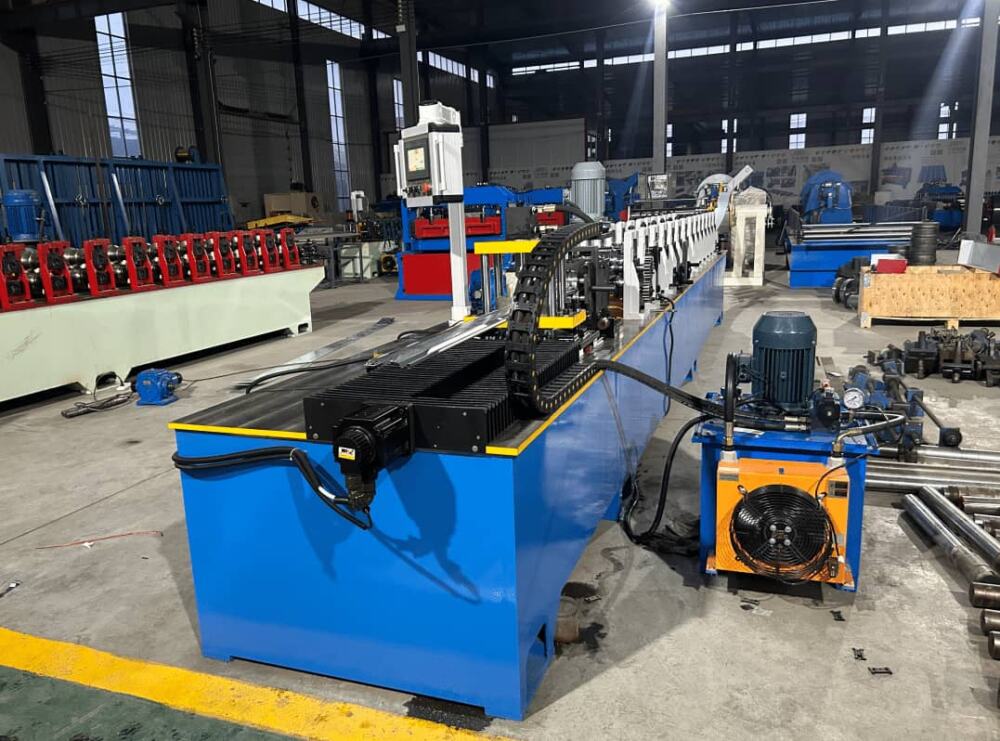

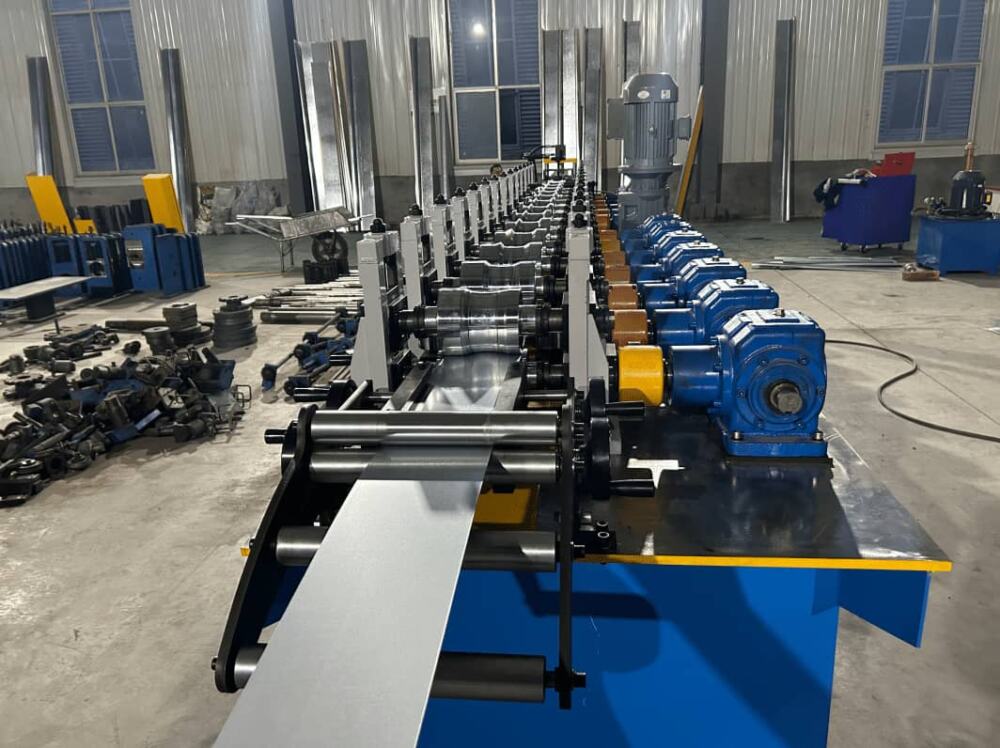

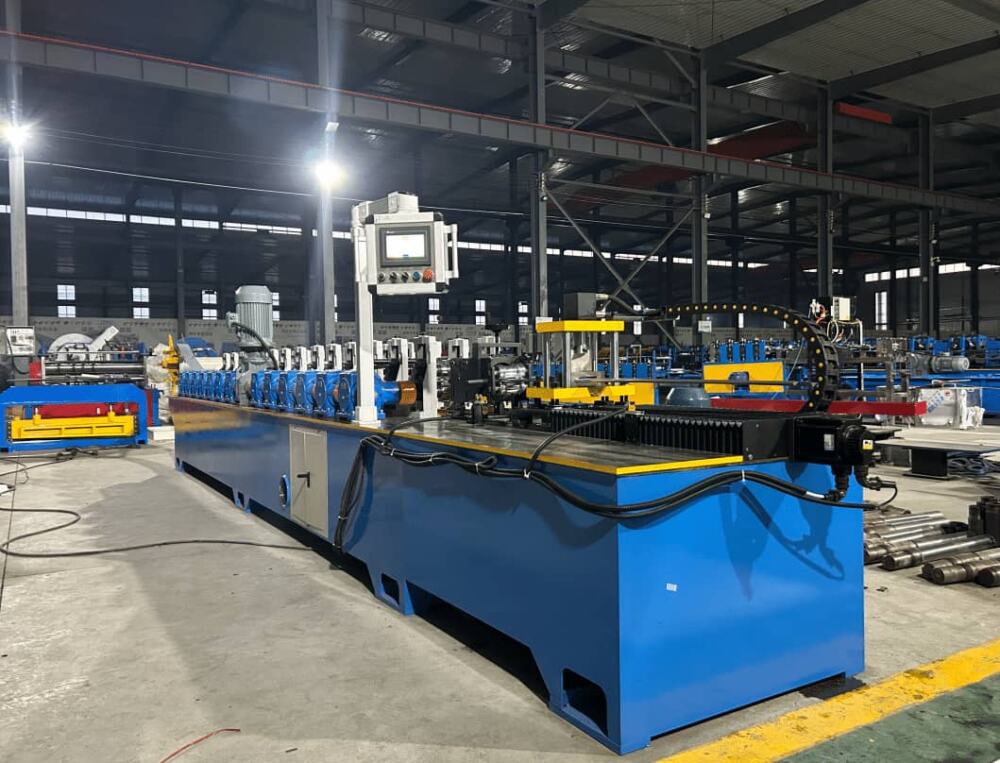

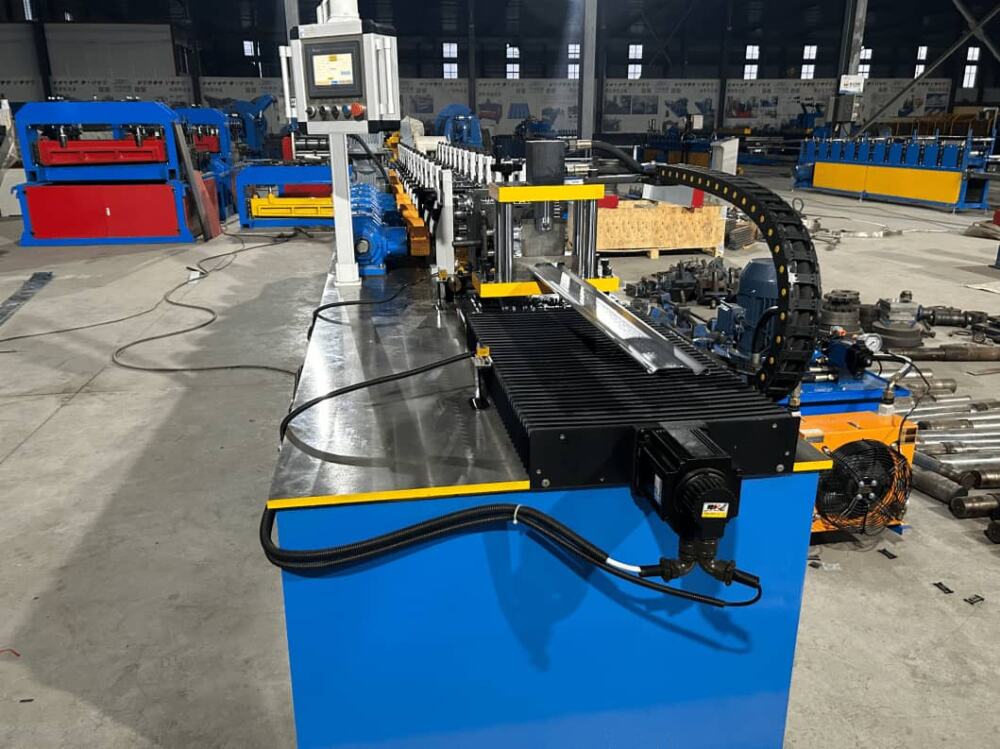

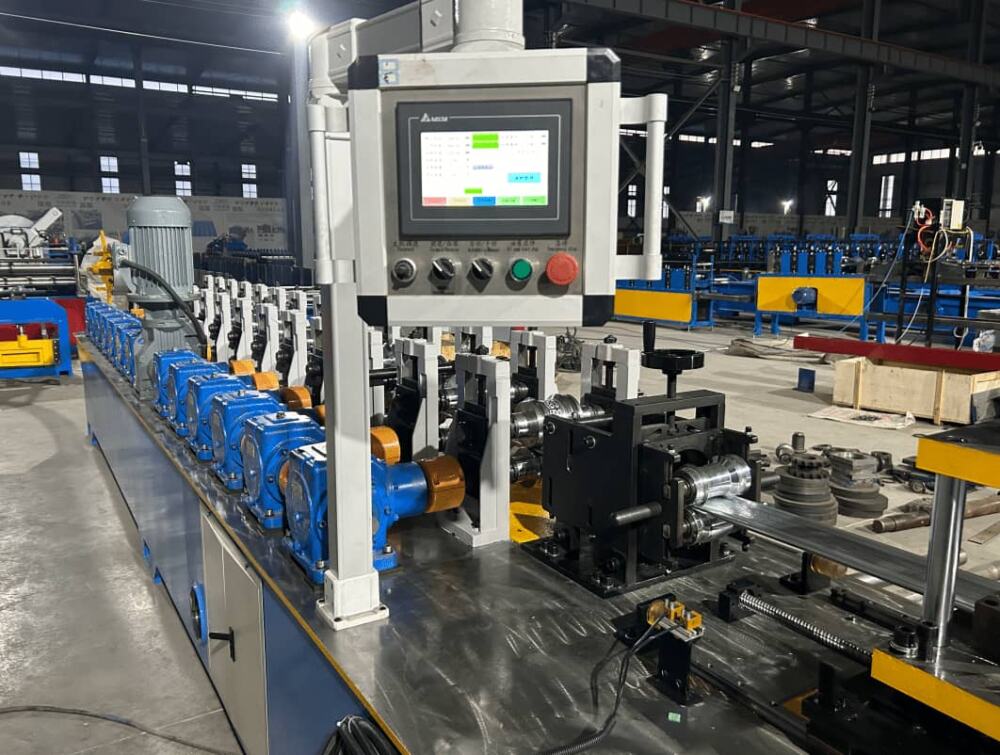

Machine photo:
Frequently Asked Questions (FAQ)：
Q1: What specifications of rolling shutter doors can this device produce?

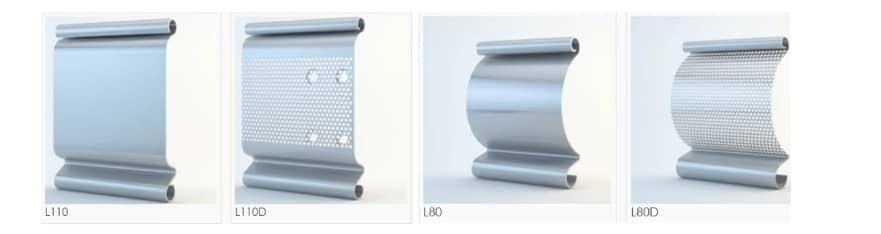

The equipment can produce rolling shutter door curtains with various cross-sections such as flat and curved, as well as matching door frames and guide rails. The width, thickness, and cross-sectional shape of the curtain can be customized according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.
Q2: Does the device support embossing function?
Support. The equipment can be equipped with an optional embossing device to press patterns or imprint logos on the surface of the curtain during the molding process, enhancing product aesthetics and brand recognition.
Q3: Does the device support dual layer configuration?
Support. The double-layer molding machine can integrate two molding lines on one device to produce curtains or door frames with different cross-sections, saving investment costs and factory space.
Q4: How to ensure the forming accuracy of the equipment?
Precision assurance comes from three levels: the rolling mill is made of high-quality Cr12 or 45 # steel, which is quenched and plated with hard chromium to ensure accurate forming contours; PLC control system cooperates with encoder to monitor production parameters in real time; The hydraulic shearing system achieves a cutting tolerance of ± 1mm.
Q5: What voltage and power standards does the device support?
The equipment can be customized with voltage configuration according to the power grid standards of the customer's country, supporting different voltages such as 220V, 380V, 415V, 440V, etc. The frequency can be selected as 50Hz or 60Hz, and it is a three-phase power supply. The control system supports multiple language operation interfaces such as English and Chinese.
Contact Us：
From the access control security of street facing shops to the area separation of industrial plants, from the convenient opening and closing of residential garages to the efficient management of logistics warehouses, rolling shutter doors are serving an increasing number of building scenes worldwide with their sturdy, durable, flexible and practical characteristics. A reliable and accurate Shutter Door Roll Forming Machine is the core equipment for door manufacturers to seize market opportunities, improve product quality and production capacity. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
