High-Quality Wall Cladding Panel Rolling Forming Machine
As the core component of modern building walls, wall panels undertake multiple functions such as load-bearing, sound insulation, thermal insulation, and fire prevention. Their production quality and efficiency directly affect the progress and quality of building projects. The High-Quality Wall Cladding Panel Rolling Forming Machine is designed specifically for standardized and large-scale wall panel production, integrating advanced CNC technology and automation processes to solve the pain points of low efficiency, extensive production, and uneven quality in traditional wall panel production. It provides efficient, accurate, and reliable wall material production solutions for building materials enterprises and construction contractors, and is the core equipment for green upgrading of the construction industry.
Product Attributes：
|
1.Formed Material
|
PPGI
|
Thickness:0.3-0.6mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
3 tons
|
||
|
3.Main body
|
Roller station
|
26 rows(As your requirement)
|
||
|
Diameter of shaft
|
65mm solid shaft
|
|||
|
Material of rollers
|
45# steel,with heat treatment
|
|||
|
Machine frame
|
350mm H beam structure,18mm middle plate
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*1600*1600mm
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
Gcr12 steel
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||

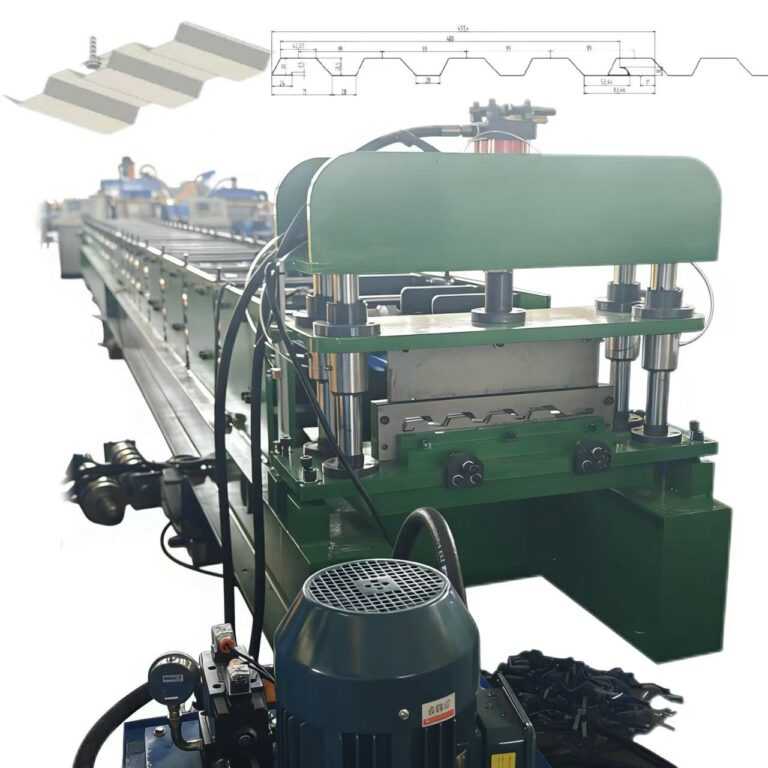

Pattern diagram:

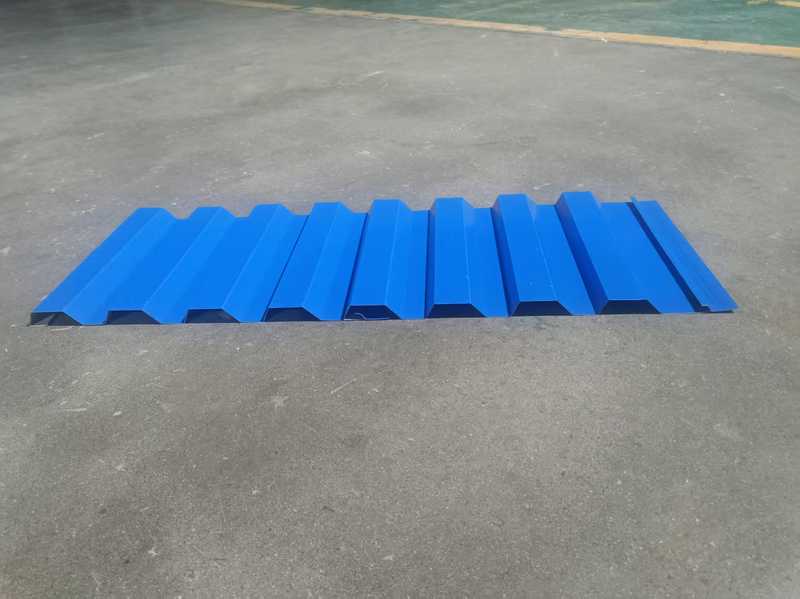

Finished product image:

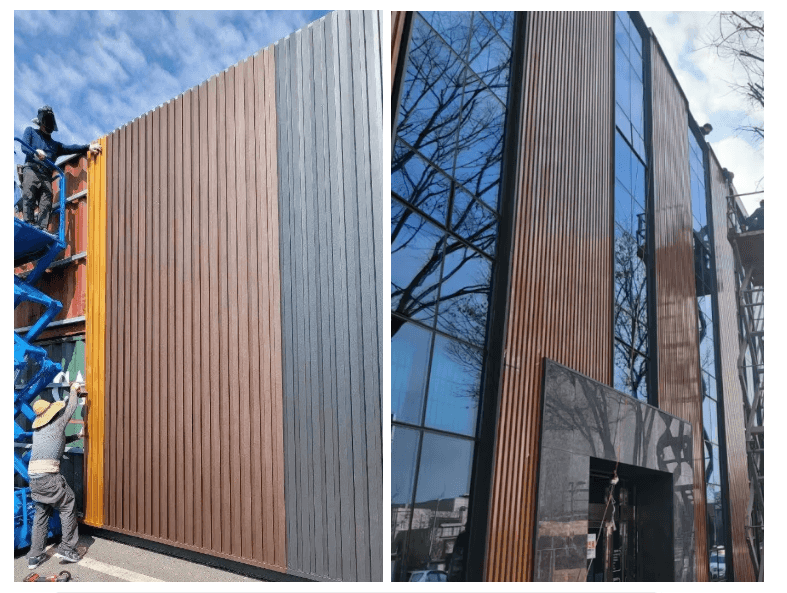

Application Scenario:
- Residential and commercial buildings:
Lightweight wall panels are used for indoor partitions, saving space and improving sound insulation, suitable for homes, hotels, and office buildings. - Industrial and public facilities:
High strength wall panels are used for warehouse and factory walls to enhance structural stability; Hospitals, schools, and other places benefit from their environmental protection and fire prevention characteristics. - Fencing and Landscape Engineering:
The cement components produced by the fence board machine are beautiful and durable, used for community isolation or park decoration, improving construction efficiency and safety. In terms of market value, equipment reduces labor and material costs, shortens project cycles, and promotes the transformation of the construction industry towards intensification and intelligence.
Core features:
1.Efficient automation:
Full process automation control reduces human dependence, achieves continuous operation, and significantly improves production efficiency. For example, the intelligent ingredient system can adjust parameters in real-time and optimize production rhythm.
2.High precision molding:
Adopting modular mold design to ensure accurate wall panel dimensions and smooth surfaces, meeting diverse customization needs. The formwork process is particularly suitable for complex structures and improves geometric accuracy.
3.Energy conservation and environmental protection:
Equipment optimization and energy management, such as waste heat recovery systems to reduce energy consumption, while utilizing industrial waste as raw materials to reduce resource waste. The production process has low noise and minimal pollution, meeting green building standards.
