Hot Selling Standing Seam Metal Roofing Sheet Roll Forming Machine
Still struggling with roof construction issues such as water leakage, rework, project delays, and poor appearance? The Standing Seam Metal Roofing Sheet Roll Forming Machine is here - with its three core capabilities of "precision edge locking molding, high-speed mass production, and multi scene adaptation", the roof tiles have "leak proof sealing, 50 year durability, and minimalist high-end aesthetics". From factories, airports to villas, cultural and tourism projects, high-quality roofs can be easily created!

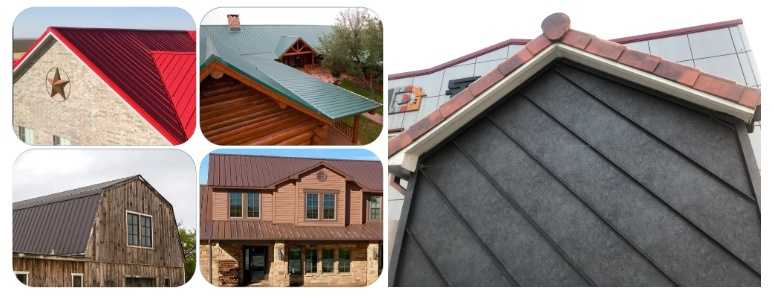

Application Scenario:
Product Attributes ：
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|

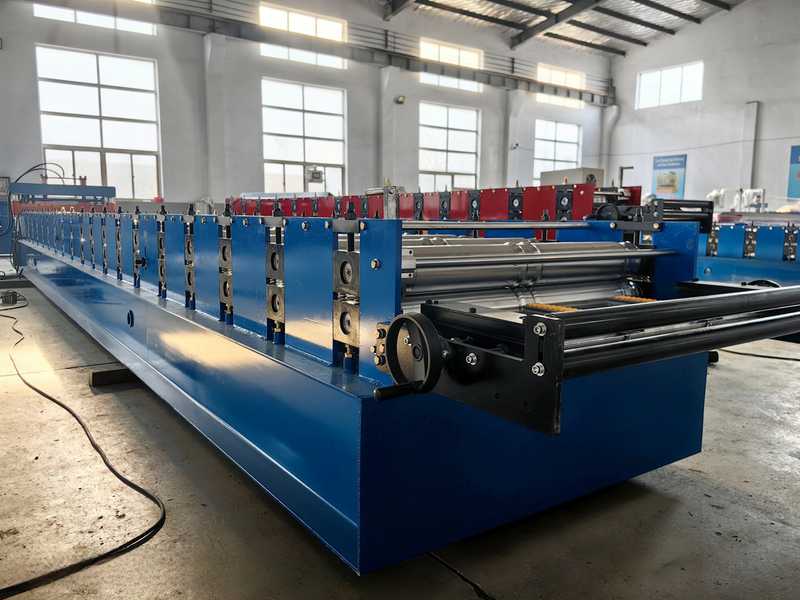

3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|

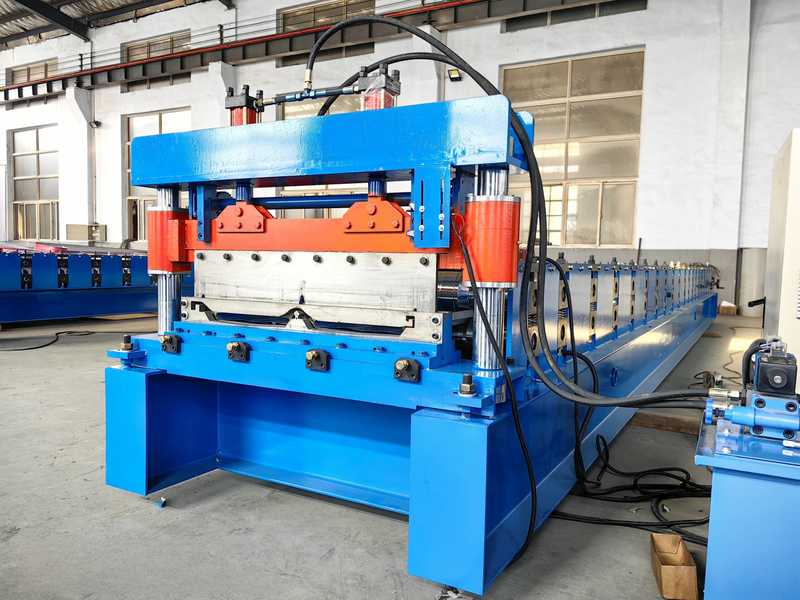

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-80m/min
|
Provide customized
|
||
Why have vertical seam roof tiles become the "new favorite of architecture"? The equipment hard core strength is the the final say
The traditional roof tiles have either large splicing gaps and water seepage in rainstorm days, or slow construction, 1000 ㎡ roof needs to be erected for half a month, or the materials are brittle and rusty and deformed in a few years. The products produced by the vertical seam roof tile equipment rely on the "vertical locking edge process" to break these pain points, and the equipment itself uses technological upgrades to achieve "cost reduction and efficiency improvement":
1. Precise locking edge+one-time molding, roof will not leak for 50 years

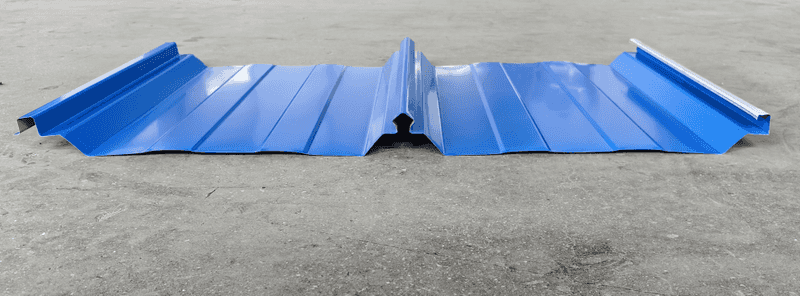

The core advantage of the vertical seam roof tile is "hemming" - the equipment uses the CNC precision forming system to roll the steel strip into a "vertical hemming structure" at one time, the height of the hemming is 25-40mm, and the seam error is ≤ 0.1mm when splicing, which can withstand the impact of 12 levels of wind+rainstorm, and completely eliminate the problem of "rainwater infiltration from the seam".

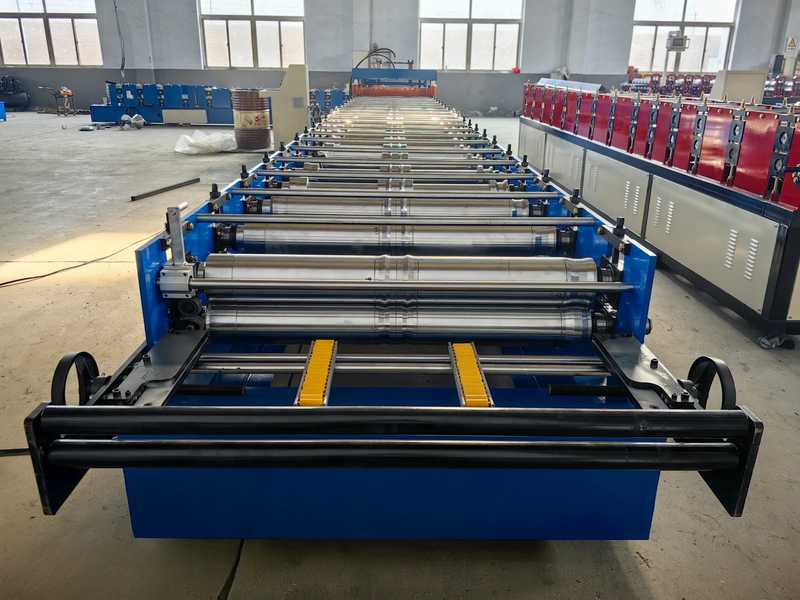

More importantly, the forming process: the equipment is equipped with 16-22 precision forming roller sets, and the roller shafts are quenched with GCr15 (hardness HRC58-62), matched with a servo positioning system to ensure that the curvature, length, and locking edge size of each tile are completely consistent. For example, producing 0.8mm thick aluminum magnesium manganese vertical seam tiles, with a flatness error of ≤ 0.3mm/m after molding, and laying them tightly on the roof, which is both beautiful and leak proof, with a service life far exceeding traditional colored tiles (up to 50 years or more).
2. High speed production+fully automated operation, reducing the construction period by half directly
Traditional manual production of vertical seam tiles can produce an additional 300 square meters per ceiling, but when faced with large-scale projects (such as a 10000 square meter factory building), it is impossible to meet the construction schedule. The vertical seam roof tile equipment relies on "dual line parallel+intelligent speed control", which directly doubles the efficiency:
（1）Fast speed:
The molding speed of a single production line can reach 15-20 meters per minute, and 1200-1500 square meters of roof tiles can be produced in one day. For a 1000 square meter roof, tile production can be completed in just one day;
（2）Labor saving:
From steel strip unwinding, forming, cutting to finished product stacking, the entire process is automated, with only one worker monitoring each line, saving 60% of labor compared to traditional manual labor;
（3）Zero waste:
The servo cutting system has a cutting error of ≤ 1mm and a material utilization rate of over 98%. One ton of steel strip can produce an additional 15 square meters of tiles, indirectly reducing raw material costs.
3. Multiple materials and specifications, one device is suitable for all roof scenes
Whether it is the commonly used 0.5-1.2mm color steel plate in industrial plants, the aluminum magnesium manganese alloy plate (3003/5052 material) favored by high-end buildings, or even the corrosion-resistant zinc titanium plate, the vertical seam roof tile equipment can be easily adapted; More flexible in specifications:
（1）Tile type:
supports various structures such as upright lock edge, bite type, and hidden buckle type to meet the waterproof needs of different buildings;
（2）Width:
Customizable to any width of 300-600mm, with a maximum length of 12 meters (reducing roof joints);
（3）Special requirement:
Able to produce specialized tiles with reinforced ribs and drip troughs, suitable for large-span roofs (such as sports halls and airport terminals).
For example, a certain cultural and tourism town project requires the simultaneous production of "300mm wide color steel vertical seam tiles (for factory use)" and "400mm wide aluminum magnesium manganese vertical seam tiles (for homestays)". The equipment can switch parameters with one click through the touch screen and complete the mold change in 20 minutes, without the need to change molds, easily meeting the production needs of multiple categories.
