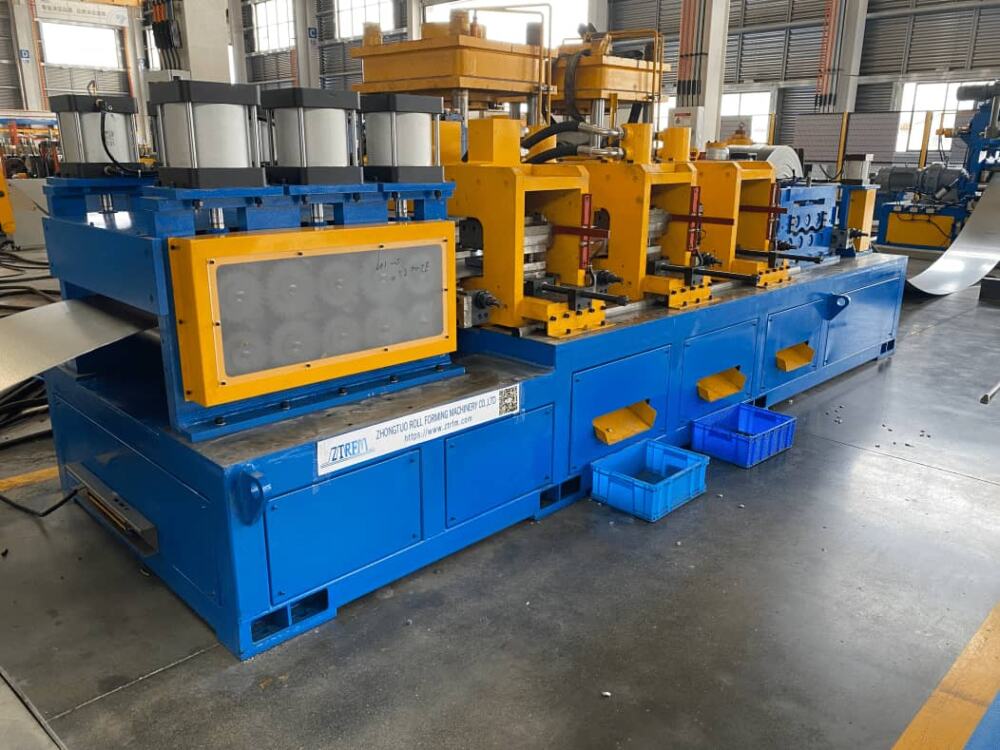

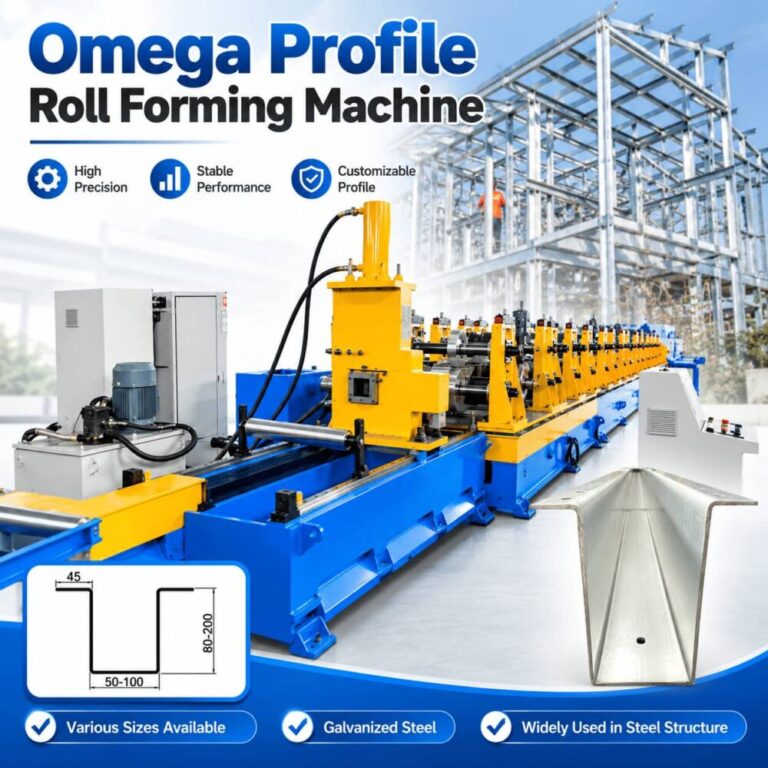

High Speed Omega Profile Roll Forming Machine With Servo Tracking Infinite Cutting Device

Today, with the rapid popularization of prefabricated buildings and light steel keel systems, Omega profiles serve as the core skeleton of ceiling and partition systems. Their production efficiency and dimensional accuracy directly determine the market responsiveness and product quality of building material manufacturers. High Speed Omega Profile Roll Forming Machine With Servo Tracking Infinite Cutting Device The deep integration of high-speed cold bending forming and servo tracking flying shear technology has achieved true "non-stop continuous production", bringing a double leap in efficiency and quality to light steel keel manufacturing enterprises.

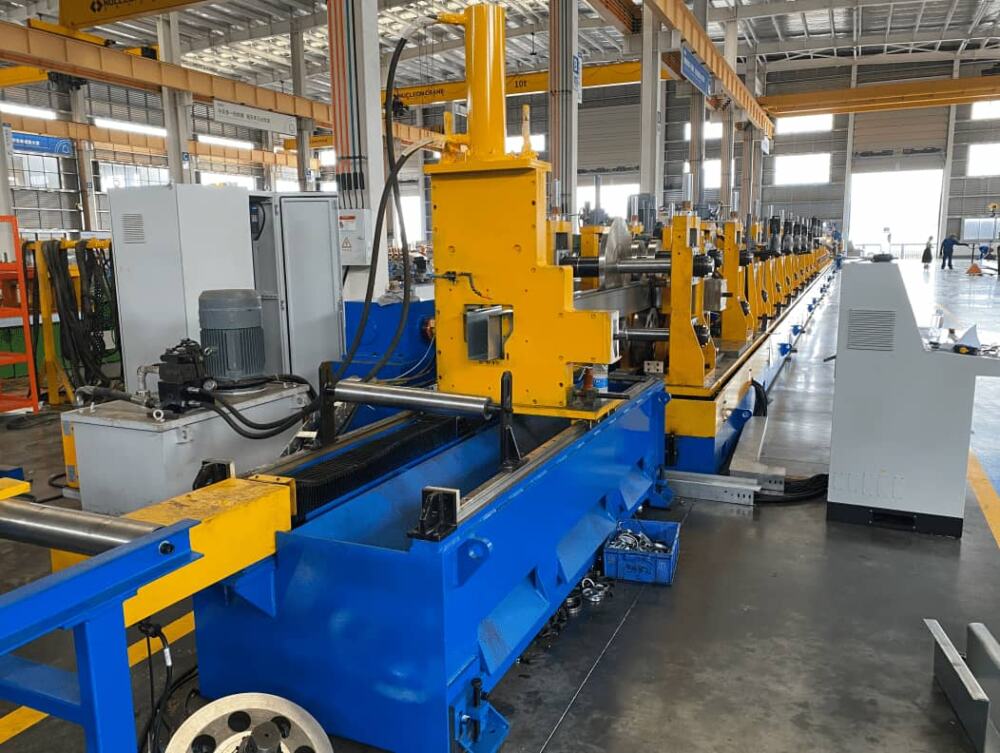

What is servo tracking infinite cutting?

Traditional cold bending production lines often need to stop or slow down during cutting, and can only continue production after cutting is completed, which seriously restricts the efficiency of the production line. The core logic of Servo Tracking Infinite Cutting technology is that the cutting device is driven by a servo motor and moves synchronously with the profile in the direction of continuous high-speed advancement, completing the cutting to a fixed length without any pause.

The implementation of this technology relies on a precise closed-loop control system. The encoder detects the real-time motion speed and displacement signal of the profile, and feeds back the data to the PLC controller. The controller drives the servo motor accordingly to accurately synchronize the speed of the cutting blade group with the profile speed. When the profile reaches the preset length, the cutting action is instantly completed in a synchronized state. The whole process is like "aerial refueling" - the cutting device runs after the profile, completing the cutting in motion, and the production line speed is not affected in any way.

Core Advantages：

1. High speed non-stop production significantly increases production capacity
The servo tracking flying shear system completely eliminates the speed bottleneck of traditional cutting methods. The molding speed of the equipment can reach 0-20 meters per minute, and with the help of the flying shear system, it can achieve continuous and uninterrupted production. The high-performance version of the production line can even reach a speed of 70 meters per minute and a cutting frequency of 3-5 times per second or more. For large-scale orders, this means a significant increase in output per unit time and a significant reduction in delivery cycles.

2. Servo drive, excellent cutting accuracy
The precision advantage of servo tracking cutting is reflected in two aspects. At the level of speed synchronization, the high response characteristics of servo motors ensure that the relative speed between the cutting device and the profile approaches zero, avoiding deformation or burrs of the incision caused by speed differences. At the fixed length level, the encoder monitors the displacement of the profile in real time and, in conjunction with the PLC, accurately calculates the cutting timing. The length tolerance of the finished product can be controlled within ± 1mm. The cutting tool is made of Cr12MoV material, and after quenching treatment, the incision is smooth, scratch free, and deformation free.

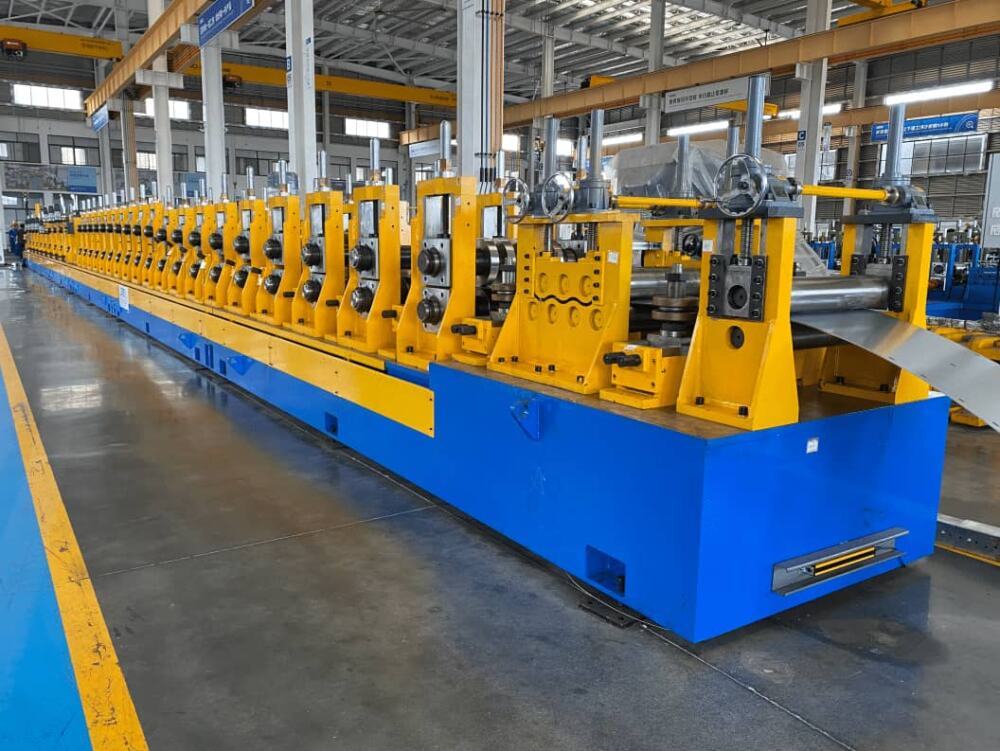

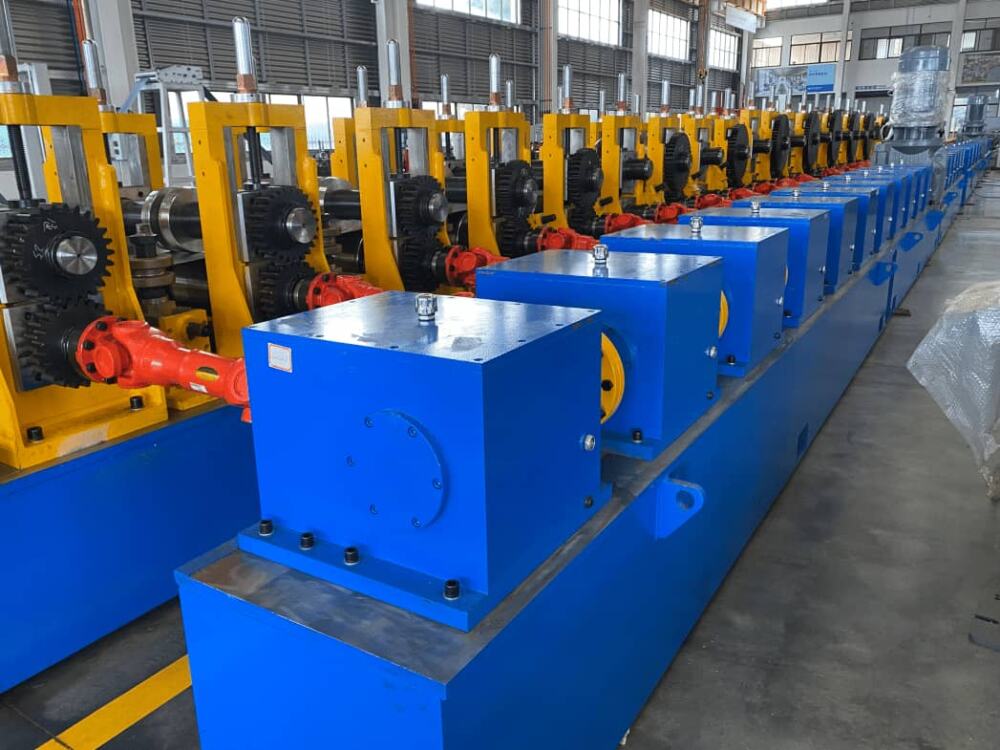

3. High precision molding, stable quality
The equipment adopts 22 precision forming rolling rolls, made of Cr12 or 45 # steel. After heat treatment, the hardness reaches HRC58-62, and the surface is plated with hard chromium. The multi pass progressive cold bending process gradually deforms the profile and evenly distributes stress, ensuring stable accuracy in the height, opening width, and flange size of the Omega section. The finished profiles have no distortion or deformation, and have good consistency in length.

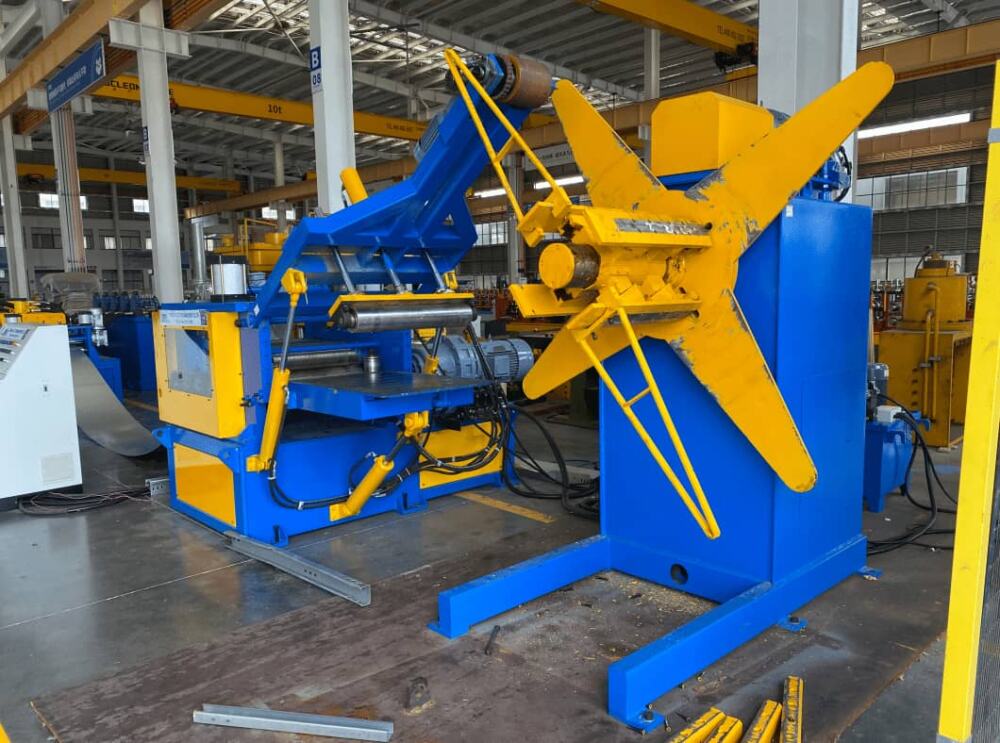

4. Fully automatic PLC control, easy to operate
The entire production line is coordinated by a PLC control system and equipped with a touch screen human-machine interface. The operator only needs to set parameters such as profile length, production quantity, batch, etc., and the system can automatically complete the full process control of feeding, forming, punching, tracking and cutting. The control system supports a multilingual interface with a low operating threshold, and ordinary workers can proficiently operate it after short-term training.

5.Flexible adaptation, one machine with multiple functions

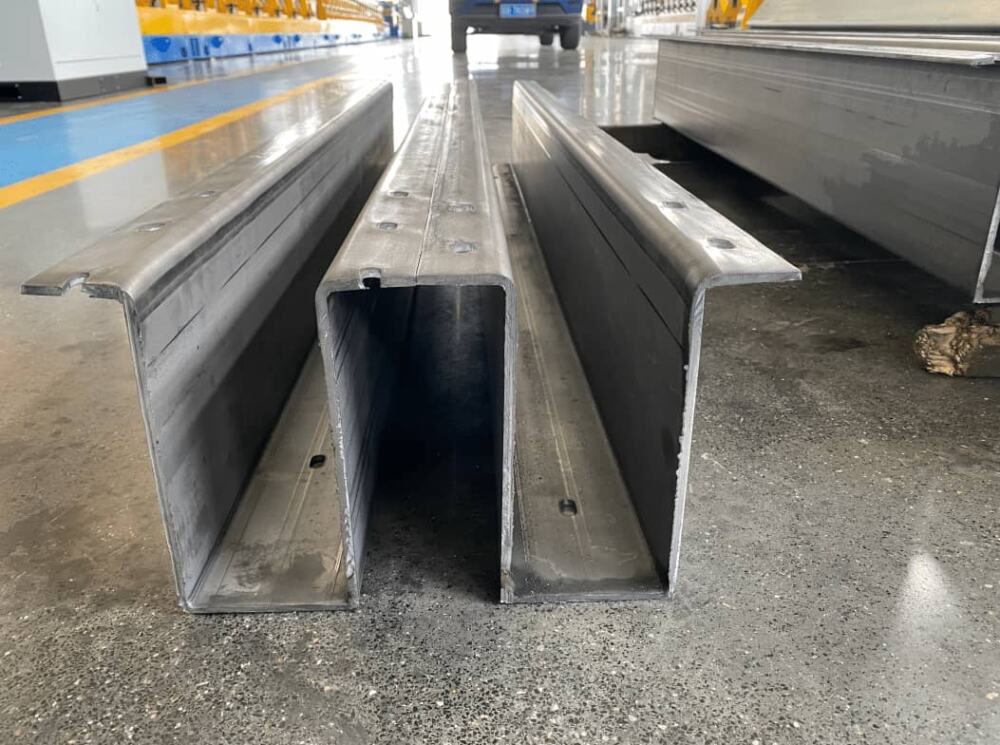

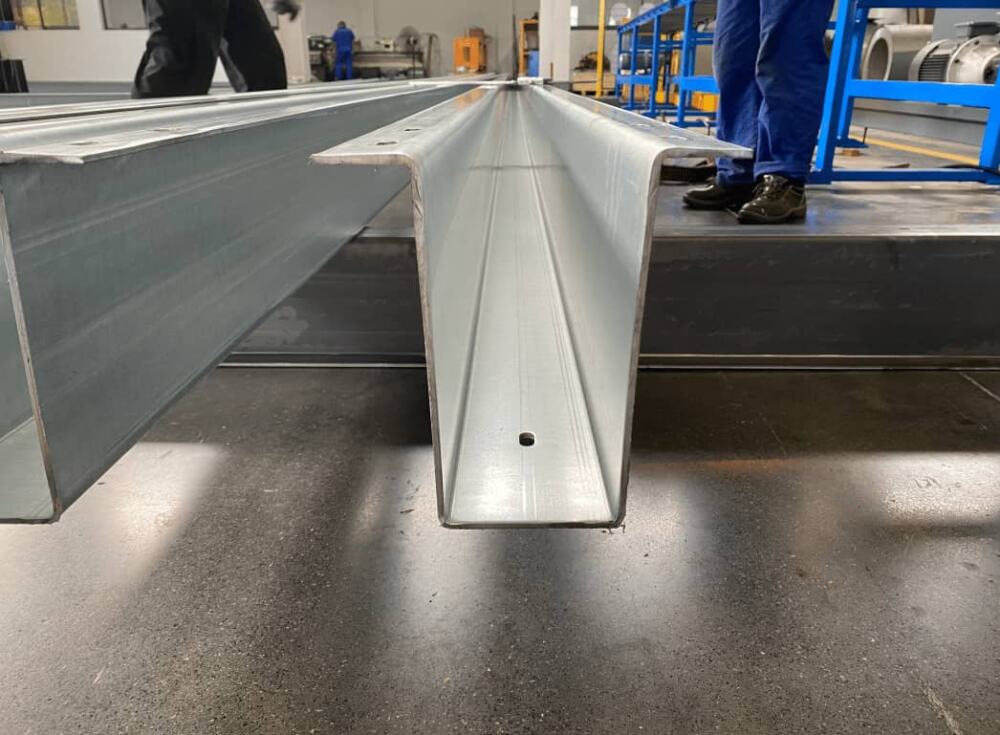

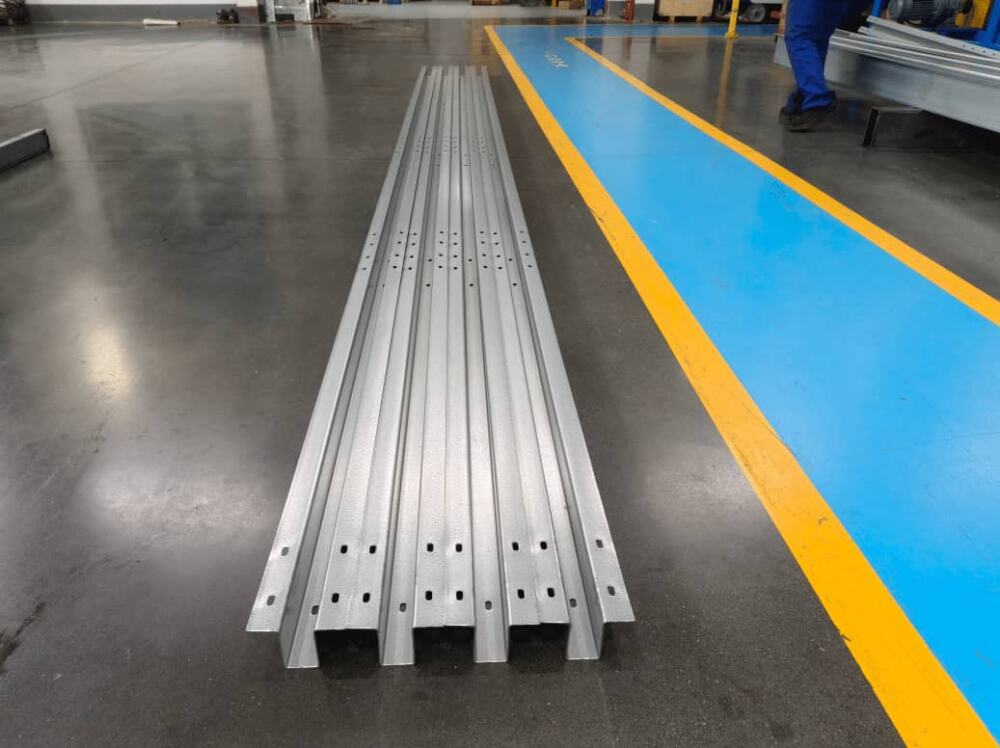

The equipment supports processing materials such as galvanized steel sheet (GI), color coated steel sheet (PPGI), and aluminum sheet with a thickness of 0.4-1.2mm. The common specifications of Omega profiles include heights of 25mm, 32mm, 50mm, etc., and opening widths of 40-60mm. The cross-sectional dimensions and punching patterns can be customized according to customer samples or drawings. The online punching system supports single hole, double hole, and multi hole linkage punching, which can punch multiple hole positions at once, further improving processing efficiency.

Application Areas：

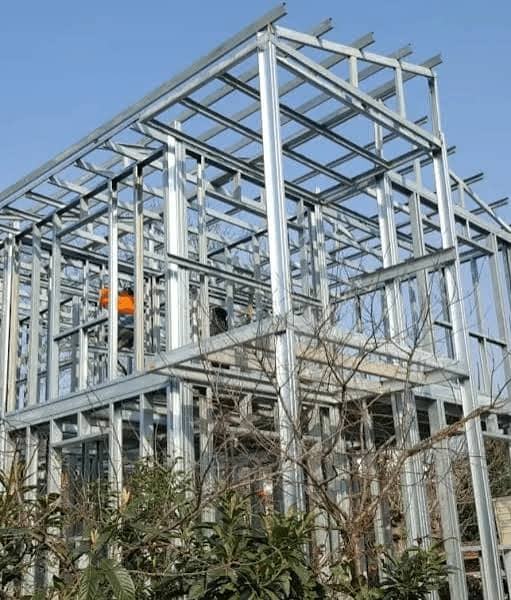

The profiles produced by Omega keel forming machines are widely used in various building scenarios:

• Commercial building ceiling:
Light steel keel ceiling system for office buildings, shopping malls, hotels, and hospitals, combined with load-bearing keels and hanging components to form a flat gypsum board surface layer

• Residential Fine Decoration:
Ceiling Leveling, Soundproofing Cotton Laying Base, Improving Indoor Acoustic Performance and Space Quality

• Partition wall system:
as a secondary wall keel, fixed on the vertical keel, covered with gypsum board to improve the impact resistance and sound insulation performance of the wall

• Industrial buildings:
Ceiling in the office area inside the factory building, enclosure structure between equipment rooms

Product Attributes :

Frequently Asked Questions (FAQ)：

Q1: What is the difference between servo tracking flying shear and traditional hydraulic cutting?

Traditional hydraulic cutting usually requires a brief shutdown or deceleration of the production line, and then resumes operation after the cutting is completed, with limited cutting frequency. The servo tracking flying shear drives the cutting device to move synchronously with the profile through a servo motor, completing the cutting process at high speed without stopping. The cutting frequency can reach 3-5 times per second, significantly improving production efficiency.

Q2: What is the molding speed of the equipment?

The pure molding speed is usually 0-20 meters per minute, and high-performance configurations can reach up to 70 meters per minute. The actual production capacity is affected by factors such as punching quantity, punching spacing, and cutting frequency.

Q3: What is the cutting accuracy that can be achieved?

By using encoder real-time feedback and servo synchronous control, the cutting length tolerance can be controlled within ± 1mm. Combined with high-precision encoders, it can effectively avoid the accumulation of sizing errors caused by traditional speed measuring rollers slipping.

Q4: Does the device support online punching?

Support. The equipment can be equipped with a servo tracking punching system to synchronously complete the hole processing on the profile during the forming process. The punching device is driven by an independent servo motor and moves synchronously along the direction of the profile. It can complete punching without stopping and supports single hole, double hole, and multi hole linkage punching.

Contact Us：

From the ceiling system of commercial buildings to the partition skeleton of hospitals and schools, from the leveling base of finely decorated residential buildings to the enclosure structure of industrial plants, Omega profiles are serving an increasing number of construction projects worldwide with their excellent structural performance and construction convenience. A high-speed Omega keel forming machine equipped with servo tracking infinite cutting technology is the core equipment for building materials manufacturers to break through production capacity bottlenecks, improve product quality, and enhance market competitiveness. If you need equipment solutions and quotations tailored to your specific needs, please feel free to contact us at any time.
