Wall Angle Roll Forming Machine Iron Slotted Angle Beads Making Machine
In the fields of decoration, light steel construction, storage shelves, etc., angle steel keel serves as the core component of the supporting structure, and its quality and production efficiency directly affect the progress and overall quality of the project. However, traditional angle steel keel production relies on manual cutting, punching, and bending, which not only makes it difficult to control accuracy, but also has problems such as low efficiency, high labor costs, and serious material waste, making it difficult to meet the modern industry's demand for standardized and large-scale production.
The emergence of angle steel keel machine completely changed this situation. It has achieved the full process intelligent operation of angle steel keel from raw material processing to finished product output with the core advantages of automation, high precision, and high flexibility, becoming a key equipment to promote cost reduction and efficiency improvement in the decoration and construction industry and improve product quality.
The core characteristics of angle steel keel machine
1. Efficient automation
The CNC system integrates the entire process of feeding, punching, cutting, and forming, with processing efficiency 3-5 times higher than manual labor. The 50 × 50mm specification angle steel can complete 150-200 meters per hour, meeting the needs of mass production.
2. High precision machining
Precision guide rails and servo drives ensure a positioning accuracy of ± 0.1mm, and the finished keel size is uniform, reducing installation adjustments and material loss.
3. Multi specification adaptation
Support the processing of angle steel with a width of 20-100mm and a thickness of 2-8mm, and quickly switch production through parameter adjustment to reduce equipment investment costs.
4. Stable and reliable
The high-strength body is resistant to heavy loads, and the wear-resistant alloy mold has a lifespan of over 100000 times. Overload protection and fault alarm ensure production safety.
5. Easy to operate
Humanized interface reduces learning costs, modular design facilitates daily maintenance, and some models support remote fault monitoring.

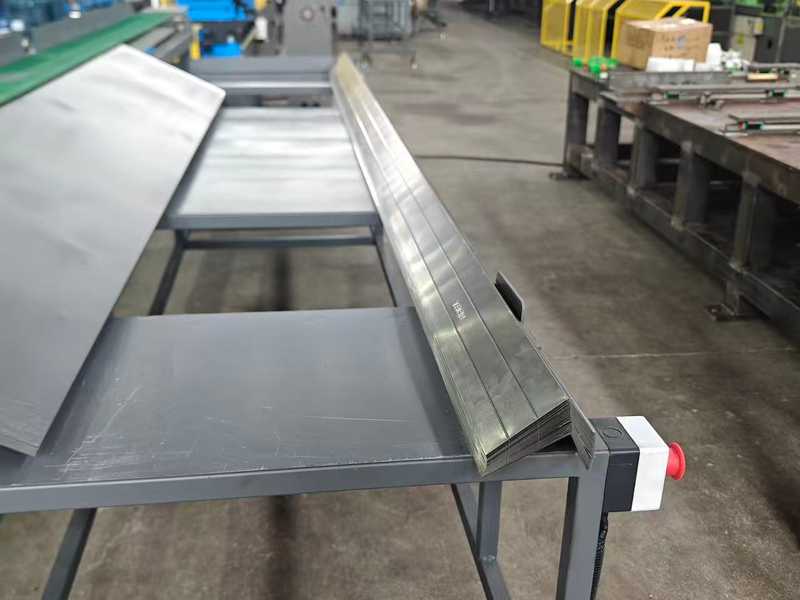

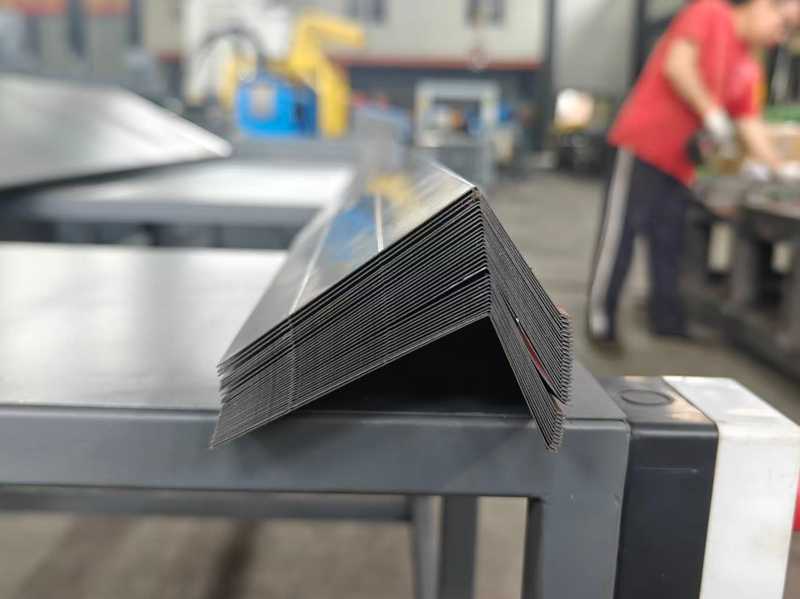

Finished product image:
The main application scenarios of angle steel keel machine
- Construction engineering:
In steel structure and factory construction, it is used to process walls and roof keels. Its high strength and high precision characteristics ensure structural stability and shorten the construction period. - Decoration field:
covering ceiling, partition wall, and billboard keel processing, it can not only create stable indoor decoration structures, but also meet the environmental resistance requirements and customized styling of outdoor facilities. - Transportation facilities:
applied to the processing of road guardrails, railway protective nets, and other keel structures to enhance the impact resistance and durability of the facilities. - Storage shelves:
can accurately process shelf columns and beams, adapt to lightweight to heavy-duty shelf customization, and improve storage space utilization.
Product Attributes ：

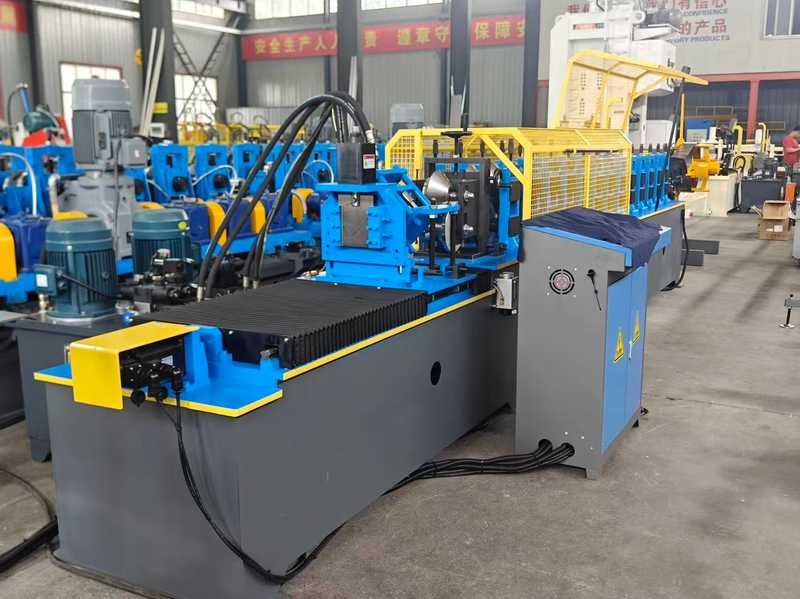

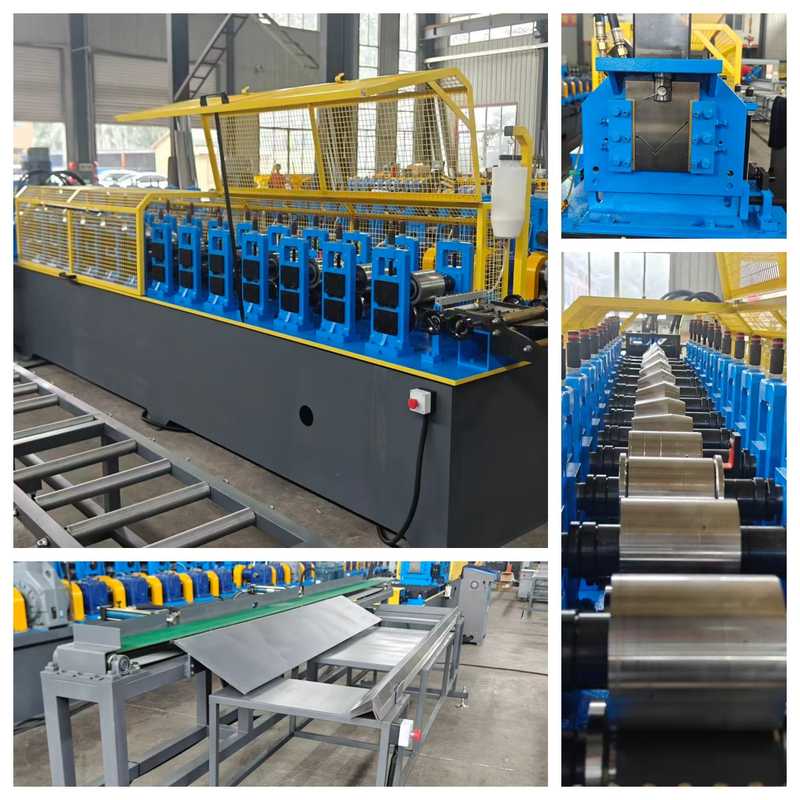

1.Formed MaterialGIThickness:0.2-0..4mm (customized)2.DecoilerHydraulic automatic decoilerManual decoiler(will give you as free）3.Main bodyRoller station12 rows(As your requirement)Diameter of shaft50mm solid shaftMaterial of rollers45# steel, hard chrome plated on the surfaceMachine body frameMetal steel weldedDriveGearbox transmissionDimension(L*W*H)5500*800*1200(customize)WeightAbout 3.5T4.CutterAutomaticcr12mov material, no scratches, no deformation5.PowerMotor Power7.5KWHydraulic system power5.5KW6.Voltage380V 50Hz 3PhaseAs your requirement7.Control systemElectric BoxCustomized(famous brand)LanguageEnglish(Support multiple languages)PLCAutomatic production of the whole machine. Can set batch, length, quantity, etc.18.Forming Speed70m/min(customized)Speed is adjustable according to customer's requestMachine image:
