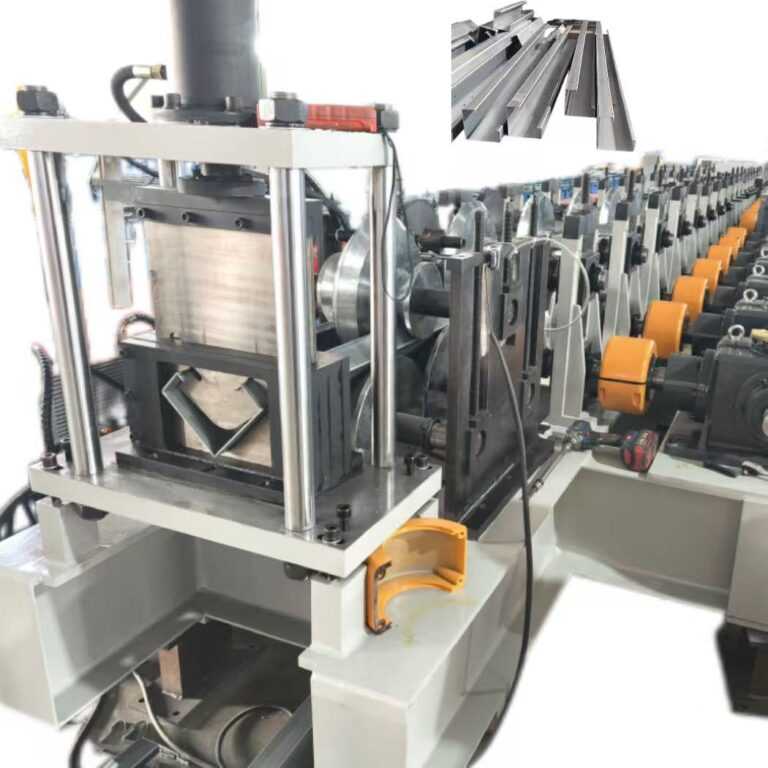

Full Automatic Container House Top Beam Roll Forming Machine
In today's rapidly iterating global trade and improving the quality and efficiency of logistics transportation, containers, as the core carrier of cargo transportation, directly determine the efficiency and safety of the logistics chain due to their safety, stability, and structural precision. As the "skeleton" of the container, the container beam carries the key mission of dispersing pressure and stabilizing the container body. The upgrading of its production and maintenance technology has become the core breakthrough to promote the high-quality development of the container industry. Full Automatic Container House Top Beam Roll Forming Machine, as specialized equipment that integrates intelligent production, efficient maintenance, and precise processing, are empowered by cutting-edge technology to break through traditional operational bottlenecks, redefine industry standards for container beam processing and maintenance, and inject strong momentum into logistics, infrastructure, ports, and other fields.
Equipment Introduction: Using intelligent technology to create a "hardcore skeleton" for containers
The core architecture of the equipment is made of high-strength alloy steel, combined with modular design, which can flexibly switch operation modes according to production and maintenance needs. It is compatible with the processing and correction of standard surfaces and complex variable cross-section container beams, and is suitable for multi scene beam processing such as high-speed railway box beams, port containers, and building steel structures. It truly achieves "one machine for multiple uses, full domain adaptation", greatly reducing the investment and site occupation costs of enterprise equipment.
Application scenario: Global coverage, empowering multi industry upgrades
• Container manufacturing field
As the core equipment of container production, it is widely used in large container manufacturing plants to undertake batch processing tasks of core components such as container main beams and bottom crossbeams, covering the entire process of cutting, assembling, welding, polishing, etc., achieving standardized and large-scale production, helping enterprises improve production capacity, ensuring the quality of containers leaving the factory, and adapting to the large-scale demand for containers in global trade.
• Infrastructure and Transportation Engineering
In infrastructure projects such as high-speed railways, bridges, and high-rise buildings, it is used for prefabrication and processing of large box steel beams, adapting to the production needs of large steel structure box beams such as suspension bridges and railway bridges, supporting variable cross-section processing, and ensuring the structural safety and construction progress of infrastructure projects with the advantages of high precision and efficiency. At the same time, it can be used for customized processing of engineering containers, meeting the personalized needs of temporary storage, office and other scenarios on construction sites, and helping to improve the quality and efficiency of infrastructure projects.

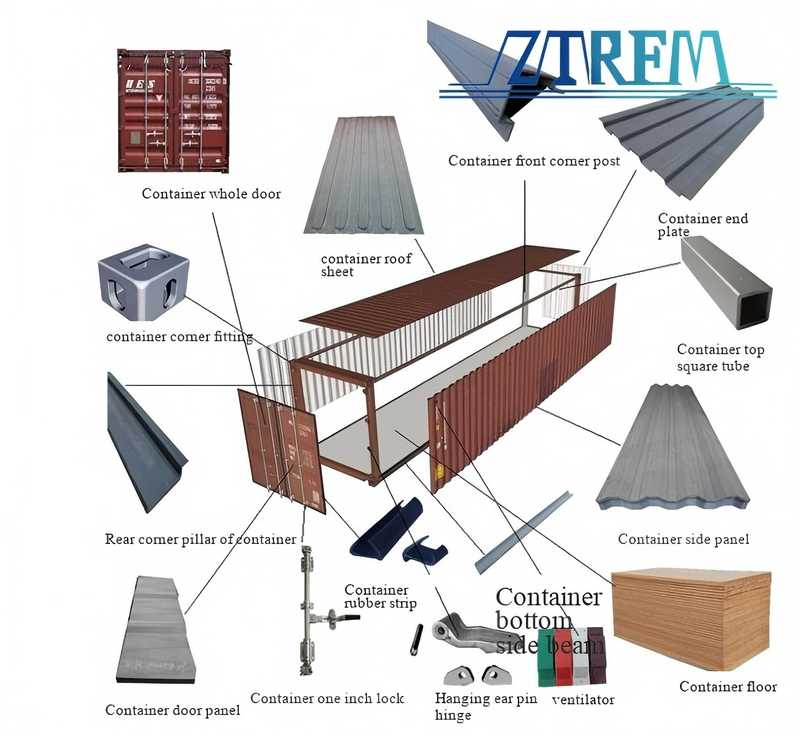

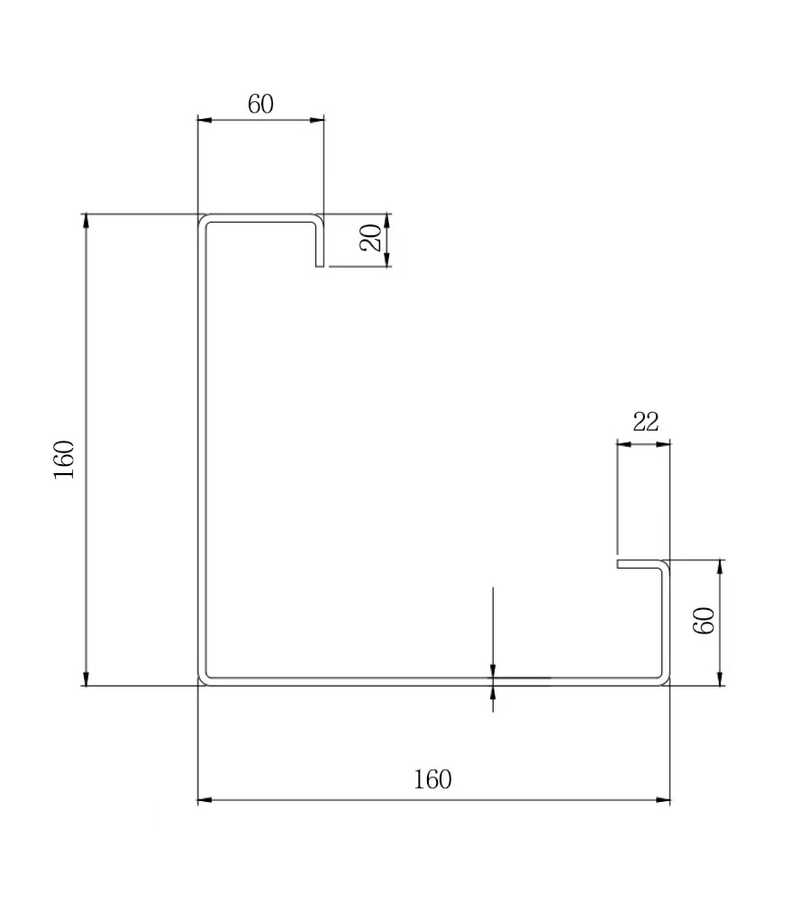

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

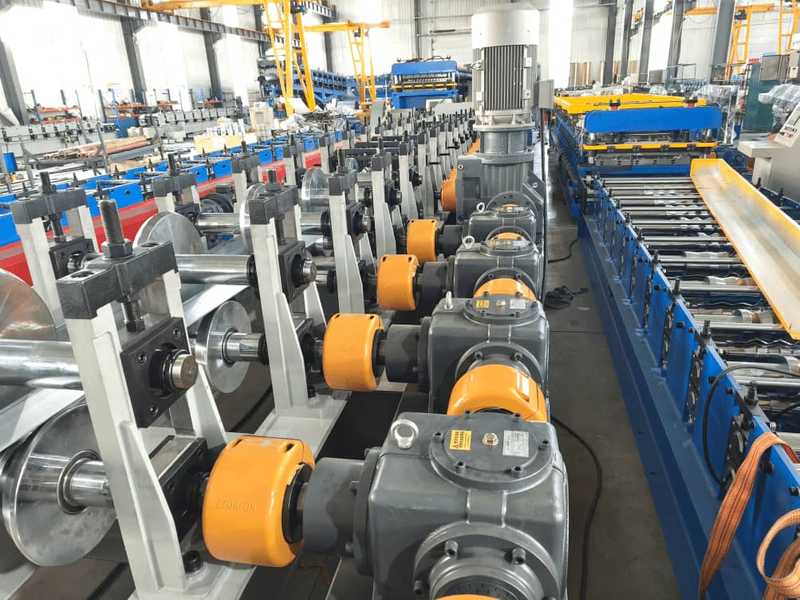

Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|

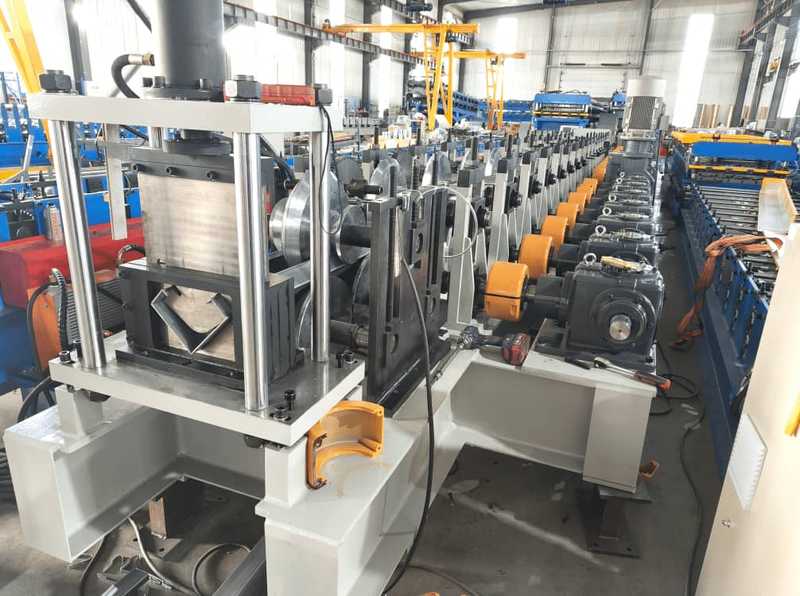

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Advantages: Four Highlights, Refactoring a New Paradigm for Homework
Compared with traditional operation modes and ordinary processing equipment, container beam machines are centered on "intelligence, efficiency, precision, and safety". With four core advantages, they have become the industry's preferred equipment, helping enterprises reduce costs, increase efficiency, and enhance core competitiveness.
1.Intelligent and convenient, bidding farewell to traditional homework pain points
2.Efficient and energy-saving, dual improvement of production capacity and efficiency
3.Accurate and stable, building a solid quality core defense line
4.Flexible adaptation, covering all scenario homework requirements
