C Z M Purlin Machine for House Building Steel Frame
The C Z M Purlin Machine for House Building Steel Frame is a fully automatic cold bending roll forming equipment that integrates the production of C-shaped steel, Z-shaped steel, and M-shaped steel. It uses continuous cold bending technology to form metal coils such as galvanized coils, cold-rolled coils, zinc aluminum magnesium coils, and high-strength steel coils in one go through processes such as uncoiling, leveling, feeding, multi pass roll pressing, punching, cutting to length, and stacking. It is a key industrial equipment for mass production in steel structure buildings, prefabricated factories, warehousing logistics, photovoltaic brackets, and other fields.

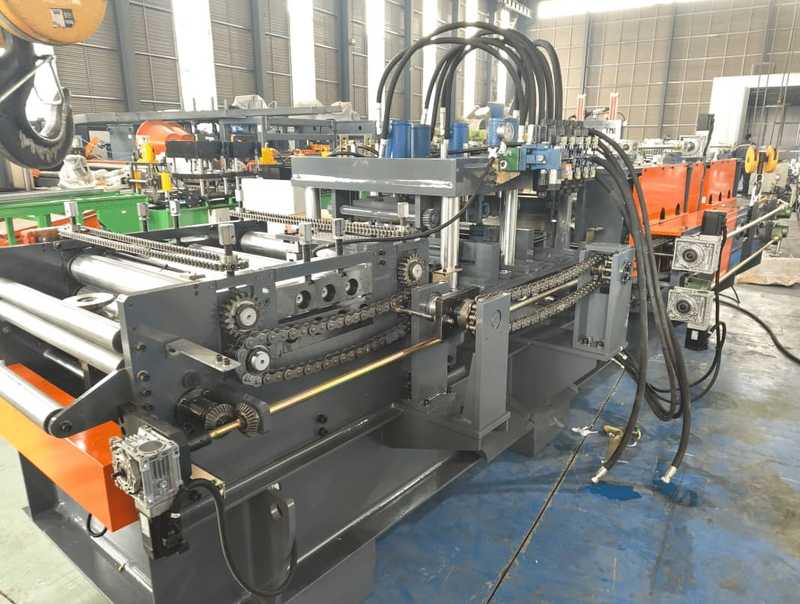

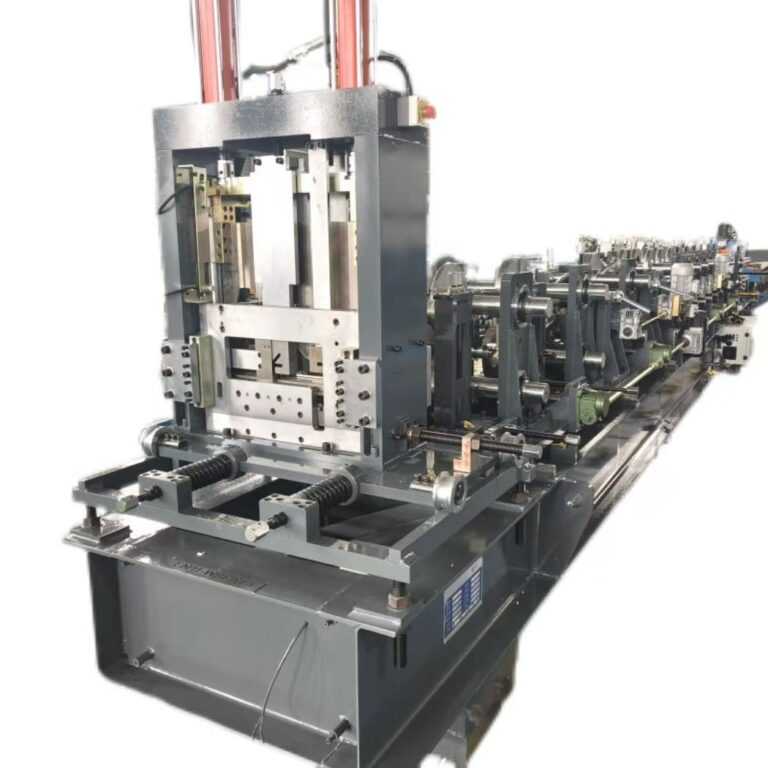

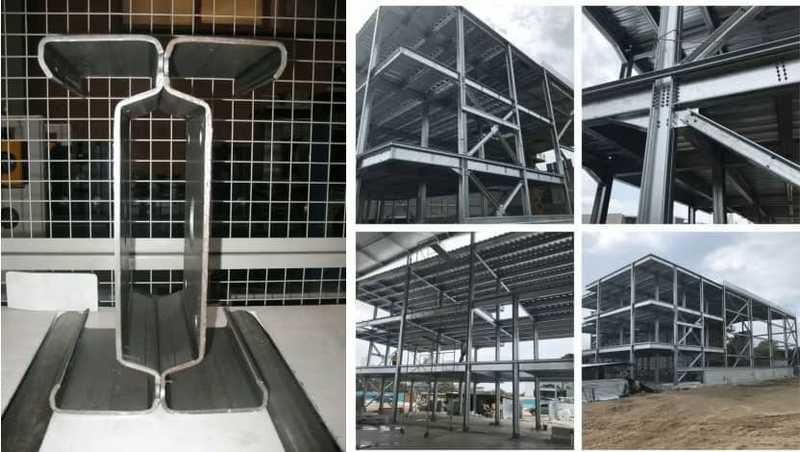

Typical application scenarios
• Steel structure factories and industrial buildings
Producing roof and wall purlins, C-shaped steel is commonly used for walls and secondary structures, Z-shaped steel is suitable for large-span roof overlap, and M-shaped steel is used to strengthen ribs and load-bearing frames. It is widely used in factories, workshops, logistics parks, clean rooms, etc.
• Warehouse logistics and shelving system
Produce heavy-duty shelf columns, beams, and support profiles with high precision and high bending resistance to ensure stable load-bearing capacity of the shelves, suitable for high-density storage scenarios such as e-commerce warehouses, cold chain warehouses, and three-dimensional warehouses.
• Prefabricated buildings and light steel residential buildings
Used for the keel, ring beam, and column of light steel villas, integrated houses, and modular buildings, with lightweight, high-strength, and fast construction, improving the efficiency of building assembly and seismic performance.
• Photovoltaic bracket and new energy engineering
Photovoltaic support beams, columns and slant support are processed. Corrosion resistant steel is suitable for long-term outdoor use. The size is uniform and convenient for batch installation, meeting the needs of ground photovoltaic, roof photovoltaic, and industrial and commercial distributed photovoltaic projects.

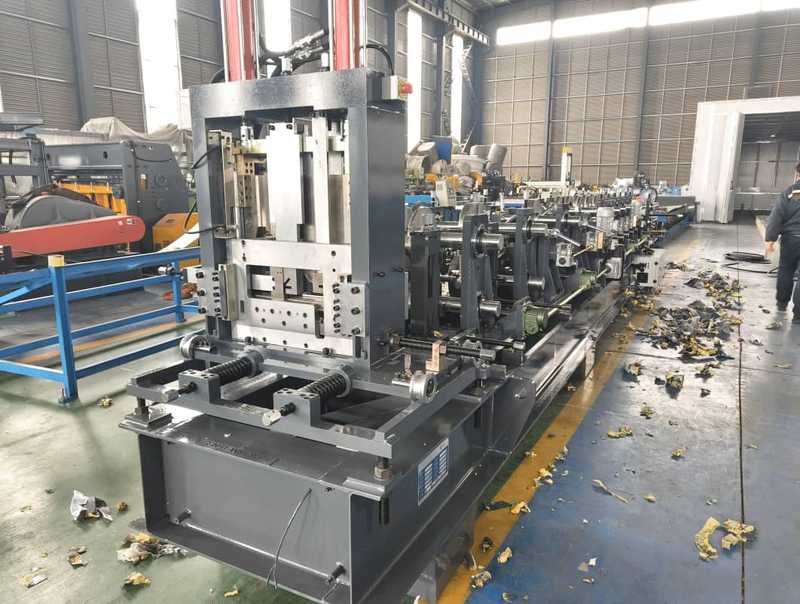

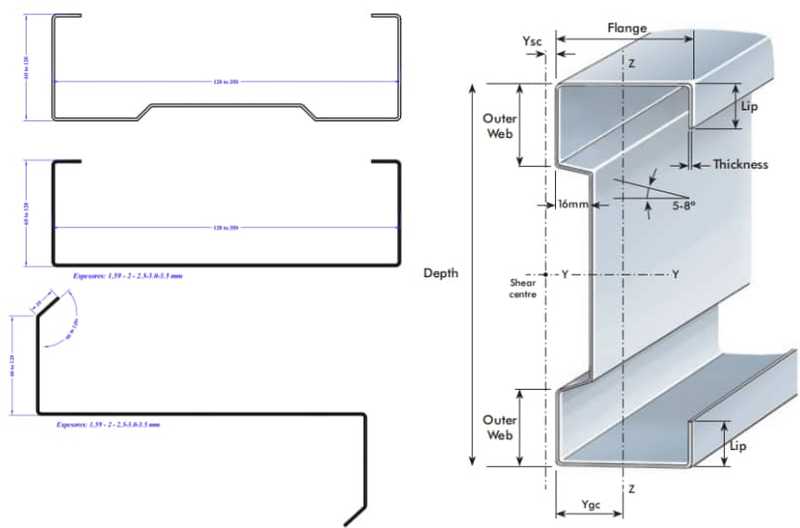

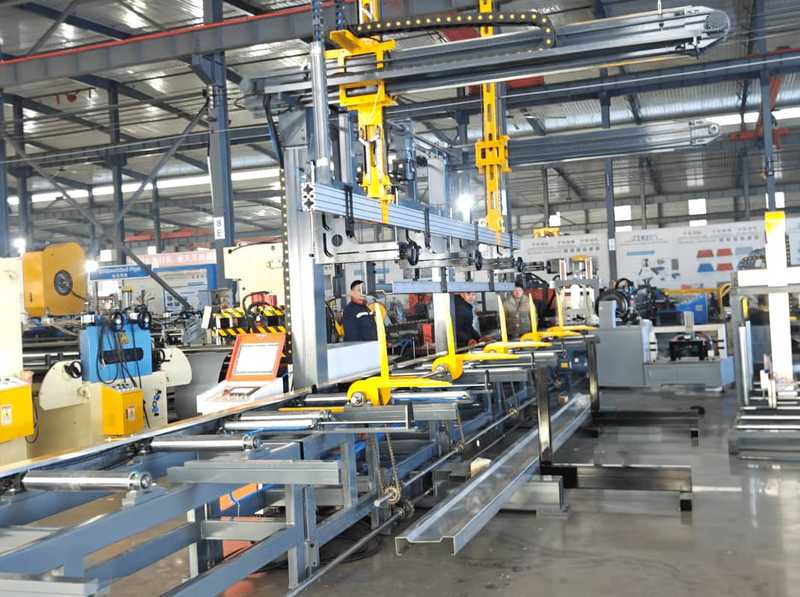

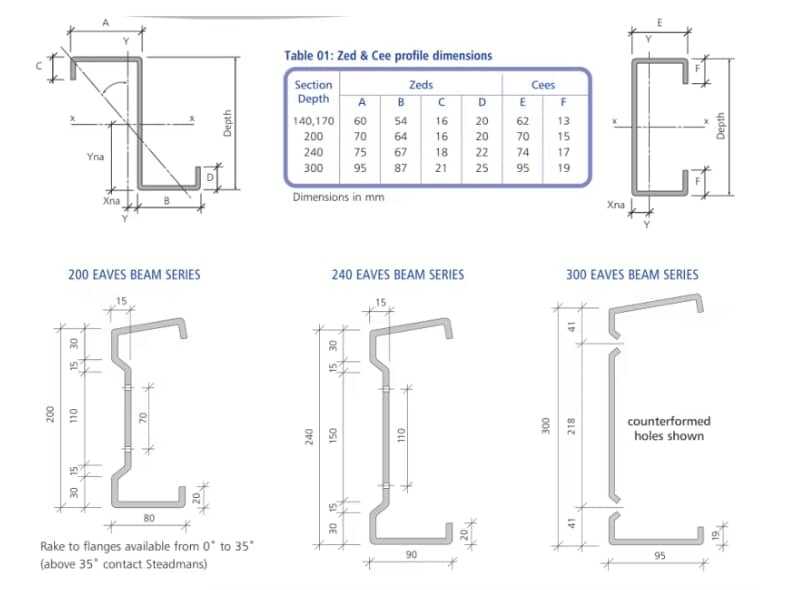

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3.0mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|

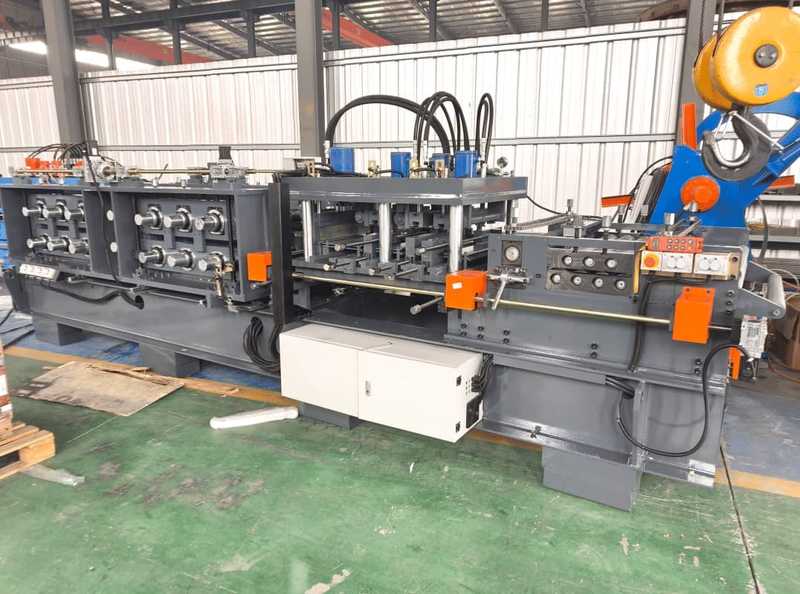

3.Main body
|
Roller station
|
32 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 4.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core technical features

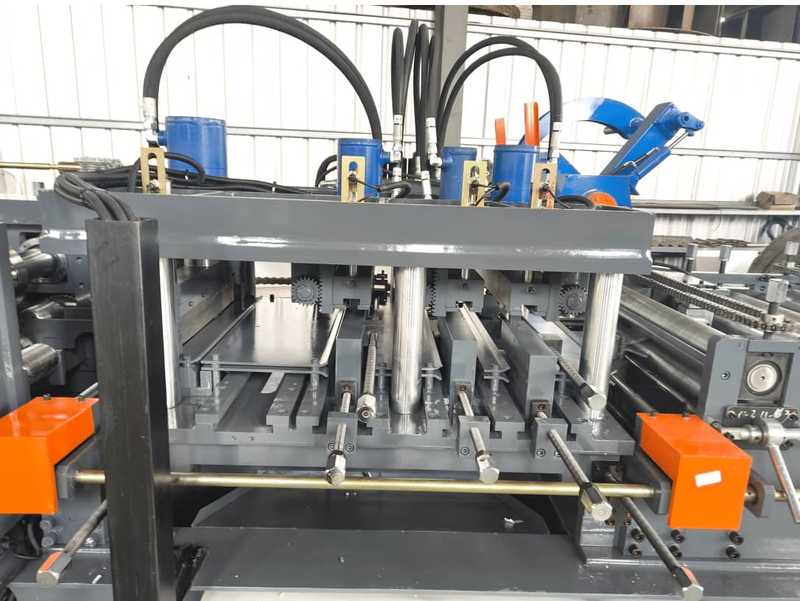

1.One machine for multiple uses, flexible changeover
One device covers the production of three types of profiles: C, Z, and M. It supports quick switching between commonly used specifications of 80-300mm, with short changeover time, significantly reducing equipment investment and site occupation. It is suitable for multi order, small batch, and multi specification mixed production.
2.High molding accuracy and stable size
Multi pass progressive roll forming, coupled with servo precise positioning, has small cross-sectional size errors, good angle consistency, high straightness of the finished product, no distortion or burrs, high assembly fit, effectively reducing on-site installation deviation and rework rate.
3.High degree of automation and efficient production
The entire process from uncoiling to palletizing is automated, including automatic leveling, feeding, forming, punching, and cutting to length. With fast forming speed and high single line production capacity, it significantly reduces manual labor and improves delivery efficiency.
4.Wide material adaptability and reliable craftsmanship
Compatible with galvanized, zinc aluminum magnesium, color coated, cold-rolled, hot-rolled, high-strength weather resistant steel and other coil materials, cold bending forming does not damage the material's anti-corrosion layer and mechanical properties, and the finished product has excellent bending and compression resistance, meeting the requirements of building structures and industrial load-bearing.
5.Sturdy structure and low maintenance cost
High rigidity frame is resistant to vibration and does not deform; The key wear-resistant parts have a long service life, equipped with automatic lubrication and overload protection, low failure rate, simple maintenance, and lower overall long-term operating costs.
