Supermarket Racks Making Machine Box Beam Roll Forming Machine

The Supermarket Racks Making Machine Box Beam Roll Forming Machine as the load-bearing skeleton of the shelf system, responsible for the vertical transmission and structural stability of the entire layer of goods weight. Its design needs to take into account load-bearing capacity, space utilization, and installation convenience, which are key components to ensure efficient operation of supermarket warehousing. Modern column equipment generally adopts modular design, supporting flexible adjustment of floor height and multi scene adaptation to meet different product display needs.

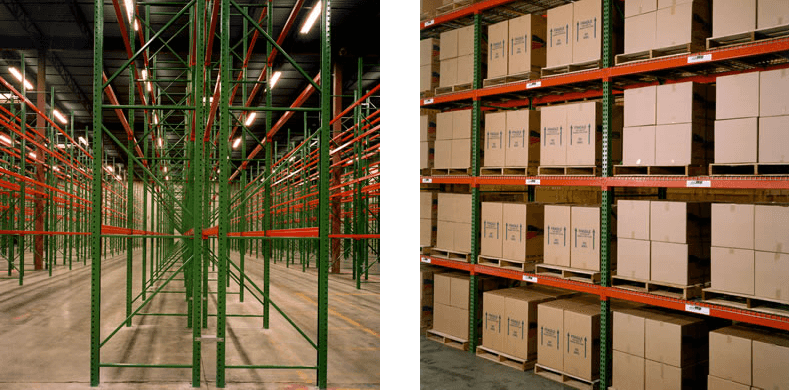

As the core load-bearing structure of supermarket shelves, the application scenarios of supermarket shelf columns mainly revolve around the display and storage needs of retail terminals, and have the following characteristics:

• Widely used in various retail venues:
Supermarket shelf columns are the basic components of shelf systems in retail formats such as supermarkets, convenience stores, and department stores. They are used to support beams and shelves, forming multi-layer display spaces that facilitate product classification, display, and consumer access. ‌

• Supporting multiple types of shelves:
In supermarket environments, columns are key components of modular shelves (such as medium-sized shelves and crossbeam shelves), which are assembled with crossbeams through plug-in, snap or bolt connections to achieve flexible adjustment of floor height and adapt to the display needs of different sizes of goods. ‌

• Pay attention to ergonomics and safety:
The height of supermarket shelves is usually designed based on human height, mostly below 3 meters. The column design should ensure structural stability, prevent tipping, and the surface treatment (such as electrostatic spraying) should be aesthetically pleasing, corrosion-resistant, and meet the requirements of the commercial environment. ‌

• The difference between supermarket shelf columns and storage shelves:
Compared with storage shelves (such as intelligent mobile shelves and gravity shelves in automated warehouses), supermarket shelf columns focus more on product display and consumer convenience, rather than maximizing space utilization or automated access. Their load-bearing standards (usually within 500KG) and structural design are also lighter. ‌

Core advantages:

1.High precision molding:
The advanced column molding production line adopts high-precision servo motor drive and dynamic compensation technology. By adjusting the roller spacing in real-time during the forming section, complex cross-sections can be formed in one go, and the straightness error of the column can be controlled within an extremely low range (such as ± 0.2mm). This precision ensures the geometric consistency of the columns, laying the foundation for stable assembly in the future.

2.Process enhancement and performance improvement:
Innovative cold bending forming processes (such as the "pre bending+finishing" two-stage process) can improve the bending strength of columns, while reducing the number of required welding points. This not only enhances the mechanical properties of the product, but also reduces subsequent processing costs. ‌

3.High efficiency and automated production:
Modern production lines integrate multiple functions such as punching, cutting, and stacking to achieve high-speed automated production. For example, some column forming production lines can reach a speed of 15 meters per minute, which significantly improves efficiency compared to traditional equipment; The production line for laminated boards and other related components has a high daily production capacity and can significantly reduce labor costs. ‌

4.Surface treatment and durability:
Shelf columns are generally treated with shot blasting, oil removal, and surface spraying (such as epoxy resin electrostatic spraying), which have good anti-corrosion and rust prevention properties, adapt to supermarket environments, and extend their service life. ‌

Product Attributes :

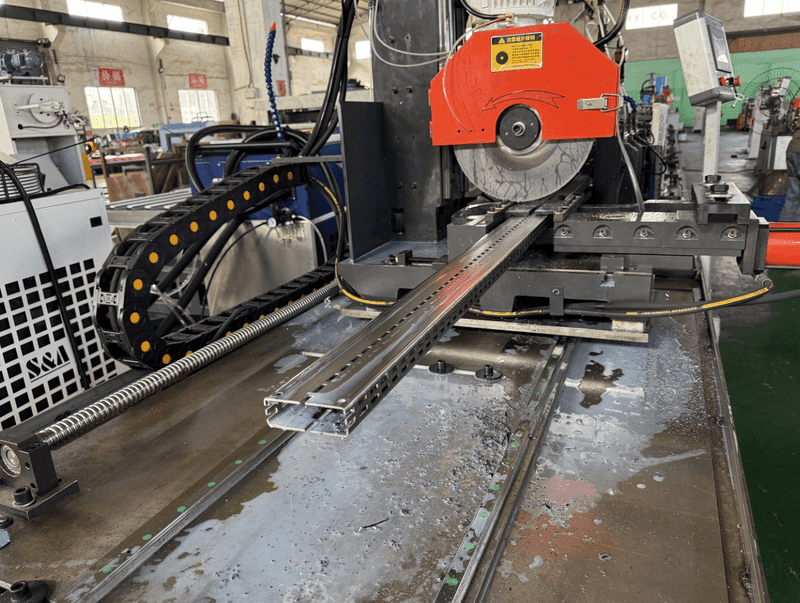

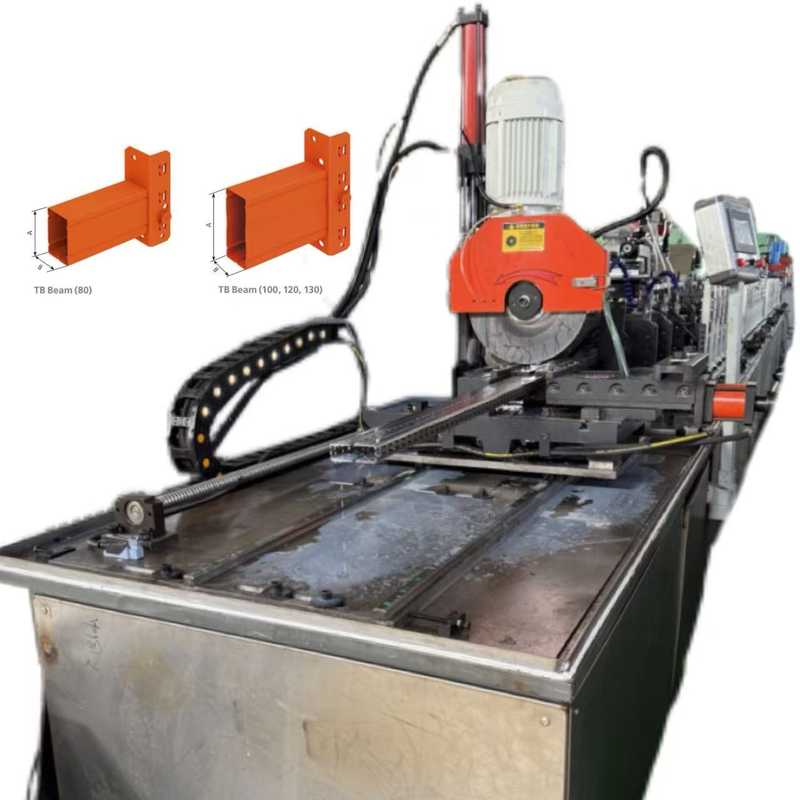

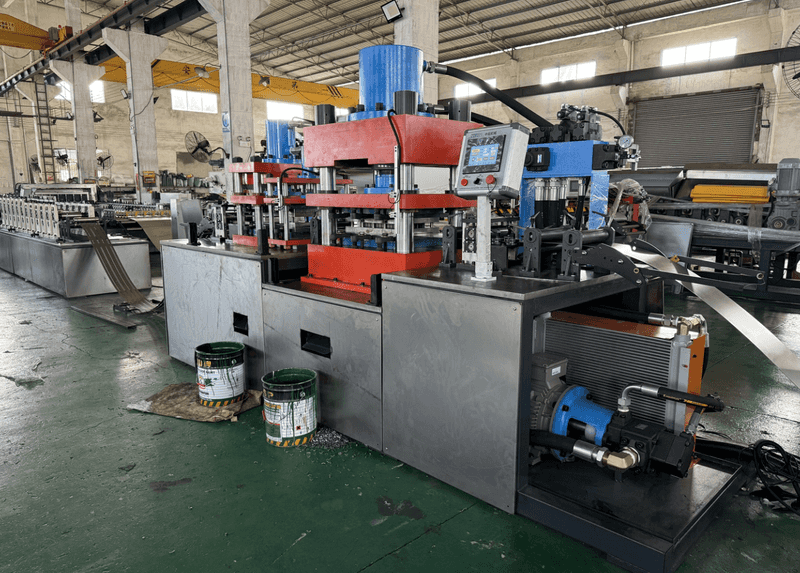

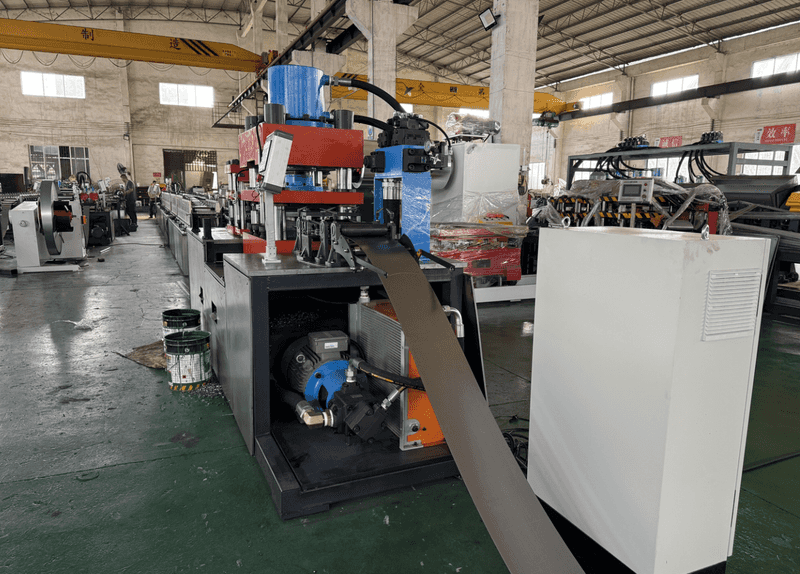

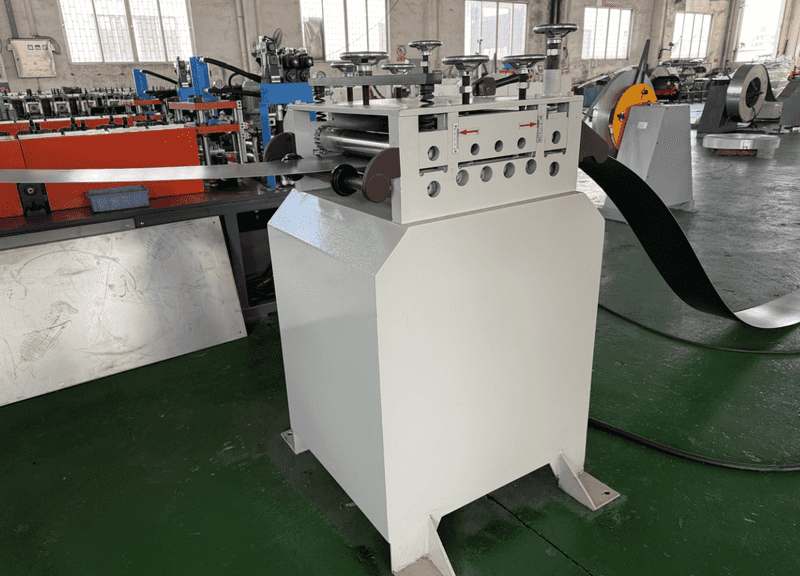

Machine photo:
