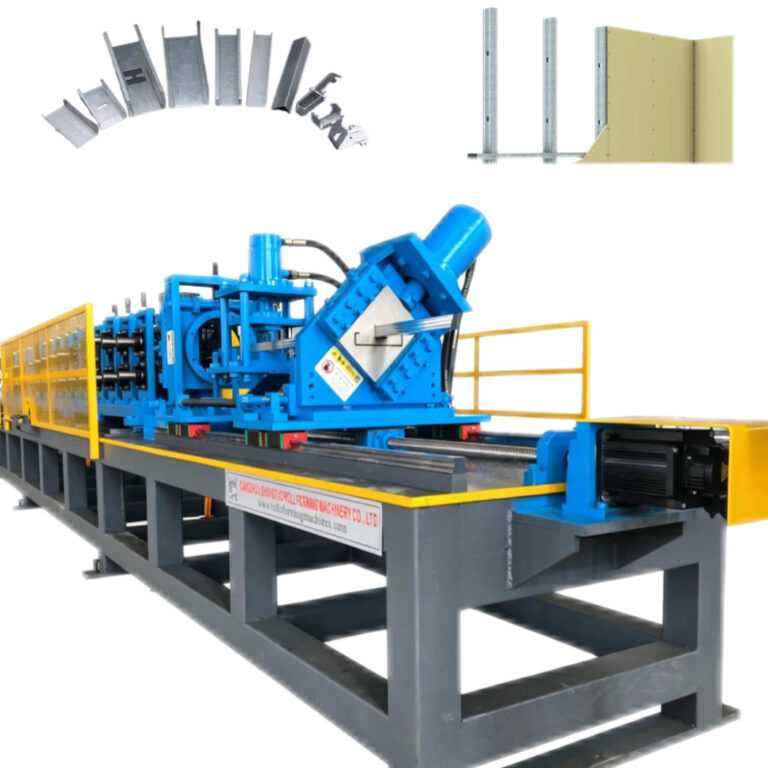

C Automatic C Shape Light Steel Framing Cu Stud and Track Roll Forming Machine

The C Automatic C Shape Light Steel Framing Cu Stud and Track Roll Forming Machine primarily consists of a material feeding rack, a cold bending forming host, a hydraulic cutting device, and a PLC electrical control system. During production, the galvanized steel strip undergoes continuous cold bending through multiple rolling passes, gradually forming a channel with a specific cross-section (such as a C-shaped profile, often featuring reinforcing ribs or grooves). The hydraulic shear then automatically cuts it to the set length. This equipment typically accommodates the processing of thin steel strips ranging from 0.3 to 0.8 mm in thickness.

Core Features：

1.Lightweight and high-strength, material-saving and environmentally friendly:
The produced C-shaped keel has a light self-weight but achieves excellent bending strength and stiffness through cold bending hardening and structural design (such as reinforcing ribs). Compared to traditional materials, it reduces steel consumption and allows for material recycling.

2.High production efficiency with stable automation:
Typically controlled by PLC for automatic operation, supporting fixed-length cutting, automatic counting, and variable frequency speed regulation. Some high-end models feature servo drives, achieving production speeds of several tens of meters per minute, ensuring smooth and distortion-free cuts while enabling prolonged continuous stable operation.

3.The product boasts high precision and excellent consistency:
Rollers are typically made from wear-resistant mold steel such as 45# steel or Cr12Mov, undergo heat treatment and surface chrome plating polishing, ensuring dimensional accuracy and surface smoothness of the formed keel, which guarantees tight and smooth connections during installation.

4.Easy to operate with strong scalability:
The equipment features a user-friendly interface. By replacing certain roller components, some machines can also produce U-shaped keels, floor keels, and other supporting profiles, achieving multi-purpose functionality.

Main Application Scenarios：

The products manufactured by the C-type keel forming machine are primarily used for non-load-bearing partition walls and ceiling systems, with specific application scenarios including:

• Interior partition walls in buildings:
Widely used as the skeletal framework for interior partition walls in residential, office, hotel, and commercial buildings, serving as the supporting structure for panel materials such as gypsum boards and cement fiber boards.

• Indoor ceiling system:
Used in ceiling projects for various types of buildings, serving as the main or secondary keel for load-bearing ceiling panels (such as mineral wool boards and gypsum boards).

• Decoration and Furniture Manufacturing:
It is also applied in exhibition displays, commercial space decoration, and the framework manufacturing of certain furniture (such as wardrobes and cabinets).

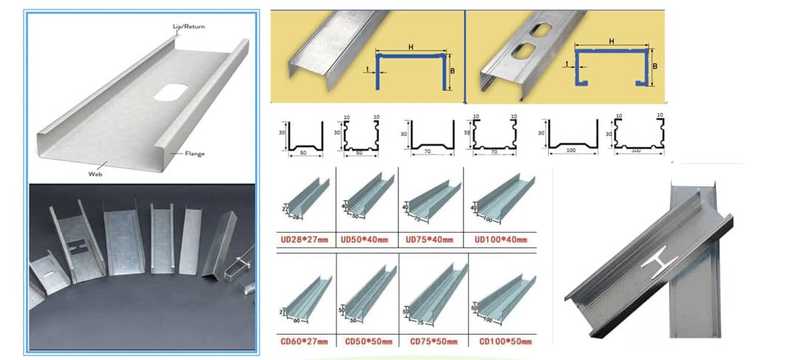

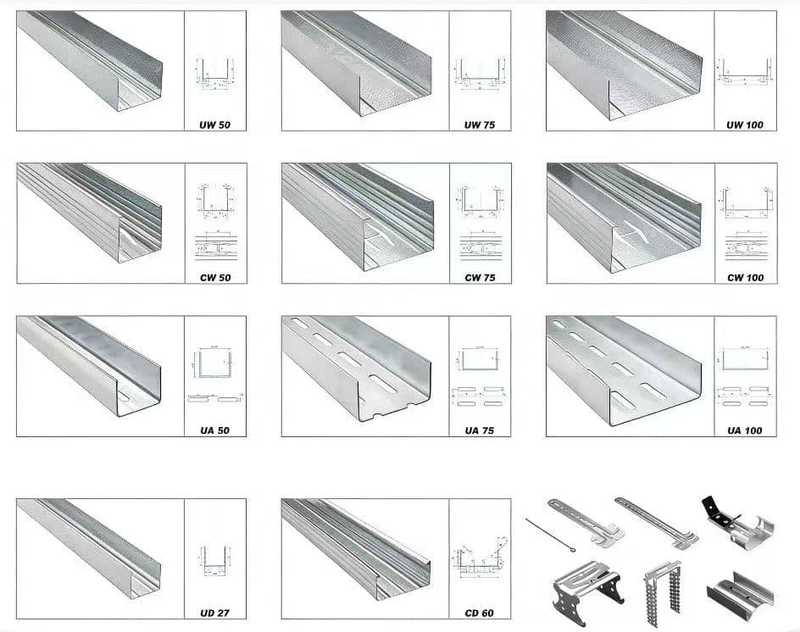

Pattern diagram:

Product Attributes :

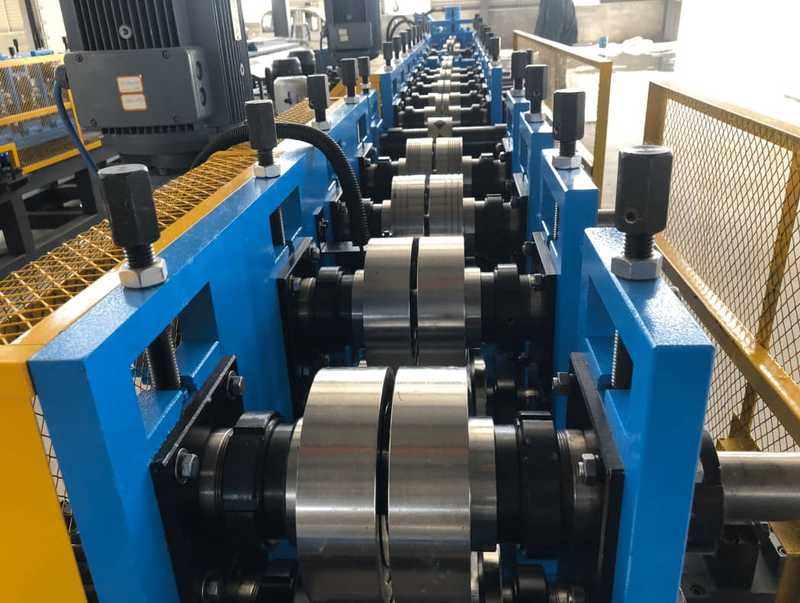

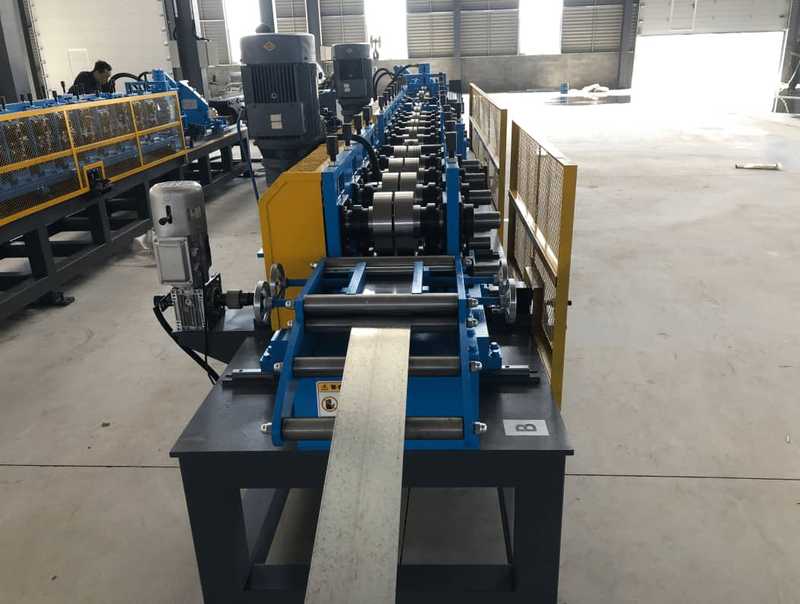

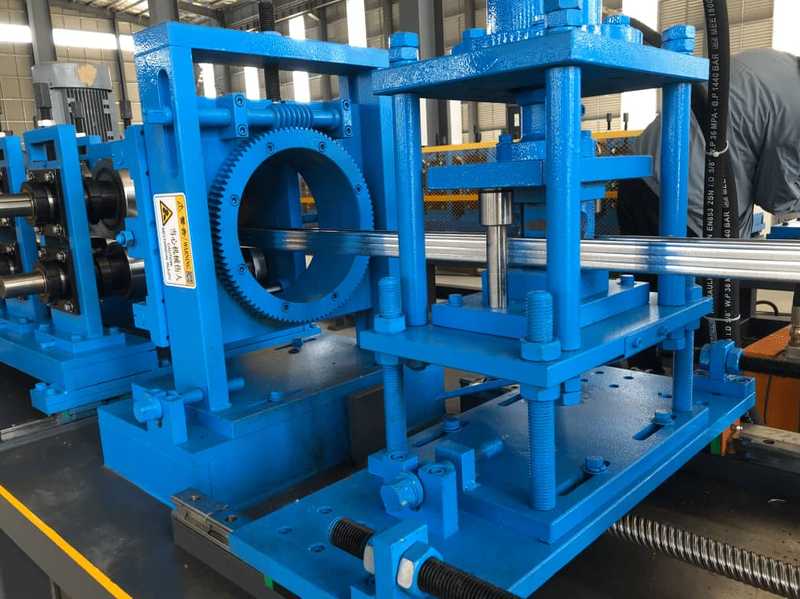

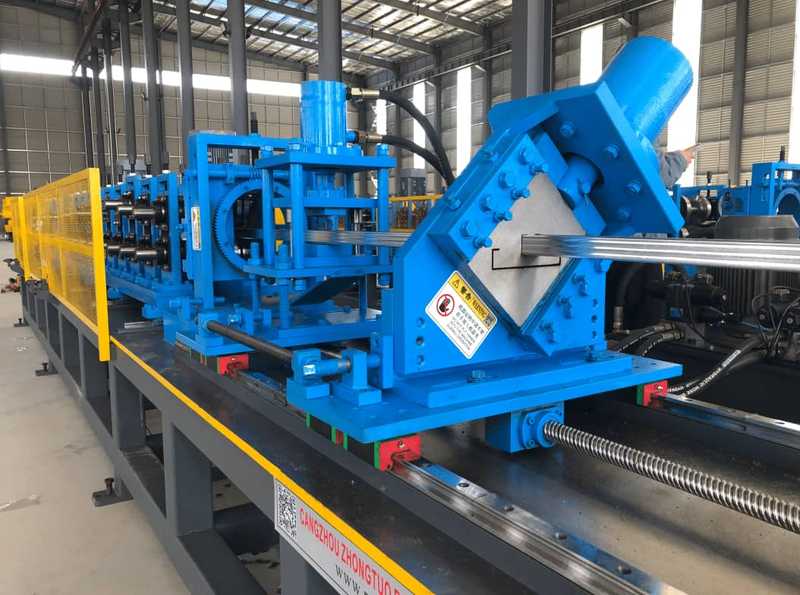

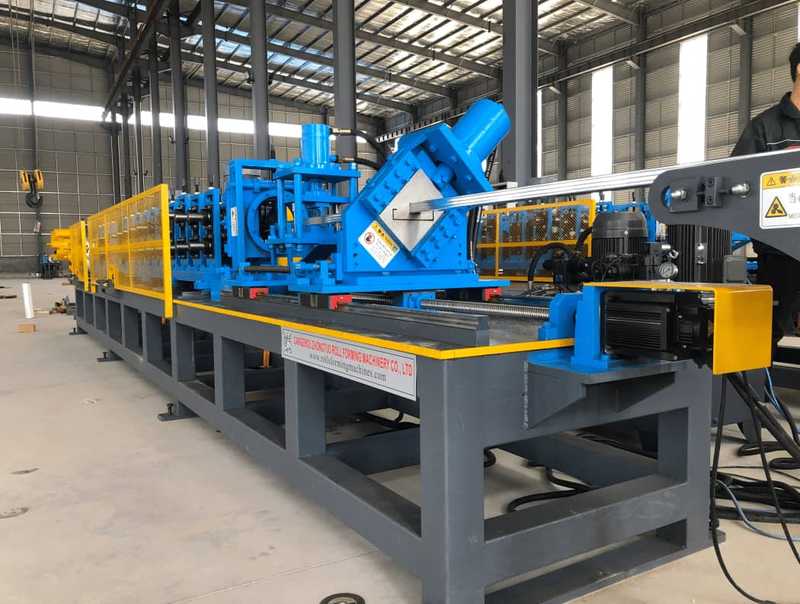

Machine photo:
