Cable Tray Roll Forming Machine Automatic Cable Tray High-Speed Line
Product Overview
This high-speed cable tray roll forming production line is specifically designed for the large-volume, high-precision production of cable trays. The entire line adopts a fully automated PLC control system, integrating uncoiling, leveling, punching, forming, and cutting into one unit, achieving continuous automated production from raw materials to finished products. Production efficiency can reach over 30 meters per minute, making it an ideal choice for cable tray manufacturers.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1-2 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
6T
|
||
|
3.Main body
|
Roller station
|
26 rows(As your requirement)
|
||
|
Diameter of shaft
|
65mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
35×1.5×1.6m
|
|||
|
Weight
|
About 60KW
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Advantages
1. High Speed and High Efficiency
Production Speed: 0-20m/min (adjustable)
Stable operation for 24 consecutive hours
Efficiency increased by over 40% compared to traditional equipment
2. High-Precision Forming
Rollers are made of high-quality alloy steel, CNC precision machined and heat-treated.
Forming accuracy ±0.5mm, angle error ≤1°
18-26 passes of progressive forming ensure product is free from deformation and scratches.
3.Fully Automatic Intelligent Control
PLC + Touchscreen HMI
Automatic fixed-length cutting, accuracy ±1mm
Automatic fault alarm and diagnosis
Supports parameter storage and one-click model changeover
Application Areas

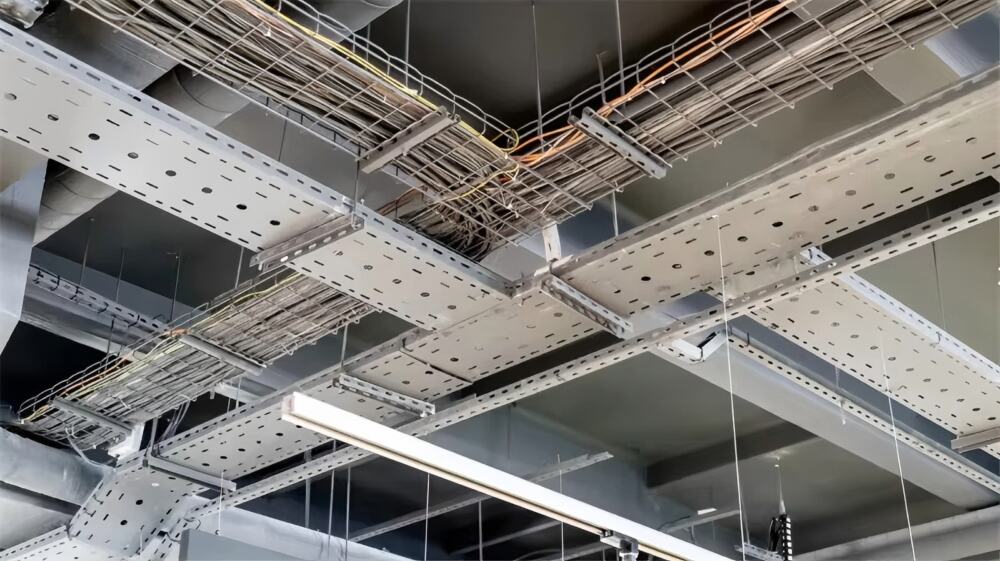

• Building Electrical Engineering Cable Trays
• Industrial Plant Cable Laying Systems
• Data Center Cable Management
• Infrastructure such as Subways, Tunnels, and Airports
• Petrochemical Plants and Power Plants

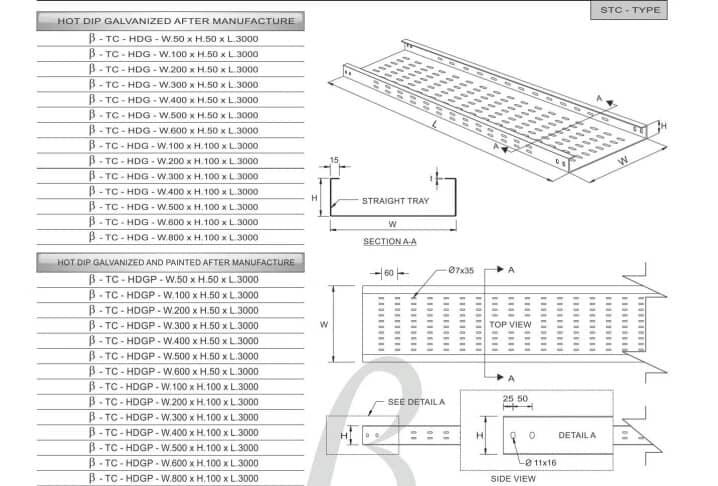

Pattern Diagram
Why Choose Us?
✅ 10+ Years of Industry Experience – Focused on R&D and Manufacturing of Roll Forming Equipment
✅ Turnkey Service – Solution Design, Equipment Manufacturing, Installation and Commissioning, Personnel Training
✅ Global Service Network – Products exported to 60+ countries, timely after-sales response
✅ Quality Assurance – 12-month warranty on the entire machine, lifetime technical support
Frequently Asked Questions (FAQ)
Q1: How much does this cable tray forming machine production line cost?
A: The price depends on the cable tray specifications, plate thickness, production speed, automation configuration, and number of molds. Please provide the type, size, and output requirements of the cable trays you need to produce, and we will provide you with an accurate quote and selection solution.
Q2: Can the production speed really reach 20m/min?
A: Under standard plate thickness, conventional specifications, and reasonable punching conditions, the equipment can stably reach 0-20m/min. The actual speed will vary slightly depending on the material, plate thickness, hole type, and cable tray size.
Q3: What types of cable trays can be produced?
A: It can produce various types of cable trays, including trough-type, ladder-type, and tray-type, and supports customized molds. Different specifications can be switched simply by changing the corresponding rollers and punching molds.
Q4: Is changeover troublesome? How long does it take?
A: The equipment adopts a quick roller change system; the normal changeover time is within 20 minutes. The PLC can store multiple sets of process parameters, which can be recalled with a single click during model changeovers, reducing debugging time.
Q5: Does it support customization?
A: Yes. We can customize the cable tray width, height, plate thickness, punching method, cutting length, and overall line automation level according to customer drawings, samples, or specific technical requirements.
Get a customized solution and quote now!
If you are looking for a stable, efficient, and intelligent Cable Tray Roll Forming Machine Automatic Cable Tray High-Speed Line, please feel free to contact us.
We offer free technical consultation, solution design, equipment selection, and on-site trial services to help you make your cable tray production more efficient and worry-free.
