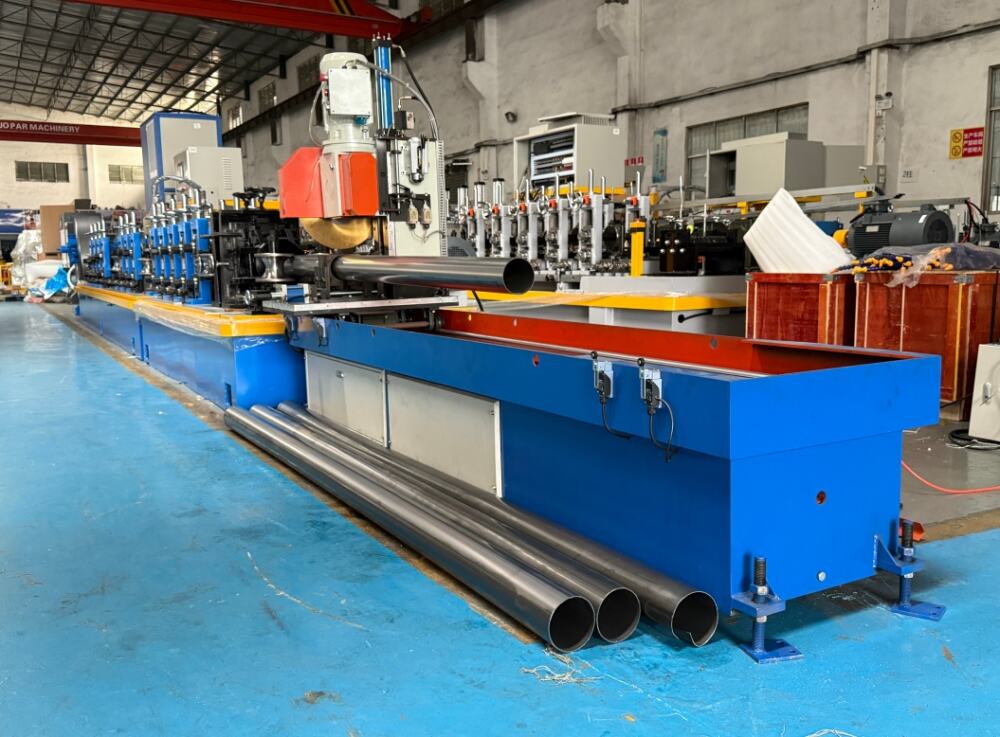

Automatic Tube Line Laser Welded Round Pipe Making Roll Forming Machine
Product Overview

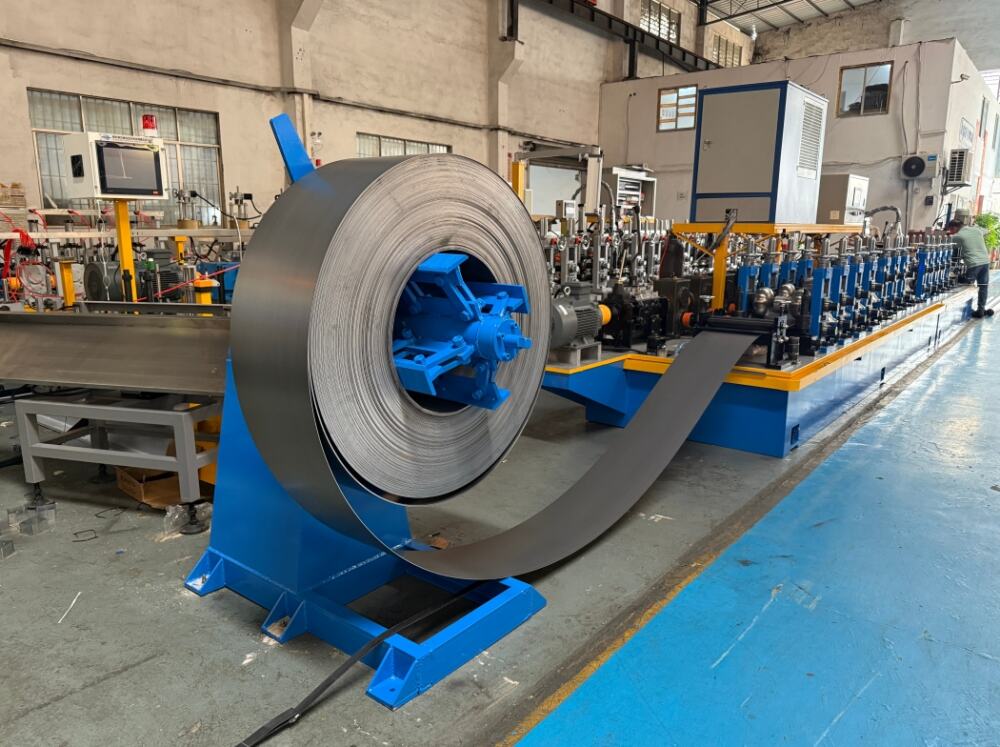

This laser welding round tube roll forming production line is designed specifically for high-precision and high-efficiency round tube production. The whole line integrates unwinding, leveling, roll forming, laser welding, cooling, sizing, and length cutting, and adopts a PLC fully automatic control system to achieve continuous automated production from metal coil to finished round tube. The equipment is suitable for various materials such as stainless steel, carbon steel, galvanized sheet, aluminum plate, etc., and is widely used in decorative pipes, furniture pipes, automotive pipes, heat exchange pipes, industrial precision pipes and other fields.
Core Advantages
1. High speed and efficiency
Production speed: 0-20m/min (adjustable)
Continuous 24-hour stable operation
Efficiency improvement of over 30% compared to traditional welded pipe equipment
2. Laser welding for better weld quality
Using fiber laser welding, with a small heat affected zone
Smooth, aesthetically pleasing, and well sealed weld seams
No need for welding wire or minimal filling, reducing subsequent processing
Suitable for high demand pipes such as stainless steel, carbon steel, galvanized sheet, etc
3. Fully automatic intelligent control

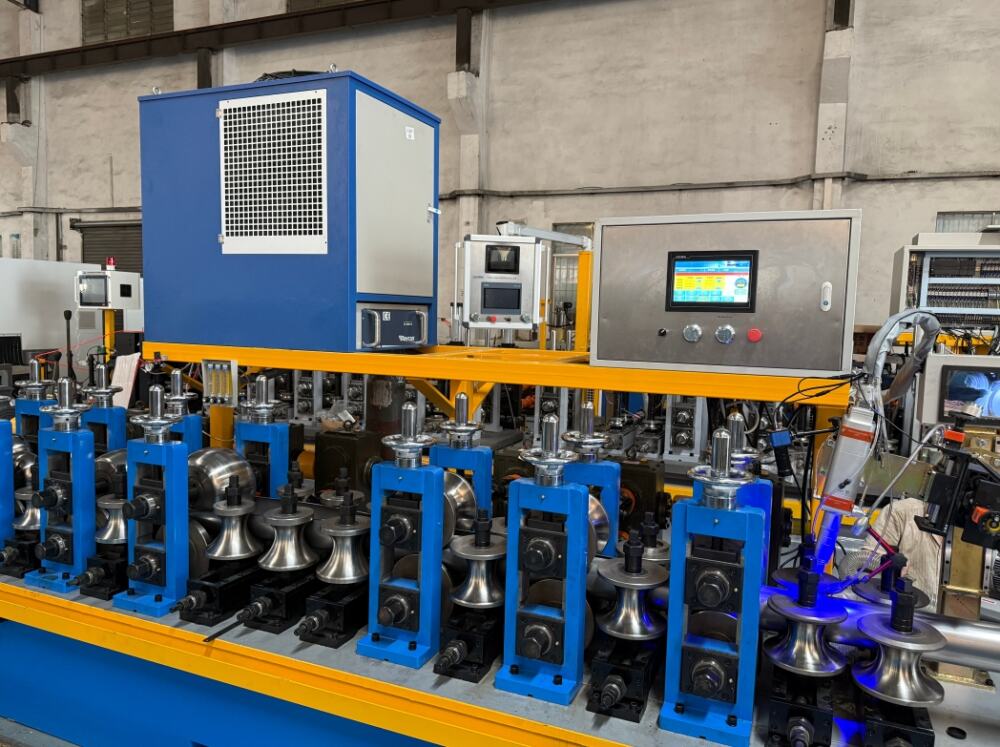

PLC+touch screen human-machine interface

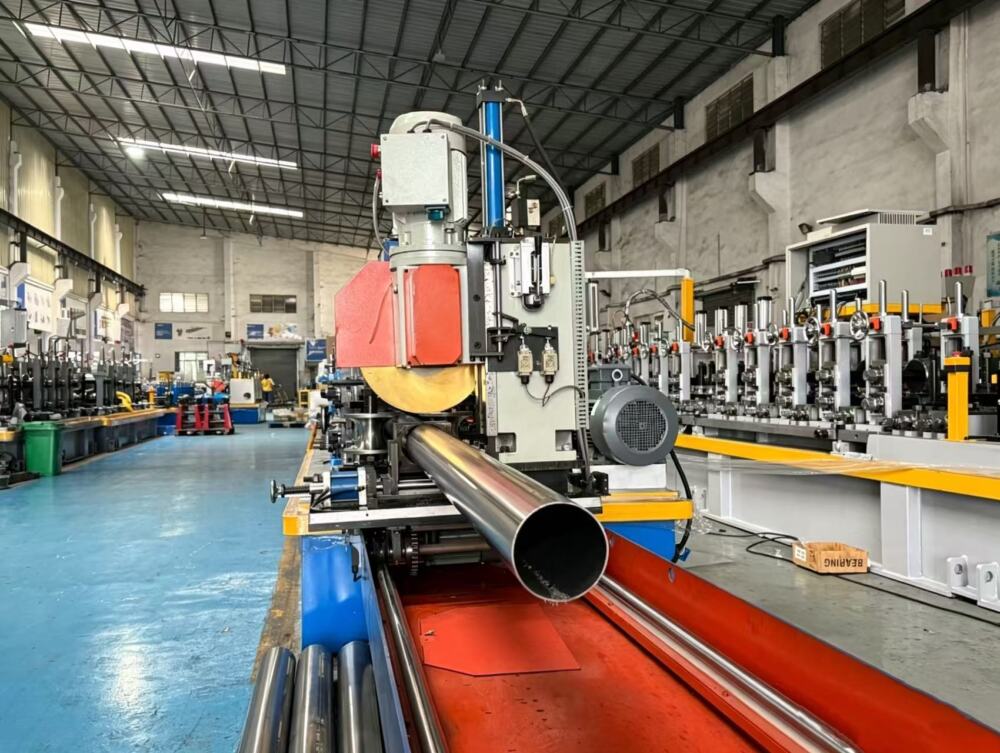

Automatic tracking, automatic fixed length cutting
Online monitoring and fault alarm
Parameter storage, one click changeover
Application Fields
• Stainless steel decorative pipes, furniture pipes, railing pipes
• Automotive exhaust pipes, structural pipes, precision pipes
• Heat exchanger tubes, condenser tubes, air conditioning tubes
• Building water supply and drainage, HVAC pipelines
• Industrial fluid pipe, wire conduit
• Pipes for new energy, photovoltaic, and energy storage equipment

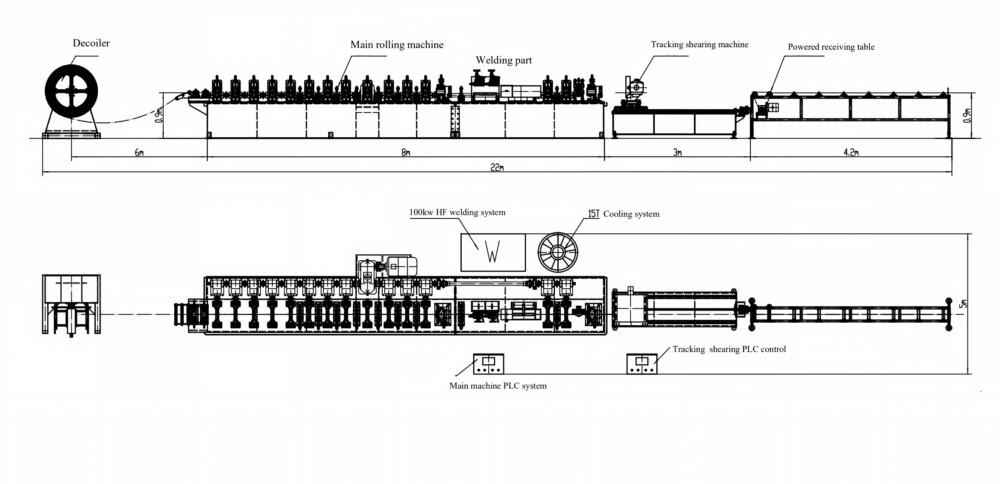

working flow:
Product Attributes :
|

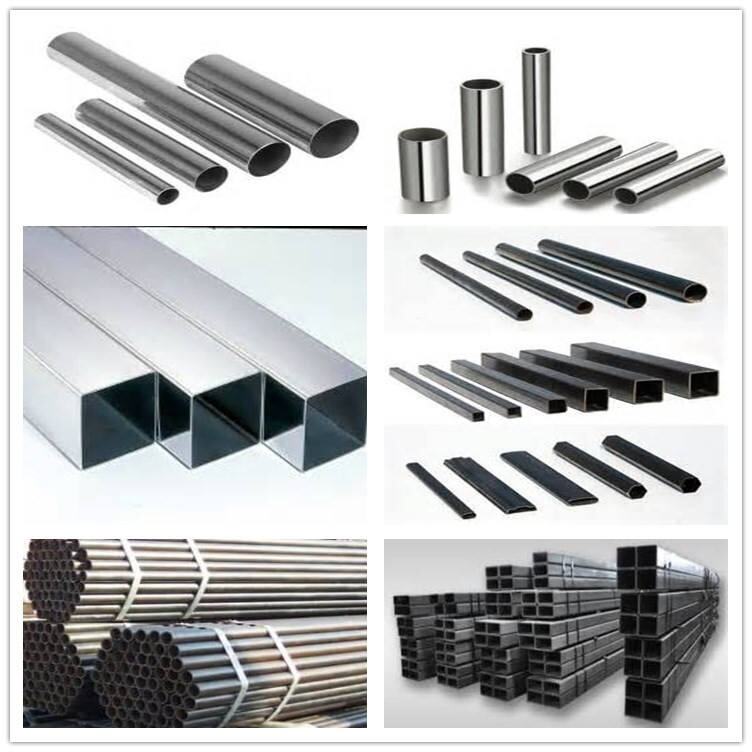

The main type for Automatic Welded Square Pipe Making Roll Forming Machine |
|||
|
Machine HG-32 |
Machine HG-50 |
||
| Wall thickness | 0.4-2.5mm | Wall thickness | 0.4-2.5mm |
| Pipe diameter | 10-45mm | Pipe diameter | 10-45mm |
| Round pipe | Max. OD-45mm,
Min.OD-10mm |
Round pipe | Max. OD-45mm,
Min.OD-10mm |
| Square pipe | Max.-35*35mm,
Min.-10*10mm |
Square pipe | Max.-35*35mm,
Min.-10*10mm |
| Rectangular pipe | Max.-30*40mm,
Min,-10*10mm |
Rectangular pipe | Max.-30*40mm,
Min,-10*10mm |
|
Machine HG-76 |
Machine HG-127 |
||
| Wall thickness | 0.4-2.5mm | Wall thickness | 0.4-2.5mm |
| Pipe diameter | 10-45mm | Pipe diameter | 10-45mm |
| Round pipe | Max. OD-45mm,
Min.OD-10mm |
Round pipe | Max. OD-45mm,
Min.OD-10mm |
| Square pipe | Max.-35*35mm,
Min.-10*10mm |
Square pipe | Max.-35*35mm,
Min.-10*10mm |
| Rectangular pipe | Max.-30*40mm,
Min,-10*10mm |
Rectangular pipe | Max.-30*40mm,
Min,-10*10mm |
Why choose us?
✅ 12+years of industry experience - specializing in the research and manufacturing of roll forming and laser welding equipment
✅ Turnkey service - scheme design, equipment manufacturing, installation and commissioning, personnel training
✅ Global Service Network - Product exports to over 60 countries, timely after-sales response
✅ Quality Assurance - Complete machine warranty for 12 months, lifetime technical support
✅ Strong customization ability - can customize the entire line according to customer drawings, samples, and production requirements
Frequently Asked Questions (FAQ)
Q1: What is the price of this laser welded pipe production line?
A: The equipment price is determined based on the pipe diameter, plate thickness, speed, laser power, automation configuration, and number of molds. Please provide us with the specifications, materials, and production requirements of the pipes you need to produce, and we will provide you with an accurate quotation and selection plan.
Q2: What is the difference between laser welding and high-frequency welding?
A: Laser welding has a smaller heat affected zone, smoother and more aesthetically pleasing welds, and is suitable for high-quality products such as stainless steel, precision pipes, and thin-walled pipes; High frequency welding is more suitable for large-scale, low-cost production of carbon steel pipes. The specific selection needs to be determined based on product positioning and budget.
Q3: Can stainless steel round pipes be produced?
A: Okay. The equipment is suitable for various materials such as stainless steel, carbon steel, galvanized sheet, aluminum plate, etc., especially for stainless steel decorative pipes, furniture pipes, precision pipes, etc.
Q4: Can the production speed really reach 20m/min?
A: Under standard pipe diameter, reasonable plate thickness, and stable laser welding conditions, the equipment can achieve high speeds. The actual speed may vary depending on the material, pipe diameter, wall thickness, and welding requirements.
Q5: Is it troublesome to change the model? How long does it take?
A: The equipment adopts a fast roller changing system, and the conventional changing time is relatively short. PLC can store multiple sets of process parameters, which can be called with one click when changing models, reducing debugging time.
Get exclusive solutions and quotes immediately
If you are looking for a stable, efficient, and intelligent Laser Welded Round Pipe Making Roll Forming Machine, please feel free to contact us at any time.
We provide free technical consultation, scheme design, equipment selection, and on-site machine testing services to help your round tube production be more efficient and worry free.
