Solar Panel Purlin Roll Forming Machine Bracket Solar Panel Structure Making Machine

Solar Panel Purlin Roll Forming Machine Bracket Solar Panel Structure Making Machine is a structural system used to support and fix photovoltaic modules (solar panels). As the "skeleton" of photovoltaic power generation systems, its core function is to ensure the stable operation of photovoltaic modules in various natural environments for more than 25 years. At the same time, by adjusting the installation angle, it maximizes the efficiency of receiving sunlight and increases power generation.

Core functions and design requirements

1.Structural support and safety protection
Photovoltaic brackets need to bear the weight of the components and withstand extreme weather conditions such as wind pressure, snow load, hail, etc., to prevent component displacement, deformation, or damage. The high-quality bracket system needs to be verified through mechanical simulation to ensure that it does not overturn under the condition of instantaneous wind speed of 40m/s.
2.Angle adjustment and power generation optimization
The bracket can fix or dynamically adjust the tilt angle of the components to make their orientation and tilt angle close to the local latitude, in order to obtain maximum solar radiation. The automatic tracking bracket can even track the sun 24/7, and the power generation efficiency can be improved by 20% -30%.
3.Durability and anti-corrosion treatment
Long term outdoor use requires brackets to have strong corrosion resistance. Steel brackets are commonly treated with hot-dip galvanizing (with a zinc content of up to 500g/m ²), while aluminum alloy brackets are naturally corrosion-resistant and suitable for high humidity and high salt spray environments.

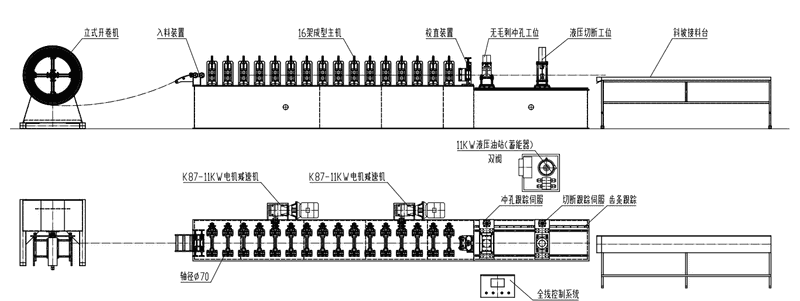

Working flow:

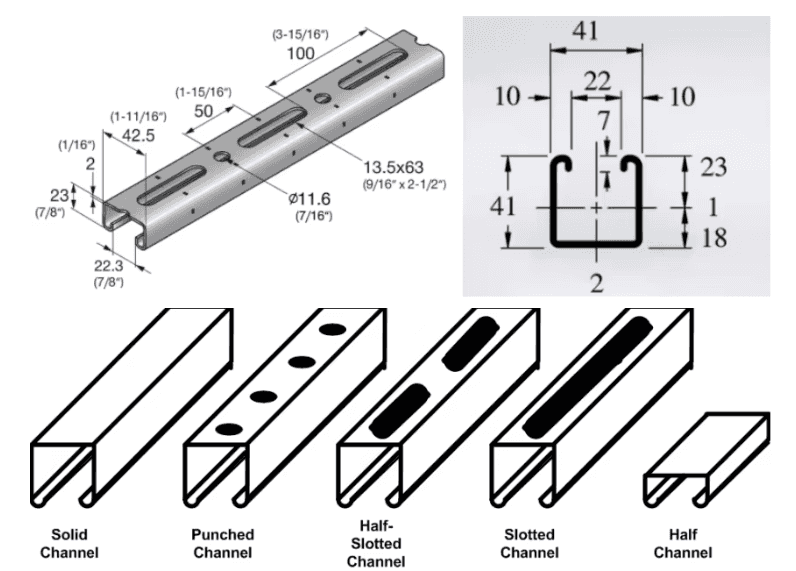

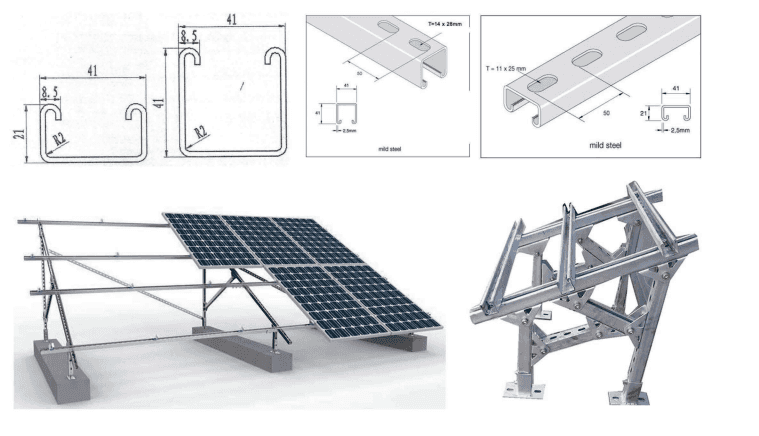

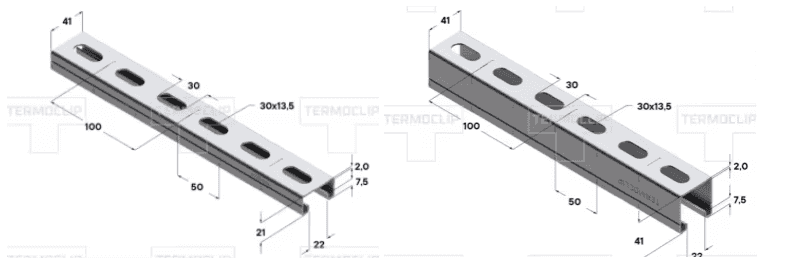

Pattern diagram:

Product Attributes :

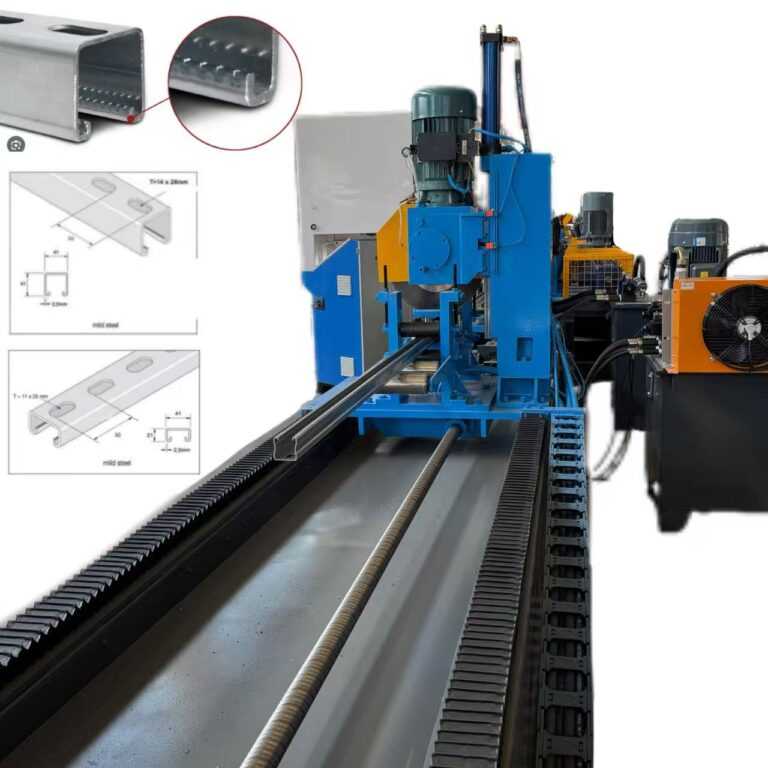

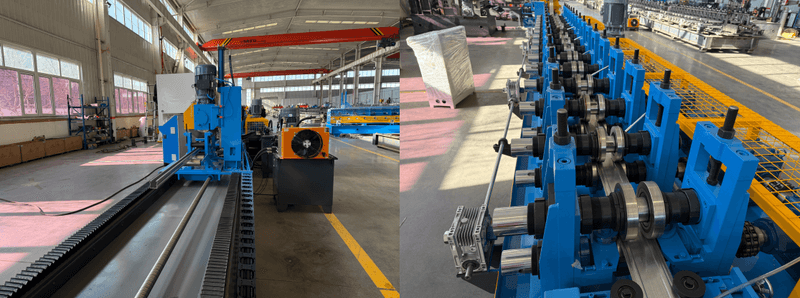

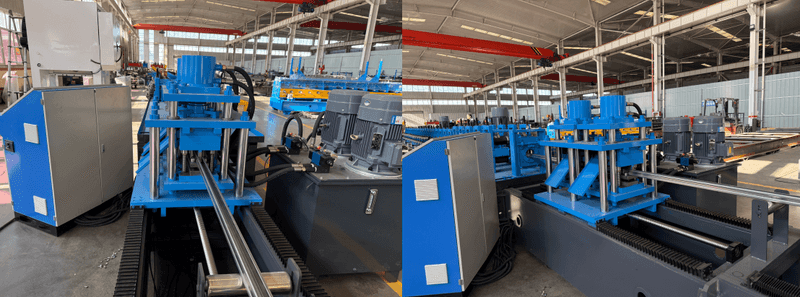

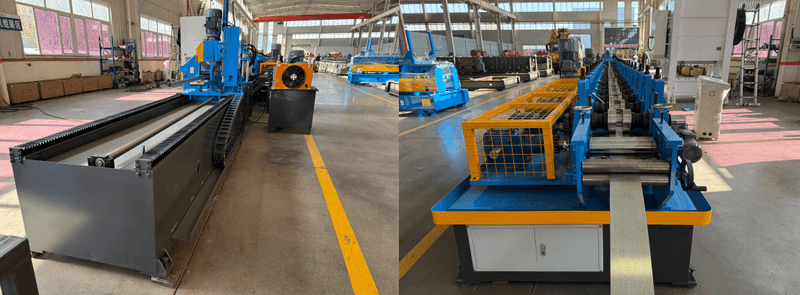

Machine photo:
