90 Degree Horizontal Hanging Board Wall Panel Forming Line

In the tide of industrialization and intelligence in the construction industry, wall panel machine equipment, as the core production tool, is reshaping traditional building models with its efficient, precise, and environmentally friendly characteristics.

Machine features:

1.Automation and Efficient Production:
Adopting a dual drive roller extrusion process, it can complete processes such as sizing, laying, compounding, and re pressing in one go, achieving continuous production of the entire board. The automation level is high, and the specifications can be flexibly adjusted, significantly improving production efficiency and reducing labor intensity. ‌
2.Lightweight and High Strength:
The unit area mass of the produced product is only 1/10 of that of a red brick wall, with excellent lightweight seismic performance. At the same time, the flexural load can reach 5640N (far exceeding the standard of ≥ 1400N), ensuring structural safety. ‌
3.Convenient construction:
The finished product is standardized board material, which adopts dry operation and can be used for nail, saw, planing, bonding, pasting and other construction operations. The installation speed is fast, which helps to shorten the overall project cycle. ‌
4.Energy saving and environmental protection:
The production process does not require high temperature and pressure, has low energy consumption, and does not emit any three wastes; The product itself is non-toxic, harmless, and non radioactive, meeting the standards of green building materials. ‌
5.Comprehensive utilization of resources:
The main raw materials are industrial and agricultural waste such as sawdust, straw, fly ash, and phosphogypsum, effectively realizing the resource utilization of solid waste. Over 1.1 billion tons of waste residue have been comprehensively utilized, saving a lot of land and energy. ‌
6.Superior performance:
The product has good thermal insulation (thermal resistance value up to 1.36 (m ² · k)/W), sound insulation (up to 36dB), fire and waterproof performance, suitable for various scenarios such as building walls, roof insulation, cold storage, and floors. ‌

Application scenarios:

90 Degree Horizontal Hanging Board Wall Panel Forming Line is an automated machinery used for producing lightweight composite wall panels, mainly applied in energy-saving and insulation projects in the construction field. Its products have the characteristics of lightweight, high strength, insulation, sound insulation, fire prevention, etc., and are suitable for various building scenarios. ‌

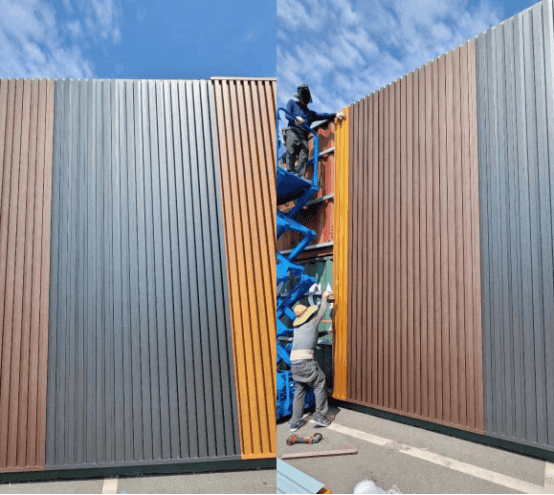

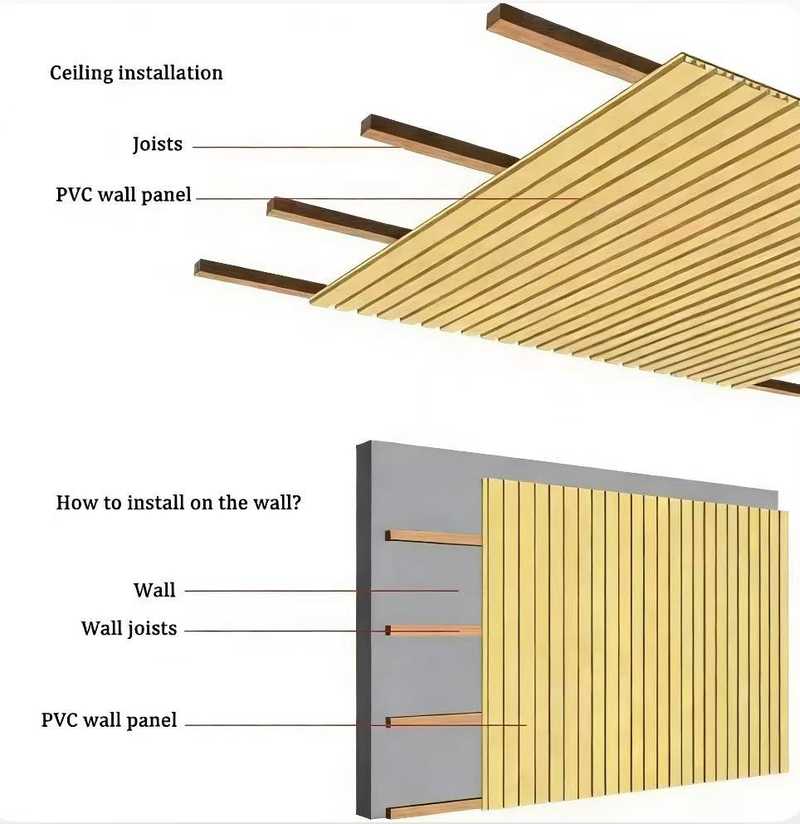

• Building walls:
widely used as interior and exterior walls and partition walls in industrial and civil buildings, can replace traditional brick walls, suitable for various building systems such as reinforced concrete structures and steel structures, and can increase the building's usable area by about 10%. ‌

• Building roof insulation:
used for roof insulation systems, providing good insulation performance, suitable for scenarios such as steel plate roofs. ‌

• Ground insulation:
applied to ground insulation layers, such as square floors, airport runway foundations, etc., to enhance the insulation and pressure bearing capacity of the ground. ‌

• Cold storage insulation:
used for the walls and insulation layers of cold storage to meet the insulation and moisture resistance requirements in low-temperature environments. ‌

• Other fields:
It can also be used in special scenarios such as refrigerated trucks and road foundations to achieve insulation and structural integration.

Product Attributes :

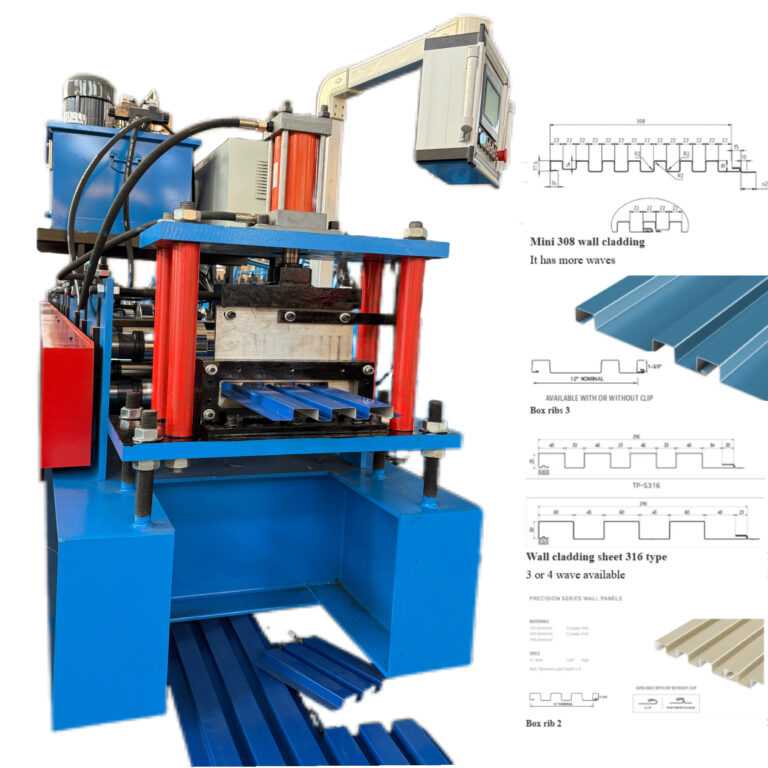

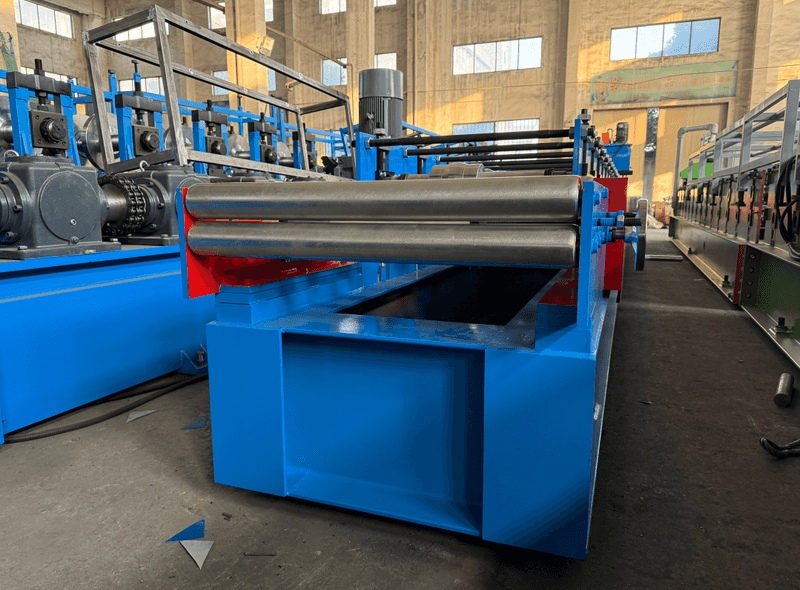

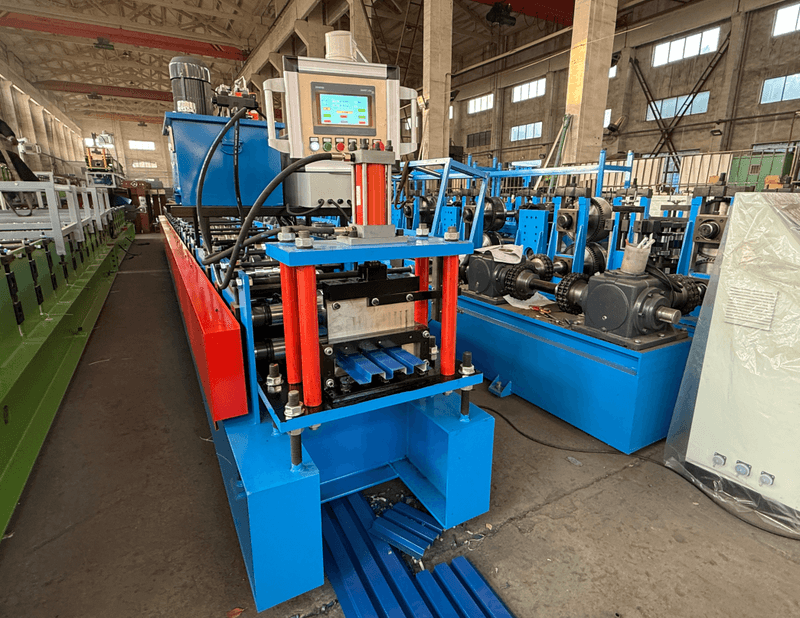

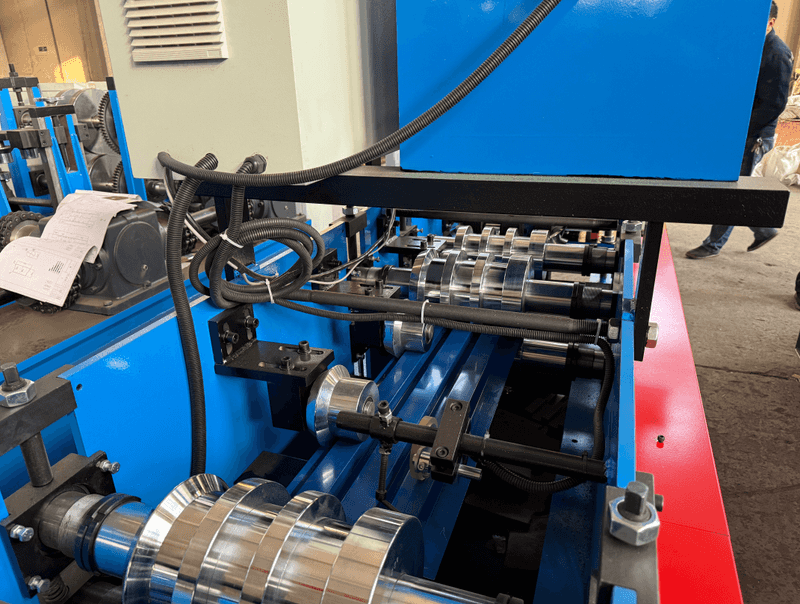

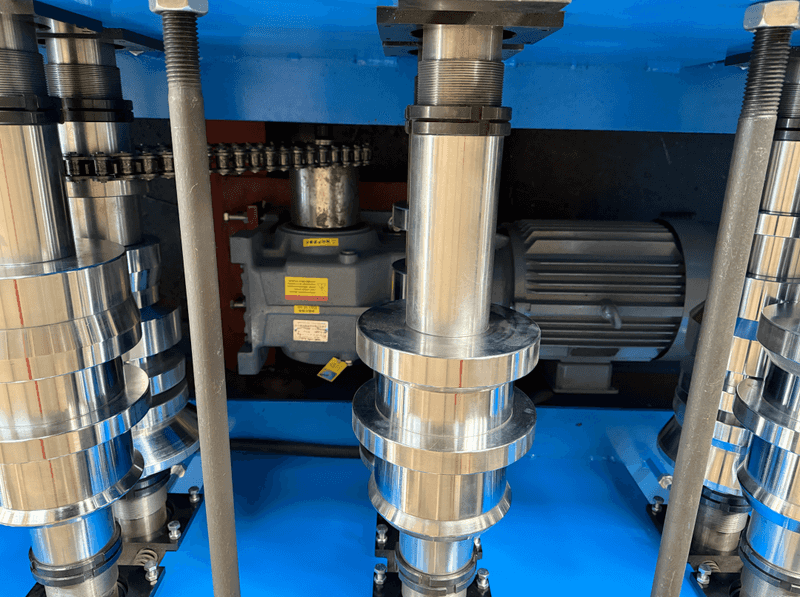

Machine image:
