Standing Seam Metal Roofing Sheet Roll Forming Machine

In the wave of rapid development of prefabricated buildings and green building materials, standing seam roof panels have become the mainstream choice for roofing projects such as large public buildings, industrial plants, and warehousing and logistics centers due to their excellent waterproofing, durability, and aesthetics. As the core equipment specialized in producing such roof panels, the Standing Seam Metal Roofing Sheet Roll Forming Machine uses automated forming technology to process metal coils into roof panels with specific vertical seam structures, completely changing the problem of low efficiency and unstable quality in traditional roof construction, and providing key support for the industrial production of roof engineering.

Core functions and working principles

The vertical seam roof panel machine uses continuous rolling, forming, and cutting processes to process metal coils into roof panels with side vertical locking edges. Its workflow is automated, covering four core processes: coil unwinding, roll forming, length sizing, and cutting and discharging

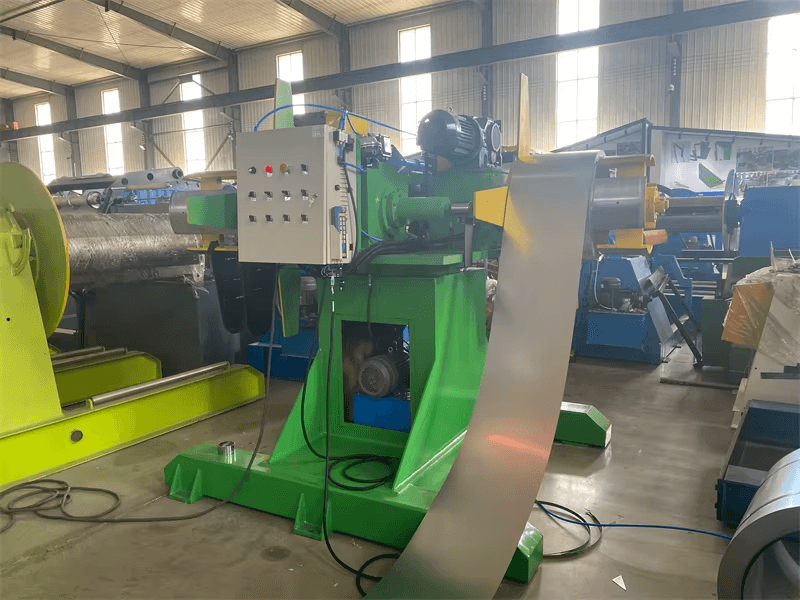

1. Roll unwinding process
The hydraulic/pneumatic unwinding rack supports 1-5 tons of rolls with a width of 1000-1250mm, and the tension control system prevents deviation and wrinkling. High end models integrate straightening and dust removal pretreatment modules.

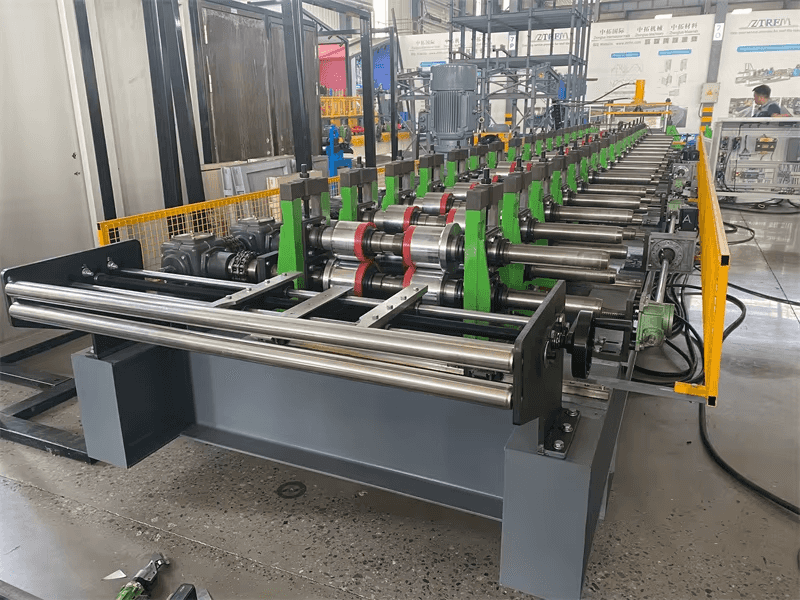

2. Roll forming process

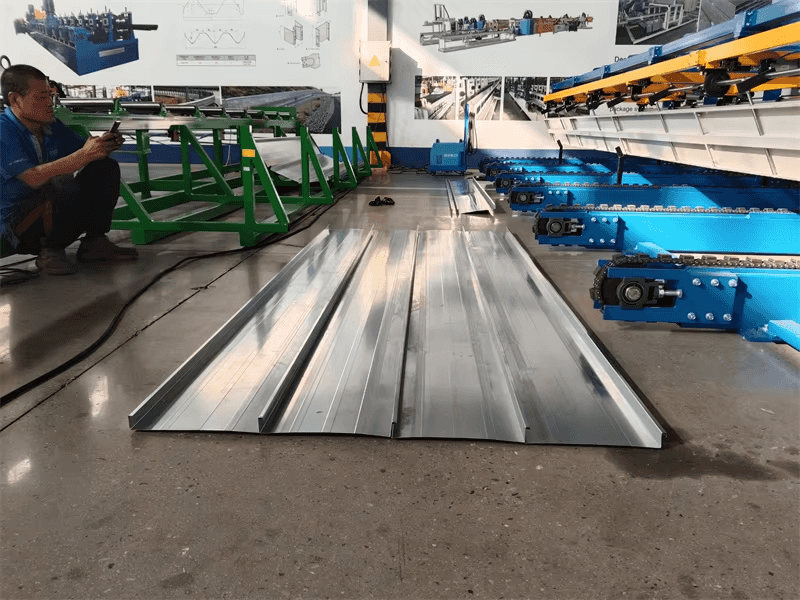

The 12-20 composition roller cooperates to gradually bend and fold the coil, forming a 25-80mm high vertical locking edge structure. High strength hardened alloy steel rollers ensure long-term high-precision forming.

3. Length measurement process
Photoelectric sensor monitoring, with a preset length of 6-18m (up to 30m) and automatic pause. High quality equipment has a sizing error of ± 2mm to ensure splicing accuracy.

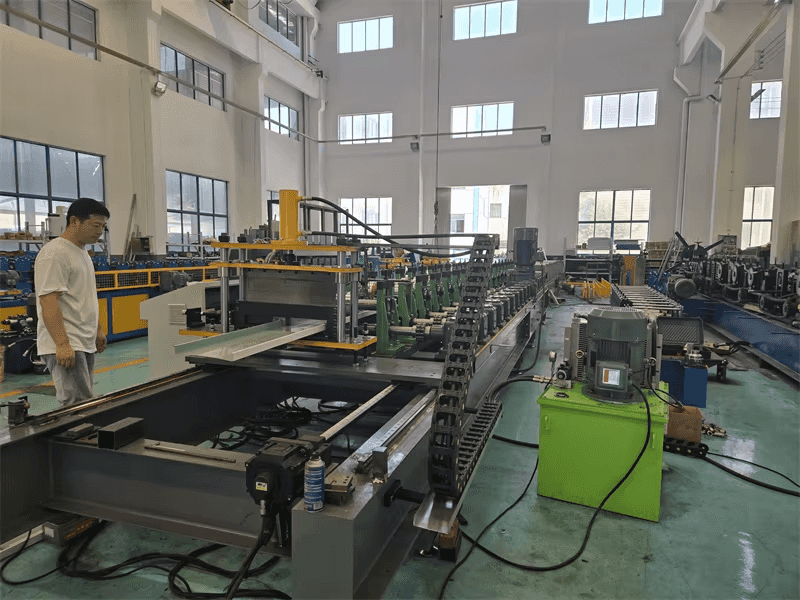

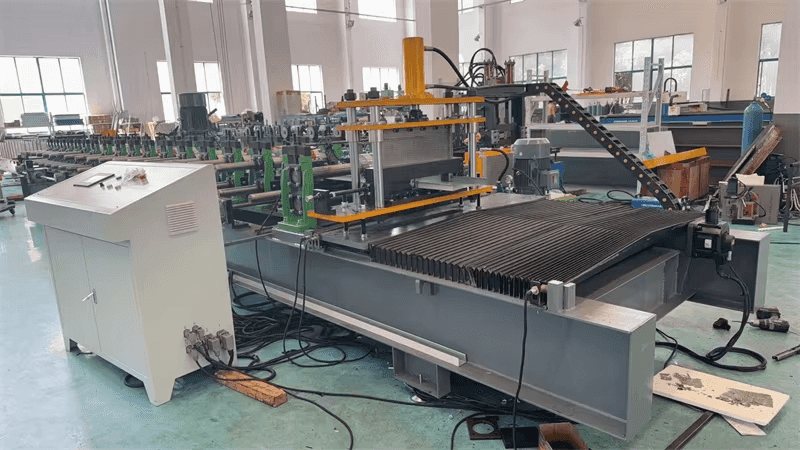

4. Cut off the discharge process
Hydraulic shearing machine or flying saw cuts at a speed of 0.5-1.5m/s, with a smooth and burr free cross-section. Some devices are integrated with automatic palletizing for easy storage and transportation.

Main application areas

• Industrial and Storage Buildings
Industrial plants (such as automobile manufacturing and mechanical processing) and warehousing and logistics centers require high durability and lighting for jointed roof panels. The color steel plate or aluminum magnesium manganese alloy plate produced by the vertical seam roof panel machine can not only meet the demand, but also adapt to the fast pace of industrial projects due to efficient production.
• Public buildings
Large public buildings such as sports arenas and convention centers have large roof areas and complex shapes, with strict requirements for waterproofing and wind resistance. The vertical seam roof panel machine can accurately produce double lock edge aluminum magnesium manganese alloy plates to ensure project quality.
• Commercial and Civil Buildings
High end commercial buildings, villas, and multi story residences can improve building quality by using vertical seam roof panels. Its lightweight characteristics are also suitable for retrofitting existing building roofs, avoiding increasing the load on the main structure.
