Roof Tile Sheet Rolling Forming Machine Double Layer Roof Panel Roll Forming Machine
Video Description：
Product Description：
With the surge in demand for green buildings and high-quality residential properties, double-layer roof tiles that combine thermal insulation, wind and water resistance with aesthetic appeal have become a "hot commodity" in the building materials market. A high-performance Double Layer Roof Panel Roll Forming Machine is the key equipment to streamline your production chain and seize market opportunities!
Product Attributes：
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.3-0.8mm
Width:1000mm/1250mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

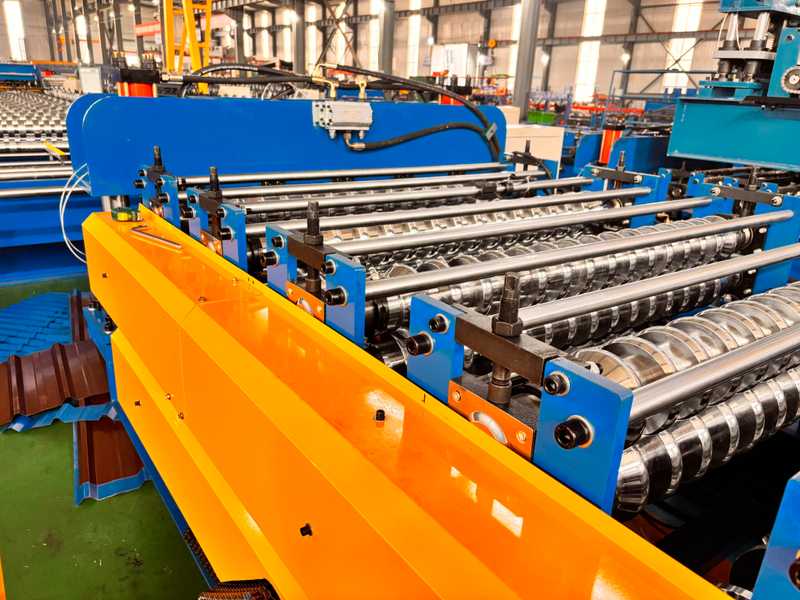

3.Main body
|
Roller station
|
16+18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
11.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

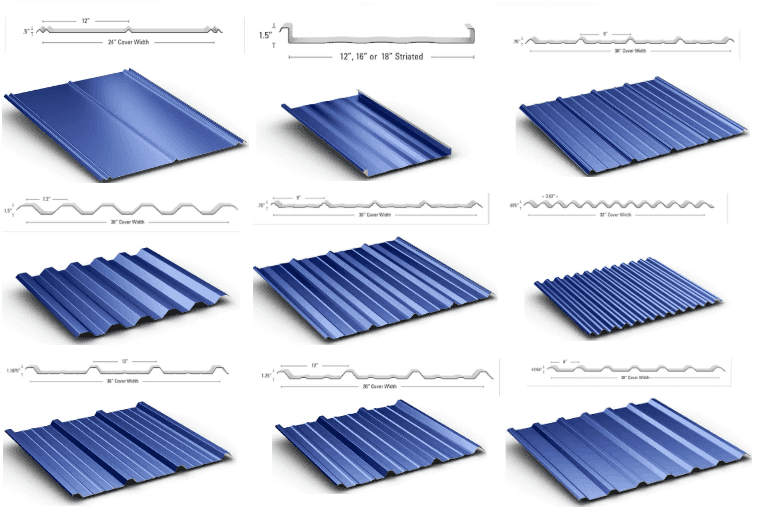

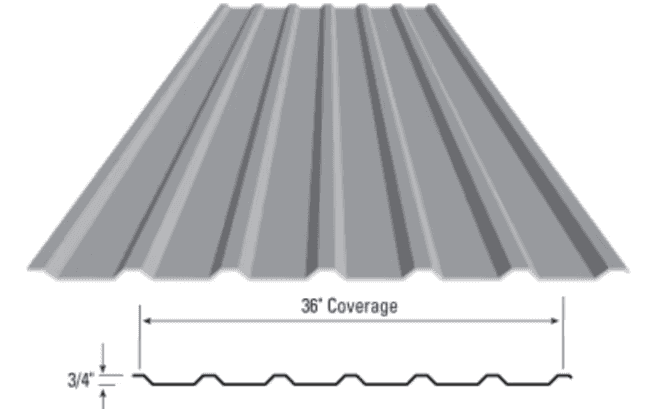

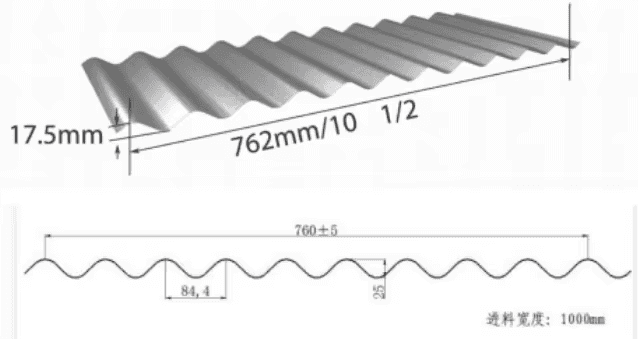

Pattern diagram：
Efficient production capacity, easily handling large orders
Supported by a dual station synchronous production system, the double-layer roof tile machine can produce 150-200 pieces per hour, with an efficiency 60% higher than traditional single machines. Support 24-hour continuous operation, automatic feeding and cutting functions reduce manual dependence, and ensure worry free delivery of large-scale projects and bulk purchase orders.
High quality output, creating good tiles recognized by the market
The CNC molding error is only 0.1mm, and the pattern is neat and leak proof. Suitable for various raw materials, it can produce tiles with different functions such as insulation and decoration. Wind pressure resistance level 12, strong weather resistance, excellent quality and strong competitiveness.
Intelligent operation, even beginners can quickly get started
7-inch touch screen with parameter template, one click start production. Intelligent fault warning real-time prompt, remote monitoring through mobile APP, convenient operation, and worry free management.
Energy saving and consumption reducing, lowering production costs and increasing profits
Energy saving motors save 25% of electricity and reduce waste with a high material utilization rate of 98%. High strength body and wear-resistant core components, with a long lifespan of 8-10 years and low maintenance, significantly reduce operating costs, and significantly increase profit margins.
