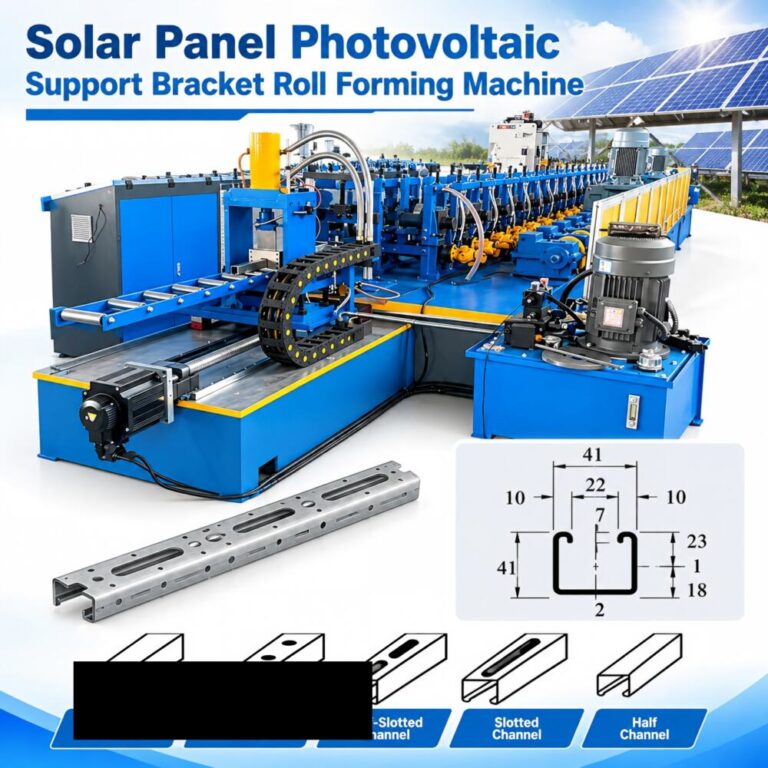

Solar Panel Photovoltaic Support Bracket Roll Forming Machine
High Precision. High Speed. High Durability.
As the global solar energy industry continues to grow, photovoltaic support brackets have become one of the most important components in solar power systems. Whether for ground-mounted solar farms, rooftop solar projects, solar carports, or tracking systems, the quality and accuracy of PV mounting structures directly affect installation efficiency, structural safety, and long-term performance.
Our Solar Panel Photovoltaic Support Bracket Roll Forming Machine is designed for automatic, high-speed, and high-precision production of solar mounting brackets. From steel coil to finished PV support profiles, the line completes decoiling, leveling, servo feeding, punching, roll forming, cutting, and optional stacking in one continuous process.
It can produce various solar bracket profiles such as C-shaped, U-shaped, Z-shaped, Omega, hat-shaped, purlins, rails, columns, beams, and braces, making it an ideal solution for solar mounting manufacturers, steel structure factories, and renewable energy suppliers.
Why Choose Our PV Support Bracket Roll Forming Machine?
1. High-Precision Production
Precision-machined rollers, servo feeding, and stable forming stations ensure accurate dimensions, straight profiles, and consistent hole positions. Length tolerance can reach ±0.5 mm, with optional higher accuracy according to your requirements.
2. Fully Automatic Operation
The PLC control system enables automatic length setting, automatic punching, automatic roll forming, automatic cutting, and optional automatic stacking. Normally only 1–2 operators are needed to manage the entire production line.
3. High-Speed Continuous Output
The machine is designed for stable continuous production. Standard line speed is about 0–20 m/min, with customized high-speed configurations available based on profile, thickness, and punching requirements.
Core Components of the Solar Bracket Production Line
1.Hydraulic Decoiler – loads and unwinds steel coil stably.
2.Leveling Unit – ensures flat material and reduces internal stress.
3.Servo Feeding System – provides accurate feeding length and repeatability.
4.Hydraulic Punching Unit – punches holes, slots, or custom patterns before forming.
5.Roll Forming Station – progressive forming for precise solar bracket profiles.
6.Hydraulic Cutting Unit – clean, stable, and accurate cutting after forming.
7.PLC Control Cabinet – intelligent operation and parameter management.
8.Run-Out Table / Automatic Stacker – optional collection and stacking system.

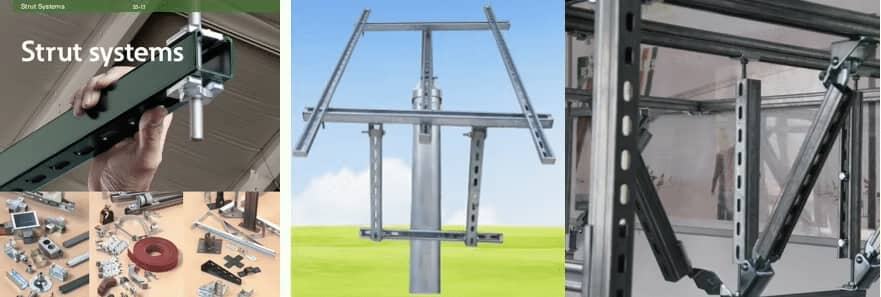

Applications
Our solar panel photovoltaic support bracket roll forming machine is widely used for:
• Ground-mounted solar farms
• Rooftop solar power systems
• Solar tracking systems
• Solar carports and canopies
• Agricultural photovoltaic projects
• Commercial and industrial solar projects
• Utility-scale solar power stations
• Solar mounting rails, purlins, columns, beams, and braces
• Prefabricated solar support structures
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
60mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
customize
|
|||
|
Weight
|
About 6.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
0-20m/min
|
Speed is adjustable according to customer's request
|
||

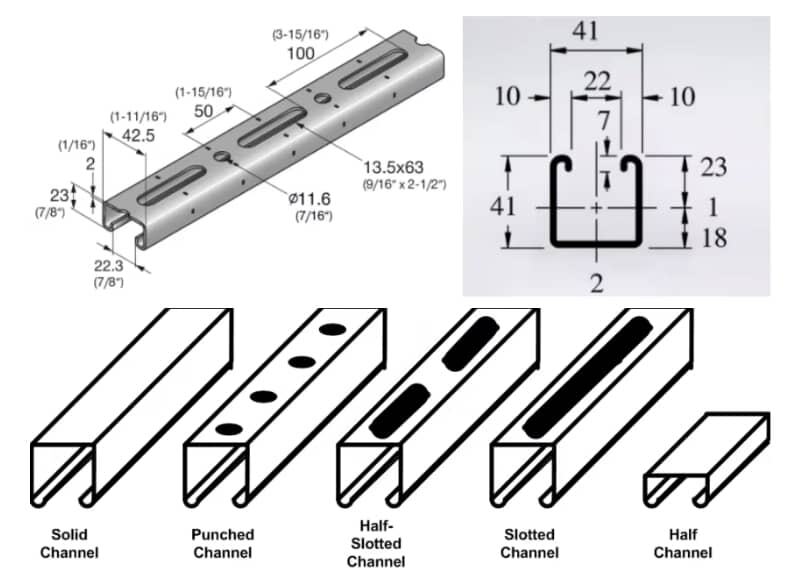

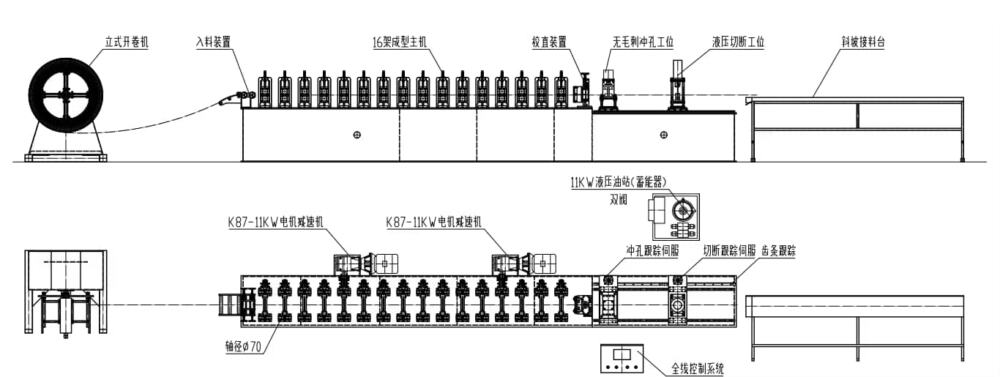

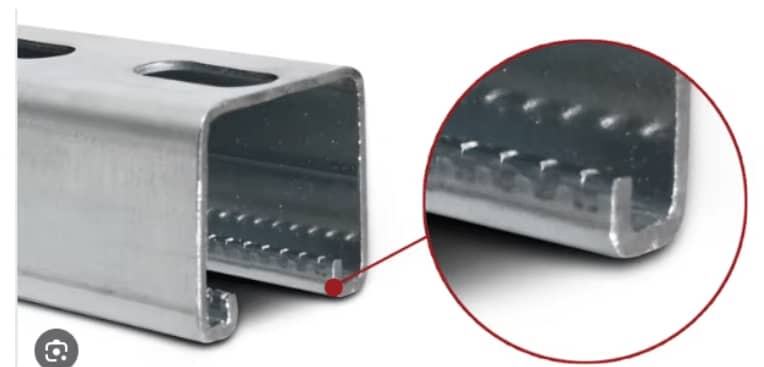

Pattern diagram:

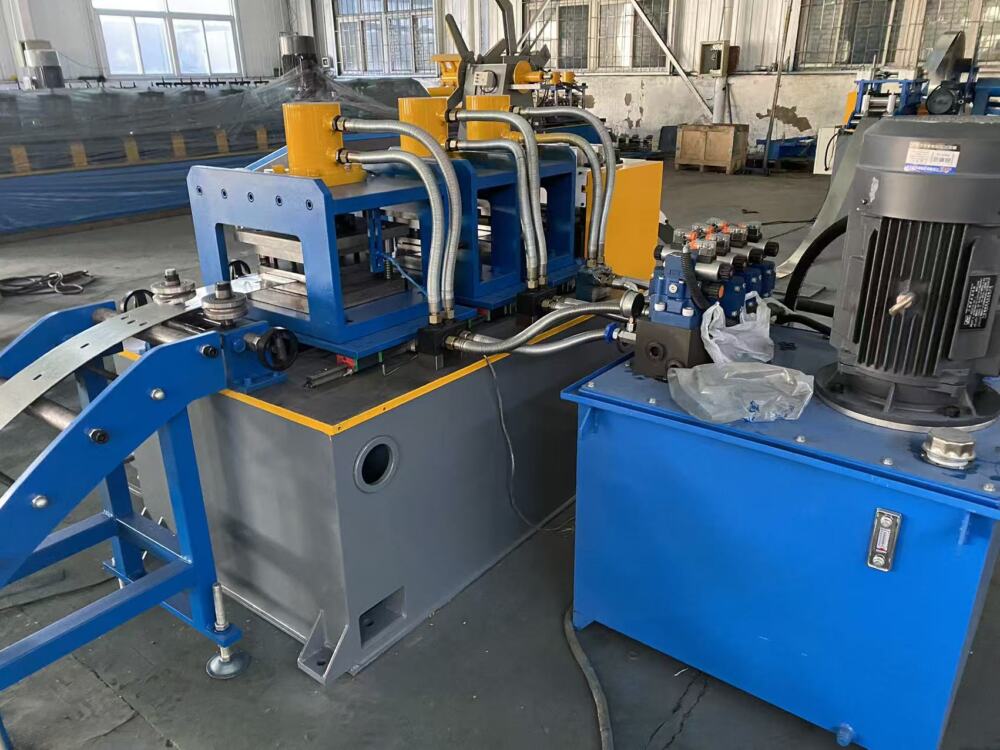

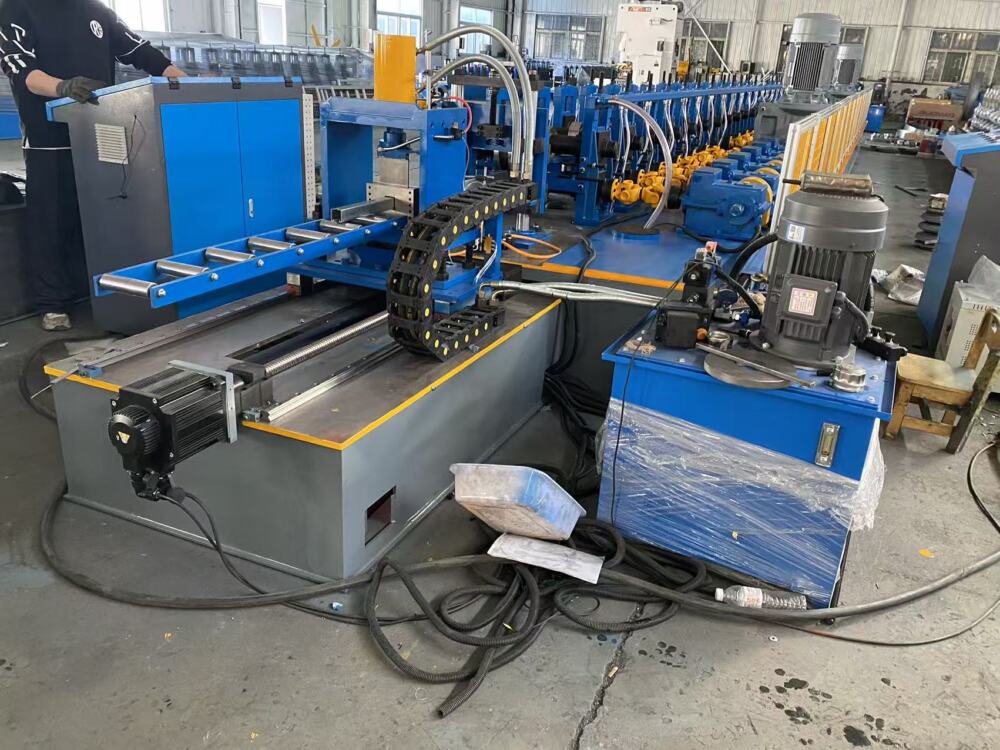

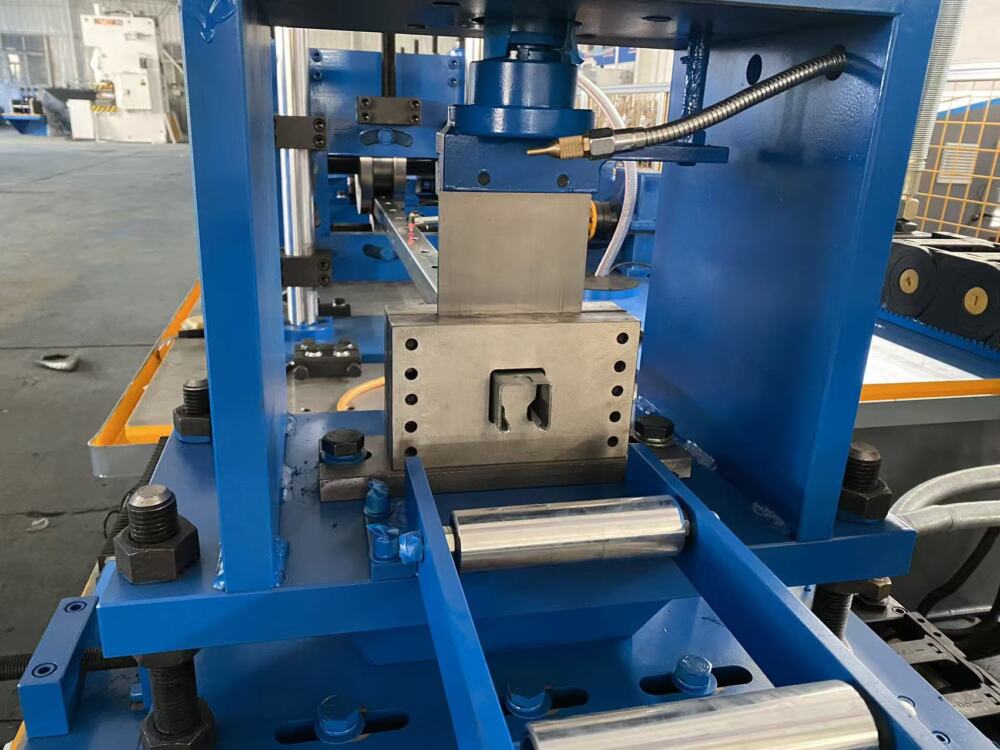

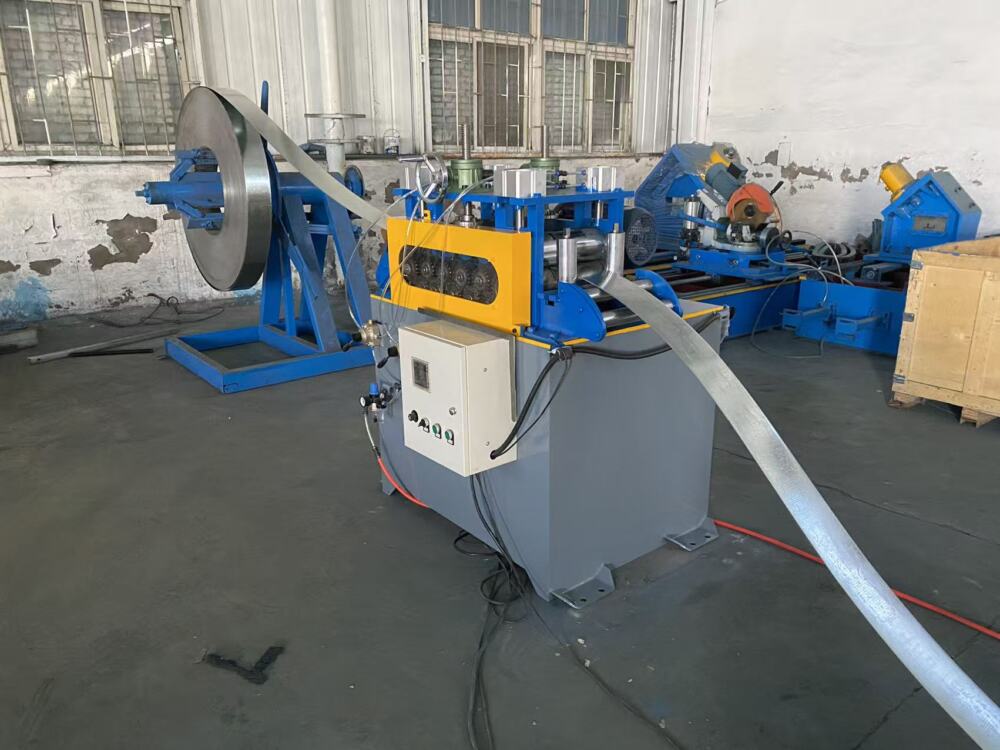

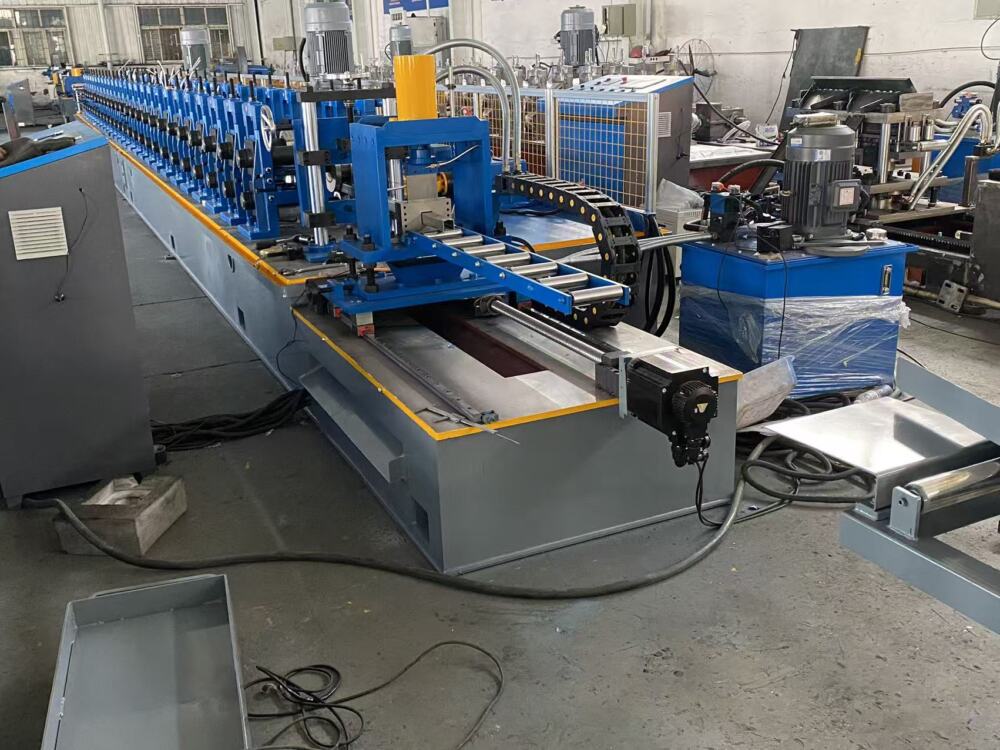

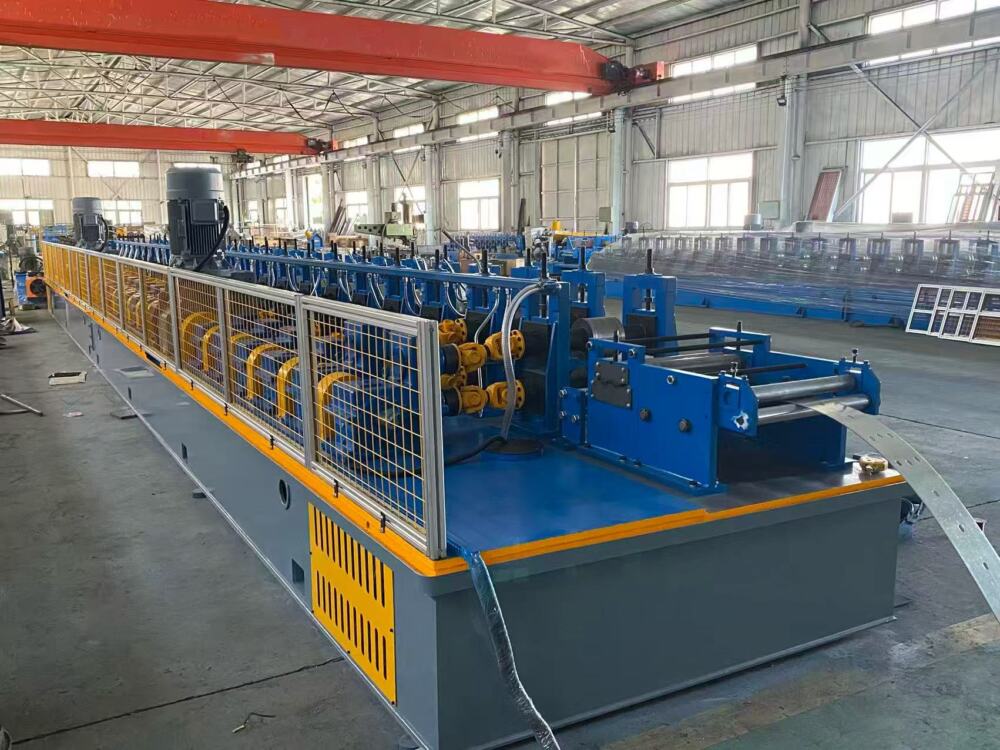

Machine photos:
FAQ – Frequently Asked Questions
Q1: What is a solar panel photovoltaic support bracket roll forming machine?
It is a production line that takes metal coil and continuously forms it into solar mounting brackets and support profiles. It usually includes decoiling, leveling, feeding, punching, roll forming, cutting, and control systems.
Q2: What profiles can this machine produce?
It can produce C, U, Z, Omega, hat-shaped profiles, solar rails, purlins, columns, beams, braces, and other custom photovoltaic support structures.
Q3: What materials can it process?
It can process galvanized steel, ZAM steel, carbon steel, stainless steel, aluminum, and other common metals. Material selection depends on your final product requirements.
Q4: What thickness can this machine handle?
Typically 1.5–4.0 mm, with 1.5–3.0 mm being common for solar brackets. Thicker or thinner configurations are available upon request.
Q5: What is the production speed?
Standard speed is about 0–20 m/min. High-speed models can be customized based on profile complexity, material thickness, and punching requirements.
Get a Customized Solar Bracket Production Solution
If you are looking for a reliable Solar Panel Photovoltaic Support Bracket Roll Forming Machine or a complete Automatic High-Speed PV Mounting Structure Production Line, our engineering team can recommend the right configuration based on your profile, thickness, speed, and budget.
Contact us today to get the latest price, technical proposal, profile drawing review, and video demonstration.
High precision. High speed. High efficiency. Let’s build your solar bracket production line together.
