High-Accuracy Scaffold Plank Board Roll Forming Machine – Precision And Efficiency

In the construction industry, scaffold plank boards are critical for worker safety, platform stability, and project efficiency. Whether you produce galvanized steel scaffold planks, metal walk boards, platform boards, or industrial step boards, product accuracy and consistency directly affect safety, installation speed, and customer satisfaction.

Our High-Accuracy Scaffold Plank Board Roll Forming Machine is designed to meet the demands of modern scaffold board manufacturers. From steel coil to finished scaffold plank, the line performs decoiling, leveling, servo feeding, punching, embossing, roll forming, cutting, and optional stacking in one continuous automatic process.

With precision rollers, intelligent PLC control, and stable hydraulic systems, this production line delivers high accuracy, high speed, and high automation for demanding metal scaffold board production.

Why Choose Our High-Accuracy Scaffold Plank Board Roll Forming Machine?

1. High-Accuracy Forming

The machine uses precision-machined rollers, servo feeding, and stable forming stations to ensure accurate width, straight edges, consistent ribs, and precise hole positions. Under stable production conditions, tolerance can reach ±0.2–0.5 mm depending on configuration.

2. Fully Automatic Production

The PLC control system enables automatic length setting, automatic punching, automatic forming, automatic cutting, and optional automatic stacking. Only 1–2 operators are required for normal production.

3. High-Speed Continuous Output

The line is designed for stable continuous production. Standard speed is about 0–20 m/min, with high-speed configurations available according to board profile, thickness, and punching requirements.

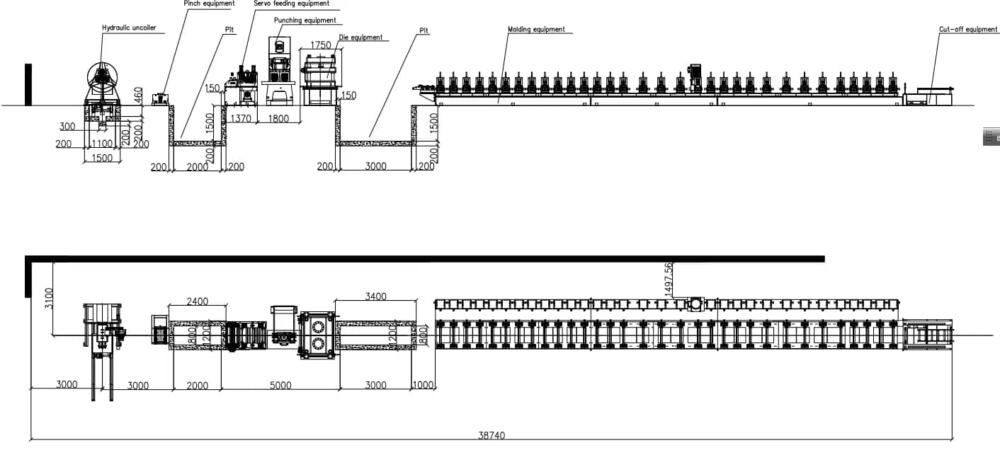

Core Components of the Scaffold Plank Board Production Line：

1.Hydraulic Decoiler – loads and unwinds steel coil stably.

2.Leveling Unit – ensures flat material and reduces internal stress.

3.Servo Feeding System – provides accurate feeding length and repeatability.

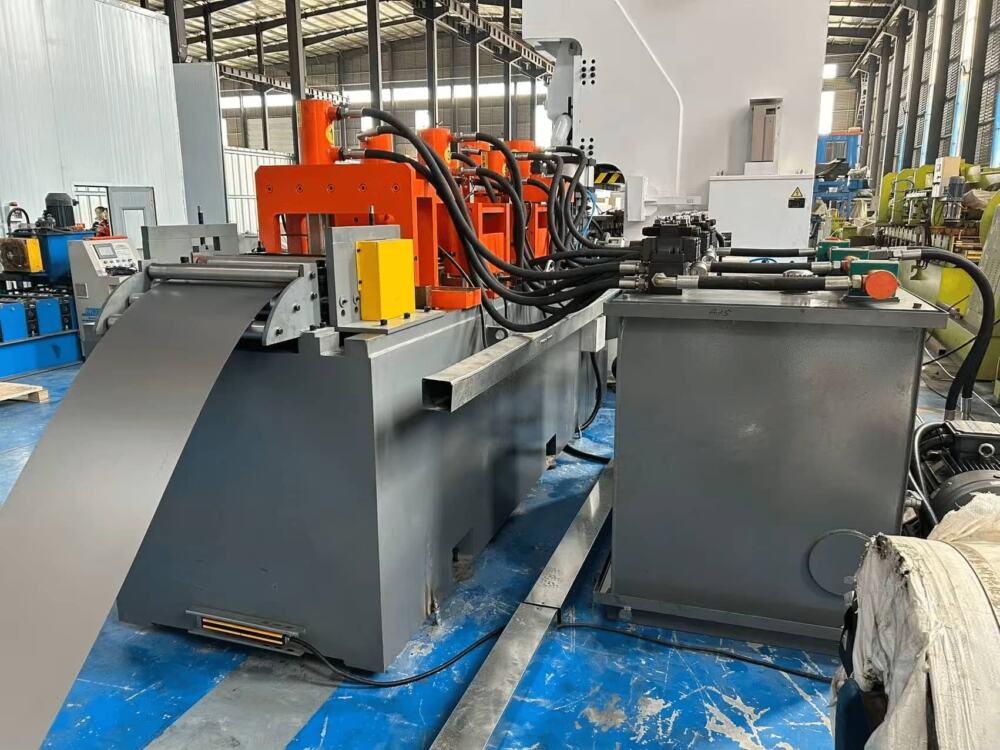

4.Hydraulic Punching Unit – punches holes, slots, or custom patterns before forming.

5.Embossing / Anti-Slip Unit – optional unit for anti-slip projections or patterns.

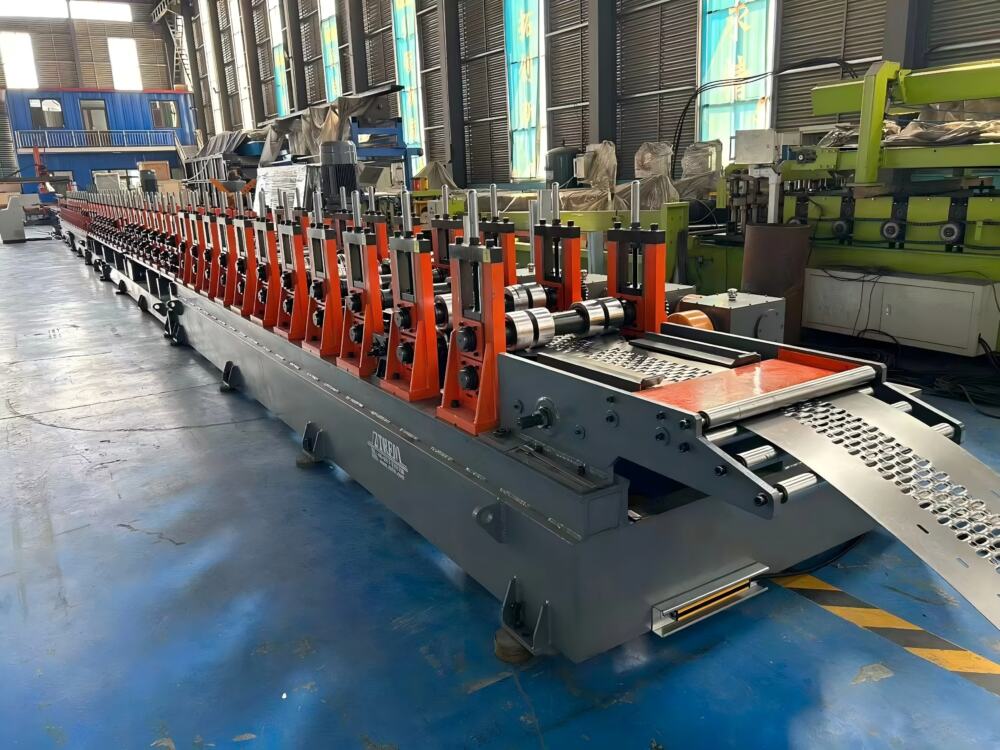

6.Roll Forming Station – progressive forming for precise scaffold plank profile.

7.Hydraulic Cutting Unit – clean, stable, and accurate cutting after forming.

8.PLC Control Cabinet – intelligent operation and parameter management.

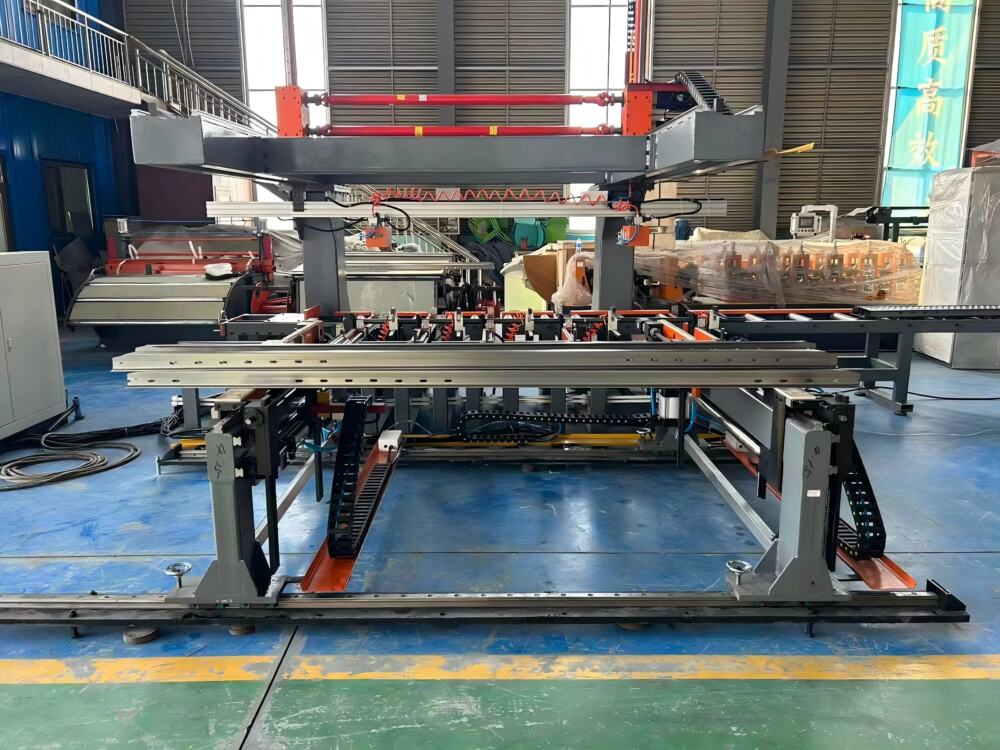

9.Run-Out Table / Automatic Stacker – optional collection and stacking system.

Product Attributes :



1.Formed Material	GI coil	Thickness:0.8 to 1.2mm (standard)
2.profile	size	(it can be adjusted automatically)
	Profile	changed by manual or Automatically
3.Voltage	380V 50Hz 3Phase	As your requirement
4.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length,quantity, etc.CAD drawing input
5.Forming Speed	0-20m/min	The speed depends on the shape of the tile and the thickness of the material

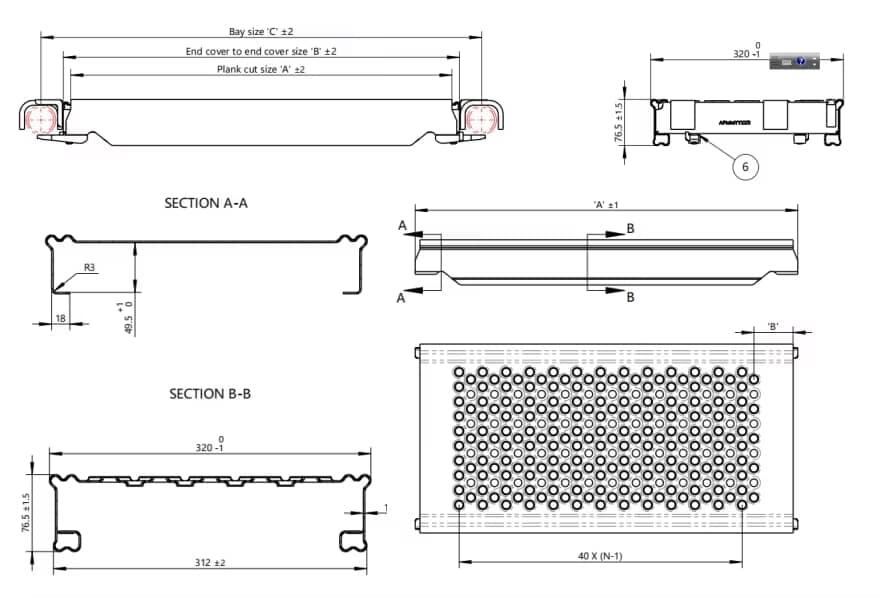

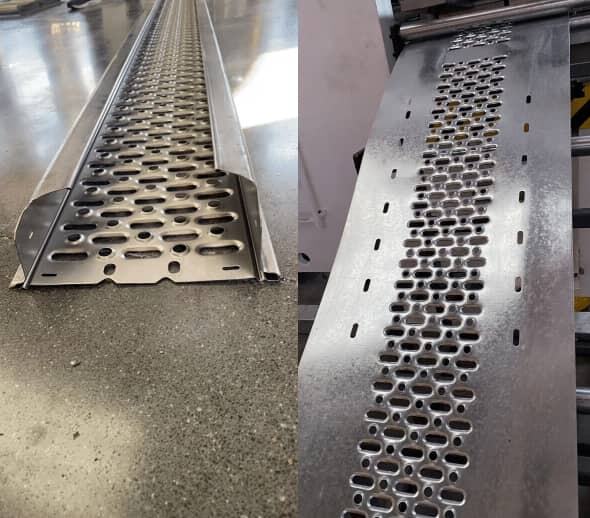

Pattern diagram:

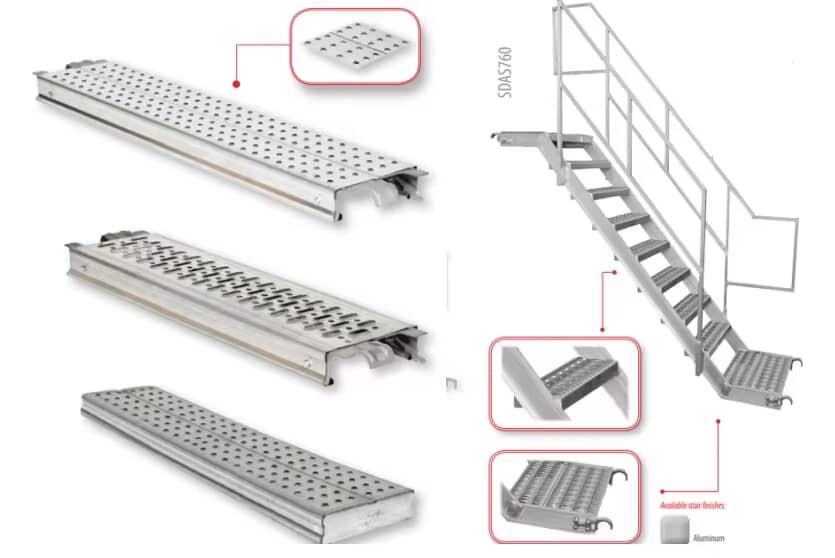

Applications：

Our high-accuracy scaffold plank board roll forming machine is widely used for:

• Construction scaffolding systems

• Metal scaffold plank boards

• Galvanized walk boards

• Industrial platform boards

• Maintenance platforms

• Bridge and tunnel access platforms

• Shipyard and offshore platforms

• Event stage and temporary structures

• Storage and logistics platforms

• Prefabricated building systems

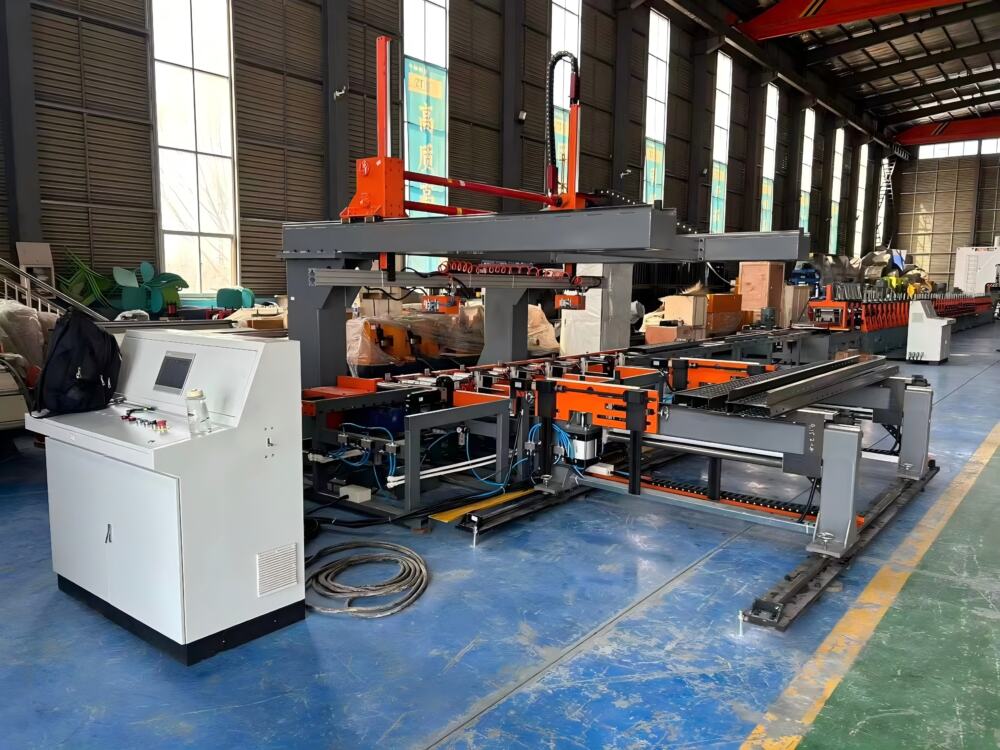

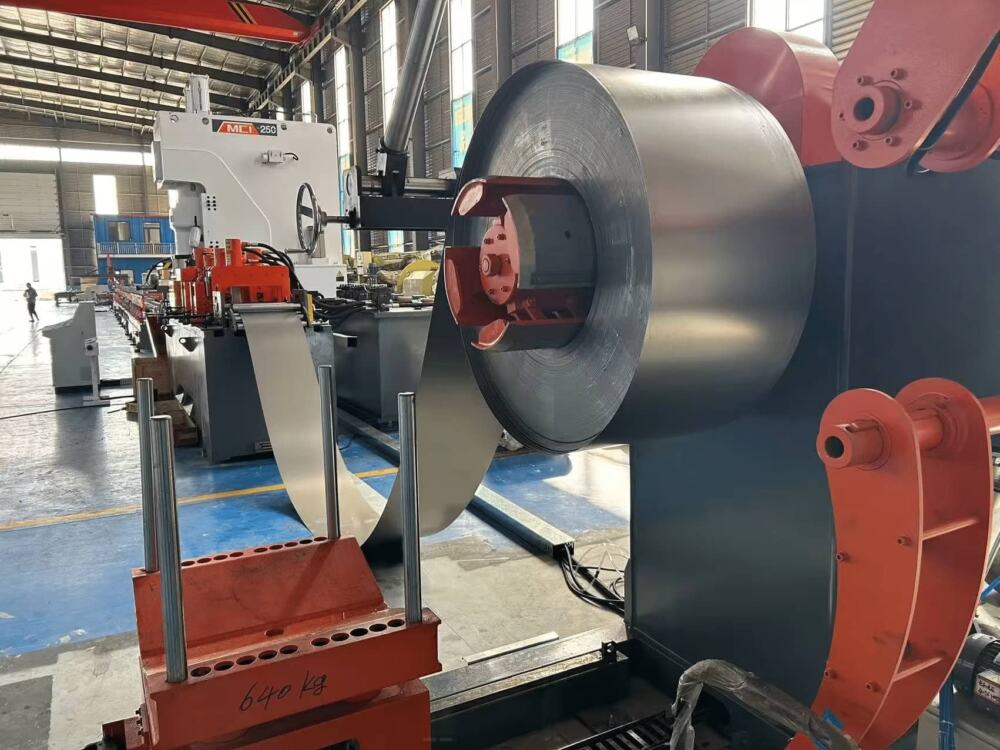

Machine photos:





FAQ – Frequently Asked Questions

Q1: What is a scaffold plank board roll forming machine?

A scaffold plank board roll forming machine is a production line that takes metal coil and continuously forms it into scaffold plank boards. It usually includes decoiling, leveling, feeding, punching, embossing, roll forming, cutting, and control systems.

Q2: What types of scaffold boards can it produce?

It can produce galvanized steel scaffold planks, metal walk boards, ribbed boards, perforated boards, anti-slip embossed boards, folded-edge boards, and custom platform boards.

Q3: What materials can it process?

It can process galvanized steel, carbon steel, stainless steel, aluminum, and other common metals. Material selection depends on your final product requirements.

Q4: What thickness can this machine handle?

Typically 0.8–1.2 mm,  Thicker or thinner configurations are available upon request.

Q5: What is the production speed?

Standard speed is about 0–20m/min. High-speed models can be customized based on profile complexity, material thickness, and punching requirements.
