Smart Forming Square Tube Roll Forming Machine Welding the Future Forward

Today, with the rapid development of infrastructure, photovoltaics, automobiles, and high-end equipment manufacturing, the demand for square welded pipes and rectangular welded pipes is experiencing explosive growth. Whether it is towering steel structures or lightweight new energy vehicle chassis, square pipes have become the backbone of modern industry with their excellent bending and torsion resistance and extremely high material utilization.

Faced with the strict requirements of the market for accuracy, efficiency, and intelligence, 【Zhong Tuo】has officially launched a new generation of Smart Forming Square Tube Roll Forming Machine Welding the Future Forward with years of experience in welding pipe equipment manufacturing. This is not just a device, but also a profitable tool for you to seize the high value-added pipe market.



Application area: Wherever your customers are, we are there

• Green buildings and prefabricated steel structures:
high-strength rectangular tubes, carrying the backbone of future cities.

• Photovoltaic energy storage bracket:
weather resistant galvanized square tube, sun chasing, with a corrosion resistance life of up to 25 years.

• Automotive lightweighting:
the preferred solution for precision shaped square tubes, energy absorbing boxes, sub frames, and transmission shafts.

• Logistics shelves and agricultural greenhouses:
economical pipes, low cost, high yield, stable daily income generation.

Product Attributes:

The Main Type For High-Frequency Welding square Tube Roll Forming Machine
Machine HG-32		Machine HG-50
Wall thickness	0.4-2.5mm	Wall thickness	0.4-2.5mm
Pipe diameter	10-45mm	Pipe diameter	10-45mm
Round pipe	Max. OD-45mm,   Min.OD-10mm	Round pipe	Max. OD-45mm,   Min.OD-10mm
Square pipe	Max.-35*35mm,   Min.-10*10mm	Square pipe	Max.-35*35mm,   Min.-10*10mm
Rectangular pipe	Max.-30*40mm,   Min,-10*10mm	Rectangular pipe	Max.-30*40mm,   Min,-10*10mm
Machine HG-76		Machine HG-127
Wall thickness	0.4-2.5mm	Wall thickness	0.4-2.5mm
Pipe diameter	10-45mm	Pipe diameter	10-45mm
Round pipe	Max. OD-45mm,   Min.OD-10mm	Round pipe	Max. OD-45mm,   Min.OD-10mm
Square pipe	Max.-35*35mm,   Min.-10*10mm	Square pipe	Max.-35*35mm,   Min.-10*10mm
Rectangular pipe	Max.-30*40mm,   Min,-10*10mm	Rectangular pipe	Max.-30*40mm,   Min,-10*10mm

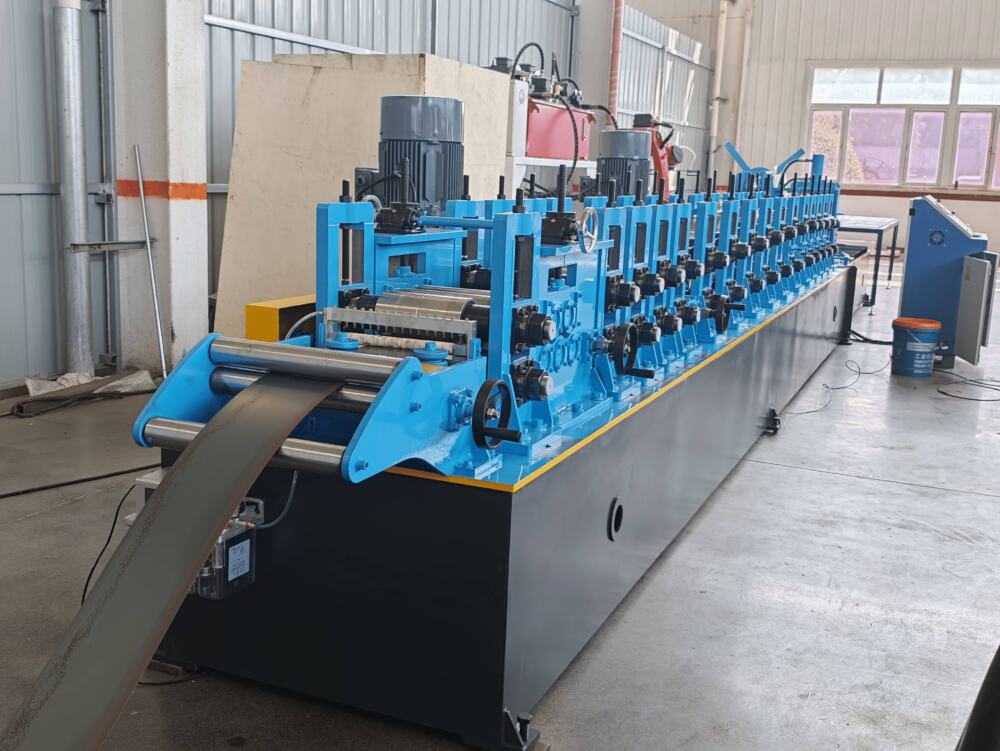

Key Features of Square Tube Roll Forming Machine

1.Dual forming modes—Direct Square Forming and Round-to-Square—allow one mill to produce both square and rectangular tubes. Wide size range with shared tooling greatly reduces changeover costs.

2.Precision rollers and rigid stands ensure consistent tolerances within ±0.10mm on width and diagonal. Naturally rounded corners eliminate collapse and waviness, delivering a scratch-free surface.

3.Equipped with high-power solid-state HF welder and closed-loop squeeze control, welding speeds reach 100 m/min. The narrow heat-affected zone ensures a weld stronger than the parent metal, with automatic ID/OD scarfing.

4.CNC auto-adjustment system repositions roll stands automatically by simply inputting the side length and wall thickness on the touchscreen. Size changeover time drops from 2 hours to just 15 minutes, perfect for small-batch, multi-size orders.

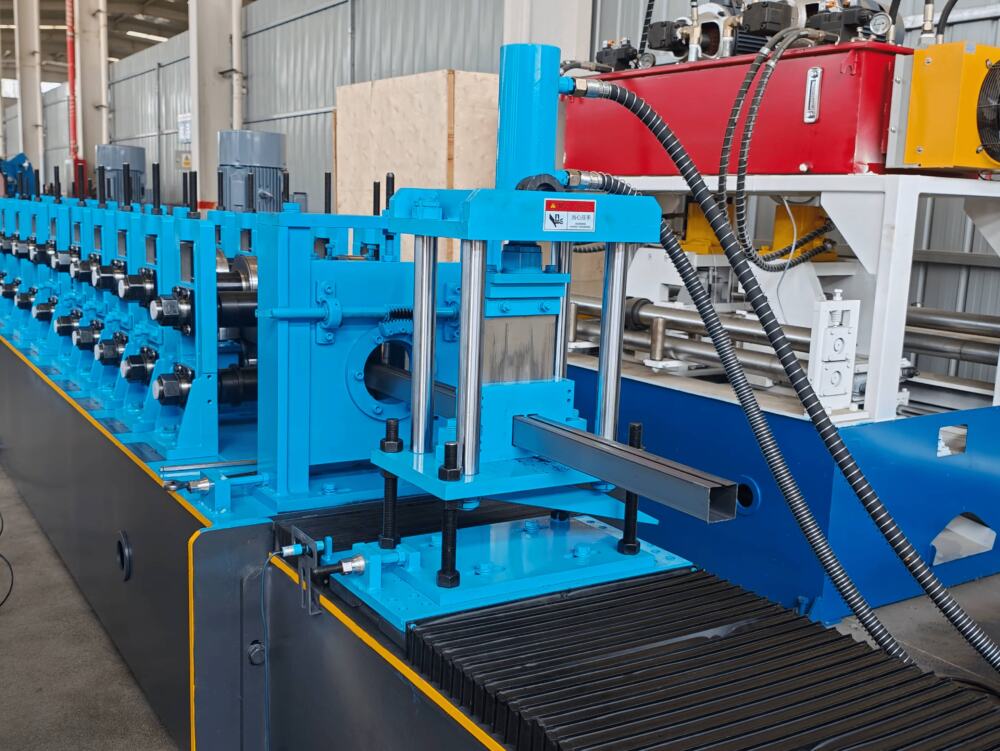

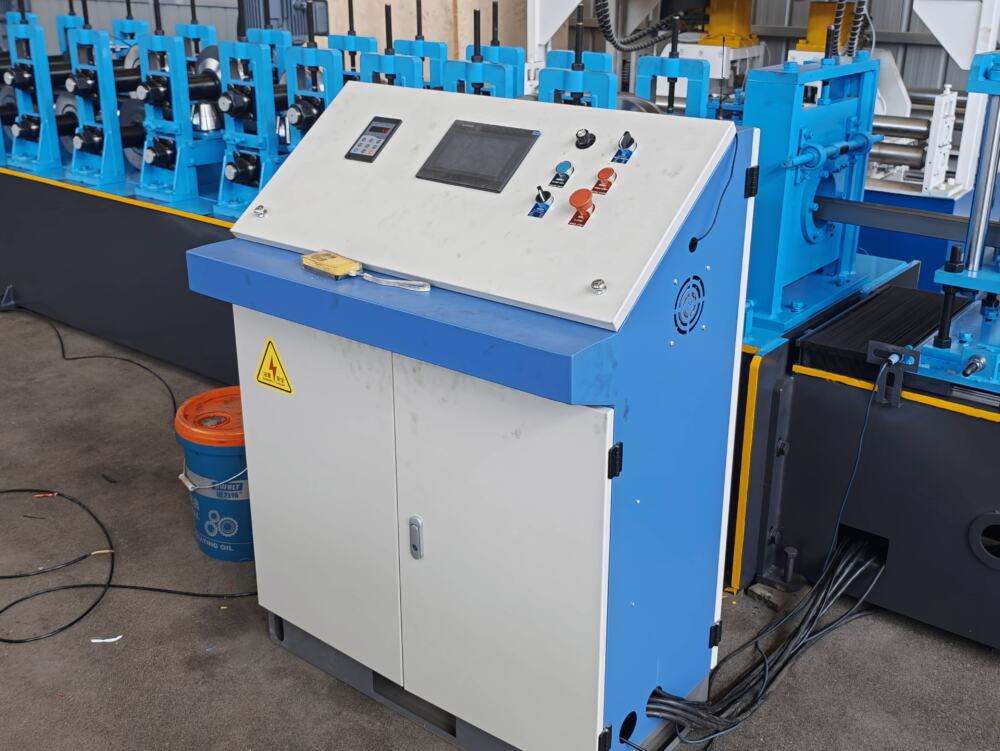

5.PLC-based centralized control with a ±1.0mm precision CNC flying saw. Supports remote maintenance and real-time data monitoring, enabling fully automated, unattended operation from decoiling to finished tube.



Choosing us is an investment without regrets

We are well aware that equipment downtime is a loss of money. Therefore, we offer:

Turnkey project: worry free from factory layout, water, electricity and gas design to equipment installation and commissioning.

Quick response service: Engineers arrive on site within 24 hours, and parts are delivered via global air express within 48 hours.

Lifetime process support: No matter what new square tube section you develop, our process team will provide free hole design and roller optimization suggestions.
