Quality Steel Metal Cut to Length Line Machine for Sale

In the field of metalworking, the precise cutting of plates is the foundation of many production links, and the emergence of cross-cutting wire machines has brought revolutionary changes to this link. It integrates a variety of functions and has become an indispensable and important equipment in modern manufacturing with its efficient and precise characteristics.

Packing list ：

Introduction of metal cut to length line machine

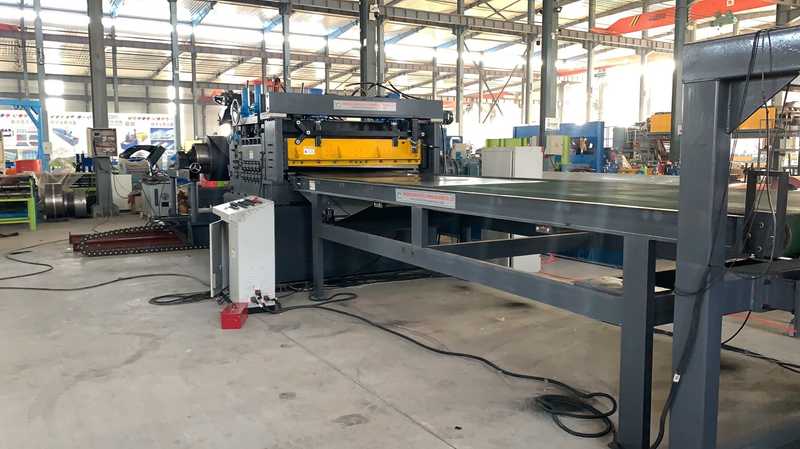

Metal cut to length line machine is an automated equipment specifically designed for sheet metal cutting and processing, playing a pivotal role in modern industrial production. Its core components mainly include feeding trolley, uncoiler, leveling machine, feeding mechanism, shearing machine, conveying device and stacking device. These precision components work together to give the metal cut to length line machine powerful machining capabilities, enabling it to efficiently handle cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel, and various metal coils after surface coating.

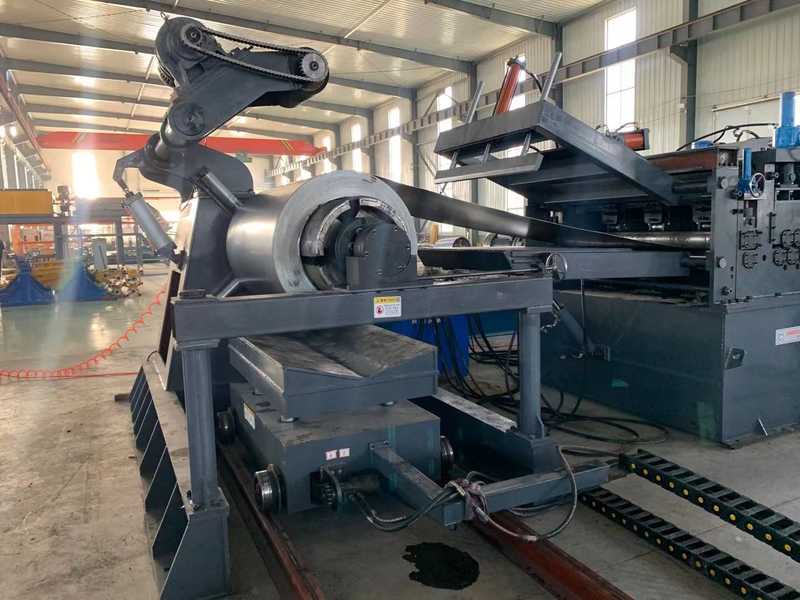

In the actual workflow, the processing of metal coils begins with the feeding trolley. The loading trolley is equipped with a high-precision positioning system and a stable load-bearing structure, which can safely and smoothly transport metal coils weighing several tons to the uncoiler. The uncoiler adopts frequency conversion speed regulation technology to accurately adjust the unwinding speed and tension through the tension control device to ensure that the coil does not twist, scratch and other phenomena during the unfolding process.
The unfolded plate is immediately entered into the leveling machine for correction. The leveling machine is equipped with multiple sets of staggered rollers, which undergo a special heat treatment process to achieve high surface hardness and wear resistance. During the leveling process, under the repeated extrusion and bending of the roller shaft, the defects such as waves and scoop bending are effectively eliminated, and the flatness error can be controlled within ±0.2mm. At the same time, the leveling machine is also equipped with an automatic detection system, which can monitor the flatness of the plate in real time and automatically adjust the pressure and angle of the roller shaft according to the inspection results.
The leveled plate is accurately conveyed by the feeding mechanism. The feeding mechanism adopts servo motor drive and ball screw transmission, and the positioning accuracy is up to ±0.05mm. By linking with the CNC system of the shearing machine, the feeding mechanism can accurately transport the plates to the shearing station of the shearing machine according to the set size parameters.

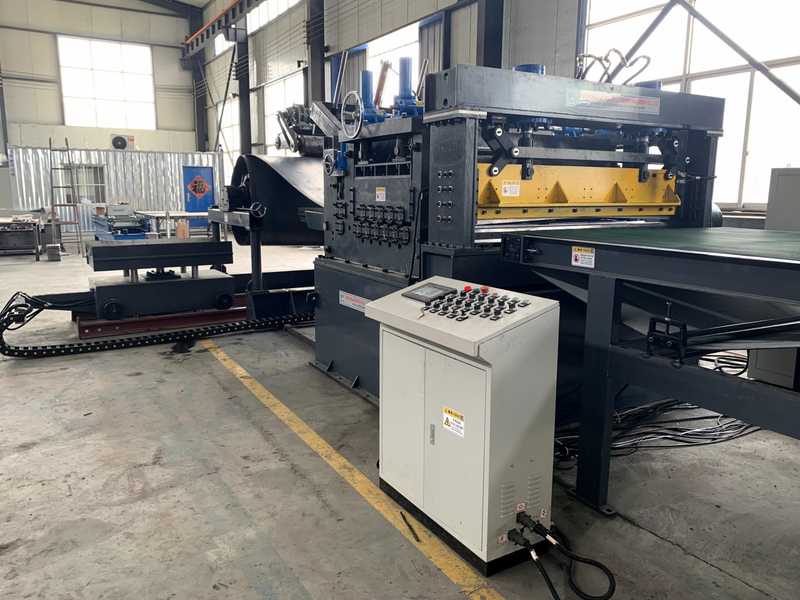

The shearing machine, as a key executive component of the cross shearing machine, adopts hydraulic drive and CNC control technology. Its shear blade is treated with a special coating, which is sharp and durable, and the shear force is uniform and stable. The operator only needs to input the required plate size and number of shears into the CNC system, and the shearing machine will automatically complete the shearing task. In addition, the shearing machine also has an automatic protection function, which can stop operation immediately when an abnormal situation is detected, ensuring the safety of operators.

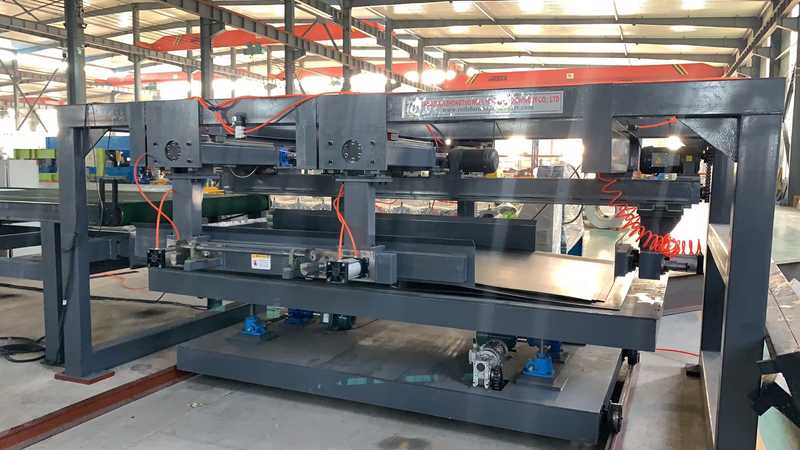

The sheared sheet material is quickly conveyed by the conveying device. The conveying device adopts the belt or chain plate conveying method, and the surface is treated with anti-slip treatment to ensure that the sheet material will not slide or offset during the conveying process. Finally, the sheet material is transported to the stacking unit for neat stacking. The stacking device is equipped with an intelligent sorting system, which can sort and stack according to the size, specification and weight of the sheet material, and the stacking is neat, which is convenient for subsequent storage and transportation.

Advantages of cross-cutting wire machines:

1.High-precision cutting:
Using advanced servo motor drive feeding system and precise positioning device, the feeding step can be flexibly set between 0-10 meters, and the shearing machine cuts with the movement, ensuring extremely high cutting accuracy. Some high-end equipment has a shear length accuracy of within ±0.5mm, a diagonal tolerance of ≤1mm, and a flatness of ≤1mm, which can meet the needs of industries with strict precision requirements.
2.Efficient and stable operation:
High degree of automation, from unwinding to stacking to integrated operation, strong continuous operation ability. For example, some models of metal cut to length line machines have an average daily capacity of around 300 tons, which greatly improves production efficiency. At the same time, the bed of the equipment is welded with high-quality steel, and the main components are made of high-grade castings, which are heat-treated to eliminate the hidden danger of deformation, which can operate stably for a long time and reduce downtime.
3.Wide range of applications:
It can process a wide range of metal materials, whether it is metal foil as thin as a cicada's wings or plates as thick as several millimeters. Moreover, according to customer needs, loading trolleys, conveyor belts, stackers and other equipment can be selected, and even equipped with slitting machines to realize the slitting of sheet materials and meet diversified processing requirements.
4.Cost reduction:
On the one hand, automated operation reduces labor costs and time costs; On the other hand, precise cutting reduces material waste. In addition, the equipment structure is reasonably designed, which improves the service life of the tool and reduces maintenance costs.

Process flow of cross shearing machine

1.Feeding: The metal coil is transported to the uncoiler by the loading trolley to complete the loading operation.

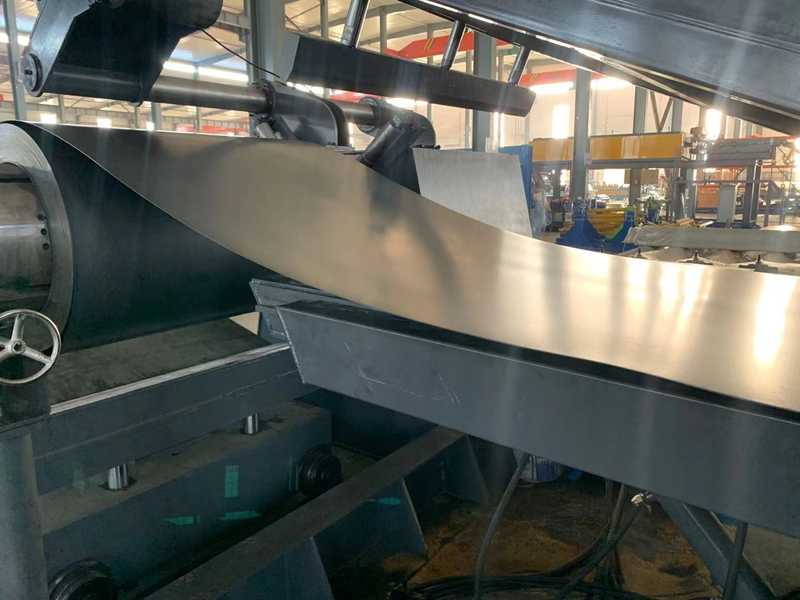

2.Uncoiling: The uncoiler unwinds the coil to prepare for subsequent processing, and the uncoiler adopts automatic hydraulic expansion and automatic release and stop to ensure the smooth unwinding process of the coil.

3.Leveling: The unfolded plate enters the leveling machine, and the leveling machine levels the plate through the action of the roller, so that the plate is flat and defect-free.

4.Feeding: The leveled plate is accurately conveyed to the shearing machine by the feeding mechanism, and the feeding mechanism feeds according to the set length driven by the servo motor.

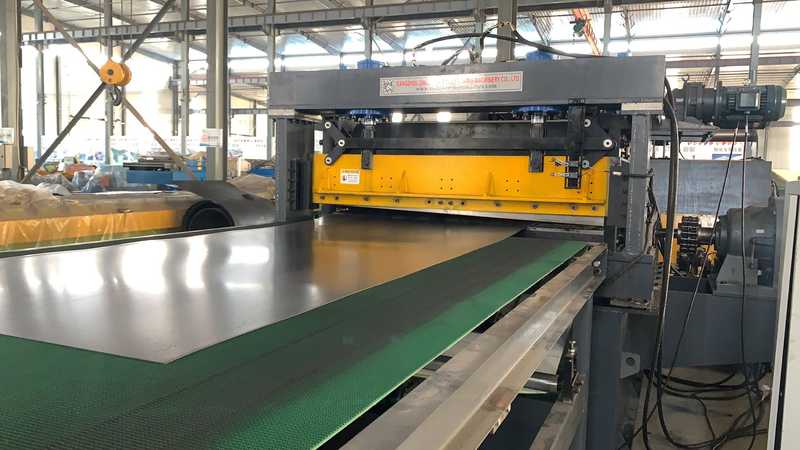

5.Shearing: After receiving the signal, the shearing machine shears the plate according to the set size, and the cutter of the shearing machine is made of high-quality materials, with good shearing effect and small burrs.

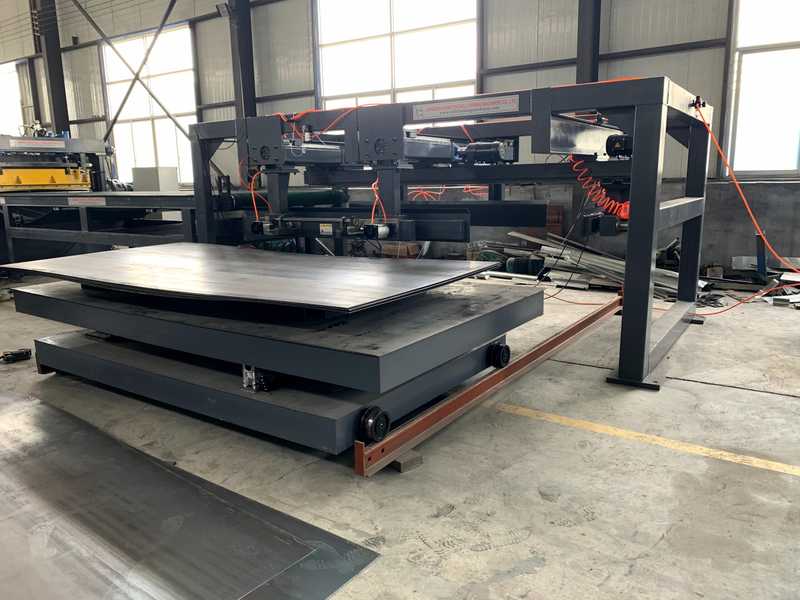

6.Conveying and stacking: The sheared sheet material is transported from the conveying device to the stacking device, and the stacking device stacks the sheet material neatly for subsequent storage, transportation and use.

With its advantages of high precision, high efficiency, and wide range of applications, cross-cutting machines play an important role in many industries such as electronics, automobile manufacturing, electrical equipment, and construction, providing strong support for the development of modern manufacturing.
