Hot Sale Portable Clip Lock Type Standing Seam Metal Roof Machine for Sale
Portable standing seam roof tile machine: a powerful equipment for revolutionizing roof construction
In the field of building construction, the quality and efficiency of roofing engineering are crucial. The emergence of portable standing seam roof tile machine has brought new changes to roof construction. With its unique design and powerful features, it plays a key role in numerous architectural projects.
Equipment introduction

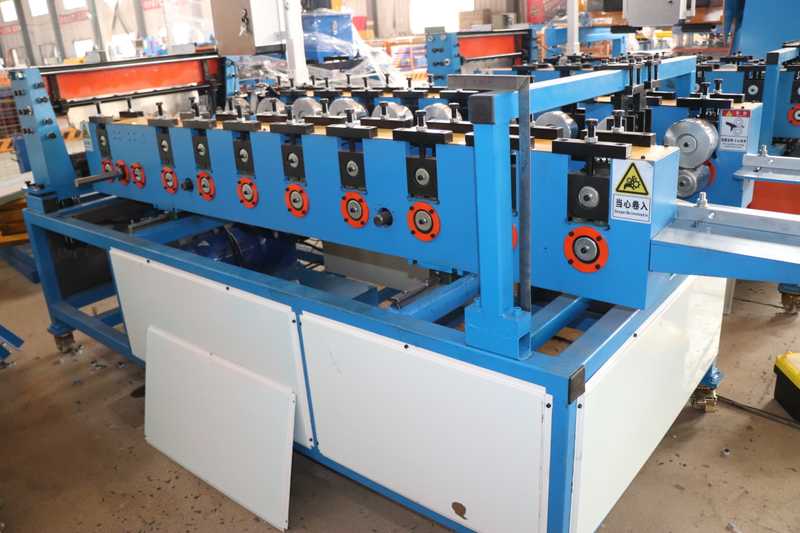

Portable standing seam roofing tile machine is a mobile device specially designed for the production of standing seam roofing tiles. Its compact design and compact size make it easy to transport to different construction sites. The equipment is mainly composed of feeding system, forming system, power system and control system. The feeding system is responsible for smoothly feeding the sheet metal into the equipment; The forming system processes the plate into the shape of the seam roof tile through a series of precision molds; The power system provides power support for the operation of the equipment; The control system is used to accurately control the parameters of the equipment to ensure that the production process is stable and efficient.
Common portable standing seam roof tiling machines can process a variety of metal sheets, such as color steel plates, aluminum-magnesium-manganese alloy plates, etc. The processed roof tiles are of various models, which can meet the needs of different architectural designs, and the production speed is fast, which can be adjusted according to the actual construction schedule.
The advantages are fully displayed
1. Excellent portability
The "portable" feature is a standout advantage of this device. It is relatively lightweight, and some devices are equipped with rollers or foldable structures for easy movement. Whether it is a small construction site in the city or a construction project with inconvenient transportation in remote mountainous areas, it can be easily reached, which greatly improves the flexibility of construction and reduces the time and cost of equipment transportation.
2.Easy and efficient operation
The operation interface of the equipment is designed to be simple and user-friendly, and the operator only needs to undergo a short training to master the operation method. Through the control system, the operating speed and forming parameters of the equipment can be easily adjusted. During the production process, the equipment has a high degree of automation, which can continuously and stably produce high-quality roofing tiles, effectively improving construction efficiency and shortening the project period.
3. Wide material adaptability
The portable standing seam roof tile machine has good adaptability to the processed materials. In addition to common color steel plates, it can also be perfectly processed for metal plates such as aluminum-magnesium-manganese alloy plates with special performance requirements. This makes it possible to produce suitable roofing tiles through this equipment in different construction projects, whether it is the pursuit of economy or the durability and aesthetics of the roof.
4.Excellent quality assurance
When producing roof tiles, the molding mold of the equipment has high accuracy, which can ensure that the size and shape of each roof tile are accurate. The tight bite of the standing seam makes the roof tiles form a whole after installation, which greatly improves the waterproof, windproof and compressive performance of the roof, provides reliable roof protection for the building, and extends the service life of the building.
Wide range of applications
1. The first choice for industrial buildings
Industrial plants usually have a large area and have high requirements for the bearing capacity, waterproofness and durability of the roof. The roof tiles produced by the portable standing seam roof tile machine have high strength and can meet the needs of industrial plants with large spans. Its good waterproof performance can effectively prevent rainwater leakage and avoid damage to equipment and products in the factory. For example, this equipment is widely used in industrial buildings such as large machinery manufacturing plants and electronic equipment production plants.
2. The favor of commercial buildings
Commercial buildings such as shopping malls, hotels, and office buildings not only pay attention to the functionality of the roof, but also pay attention to its aesthetics. The simple and smooth lines and modern appearance of standing roof tiles can add a unique charm to commercial buildings. The portable standing seam roof tile machine can produce customized roofing tiles on site according to the architectural design requirements, achieve ideal architectural effects, and meet the dual needs of commercial buildings for beauty and function.
3. The new favorite of civil housing
In the construction of civil housing such as villas and residential communities, portable standing seam roof tile machines also play an important role. It can produce roofing tiles directly on the construction site, reducing the risk of damage during the transportation of roofing tiles. Moreover, the waterproof performance of standing seam roof tiles is good, which can effectively avoid the problem of roof leakage and improve the living comfort of residents. Some high-end residential communities and personalized villas have used the roof tiles produced by this equipment to improve the quality of buildings.
4.Practical choice for temporary buildings
For temporary offices and warehouses on construction sites, as well as temporary buildings in various activity venues, the advantages of portable standing seam roof tiles are particularly obvious. Its ability to quickly produce roofing tiles can complete the roof construction of temporary buildings in a short time. In addition, the roof tiles are easy to install and can be reused after disassembly, reducing the construction cost of temporary buildings.
Rigorous technological process
1. Feeding link
Sheet metal that meets the requirements is placed on the loading rack of the feeding system. Operators need to check the surface quality of the plates to ensure that there are no obvious scratches, deformations or rust. Adjust the position of the plate so that it can enter the forming system of the equipment accurately and smoothly. Some advanced portable standing seam roofing tiles are equipped with automatic feeding devices, which can automatically adjust the feeding speed according to the operating speed of the equipment and improve production efficiency.
2. Molding stage

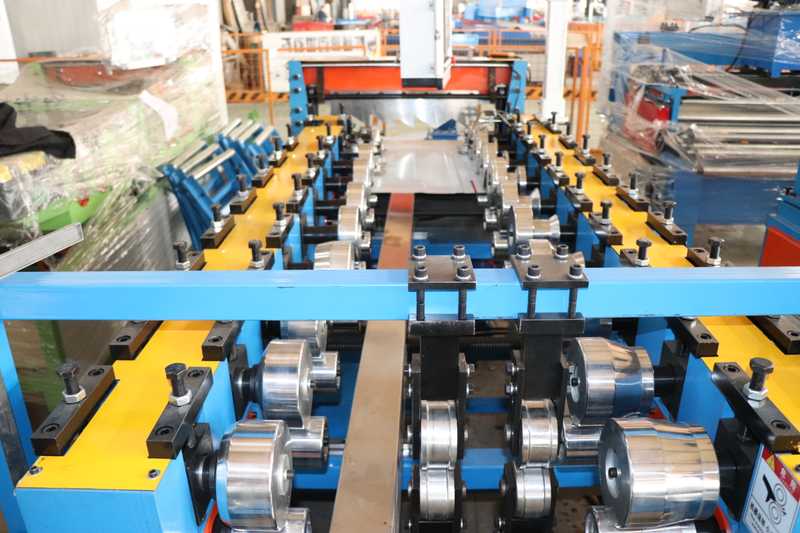

After the plate enters the forming system, it first passes through a series of guide rollers to preliminarily position and guide the plate to ensure its stability during subsequent processing. The sheet then enters the forming area, which consists of multiple forming molds. These molds are specially designed according to the design shape of the roof tiles, and the sheets are gradually processed into the shape of the seam roof tiles through continuous extrusion and bending of rollers. During the molding process, the control system of the equipment will monitor the molding parameters in real time, such as roller pressure, plate travel speed, etc., to ensure the stability of molding quality.
3.Hemming and shearing process
When the basic shape of the roof tile is formed, its standing seam needs to be edged. The hemming device tightly engages the standing joints of two adjacent roofing tiles through a specific mechanical structure to form a strong connection. This edging method not only enhances the connection strength between the roof tiles, but also further improves the waterproof performance of the roof. After the edge locking is completed, the continuous roof tiles are accurately cut off by the shearing device according to the length of the roof tiles required for construction. The shearing device is usually hydraulically driven or electrically driven, ensuring that the shearing cuts are neat and smooth without affecting the quality of the roofing tiles.
4.Quality inspection and stacking of finished products
Each piece of roofing tile produced must undergo strict quality inspection. The testing content includes the dimensional accuracy of the roof tiles, the bite quality of the standing joints, and the flatness of the surface. For roofing tiles that do not meet quality standards, rework or scrap them in a timely manner. Qualified roofing tiles are neatly stacked in the designated area in a certain order for subsequent handling and installation. During the stacking process, care should be taken to avoid collision or extrusion of roof tiles, causing damage.
With its many advantages, the portable standing seam roof tile machine shows strong vitality in the field of building roof construction. With the continuous advancement and innovation of technology, it will play a greater role in more construction projects and promote the development of the construction industry in a more efficient and high-quality direction.
