Auto Adjust Interchangeable CZ Purlin Roll Forming Machine

2026-04-09
News

Main Features:

Auto Adjust Interchangeable CZ Purlin Roll Forming Machine multiple advanced technologies to meet the production needs of high efficiency and precision.
1.One click switching of C/Z steel:

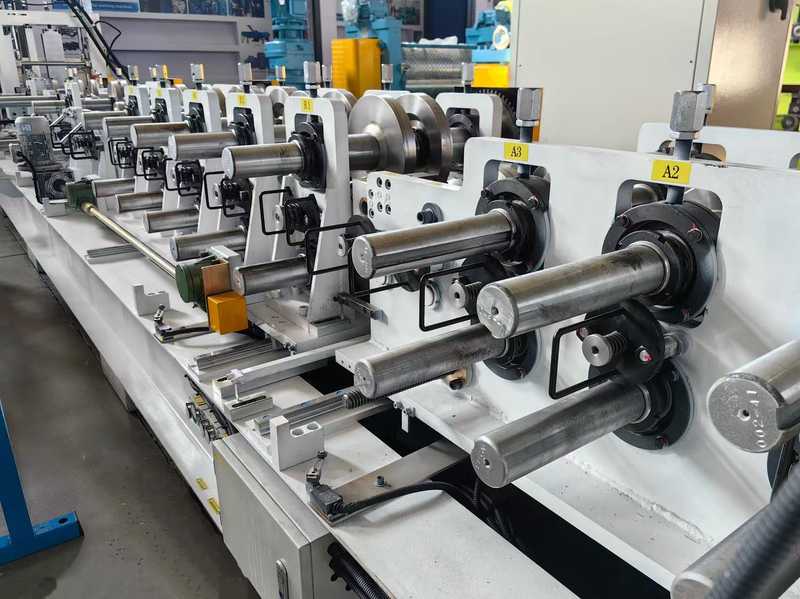

This is its core advantage. The equipment can quickly switch between the production modes of C-type and Z-type steel. Through fully automatic or semi-automatic rapid changeover technology, specification changes can even be completed within minutes without the need to replace molds or use special tools, greatly enhancing production flexibility.
2.Infinite cutting and changeover:
Advanced equipment adopts infinite cutting technology, and cutting tools can adapt to different specifications of steel without the need for replacement. Combined with the infinite changeover system, the size can be adjusted arbitrarily in millimeters within a specification range, achieving continuous and high-speed production.
3.Highly automated:
From feeding, forming, punching to cutting and stacking, the entire process is computer-controlled, enabling unmanned continuous operation, reducing operational difficulty and reliance on skilled workers.

Application scenarios:

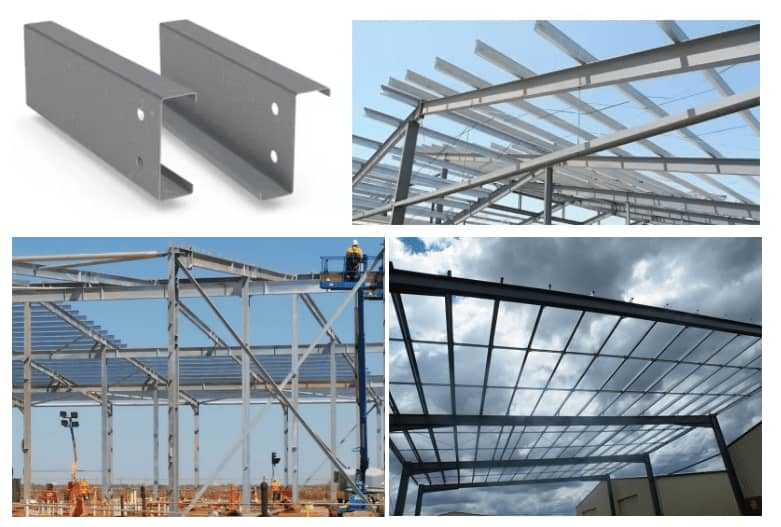

The C-type and Z-type steel produced by CZ steel machine are the "skeleton" materials in light steel structure buildings, and are widely used.
• C-shaped steel: with a cross-section of "C" shape, commonly used in structures with small and medium spans. Mainly used as wall beams, roof truss supports, purlins, etc., it can also be used to manufacture structural components such as columns and beams for mechanical equipment.
• Z-shaped steel: The cross-section is in a "Z" shape, and its beveled edge design makes it tighter when overlapped. Its mechanical properties (especially bending resistance) are superior to C-shaped steel, making it more suitable for use as the main purlin of large-span structures in factory buildings.

Product Attributes :

1.Formed Material	GI	Thickness:1.5-3 mm (standard)
2.Decoiler	3 Tons Hydraulic automatic decoiler	3 Tons Manual decoiler(will give you as free）
3.Main body	Roller station	18 rows (As your requirement)
	Diameter of shaft	80 mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	400 H steel
	Drive	Gear and chains transmission
	Dimension(LWH)	1500018001600(customize)
	Weight	15T

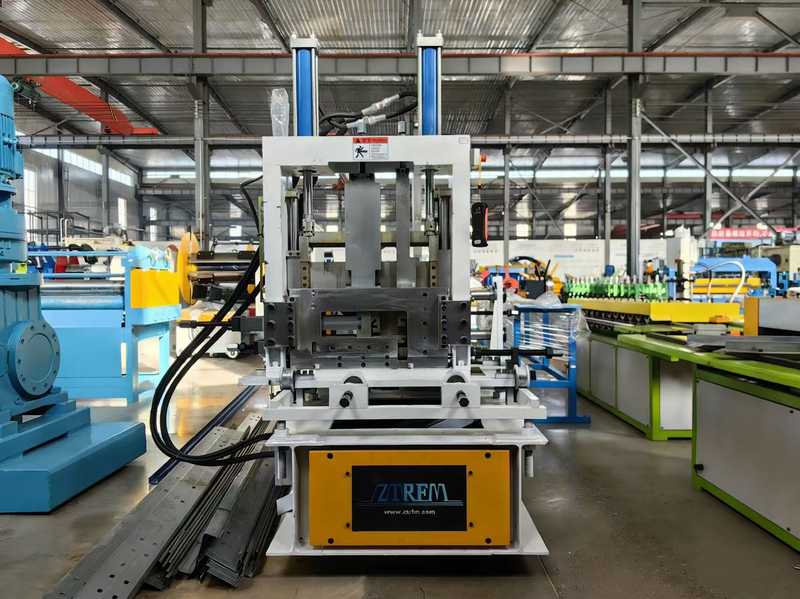

4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	11KW*2 sets,Siemens brand
	Hydraulic system power	15 KW
6.Voltage	380V 50Hz 3Phase	As your requirement

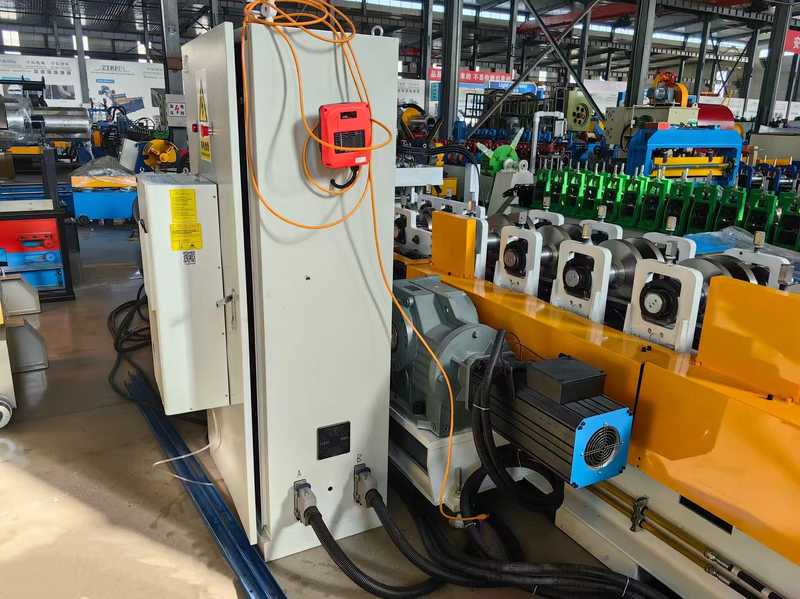

7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	25 m/min	The speed depends on the shape of the tile and the thickness of the material.

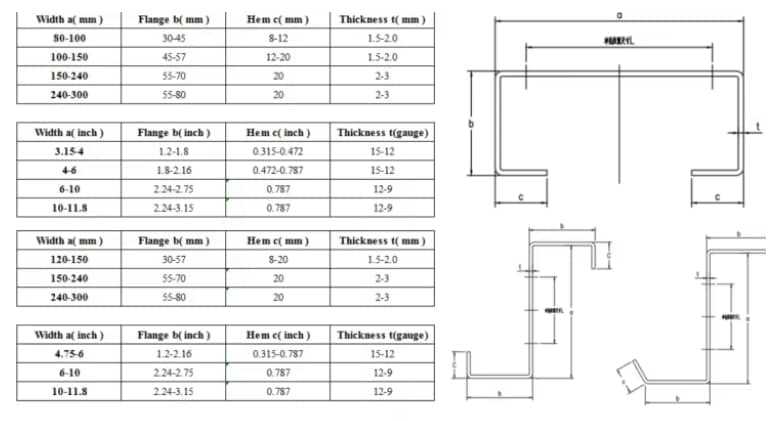

Pattern diagram:

Equipment Introduction:

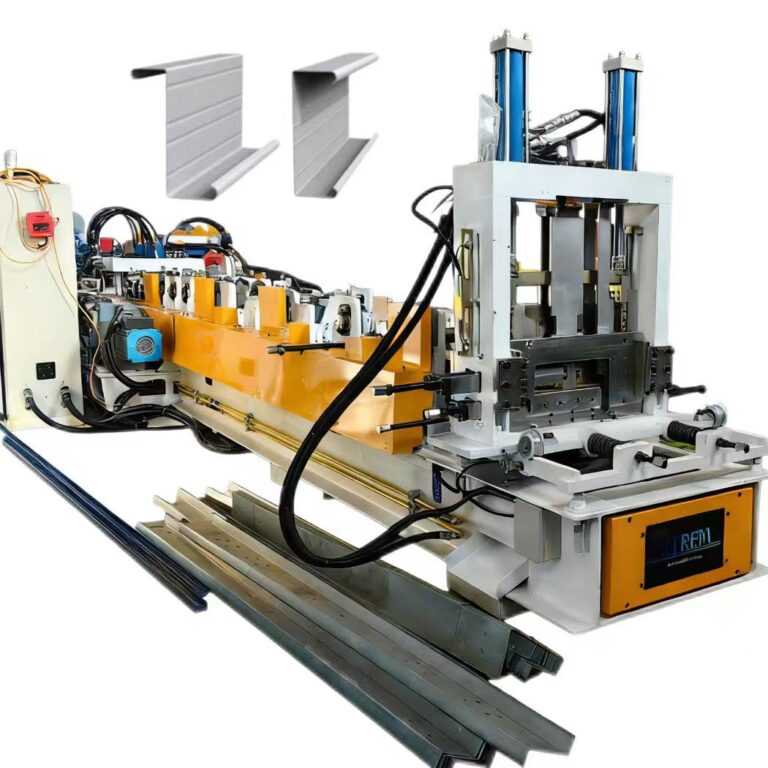

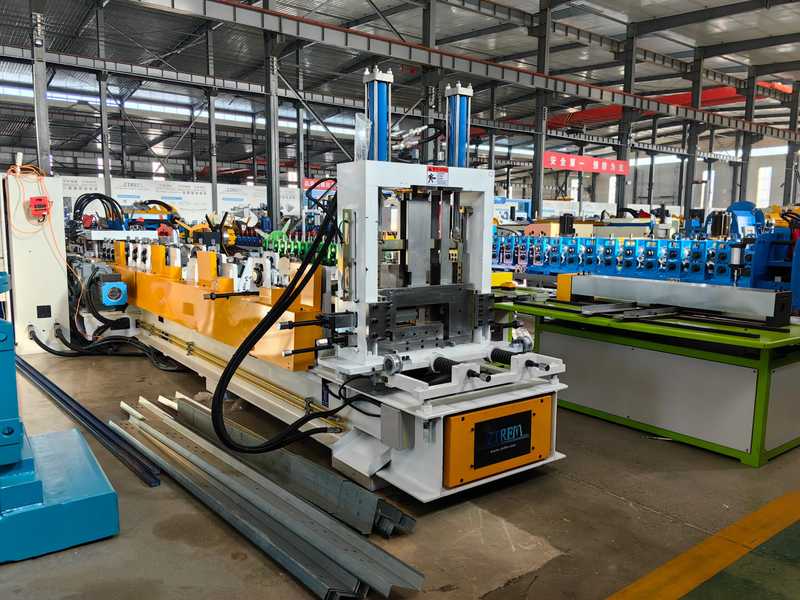

Auto Adjust Interchangeable CZ Purlin Roll Forming Machine, also known as CZ type steel integrated machine or purlin machine, is an automated cold bending equipment used for producing C-shaped and Z-shaped steel purlins for construction. It uses roll forming technology to continuously process steel strip coils into C-shaped or Z-shaped steel with specific cross-sectional shapes, and is the core production equipment in modern steel structure buildings.

The Auto Adjust Interchangeable CZ Purlin Roll Forming Machine has achieved fully automated production from raw materials to finished products. The standard process flow mainly includes the following steps:

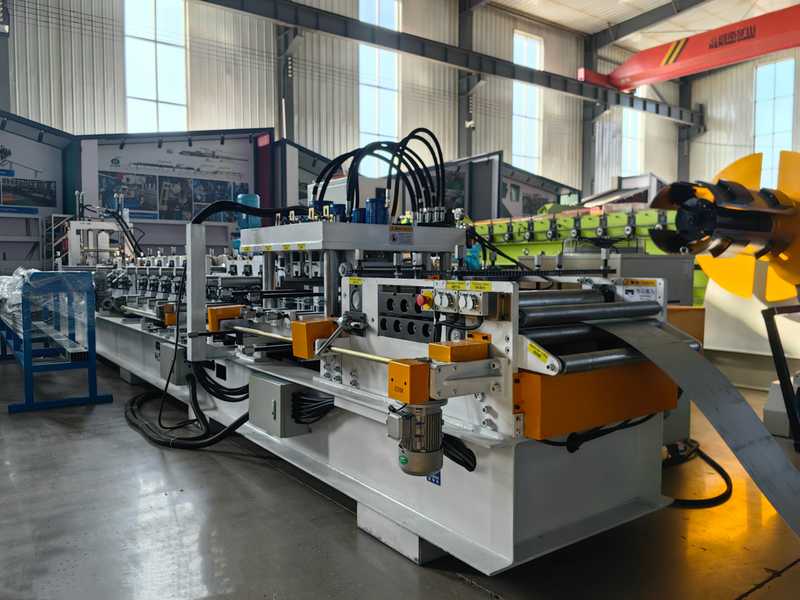

1.Automatic feeding: Roll up steel strips (such as galvanized steel strips) are loaded into passive loading racks, automatically unfolded, and fed into the main machine.
