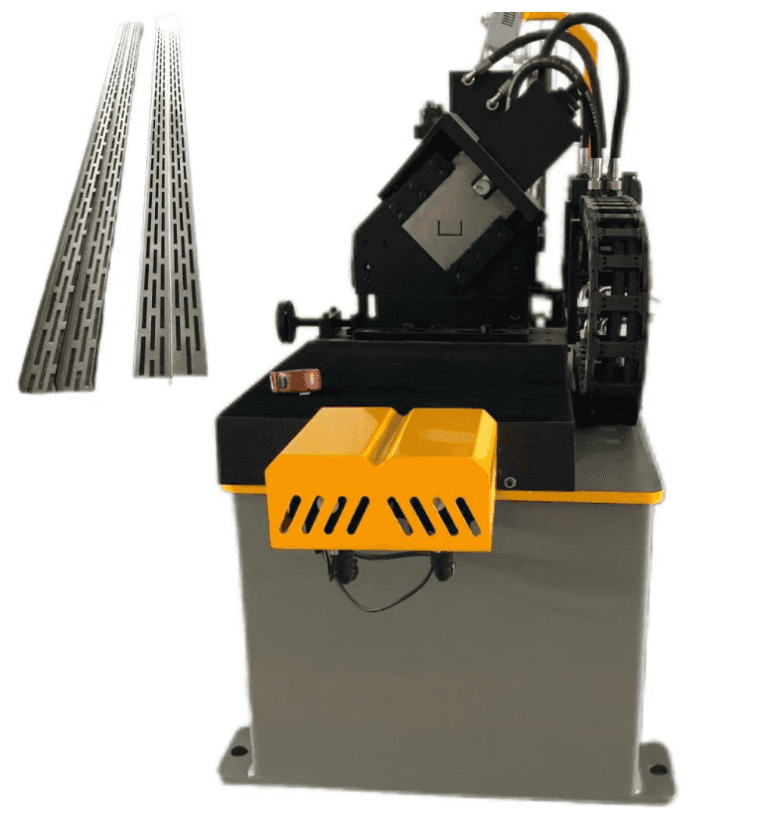

Metal U Track Profile with Holes Roll Forming Machine
Metal U Track Profile with Holes Roll Forming Machine
Product Description：
The metal u track profile with holes roll forming machine is mainly used for producing U-shaped punched keels, suitable for various construction and decoration projects. This type of machine usually has the characteristics of high efficiency and precision, and can meet the production of different specifications and needs of dragon bones. The Zhongtuo keel machine has a fully automatic computer control function, which can automatically roll process and form the keel, and automatically punch after forming. When the produced keel reaches the specified length, the machine will automatically cut off, greatly reducing manual operation and improving production efficiency and accuracy.
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.4—0.8 mm |
| 3 | Decoiler | 5T |
| 4 | Felt device | Available |
| 5 | Roller station | 10stations |
| 6 | Roller material | 45# steel |
| 7 | Shaft diameter | 40mm |
| 8 | Shaft material | 45# steel |
| 9 | Transmission | By gears |
| 10 | Motor power | 3kw |
| 11 | Machine frame | Vertical arch frame structure |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 3kw |
| 14 | Cutting blade material | GB-Cr12 |
| 15 | Cutting tolerance | +/1mm |
| 16 | Control system | Delta/ Siemens PLC |
Characteristics and application scenarios：
1.High degree of automation:Adopting fully automatic computer control, it can automatically calculate materials, punching positions, and cutting lengths, reducing manual intervention and improving production efficiency.
2.Multifunctionality:
This machine can not only produce U-shaped light steel keel, but also punch and cut according to demand, suitable for various building needs.
3.Widely applicable:

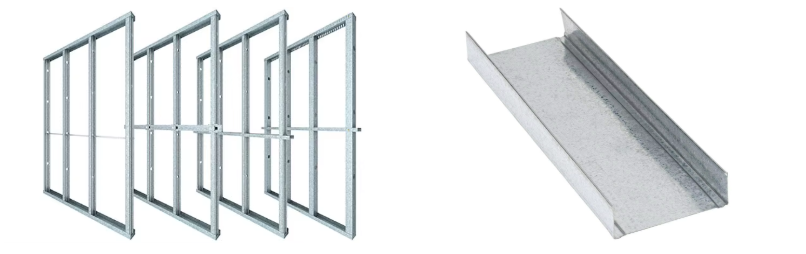

The produced keel is mostly used for light steel structure building purlins, with advantages such as light weight, high load-bearing capacity, earthquake resistance, dust prevention, sound insulation, sound absorption, and constant temperature. It is suitable for various industrial and civil buildings such as factories, warehouses, aircraft hangars, and sports halls.

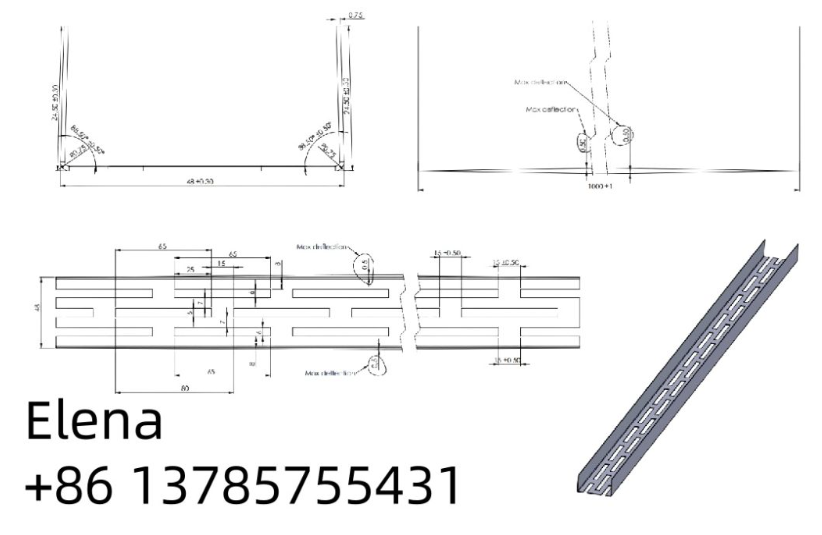

Profile drawing：

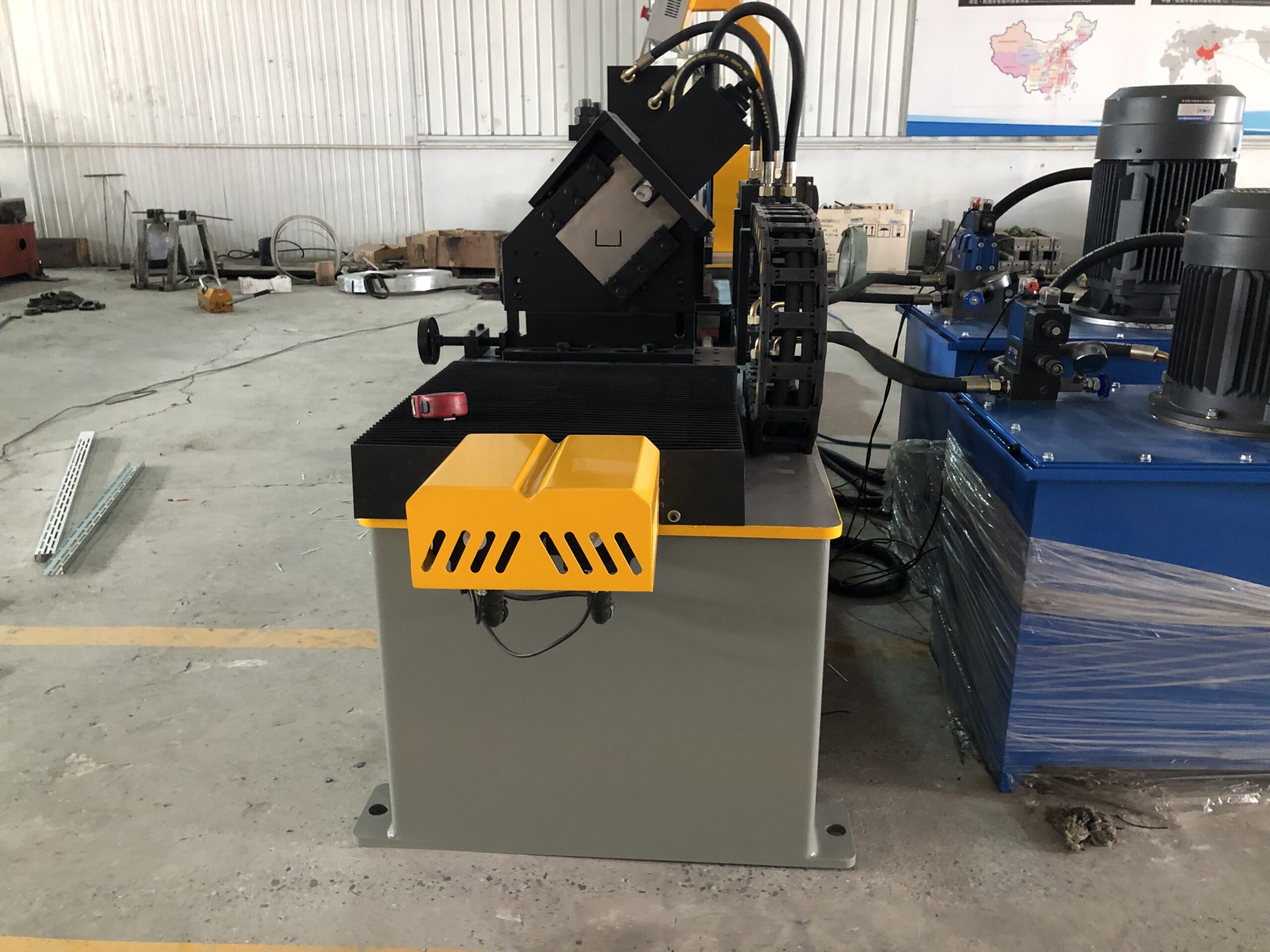

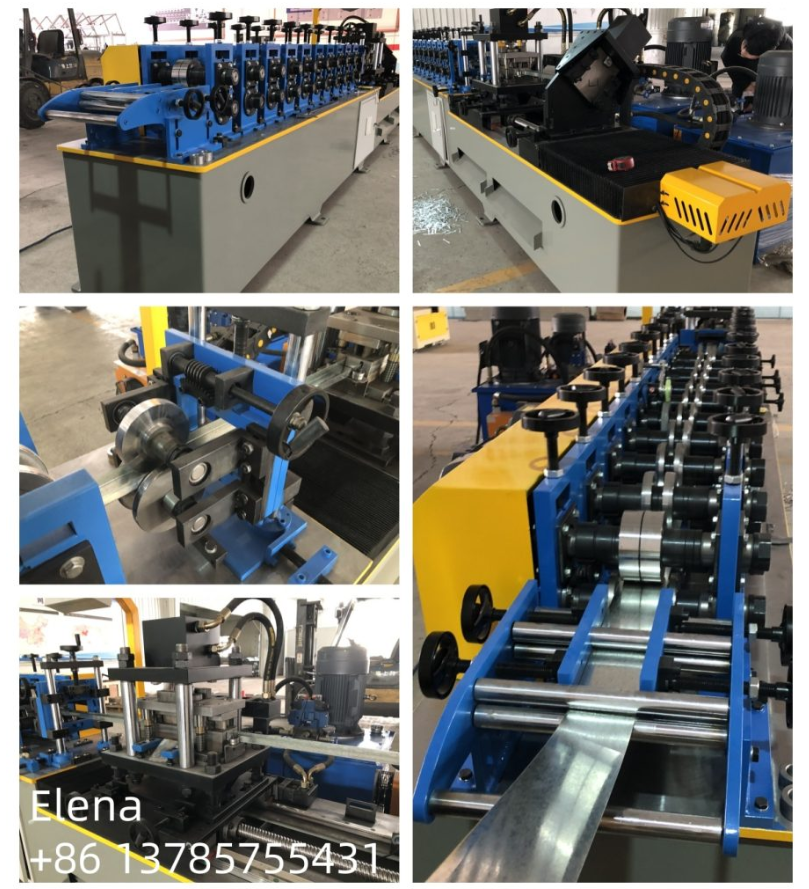

Product Components：
