Machine introduction

In the construction field, the waterproofing and aesthetics of the roof are crucial, and the quality and production efficiency of ridge tiles, as a key component of the roofing system, directly affect the quality of the entire building. The ridge tile machine came into being and has become an indispensable right-hand man for building material manufacturers.

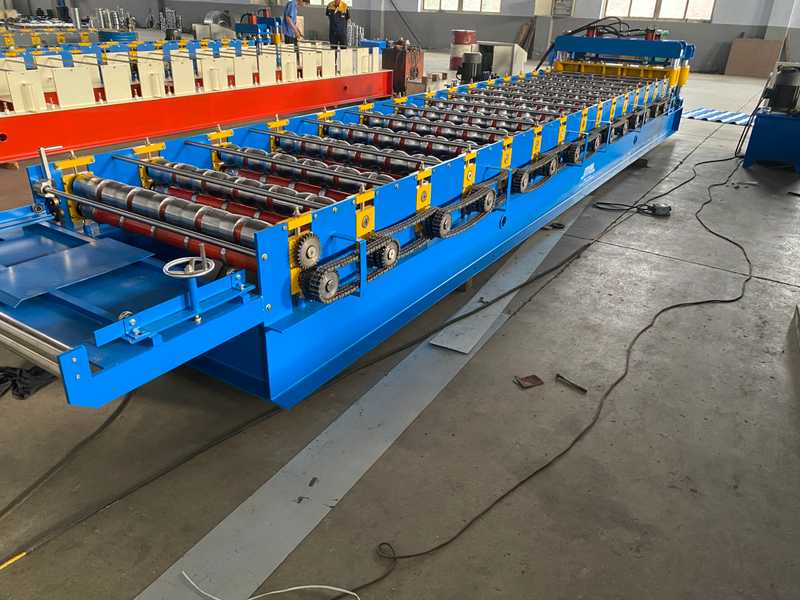

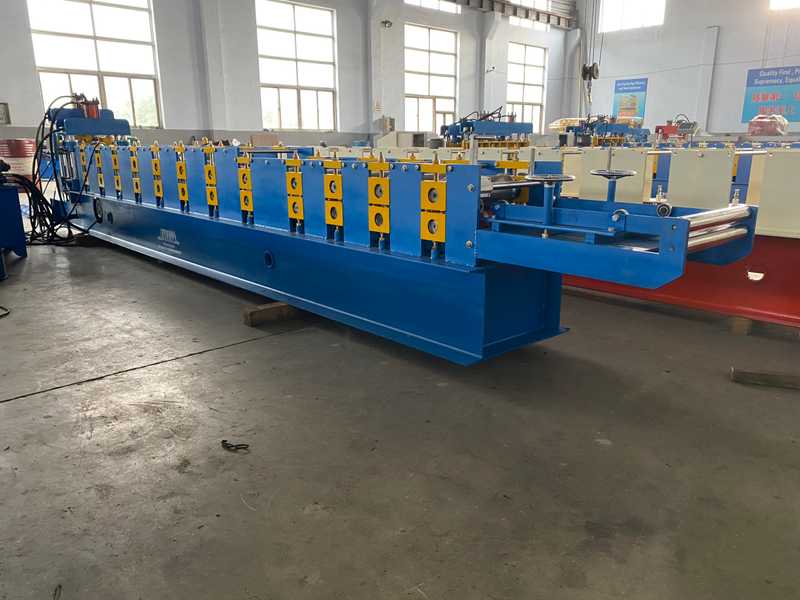

The ridge tile machine is a type of molding equipment specializing in the production of building roof ridge tiles, with various types to adapt to different raw materials and production needs. The common ones are metal ridge tile forming machines, which mainly process color steel plates, aluminum plates and other metal plates; There are also molding equipment for non-metallic materials such as cement and resin. Taking the metal ridge tile forming machine as an example, a complete set of units usually covers core components such as the forming host, hydraulic pump station, discharge frame, forming shears, control box, and discharge frame. The forming host is the "heart" of the equipment, mostly using advanced rolling technology, which can quickly and accurately bend and shape the metal sheet according to the set shape to produce ridge tiles of various specifications. The hydraulic pump station provides stable and powerful power for the entire unit to ensure efficient and continuous operation of the equipment.

Product Attributes :

The advantages are fully displayed

1.Efficient Production:
Advanced roll forming technology and reasonable mechanical structure greatly increase production speed. Some high-performance machines can produce speeds of up to 15 to 20 meters per minute, which can increase the output several times or even dozens of times compared to traditional handmade or inefficient equipment, and can quickly meet the supply needs of large-scale construction projects.
2.Excellent quality:
The equipment is equipped with high-precision molds and advanced automatic control systems. On the one hand, the mold is made of high-quality steel and specially treated, which is durable and can ensure the dimensional accuracy and surface flatness of ridge tile forming, with minimal deviation; On the other hand, the automated system monitors key parameters such as pressure, speed, and temperature in the production process in real time and automatically adjusts them to ensure that each ridge tile meets strict quality standards, with high product strength, strong weather resistance, and excellent waterproof and windproof performance.
3.Customization capabilities:

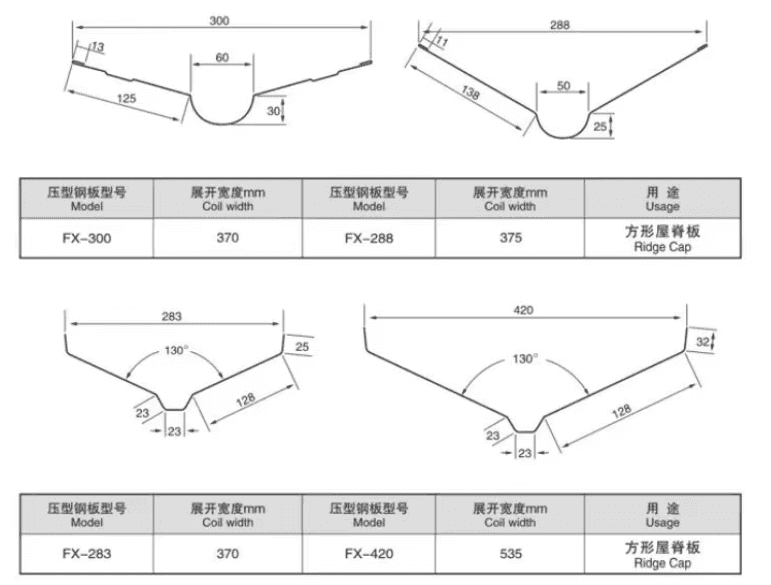

Different architectural styles have different requirements for the size and shape of ridge tiles. By flexibly adjusting the mold parameters and equipment operation programs, the ridge tile machine can easily produce ridge tiles in various shapes such as arc, triangle, and trapezoid, and can also customize special specifications according to customer needs, providing strong support for architectural designers to realize their ideas.
4.Cost savings:
High automation reduces dependence on a large amount of labor and reduces labor costs; At the same time, the efficient production process and precise material utilization rate avoid raw material waste, which significantly reduces production costs and improves the economic benefits of enterprises in the long run.

Wide application

The products produced by ridge tile machines are widely used in various construction scenarios. In industrial buildings, such as factories and warehouses, because of the high requirements for roof waterproofing and strength, the high-strength and waterproof ridge tiles produced by machines can effectively ensure the performance and life of the factory; Commercial complexes, office buildings and other large public buildings, pay attention to the appearance image, and the diversified and beautiful ridge tiles produced by the roof tile machine can enhance the overall beauty of the building while meeting the functional needs; In civil housing, especially in the construction of new rural areas and villas, various styles of ridge tiles add unique charm to the house and improve the quality of living.

Detailed explanation of the process

1.Loading link:
Load rolls of metal plates or prepared block non-metallic raw materials into the corresponding discharge rack. For example, metal sheets are supported by internal support cutting frames to ensure that the plates are stable and not offset during the feeding process.
2.Plate feeding calibration:
With the help of the feed guide platform, the strip or raw material is accurately introduced into the forming mainframe. During this process, the calibration device fine-tunes the material position to ensure that the material is in the optimal position in subsequent processing and ensures molding accuracy.
3.Roll forming (taking sheet metal as an example):
After the material enters the forming machine, it passes through multiple sets of rolls in turn. In the initial stage, the roll preliminarily shapes the plate and gradually presses out the general outline of the ridge tiles. As the plate moves forward, the subsequent fine rolls further refine the shape, and by accurately controlling the spacing and pressure between the rolls, the plate is gradually formed into a ridge tile shape that meets the design requirements. If the ridge tiles of non-metallic materials are produced, such as cement tiles, cement and other raw materials are formed in the mold through mold extrusion, vibration, etc.
4.Cutting After Forming:

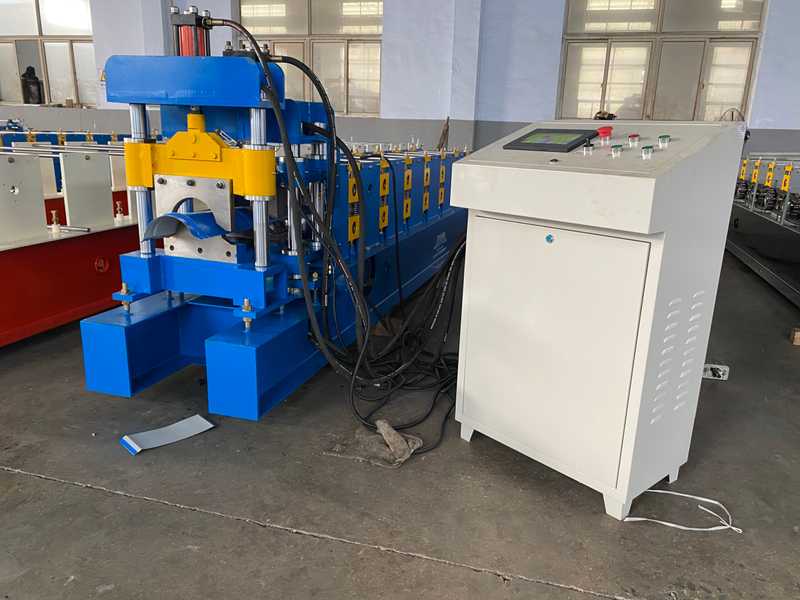

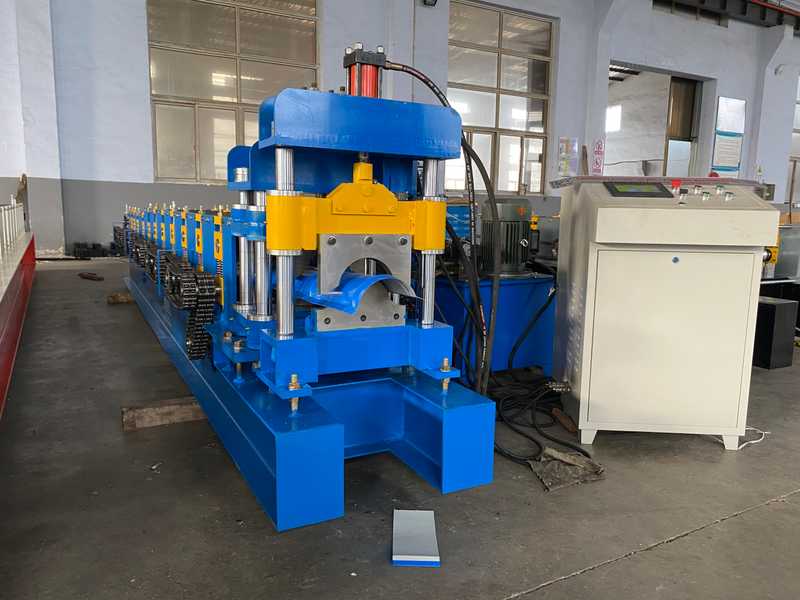

When the ridge shingles reach the set length, the forming shears are activated. The hydraulically driven forming shears cut through the billet quickly and precisely, ensuring a flat and dimensionally accurate cut. For metal ridge tiles, the shear blade is specially heat-treated, with high hardness and can withstand frequent high-intensity shearing work; For cement tiles, steel wire cutting and other methods may be used to ensure the cutting effect.
5.Finished product support plate:
The cut finished ridge tile is undertaken by the support device on the discharge frame, and the equipment is smoothly sent out, which is convenient for subsequent collection, handling and stacking. Some advanced equipment is also equipped with automatic counting and packaging devices to further improve production efficiency and management convenience.
With its efficient, high-quality, and flexible characteristics, ridge tile machines play a key role in the production of building materials and contribute to the development of the construction industry. Whether it's a large-scale construction project or a personalized house construction, the ridge tile machine can meet diverse production needs and become a reliable guarantee for efficient building roof manufacturing.
