Light Gauge Keel Stud Track c Channel Steel Roll Forming Machine Drywall Metal Stud CD UD UW CW Making Machine
In the current booming trend of the construction industry, tight project schedules and high quality requirements have become the norm. Efficient and precise production equipment is not only the key to improving construction efficiency, but also the core element to ensure project quality meets standards. The C-type keel machine, as an advanced building material production equipment that integrates intelligence and automation, is reshaping the production pattern of building materials with its excellent performance and wide applicability, and has become an important tool for many construction enterprises to enhance their competitiveness.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|

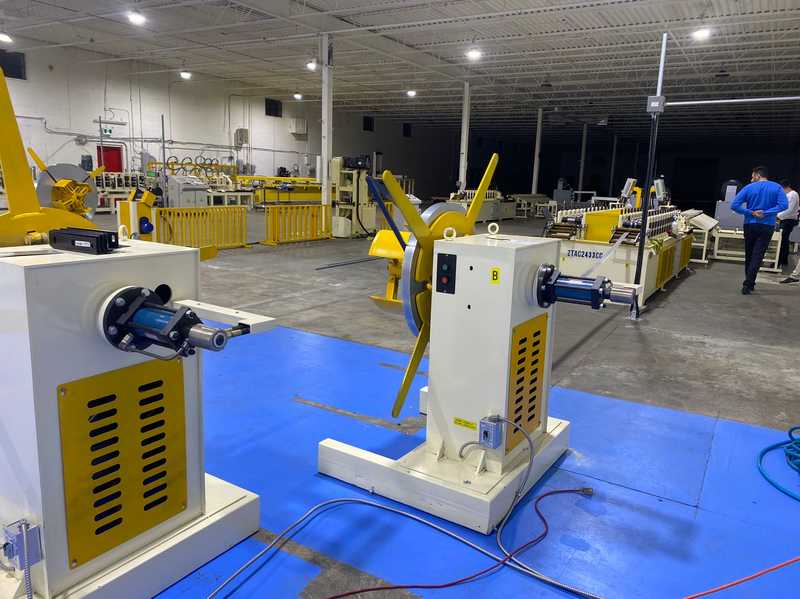

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|

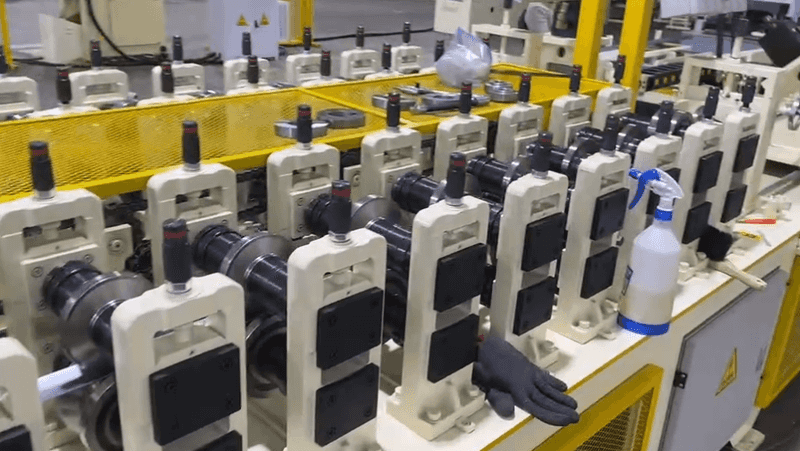

Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Widely applicable scenarios to meet diverse needs
The C-shaped keel, as an important support structure for ceiling or interior wall decoration, has a wide range of application scenarios. From factories, office buildings, offices, to large shopping centers, shopping malls, and supermarkets, C-shaped keels play an indispensable role in indoor building decoration. Its unique U-shaped metal design with protrusions facilitates the fixation of various lighting fixtures and other decorative materials, providing a stable and aesthetically pleasing support foundation for building spaces of different styles and functions. In the indoor ceiling project of commercial complexes, the keel produced by the C-type keel machine can ensure the stability of the ceiling structure and meet the designer's needs for diverse shapes; In the interior wall decoration of office buildings, C-shaped keels can provide reliable support for the walls, allowing wall decoration materials to firmly adhere and create a clean and comfortable office environment.
Excellent performance advantage, ensuring production quality
1.High precision production:
The C-type keel machine has the ability to accurately control the size of the board, the accuracy of the pressing plate, and the rolling speed. Advanced equipment technology ensures strict control of various parameters during the production process, effectively avoiding issues such as dimensional deviations and product deformation. Taking some high-quality C-type keel machines as an example, the size error of the C-type keel produced can be controlled within a very small range, providing high-quality material guarantee for construction and ensuring the stability and safety of the building structure.
2.High speed and stable operation:
Many C-type keel machines adopt advanced design and configuration to achieve high-speed and stable production. For example, some equipment designed with memorial archway structure is not only beautiful and stable, but also equipped with programmable PLC control system and high-performance inverter speed regulating device, which is simple and user-friendly. At the same time, the application of servo cutting technology enables a working speed of up to 70 meters per minute. While operating at high speed, it can ensure that cutting does not deform, greatly improving production efficiency and meeting the demand for rapid material supply in large-scale construction projects.
3.Strong equipment stability:
The C-type keel machine fully considers the stability of the equipment in the design and manufacturing process. Select high-quality materials and advanced manufacturing processes to ensure that the equipment can operate stably even under long-term and high-intensity working conditions. Some devices also have intelligent monitoring systems that can monitor the operating status of the equipment in real time, detect and solve potential problems in a timely manner, reduce the frequency of equipment failures, and provide strong support for the continuous production of enterprises.
With the support of innovative technology, leading the development of the industry
1.Automated production upgrade:
With the continuous advancement of technology, C-type keel machines are also constantly developing towards automation. Some advanced equipment has achieved full process automation from raw material feeding and discharging, to forming, cutting, palletizing, and packaging, without excessive manual intervention. This not only greatly improves production efficiency and reduces labor costs, but also reduces the impact of human factors on product quality, making the production process more precise and efficient.
2.Multi specification automatic control:
In order to meet the diverse needs of different users and projects, some C-type keel machines are designed with multi specification automatic control and variable section adjustment. By presetting programs on the operating interface, the device can instantly switch the production of different specifications of C-shaped keels, whether it is conventional changes in keel width, height, thickness, or special customized size requirements, it can accurately respond. This innovative design greatly enhances the versatility and flexibility of the equipment, providing the possibility for construction companies to undertake more diverse projects.
3.Integration of energy-saving and environmental protection concepts:
In today's increasingly environmentally conscious society, the C-type keel machine also actively responds to the call for energy-saving and environmental protection. Some devices have adopted energy-saving technologies in their design, optimized their energy consumption structure, and reduced energy consumption. At the same time, in the production process, by improving material utilization and reducing waste generation, green production has been achieved, which meets the requirements of sustainable development.
The C-type keel machine, with its wide range of application scenarios, excellent performance advantages, and innovative technology, has become an indispensable and efficient production tool in the construction industry. Whether it's a small renovation project or a large construction project, the C-type keel machine can provide you with high-quality and efficient solutions. Choosing Zhongtuo C-type keel machine means choosing high-quality partners in the construction industry to inject strong power into your construction career, help you stand out in the construction market, and create more brilliant achievements!
