Villa House Steel Frame C89 C100 C140 C150 Frame Cad LGS LGSF Machine
In the current booming development of the construction industry, the villa keel machine, as a highly innovative equipment, is gradually changing the pattern of villa construction. It has become a powerful assistant for many construction companies and teams due to its excellent performance, advanced technology, and wide range of applications.
Widely used in various fields of architecture：

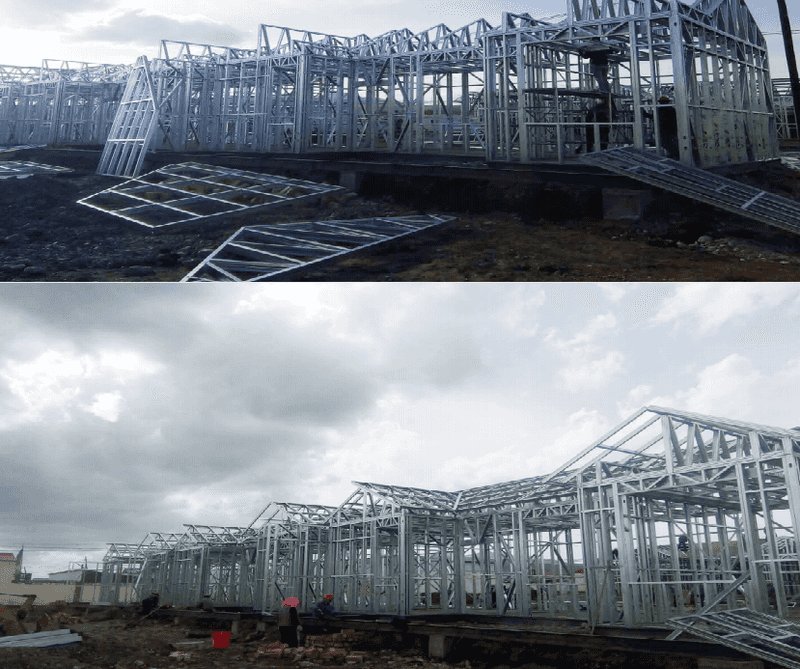

The villa keel machine has a wide range of applications in the field of light steel villa construction, such as private apartments and detached villas. In actual construction, its automatic generation of accurate drawings enables seamless integration between design and construction. The construction team only needs to scan the QR code of the drawings to obtain detailed information such as keel specifications and installation nodes, greatly improving construction efficiency, reducing error rates, and truly achieving fast and accurate construction processes. Whether building a romantic North American style single story wooden villa or showcasing elegant European classical style multi story brick and stone architecture, the villa keel machine can provide strong support for the smooth progress of construction projects with its powerful functions.
In addition to light steel villa construction, villa keel machines are also suitable for various building scenarios. In the construction of factory warehouses, their strong load-bearing capacity and adaptability can meet the requirements of different industrial production for building structures. In addition, in interior decoration projects such as partition walls and ceilings, the keel produced by villa keel machines has become the first choice for many decoration teams due to its excellent performance. It can be said that the villa keel machine, with its wide applicability, has injected strong impetus into the development of the steel structure building industry and promoted the continuous development of the construction industry.
Machine working principle and functional characteristics：

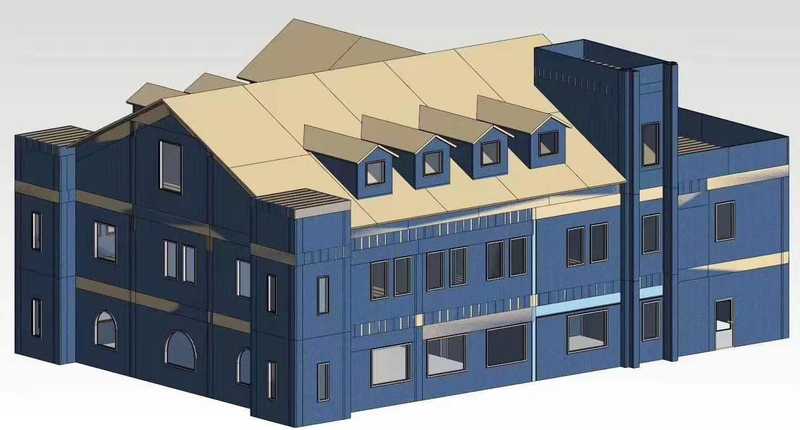

The working principle of the villa keel machine is not complicated, but it contains exquisite design. It reads the complete set of keel component structural data designed by professional design software, such as Vertex BD software, and converts it into actual production instructions. After obtaining data from the USB drive, the design structure of the wall, floor, and roof frame can be automatically generated. At the same time, the built-in engineering analysis and calculation function can also automatically calculate the structural bearing capacity, ensuring the scientific and safe design. Moreover, the software can automatically generate assembly methods and material lists for steel components, providing clear guidance for subsequent construction.

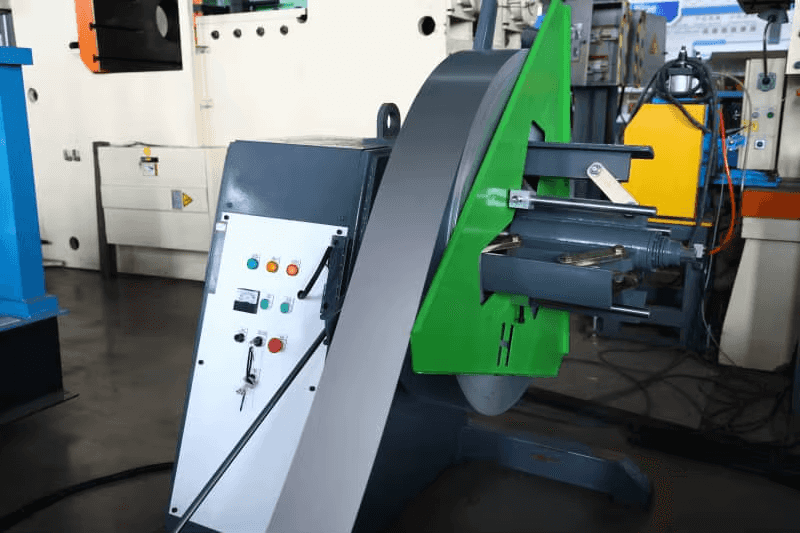

From the actual structure of the equipment, the feed guidance system plays a crucial role. The positioning plate can flexibly adjust the positions of both ends, accurately match the feeding width, and ensure that the material can smoothly enter the production process; The guide frame stably supports the material roll, ensuring a smooth and steady progressive conveying process; The feeding roller adopts an upper and lower circular roller design, greatly improving the smoothness of feeding, effectively reducing material jamming, and ensuring the continuity of production.
In the punching process, the villa keel machine demonstrates powerful functionality. Its punching holes are diverse and rich, covering common types such as rivet holes, shrinkage holes, and elliptical holes for pipe passage, to meet the connection and line laying needs in different construction scenarios. The punching hole diameter also has strict standards, such as 3.5mm rivet holes and 16.5mm threading holes, which can be accurately crafted. Moreover, the punching model will be customized with a set of standard equipment based on the bottom width data, ensuring punching accuracy and quality from the root.

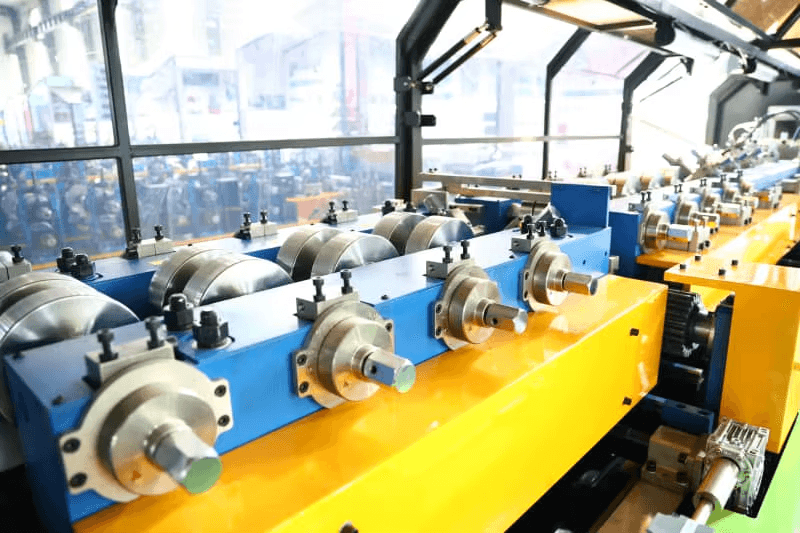

The roller shaft component is one of the core components to ensure the quality of keel forming. The spindle is usually made of 45 # round steel with a diameter of 80mm, which is solid and reliable, providing stable support for equipment operation. The roller undergoes a special heat treatment process, and after precision machining, it is plated with hard chromium and polished with a mirror finish. During the cold bending process of the steel material coil, it can minimize the wear on the surface of the material, making the formed keel surface smooth and the size precise, greatly improving the overall quality of the keel.
The design of the cut after molding is equally ingenious. It adopts a guiding mechanism with upper and lower cutting devices to ensure a smooth and deformation free cut. The cutting blade material is Cr12Mov, which has a cutting life of over 1 million times and greatly reduces the maintenance frequency of the equipment, improves production efficiency, and saves a lot of time and costs for the enterprise.
Technological advantages fully demonstrate excellence：

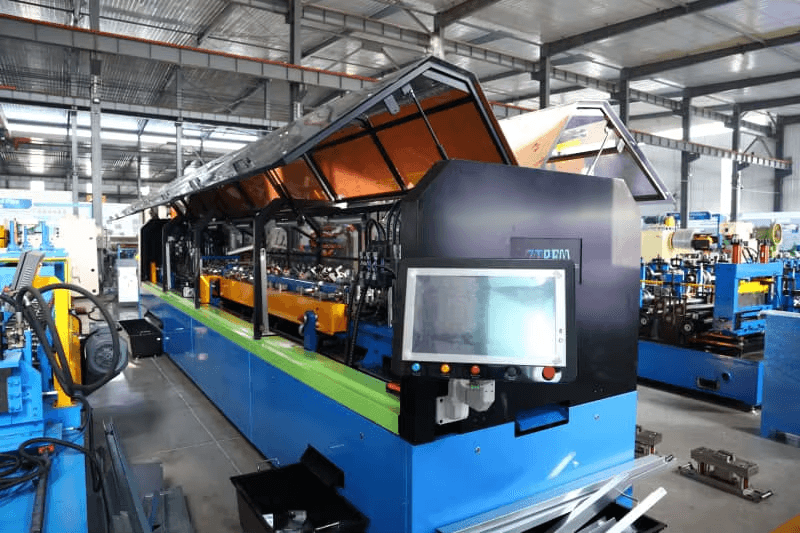

The advanced control system is a major technological highlight of the villa keel machine. Taking Shunzhu control system as an example, it is like the "smart brain" of the equipment, fully controlling the operation of the equipment. Through this system, the position of stamping holes and cutting positions can be accurately controlled, and the number of production batches and pieces can also be accurately controlled, achieving comprehensive and precise management of the production process. Operators only need to input relevant instructions on the operation interface, and the equipment can run efficiently according to the preset program, greatly reducing human operation errors and improving the accuracy and stability of production.

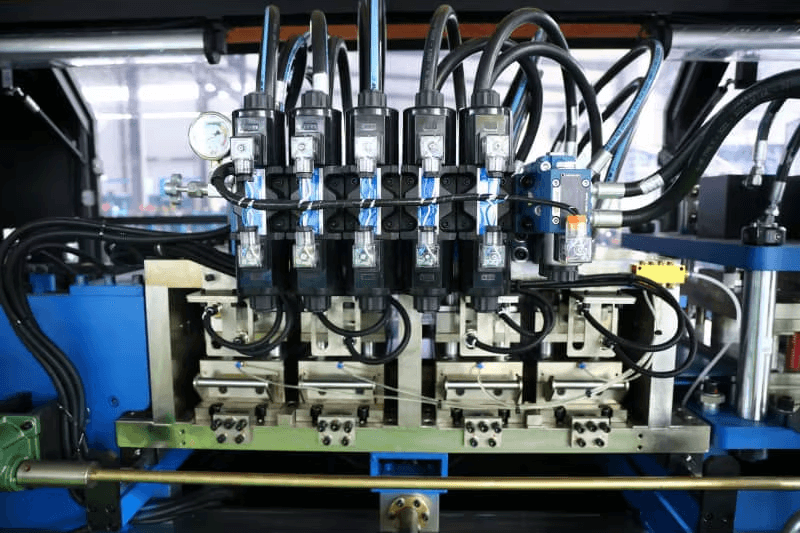

The hydraulic punching system equipped on some keel machines is highly praised for its extremely high precision in forming positions and dimensions after punching. This system can precisely control the punching process during operation, resulting in minimal dimensional errors in the formed keel. This not only shortens the subsequent installation time but also greatly improves the stability of the overall building structure. In some villa projects that require extremely high building quality, this high-precision hydraulic punching system plays an irreplaceable role.
The hydraulic cutting system performs cutting operations after punching and forming the equipment, using a single blade cutting method to ensure cutting quality. Compared with traditional cutting methods, this approach can make the incision smoother, reduce the workload of secondary processing of the incision, and further improve production efficiency. At the same time, some of the equipment's hydraulic systems also come with cooling devices, which effectively solve the problem of heating during the long-term production process of the equipment, ensuring that the equipment can operate continuously and stably, extending the service life of the equipment, and providing reliable guarantees for the long-term production of the enterprise.
Quality assurance ensures worry free for users：
Many villa keel machine manufacturers strictly control the quality of equipment, providing reliable quality assurance for users. Some manufacturers follow the high standard production quality specifications of Taiwan's cold bending forming machines and have established professional testing laboratories equipped with multifunctional testing machines such as Rockwell hardness testers, tachometers, roundness measuring instruments, coating thickness gauges, etc., to conduct strict inspections of the equipment from all directions and angles. From the selection of raw materials to the processing of components, and then to the assembly of the entire machine, every link is strictly controlled to ensure that the performance, process, accuracy, quality, and other aspects of the equipment reach the industry-leading level.
From a technical perspective, some manufacturers primarily rely on Taiwan's technology and possess cost-effective equipment production processes. In the production process of the entire machine, from designing drawings to customizing solutions, to equipment after-sales, all are handled by the same experienced technician team. With exquisite technology and rich experience, we are able to tailor the most suitable equipment solutions for customers based on their specific needs, ensuring that the equipment is highly compatible with their needs. And, we also provide 7 days x 24 hours of technical support and engineer services, so that customers can receive professional help and guidance in a timely manner no matter what problems they encounter during the use of the equipment. When equipment malfunctions, engineers can quickly respond and rush to the site for repairs, minimizing equipment downtime and providing a solid support for stable operation and efficient production, allowing users to have no worries.
