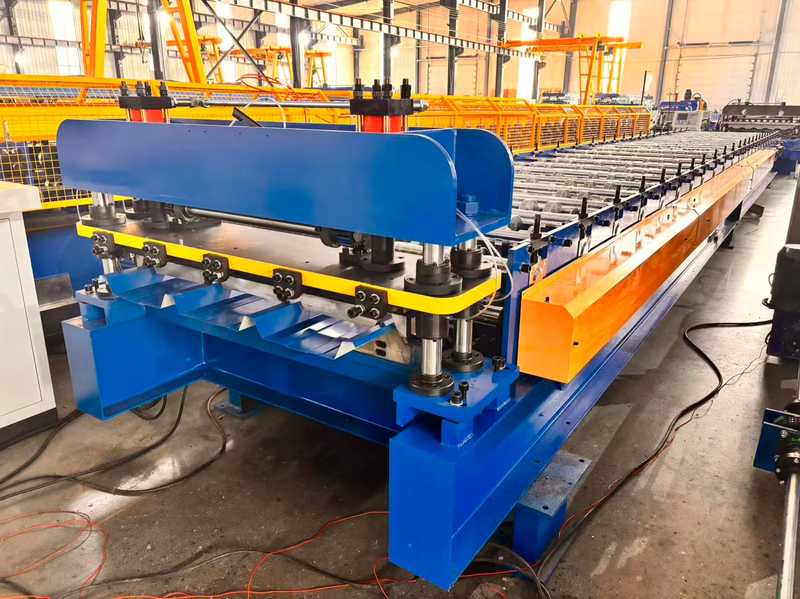

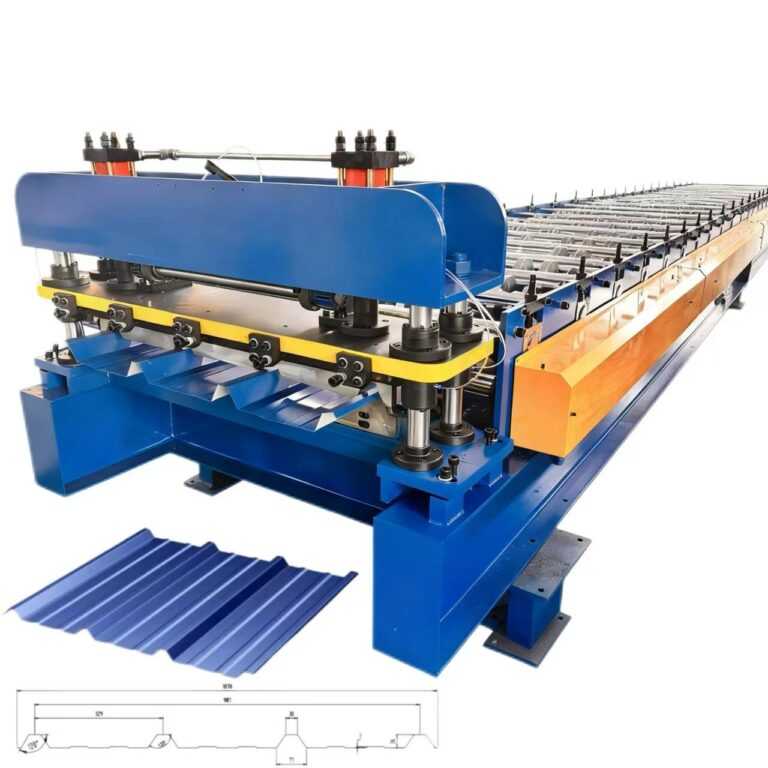

Tr4 Trapezoidal Sheet Metal Roof Roll Forming Machine
In construction projects such as industrial plants, logistics parks, and large venues, trapezoidal roof tiles serve as the core enclosure components, and their supply efficiency directly determines the progress of project topping out. The Tr4 Trapezoidal Sheet Metal Roof Roll Forming Machine breaks through the bottleneck of traditional production with disruptive production capacity, allowing batch production to be "accelerated without price increase", helping you seize short lead time orders, reduce comprehensive costs, and win market competitiveness!
Choose a high-performance trapezoidal roof tile machine to unlock three core benefits
✅ Upgrade order taking ability:
easily undertake large-scale and short-term projects, expand business boundaries;
✅ Project cost reduction:
Shorten production cycle, reduce capital occupation, and double decrease unit energy consumption and labor costs;
✅ Improved delivery reputation:
timely and sufficient supply, avoiding disputes over project delays, and establishing a reliable image for the enterprise.

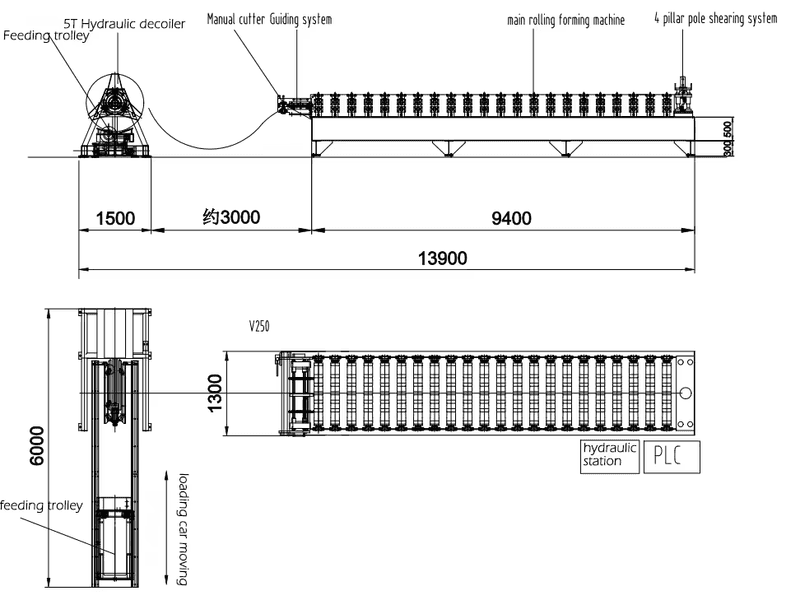

Production process:

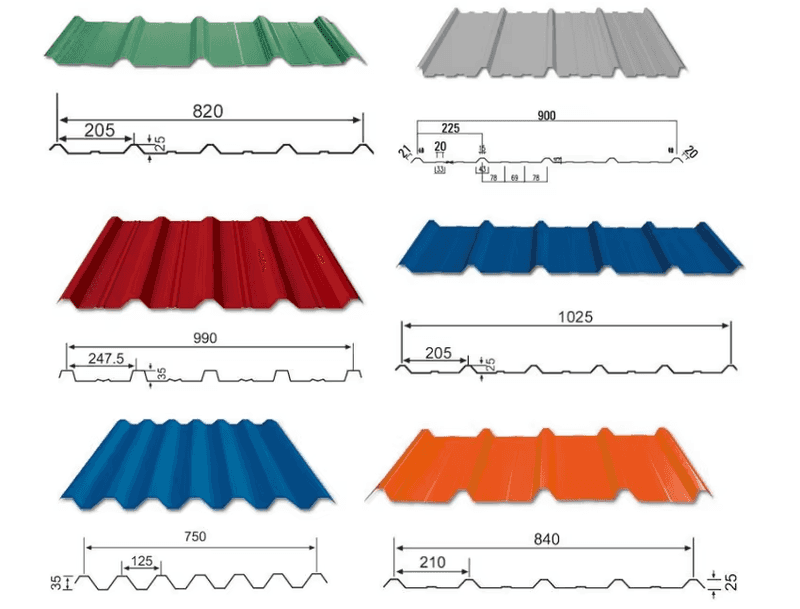

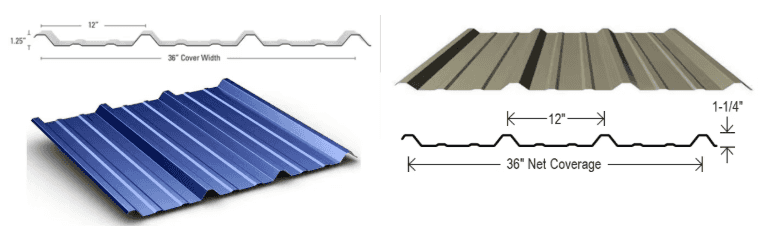

Pattern diagram:
Product Attributes：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
will give you as free
|
||
|
3.Main body
|
Roller station
|
22rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|

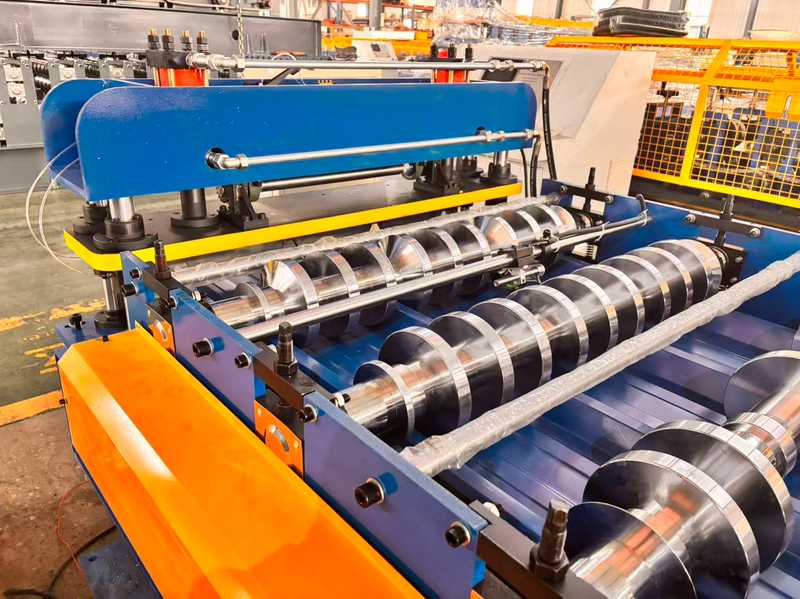

Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*1600*1600mm(customized)
|
|||
|
Weight
|
8.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
4KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||
🔥 Rapid molding, efficient production creation
Equipped with a high-speed precision transmission system, the roller shaft speed doubles, and the maximum output of trapezoidal roof tiles is 15 meters per minute. It is compatible with all models and can be installed and used in one molding process, saving time and improving efficiency.
🔥 Production capacity exceeds 10000, delivery speed accelerates
Optimizing processes reduces time consumption, with a 24-hour production capacity easily exceeding 8000 square meters and a peak of 10000 square meters, improving efficiency by over 100% compared to traditional equipment, and shortening the delivery cycle of 50000 square meter projects by nearly half.
🔥 Stable operation, energy-saving and consumption reducing
The heavy-duty body is equipped with wear-resistant rollers, intelligent overload protection, and automatic lubrication to ensure continuous production. Motor power optimization reduces unit energy consumption by 30% and lowers costs by 0.8 yuan per square meter.
🔥 Intelligent control, reducing costs and increasing efficiency
The 7-inch touch PLC system supports parameter preset, one click switching, and quick changeover in 15 minutes. One hour of training is enough to get started, and skilled workers can control 2-3 devices at the same time, saving 40% of labor costs.
