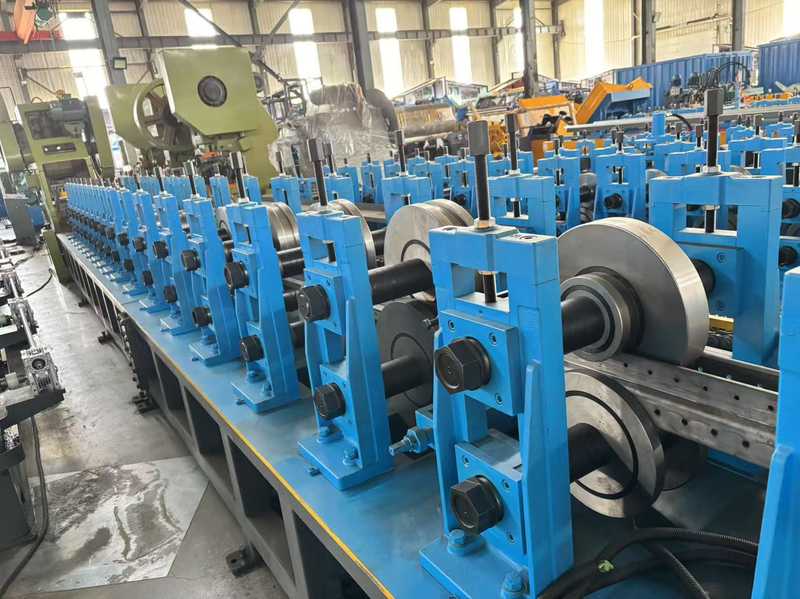

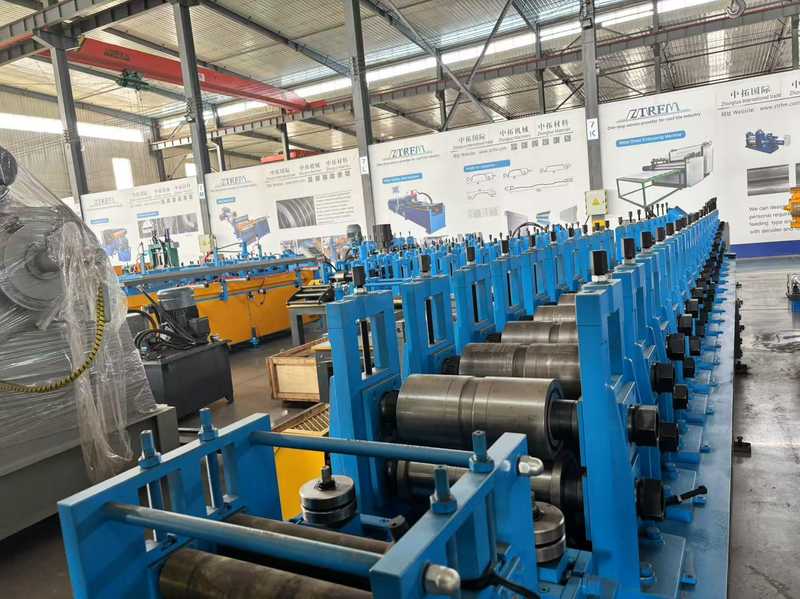

Good Quality Shelves Making Machine Storage Rack Rolling Forming Machine

Shelf column beam machine is an industrial equipment specializing in the production of heavy-duty beam type shelf core components (columns and beams), and the shelving system manufactured by it has the core advantages of stable structure, strong bearing capacity and high space utilization, and is widely used in the field of modern warehousing and logistics. Through modular design, high bearing capacity structure and flexible adaptability, the shelf column beam machine has become the core equipment of modern high-density warehousing, especially suitable for heavy cargo storage and high-frequency warehousing scenarios, significantly reducing logistics costs and improving operational safety.

Core technical advantages：

1.High-strength structural design

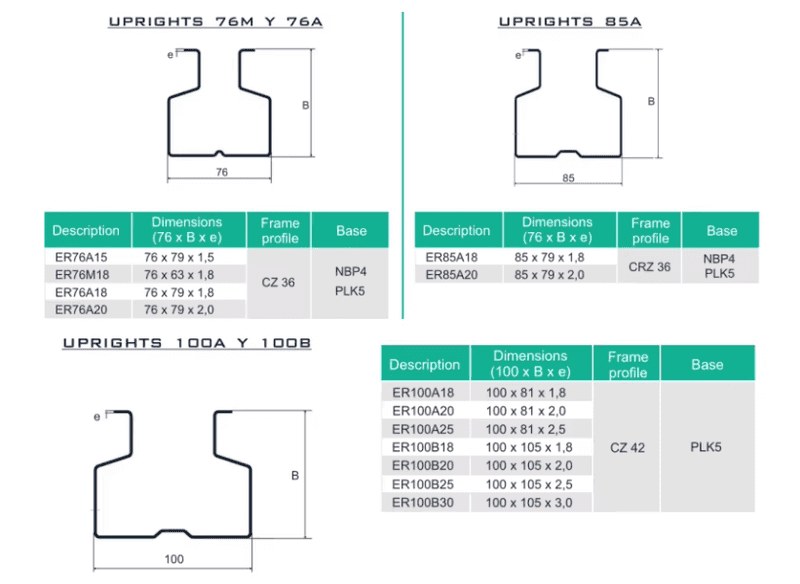

Column: Roll forming of high-quality cold-rolled steel plate, cross-sectional design includes 11-13 faces, improving moment of inertia and bending performance; Double-row diamond-shaped holes (pitch 75mm/50mm) on the side support flexible adjustment of layer height.

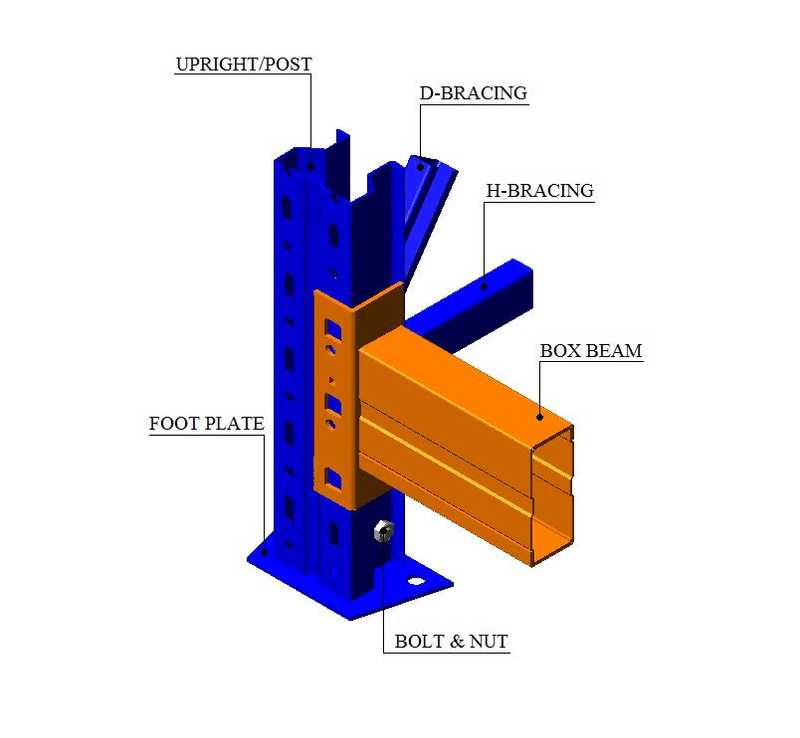

Beam: It is composed of C-type or P-type hug welding beam and column card welding, locked by safety pins and columns, and is not easy to fall off when stressed, and the single-layer design bearing capacity can reach 5000kg.

2.Modularity and flexibility
The components are combined by bolt insertion, no welding is required, and it supports rapid disassembly and expansion; The height of the beam can be freely adjusted according to the step distance of 75mm/50mm to adapt to different cargo sizes.
Accessories such as laminates, meshes, and anti-collision bars can be added to expand storage functions (such as oil drum racks, mold racks).

3.Economy & Durability
The material loss is low, the surface is galvanized or electrostatic spraying, anti-rust and anti-corrosion, and the service life is more than 10 years.
Daily maintenance only needs to check the bolt tightening status, and the maintenance cost is low.

Application Scenarios:

1.Industrial warehousing
Manufacturing raw material warehouse: storage of heavy machinery parts, metal plates, etc., with a carrying demand of 1–5 tons/layer.
Automotive: Storage of large components such as tires and engine parts for efficient access by forklifts.

2.Logistics & Supply Chain
E-commerce logistics center: Standardized storage with pallets to improve sorting efficiency.
Cold chain warehouse: adapt to the low temperature environment to ensure the safe storage of food and pharmaceutical goods.

3.Commercial & Retail
Large supermarket warehouse: store goods in batches to support high-frequency replenishment needs.
Wholesale market: flexible layout of shelf aisles to optimize space utilization.

Machine features:

1.. Efficient production and rapid response to demand

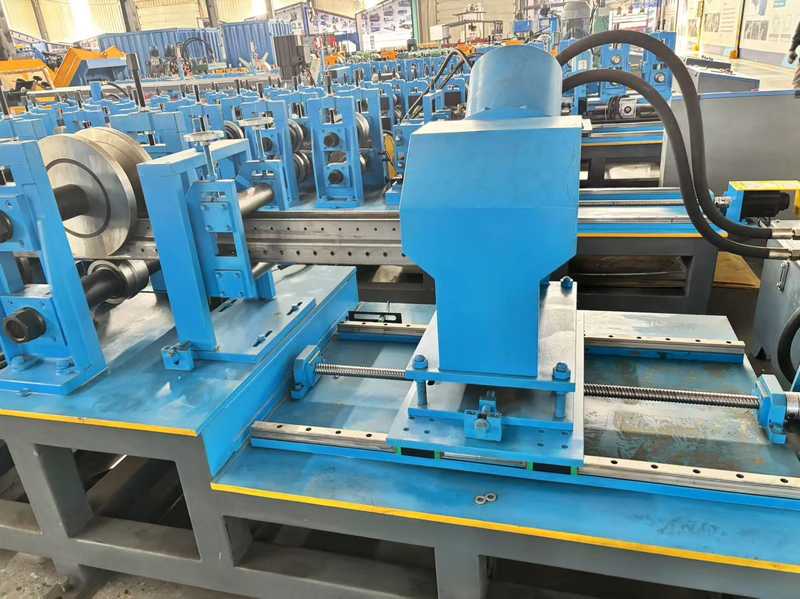

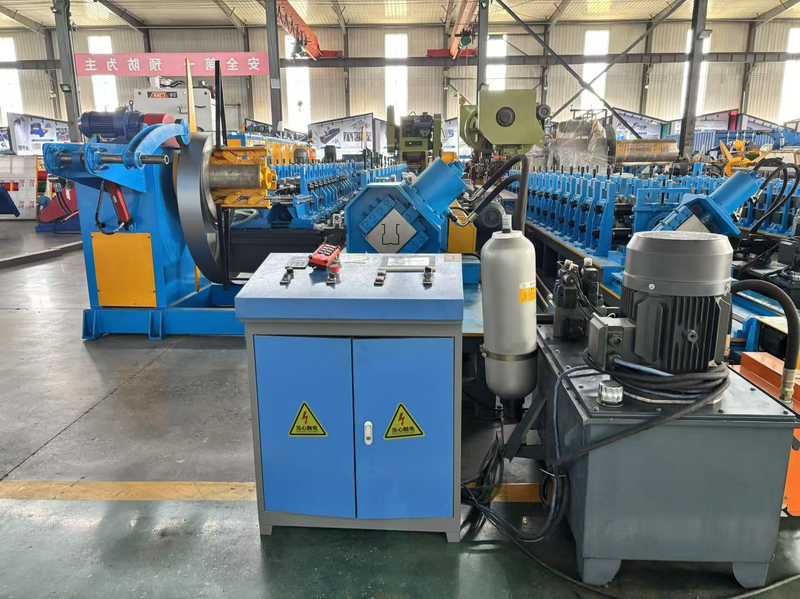

The automated production process covers the whole process of strip feeding, leveling, punching, cold forming and cutting, without too much manual intervention. With a daily production capacity of up to 150 tons, it can efficiently complete production tasks whether it is a small order for a small business or a large-scale purchase in a large logistics center, helping enterprises quickly respond to market demand and improve market competitiveness.
2. Strong flexible production capacity to adapt to diverse needs
The production speed can be flexibly adjusted in the range of 0-10 m/min (customizable), which can increase the speed and efficiency when producing small parts, and reduce the speed to ensure quality when producing large or high-precision parts. Moreover, the equipment can process columns (55x40-120x60mm) and beams (50x30-80x50mm) of various cross-sectional sizes, and can also produce special-shaped profiles such as brackets and hugging beams, which can fully meet the production needs of storage shelves of different types and scales.
3.energy conservation and environmental protection, in line with the development trend
The cold-roll forming process is adopted, and there is no need to heat the material, which avoids the material loss caused by heating. Compared with the hot rolling process, the energy consumption is only 60%, and the power consumption per ton is reduced by 40%, which not only reduces the production cost, but also conforms to the development trend of energy conservation and environmental protection, and brings long-term economic benefits to the enterprise.
4.reduce production costs and improve efficiency
Precise processing control greatly reduces waste generation and reduces raw material costs; Efficient production and low energy consumption reduce operating costs; The frame design is reasonable, each frame is evenly stressed, the mechanical loss is low, and the operator can quickly replace the mold, reduce the downtime loss caused by equipment adjustment, further improve the production efficiency, and reduce the idle cost of the equipment.

Product Attributes ：

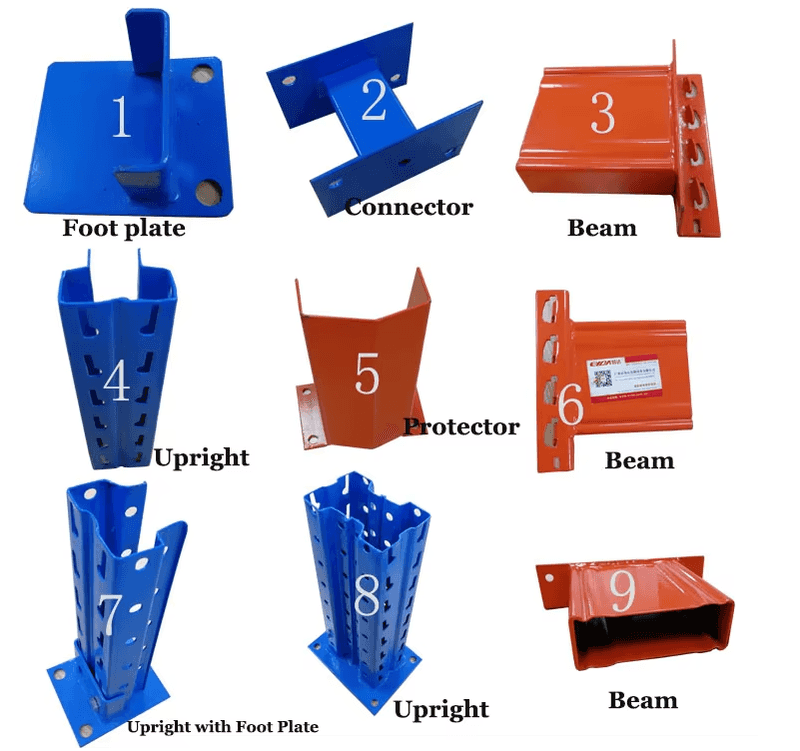

Products Display：
