Double Layer Trapezoidal Steel Roof Tile Cold Roll Forming Machine

Product Introduction:

The double-layer trapezoidal roof tile machine is a specialized mechanical equipment used for producing double-layer trapezoidal roof tiles, playing a key role in the field of building material manufacturing. Its working principle is to continuously cold bend metal sheets (commonly color coated steel plates, galvanized steel plates, etc.) through a series of precision designed rollers. This device can produce roof tiles with a trapezoidal structure of upper and lower layers at once, greatly improving production efficiency. ​

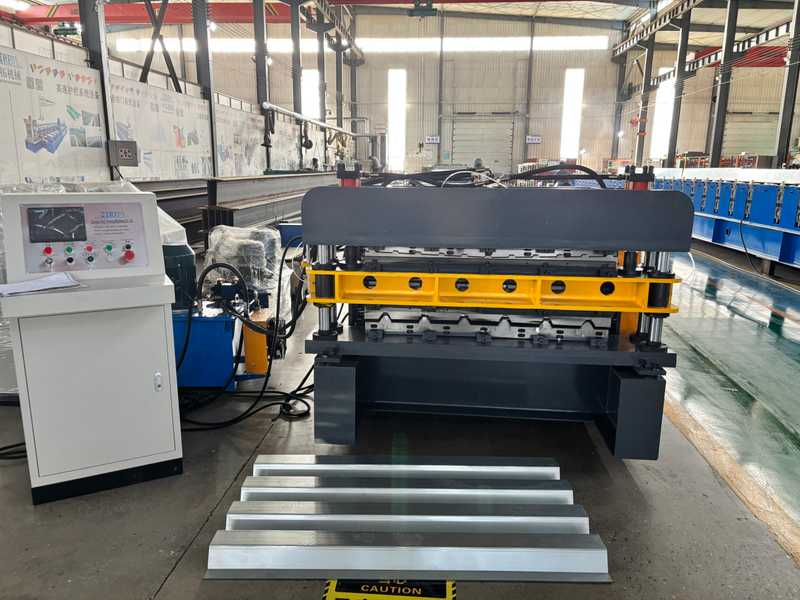

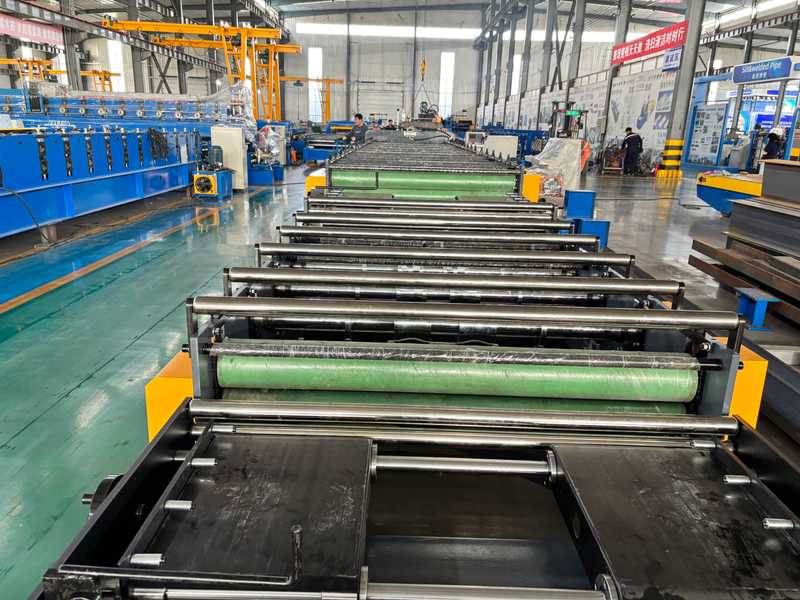

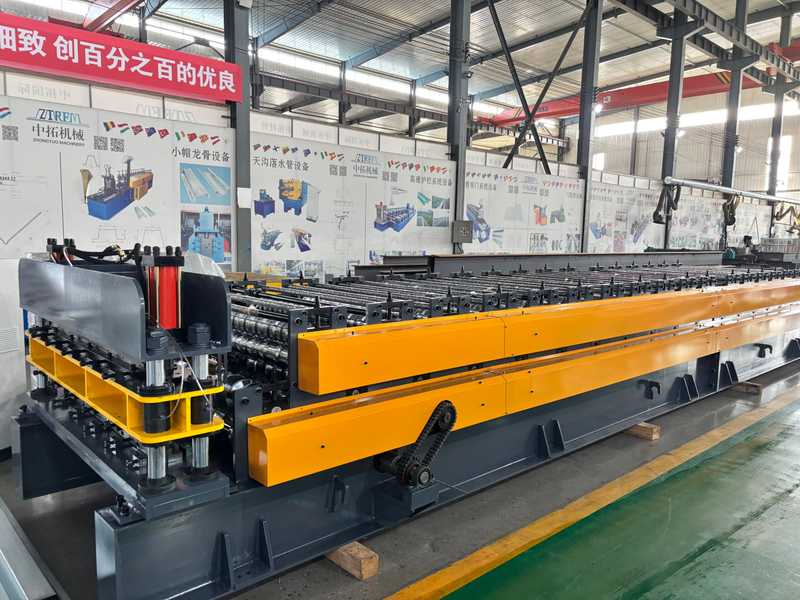

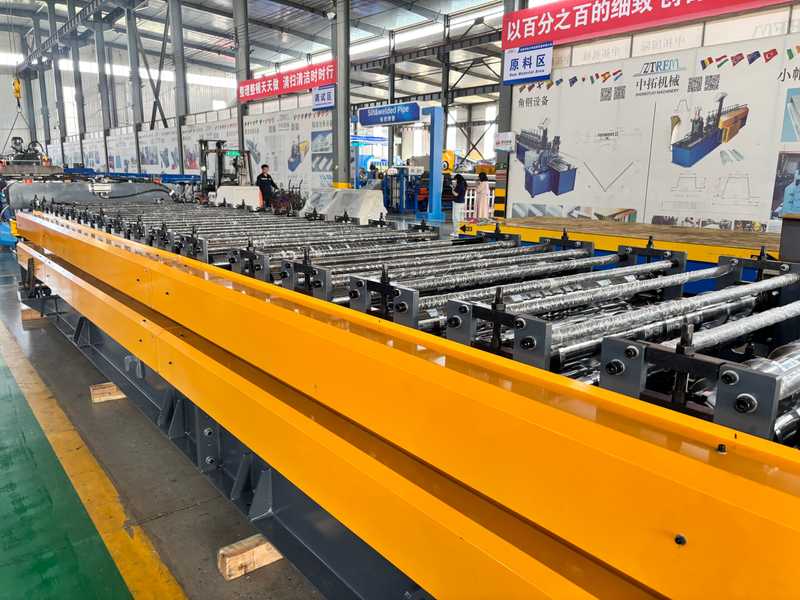

From the perspective of structural composition, the double-layer trapezoidal roof tile machine mainly includes core components such as uncoiler, forming host, shearing device, hydraulic system, and electrical control system. The uncoiler is responsible for gradually unfolding the rolled metal sheet, providing raw materials for the subsequent forming process; The forming host is the "heart" of the equipment, with multiple sets of rollers inside accurately pressing the sheet into a double-layer trapezoidal shape according to specific design parameters; The cutting device cuts the formed tile according to the set length to meet the size requirements of different construction projects; The hydraulic system provides power support for various actions of the equipment, ensuring smooth and efficient operation; The electronic control system intelligently controls the entire production process, and operators can easily set production parameters and monitor equipment operation status through the control panel, achieving automated production.

Product Attributes ：

 Equipment features:

1. Efficient production, cost reduction and efficiency improvement
The dual use of one machine is a significant advantage of the double-layer trapezoidal roof tile machine. One device can simultaneously produce two different specifications or the same specification but different colors of double-layer trapezoidal tiles. Compared to two single-layer devices, it not only saves equipment purchase costs, but also reduces land area and labor operation costs. For example, in the case of limited factory space, using a double-layer trapezoidal roof tile machine can greatly improve site utilization and reduce maintenance costs caused by multiple devices. ​
Its production speed is fast, generally able to produce tile materials ranging from several meters to tens of meters per minute, depending on the equipment model and plate thickness. Efficient production capacity can meet the rapid demand for roof tiles in large-scale construction projects, shorten the construction period, and thereby reduce overall costs. ​
2. Diverse products and flexible customization
By adjusting the parameters of the rolling mill and equipment settings, the equipment can produce double-layer trapezoidal tiles with various wave heights, different spacing, and different plate thicknesses. This high degree of flexibility allows the product to be widely used in various types of buildings, whether it is industrial plants with high requirements for insulation and load-bearing, or residential buildings that focus on aesthetics and drainage performance, providing suitable roof tile solutions. ​
For example, in the construction of agricultural greenhouses, double-layer trapezoidal tiles with suitable wave height and board strength can be produced according to the span of the greenhouse and local climate conditions, which can ensure good drainage effect, effectively resist wind and snow loads, and protect the growth environment of crops. ​
3. Stable structure and excellent quality
The equipment body is usually welded with high-strength steel, and the middle plate structure is optimized to ensure stability and resistance to deformation during high-speed and long-term production processes. The rolling mill is made of high-quality alloy steel material and undergoes special heat treatment and surface treatment (such as chrome plating), which has high hardness, high wear resistance, and good surface smoothness. ​
This makes the surface of the produced double-layer trapezoidal tiles smooth, scratch free, wrinkle free, with high dimensional accuracy and natural and smooth transitions between peaks and valleys. Not only does it have a beautiful appearance, but it can also better achieve waterproof and drainage functions in practical use, enhancing the overall stability and service life of the roof. ​
4. Easy to operate and maintain
The double-layer trapezoidal roof tile machine is equipped with an advanced electronic control system, and the operation interface is simple and clear. The operator can proficiently master the operation method of the equipment after simple training. The automation level of the equipment is high, and the entire production process from sheet unwinding, forming to cutting can be precisely controlled through an electronic control system, greatly reducing the intensity of manual operation and error rate. ​

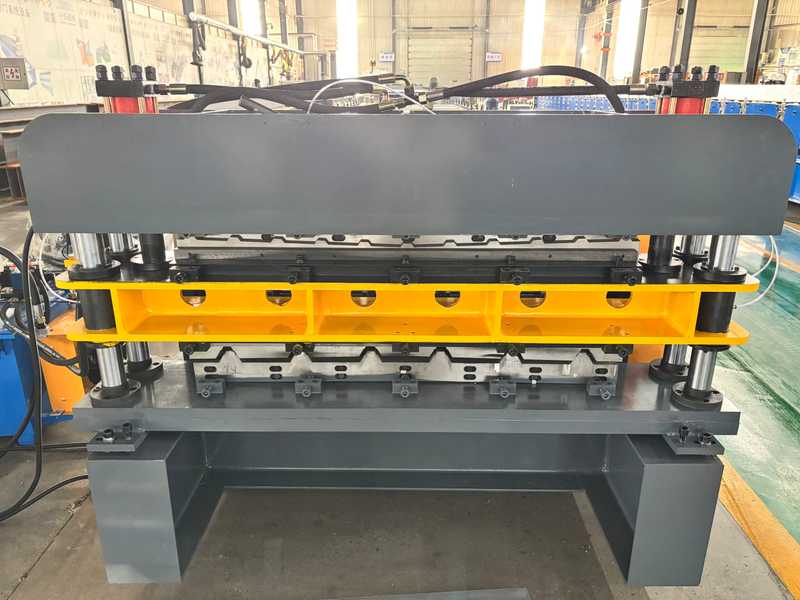

In terms of maintenance, the layout of various components of the equipment is reasonable, easy to disassemble and install. Key components such as bearings and gears are often designed with standardization and modularity for easy replacement. Daily maintenance only requires regular cleaning and lubrication of the equipment, checking the connection and wear of each component to ensure normal operation and low maintenance costs.

Applications:

1. Industrial construction field
（1）workshop:
Industrial plants usually have a large roof area and high requirements for the load-bearing, waterproof, and insulation performance of roof tiles. The double-layer trapezoidal roof tile, with its double-layer structure, has better strength and stability, and can withstand large loads such as snow accumulation and equipment vibration. At the same time, insulation materials can be filled in the middle of the double-layer structure to improve the insulation performance of the factory and reduce energy consumption. In some special industries such as chemical and food plants, metal sheets with anti-corrosion properties can also be used to produce corrosion-resistant roof tiles through a double-layer trapezoidal roof tile machine, meeting the needs of use in special environments. ​
（2）Warehouse:
The warehouse has strict requirements for waterproofing and drainage performance of the roof to prevent goods from being damaged by moisture. The unique trapezoidal structure design of the double-layer trapezoidal tile has a reasonable drainage slope, allowing rainwater to be quickly discharged and reducing the risk of water accumulation. And its good sealing can effectively block rainwater infiltration and protect the safety of goods in the warehouse. In addition, the equipment can produce roof tile specifications that are suitable for different spans and heights of the warehouse, ensuring the stability of the roof structure. ​
2. Civil construction field
（1）Residential:
Whether it is a villa, multi story residential building, or high-rise residential building, double-layer trapezoidal roof tiles can demonstrate unique advantages. In villa architecture, its beautiful appearance and diverse color choices can blend with the overall style of the villa, enhancing the overall beauty of the building. Meanwhile, the excellent waterproof and thermal insulation performance provides residents with a comfortable living environment. In multi story and high-rise residential buildings, the high strength and stability of double-layer trapezoidal tiles can adapt to different building structures and climate conditions, ensuring the safety and reliability of the roof. ​
（2）Public buildings such as schools and hospitals:
This type of building has a high pedestrian flow and requires high safety and durability of the building. The products produced by the double-layer trapezoidal roof tile machine have a longer service life, reducing the frequency of later maintenance and replacement, and lowering maintenance costs. Its excellent fire resistance (depending on the selected metal sheet) also provides a guarantee for the safety of densely populated areas. In addition, the equipment can produce roof tiles of different specifications and colors according to the design requirements of public buildings, meeting the personalized needs of building appearance. ​
3. In the field of agricultural facilities
（1）Agricultural greenhouse:
Agricultural greenhouses require roof materials with good transparency (coated transparent panels can be selected), insulation, and waterproofing. The double-layer trapezoidal roof tile machine can produce roof tiles with special coatings, which can ensure a certain degree of transparency and meet the lighting needs of crops. It can also achieve good thermal insulation effect by filling the air layer or insulation material in the middle of the double-layer structure, and regulate the temperature inside the greenhouse. At the same time, its waterproof performance ensures that the growth of crops will not be affected by rainwater leakage inside the greenhouse, creating a stable environment for agricultural production. ​
（2）Breeding house:
In addition to waterproofing and insulation, the requirements for the roof of the breeding house also need to consider corrosion resistance to resist corrosive gases such as ammonia generated during the breeding process. The double-layer trapezoidal roof tile machine can use corrosion-resistant metal sheets to produce roof tiles suitable for breeding houses, effectively extending the service life of the roof and ensuring a healthy growth environment for animals in the breeding house.
